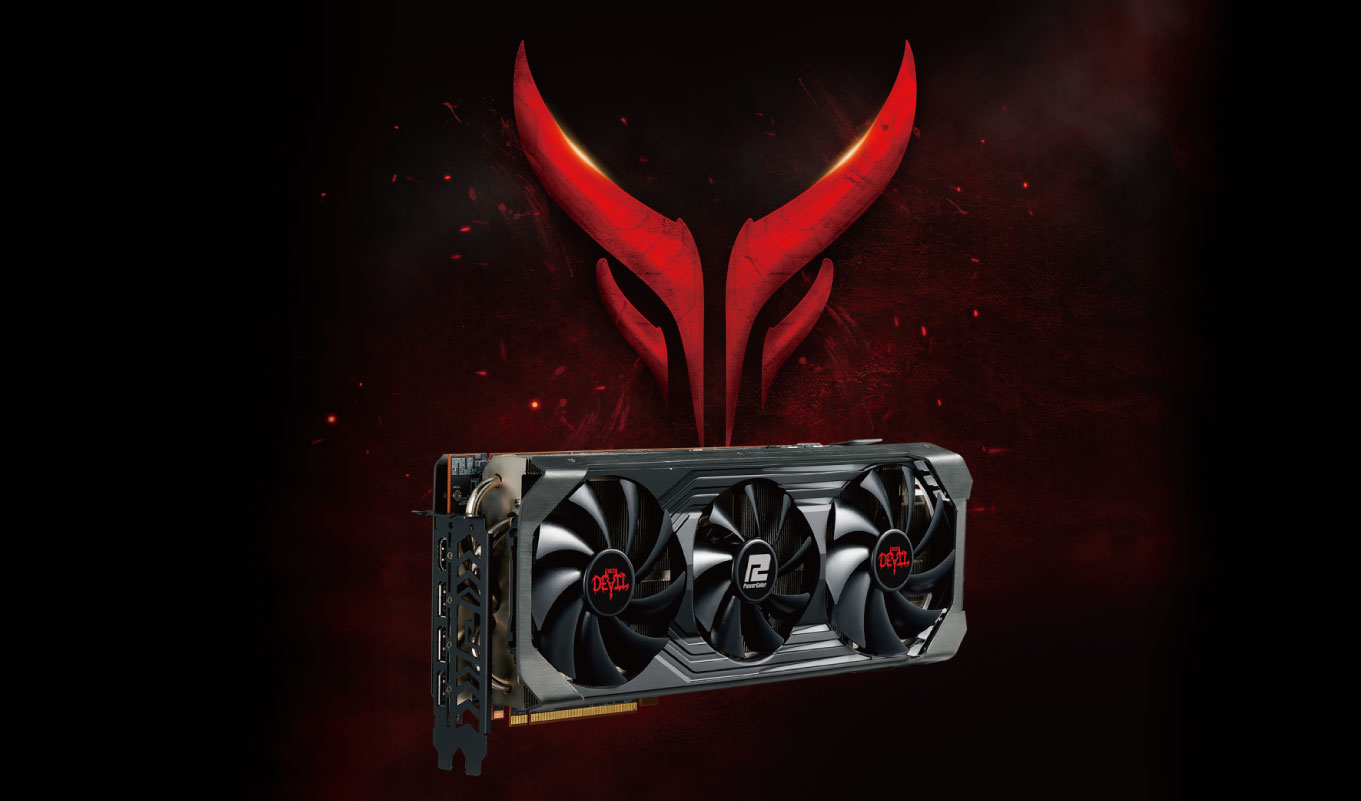

Best of the Best, the Red Devil RX 6900 XT Ultimate
In order to tweak for the best performance, only the best RX 6900 XT GPUs have been binned specifically for lower temperature and higher clock speeds, accusing that all the Red Devil RX 6900 XT Ultimate graphics cards present the forceful gaming power with no compromise. In addition, the Red Devil RX 6900XT Ultimate is paired with an entirely new advanced cooling solution, and the RGB lighting on the side, shroud, and back of the card to present the perfect aesthetic design. Moreover, it bundles a graphics card holder to provide reinforcement to hold this beefy card.
A Wise Choice for Gaming Enthusiasts

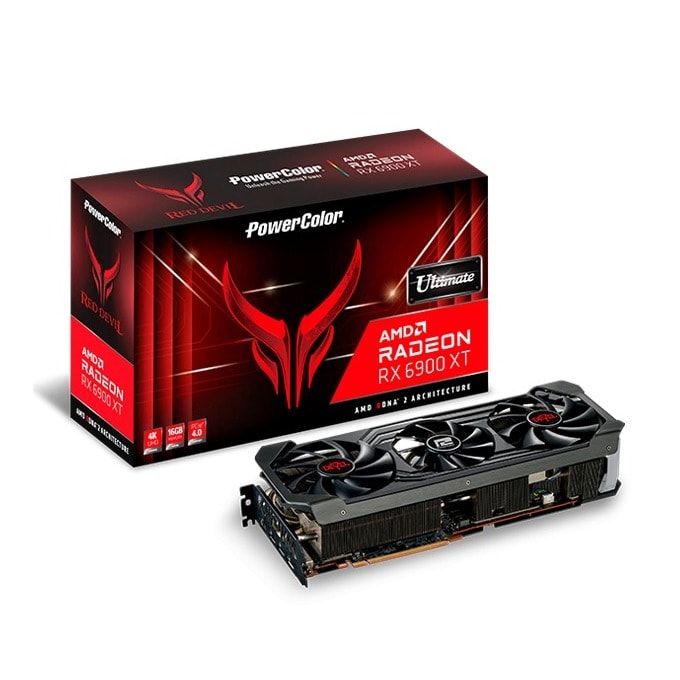

The PowerColor Red Devil RX 6900 XT Ultimate features a new design with triple fans (100mm x 90mm x 100mm), a 320mm cooler with 7 heatpipes. And a large copper base directly touches on the GPU, and assists VRAMs to provide ultra-efficient heat transfer and dissipation. It is also equipped with a state-of-the-art PCB design utilizing a 14+2 phase VRM with DrMOS, high quality polymer capacitors, and three 8-pin PCI-E connectors will power the PowerColor RX 6900 XT Red Devil Ultimate.

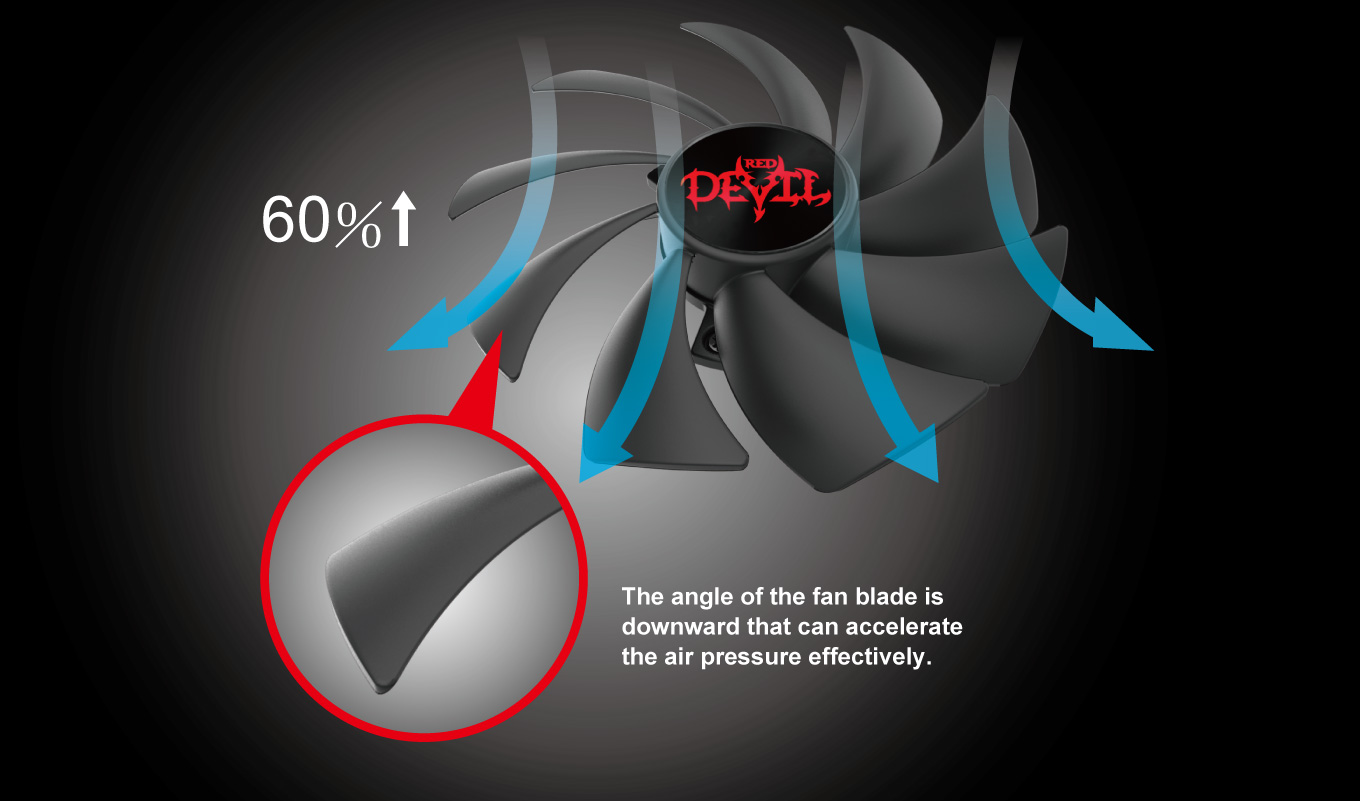

Exclusive New Cooling-Fan Design, Advanced Cooling Solution
Compared with previous generation, the PowerColor Red Devil RX 6900 XT Ultimate Graphics Card uses an exclusive new cooling-fan design to increase airflow and air pressure by up to 60%, achieving new level of thermal performance.
SPECIFICATION
| Graphics Engine | AXRX 6900XTU 16GBD6-3DHE/OC |
| Video Memory | 16GB GDDR6 |
| Stream Processor | 5120 Units |
| Engine Clock(OC) | up to 2235MHz(Game) up to 2425MHz(Boost) |
| Engine Clock(STD/Silent) | up to 2135MHz(Game) up to 2335MHz(Boost) |
| Memory Clock | 16.0 Gbps |
| Memory Interface | 256-bit |
| DirectX® Support | 12 |
| Bus Standard | PCIE 4.0 |
| Standard Display Connectors | 1 x HDMI 2.1 , 3 x DisplayPort 1.4 |
| Product Remark | 'Game Clock' is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. 'Boost Clock' is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads. |
Feature Support
| OpenGL | Support |
| CrossFireX™ Technology | support (DirectX® 12/Vulkan™) |
| AMD Stream Technology | Support |
| AMD Eyefinity Technology | Support |
Maximum Resolution
| DisplayPort | 7680×4320 |
| HDMI | 7680×4320 |
Power Specs + Board Dimensions
| Board Dimensions | 320mm*135mm*62 mm |
| Minimum System Power requirement (W) | 900W |
| Extension Power Connector | Three 8-pin PCI Express Power connectors |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Видео карти PowerColor
Виж всички Видео карти в категорията
Quick Start Guide| GPU производител: | AMD Radeon |
|---|---|
| Капацитет: | 16 GB |
| Тип памет на видеокарта: | GDDR6 |
| Битове (BUS памет): | 256 Bit |
| Интерфейс: | DP HDMI |
