Red Dragon Empowers You to Unleash the Power

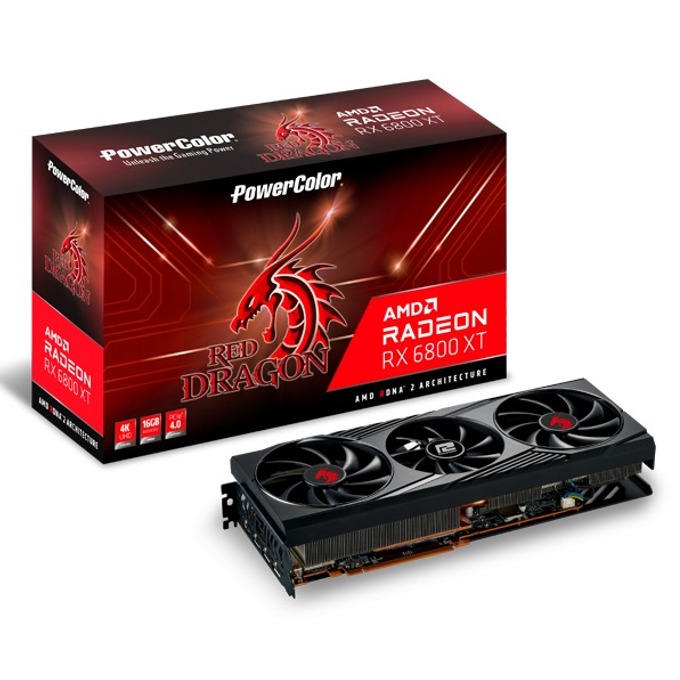

PowerColor Red Dragon RX 6800 XT features the same new cooling-fan design as PowerColor Red Devil RX6800XT with 2X 100mm and 1X 90mm triple fans to enhance the airflow and air pressure for keeping the card in the best cooling condition. Besides, Red Dragon RX 6800 XT equips Dual BIOS, stylish back plate, and shiny LED light. You will have upgraded gaming experiences with the new Red Dragon RX 6800 XT.
The Power of Red Dragon
PowerColor Red Dragon AMD Radeon™ RX 6800 XT is armed with a new triple fan design, 310mm cooler with 7X6Φheatpipes, and a large copper base improves heat transfer and dissipation from the GPU and the VRAMs providing highly efficient heat dissipation solution. And it is also equipped with a 12+2 phase VRM with DrMOS, high polymer capacitors, and two 8-pin PCI-E connectors for implementing better performance.

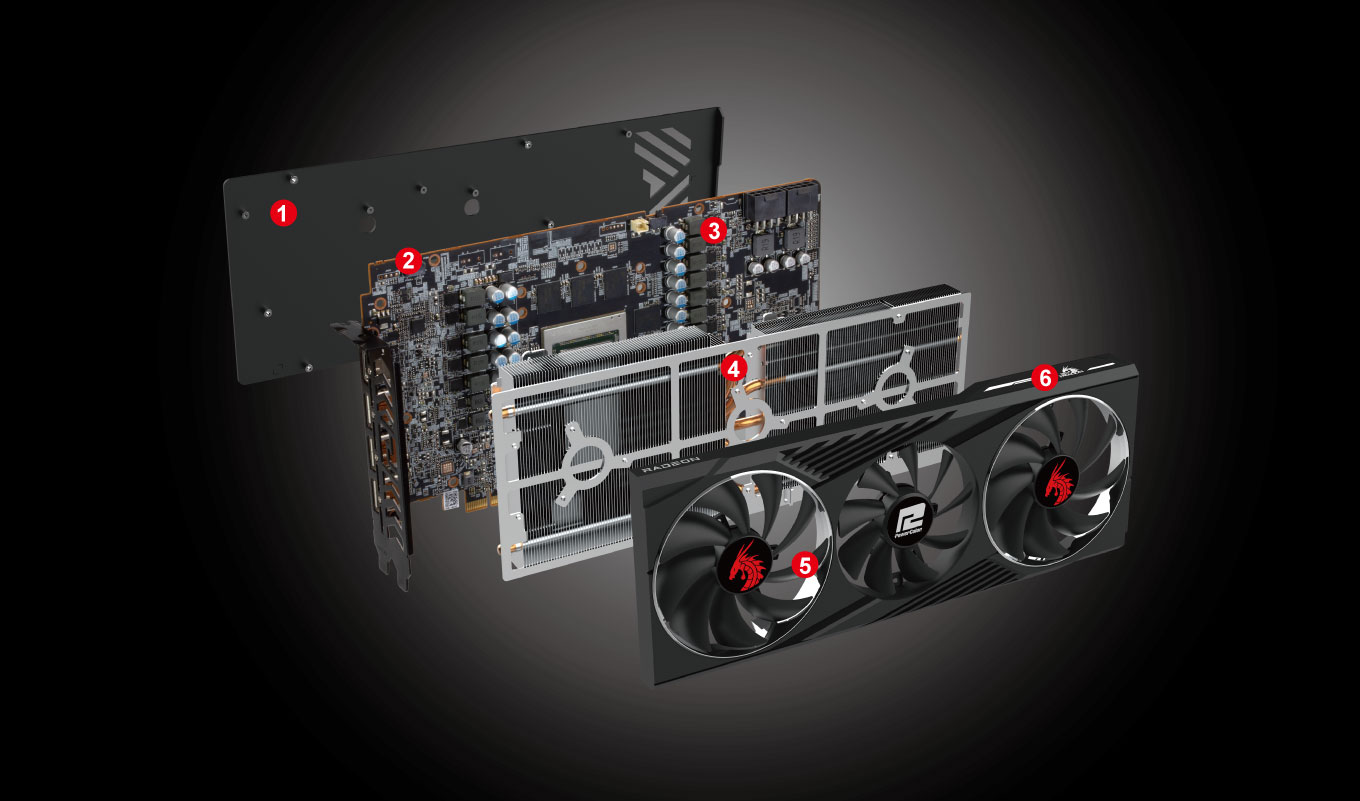

1.Back Plate
The metal back plate strengthens the card and offers better heat dissipation.
2.Dual BIOS
Choosing the BIOS fits your need: faster clocks or more balanced overclock with quiet operation.
3.Stronger MOS, Better Protection
DrMOS provides superior power efficiency and offers better thermal protection. Red Dragon is armed with stronger components: a 12+2 phases VRM guarantees better overclocking and stability.
4.Cooler
7X6Φ heatpipes efficiently dissipate the heat and make your card cool.
5.Triple Fan
The 2X 100mm and 1X 90mm optimized static pressure fan design provides more air flow and longer circulation.
6.Glow Your Red Dragon
Featuring the Red LED brighten your Red Dragon in the dark.
SPECIFICATION
| Graphics Engine | AXRX 6800XT 16GBD6-3DHR/OC |
| Video Memory | 16GB GDDR6 |
| Stream Processor | 4608 Units |
| Engine Clock(OC) | 2065MHz(Game) / up to 2310MHz(Boost) |
| Engine Clock(STD/Silent) | 2015MHz(Game) / up to 2250MHz(Boost) |
| Memory Clock | 16.0 Gbps |
| Memory Interface | 256-bit |
| DirectX® Support | 12 |
| Bus Standard | PCIE 4.0 |
| Standard Display Connectors | 1 x HDMI 2.1 , 3 x DisplayPort 1.4 |
| Product Remark | Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. |
Feature Support
| OpenGL | Support |
| CrossFireX™ Technology | support (DirectX® 12/Vulkan™) |
| AMD Stream Technology | Support |
| AMD Eyefinity Technology | Support |
Maximum Resolution
| DisplayPort | 7680×4320 |
| HDMI | 7680×4320 |
Power Specs + Board Dimensions
| Board Dimensions | 310mm*135mm*54 mm |
| Minimum System Power requirement (W) | 750W |
| Extension Power Connector | Two 8-pin PCI Express Power connectors |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Видео карти PowerColor
Виж всички Видео карти в категорията
Quick Start Guide| GPU производител: | AMD Radeon |
|---|---|
| Капацитет: | 16 GB |
| Тип памет на видеокарта: | GDDR6 |
| Битове (BUS памет): | 256 Bit |
| Интерфейс: | DP HDMI |
