Дънна платка MSI MPG X570S EDGE MAX WIFI, X570, AM4, DDR4, PCI-E 4.0, (HDMI)(CF), 6x SATA 6Gb/s, 3x M.2, 1x USB 3.2 Gen 2 Type C, ATX

MSI MPG X570S EDGE MAX WIFI

PREMIUM
HARDWARE DESIGN

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

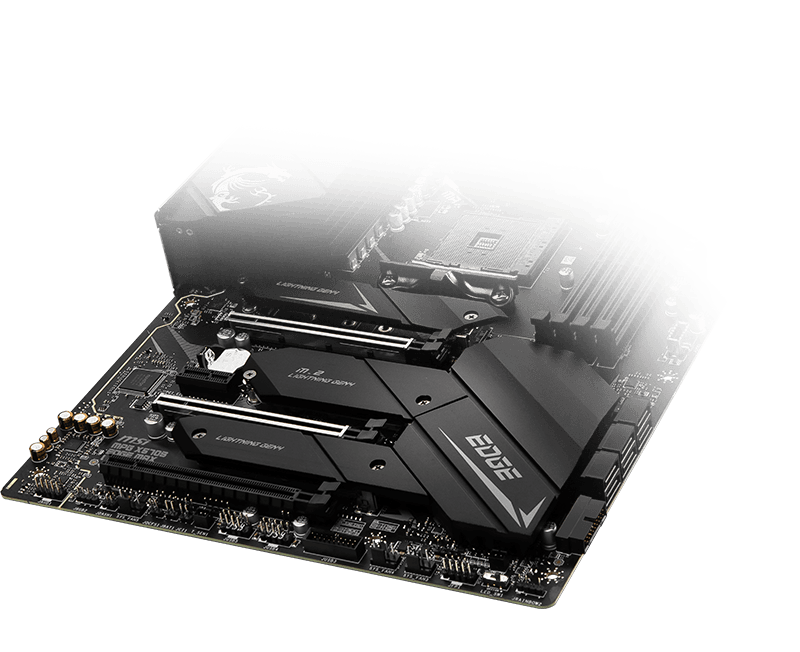

M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

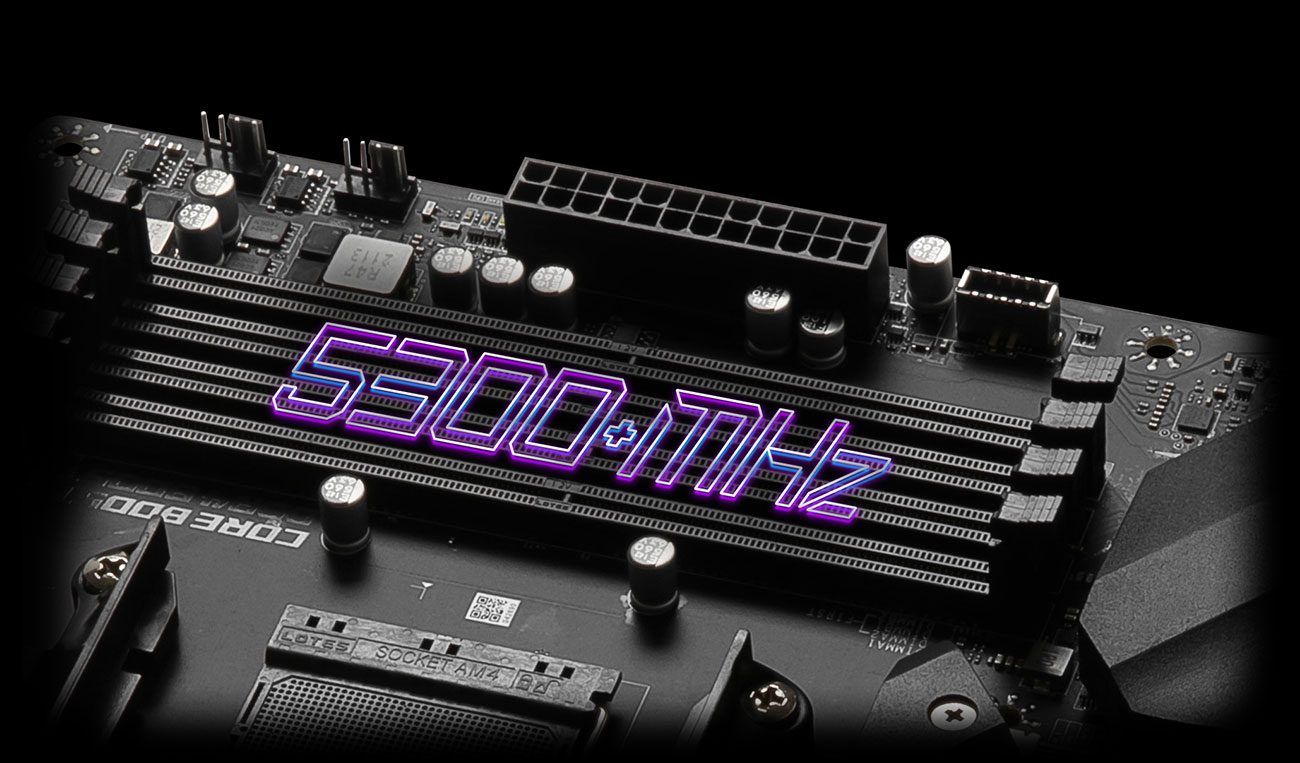

A HUGE STEP OF DDR PERFORMANCE

MSI OC LAB does not merely work hard on extreme overclocking. The A-XMP memory profile has great improvement on performance and efficiency for X570. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability.

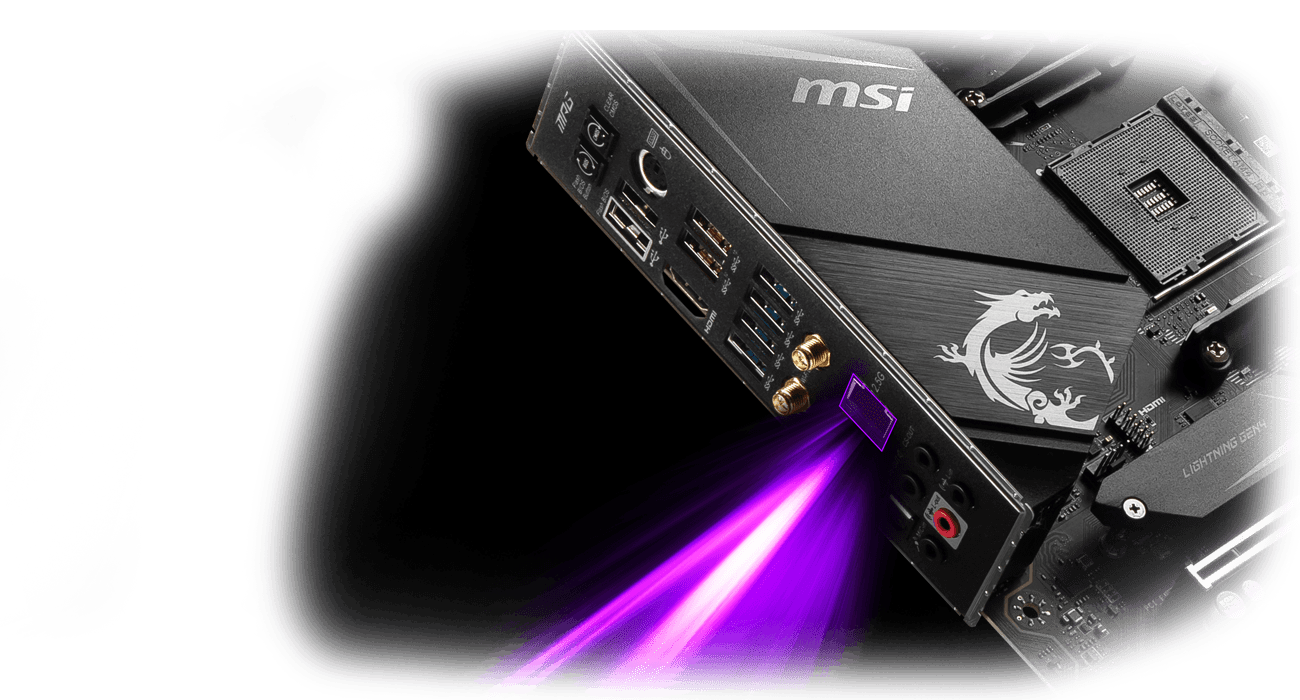

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

Specifications:

    CPU (Max Support): Ryzen 9
   Socket: AM4
   Chipset: AMD X570 Chipset
   DDR4 Memory: 5300(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)/ 1866(JEDEC) MHz
   Memory Channel: Dual
   DIMM Slots: 4
   Max Memory (GB): 128
   PCI-E x16: 3
   PCI-E x1: 1
   SATAIII: 6
   M.2 Slot: 3
   RAID: 0/1/10
   LAN: 1x Realtek® 8125B 2.5G LAN
   WiFi & Bluetooth: Intel® Wi-Fi 6E AX210
   USB 3.2 ports (Front): 1(Gen 2, Type C), 4(Gen 1, Type A)
   USB 3.2 ports (Rear): 1(Gen 2, Type C), 3(Gen 2, Type A), 4(Gen 1, Type A)
   USB 2.0 ports (Front): 4
   USB 2.0 ports (Rear): 2
   Dimension: 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
   Audio ports (Rear): 5+ Optical S/PDIF (Realtek® ALC4080 Codec)
   HDMI: 1
   DirectX: 12
   Form Factor: ATX
   CrossFire: Y
   Operating System: Support for Windows® 10 64-bit
