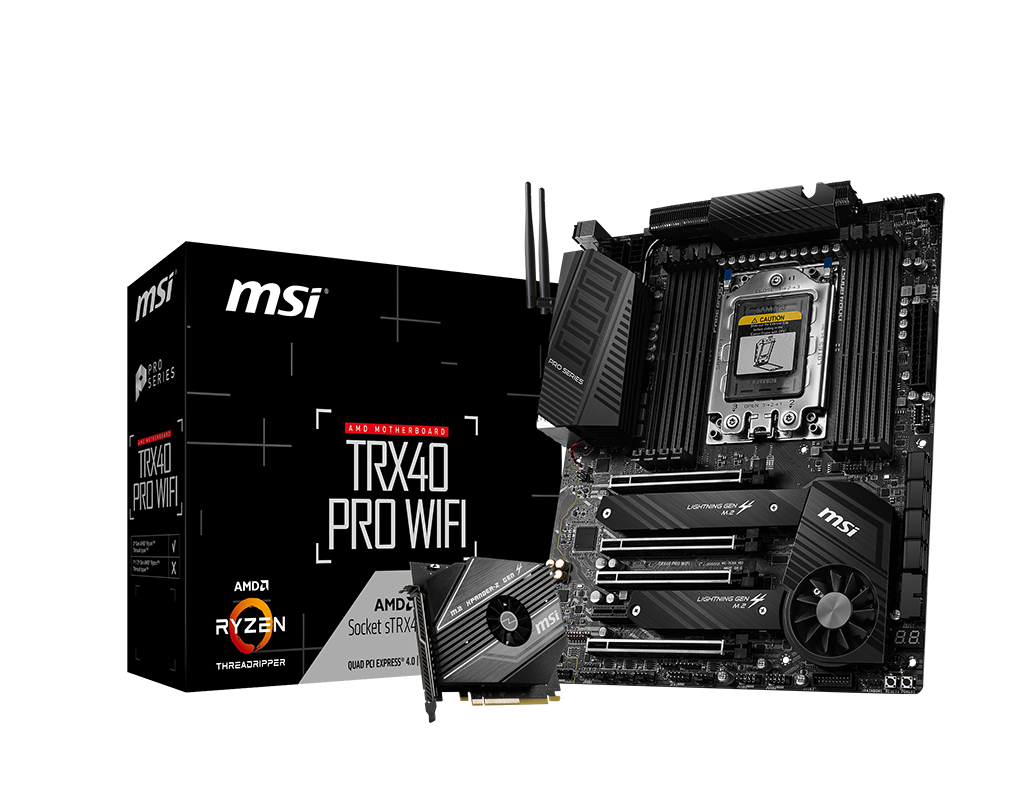

Дънна платка MSI TRX40 PRO WIFI, TRX40, sTRX4, AM4, DDR4, PCIe 4.0, 8x SATA 6Gb/s, 2x M.2, (SLI&CF), 2x USB 3.2 Gen2, ATX

Inspired from architectural design with the extended heatsink for having better thermal solution; PCIe gen4 slots and M.2 connectors, high speed USB 3.2 Gen2x2 solution, Core Boost, DDR4 Boost, Wi-Fi 6, Dual LAN onboard, Frozr Heatsink Design, Twin Lightning Gen4 M.2 with M.2 Shield Frozr, M.2 Xpnader-Z Gen4

• Supports 3rd Gen AMD® RyzenTM ThreadripperTM Desktop Processors for Socket sTRX4

• Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency 4666(OC) MHz

• Lightning Fast experience: Lightning USB 20G, PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2

• Set Core Power Free: Extended Heatsink Design, stacked fin array, Core Boost, Digital PWM IC, 12+3 digital power phases, dual 8 pin CPU power connectors, DDR4 Boost

• Frozr Heatsink Design:  Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.

• Twin Lightning Gen4 M.2: Running at PCI-E Gen4 x4 maximizes performance for NVMe based SSDs.

• M.2 XPANDER-Z GEN4: Offers two extra M.2 slots to increase your storage capacity at maximum speed.

• Dual LAN onboard and latest Wi-Fi 6 solution:  Premium network solution for professional and multimedia use, combining latest Wi-Fi 6 solution which supports MU-MIMO and BSS color technology, delivering a secure, stable and fast network connection.

• Audio Boost 4: Reward your ears with studio grade sound quality.

• Multi-GPU: With Steel armor PCI-E slots. Supports 3-Way SLI / Crossfire™

​

PROCESSOR
3rd Gen AMD Ryzen™ Threadripper™ Desktop Processors

CHIPSET
AMD® TRX40 Chipset

MEMORY
8 x DDR4 memory slots, support up to 256GB1
Supports JEDEC 1R 2133/ 2400/ 2666/ 3200 MHz
1DPC 1R max speed 4666 MHz
1DPC 2R max speed 4000 MHz
2DPC 1R max speed 4000 MHz
2DPC 2R max speed 3600 MHz
Quad channel memory architecture2
Supports Intel® Extreme Memory Profile (XMP)
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory
Supports un-buffered memory

SLOTS
4 x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode)
1 x PCIe 3.0 x1 slot

MULTI-GPU
Supports 3-Way NVIDIA® SLI™ Technology
Supports 3-Way AMD® CrossFire™ Technology

STORAGE
AMD® TRX40 Chipset
8 x SATA 6Gb/s ports
AMD® Processor
2 x M.2 slots (Key M)
M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices

RAID
AMD® TRX40 Chipset
Supports RAID 0, RAID 1 and RAID 10

USB
AMD® TRX40 Chipset
2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port on the back panel and 1 Type-C port through the internal USB connector)
6 x USB 3.2 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors)
4 x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors
AMD® Processor
2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
ASMedia® ASM3242 Chipset
1 x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel

AUDIO
Realtek® ALC1220 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

LAN
2 x Intel® I211AT Gigabit LAN controller

WIFI & BLUETOOTH
Intel® Wi-Fi 6 AX200
The Wireless module is pre-install in the M2_4 (Key-E)slot
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
Supports Bluetooth® 5

INTERNAL CONNECTORS
1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
8x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen2 Type-C port
2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin Water Pump Fan connector (supports up to 2A)
4x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin 5050 RGB LED connector
2x 3-pin ARGB LED connectors
1x 3-pin CORSAIR LED connector
1x Slow mode booting jumper
1x Power button
1x Reset button

BACK PANEL PORTS
Clear CMOS Button
Wireless / Bluetooth
Gigabit LAN
Gigabit LAN
Audio Connectors
Flash BIOS Button
USB 3.2 Gen1 Type-A
USB 3.2 Gen2 Type-A
USB 3.2 Gen2x2 20G Type-C
Optical S/PDIF out
MSI TRX40 PRO WIFI back panel ports

DIMENSIONS
12 in. x 9.6 in. (30.4 cm x 24.4 cm)
ATX Form Factor

MOUNTING
9 mounting holes

OPERATING SYSTEM
Support for Windows® 10 64-bit

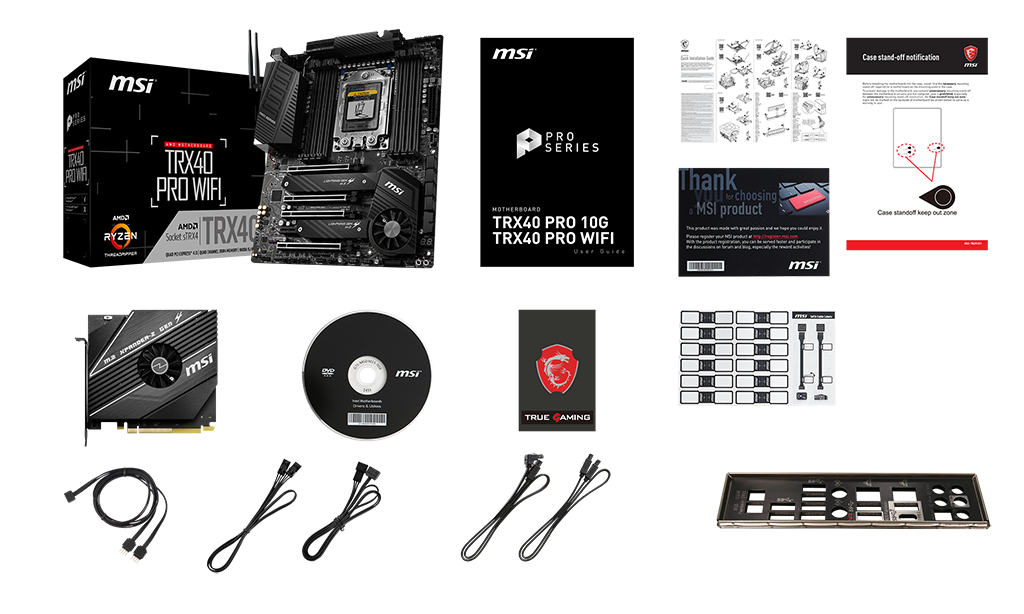

BOX CONTENT
