Дънна платка MSI MEG X670E ACE, X670E, AM5, DDR5, PCI-E 5.0, 2x M.2, 6x SATA 6Gb/s, 2x USB 3.2 Gen2x2 Type C, E-ATX

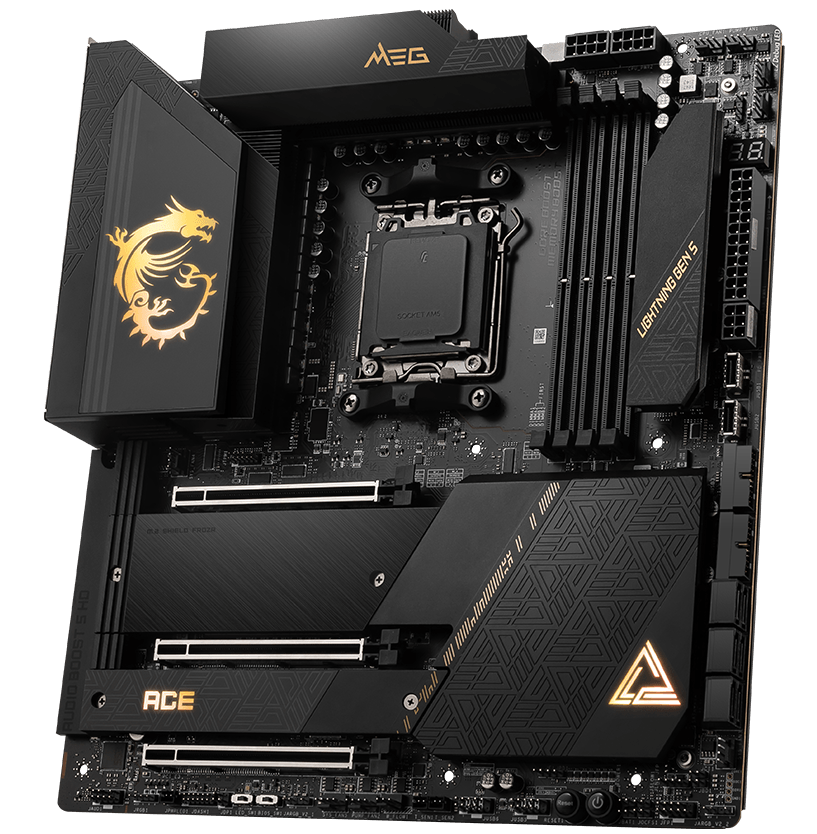

MSI MEG X670E ACE

The MEG X670E ACE furnished premium aesthetics with its dark black finish and gold embellishes. Developed to unlock the full gaming potential of the AMD X670 chipset by combining elite hardware system support and premium durability, the MEG X670E ACE is an outstanding E-ATX platform for extreme settings in terms of overclocking memory, processor, and graphic card at the highest level.

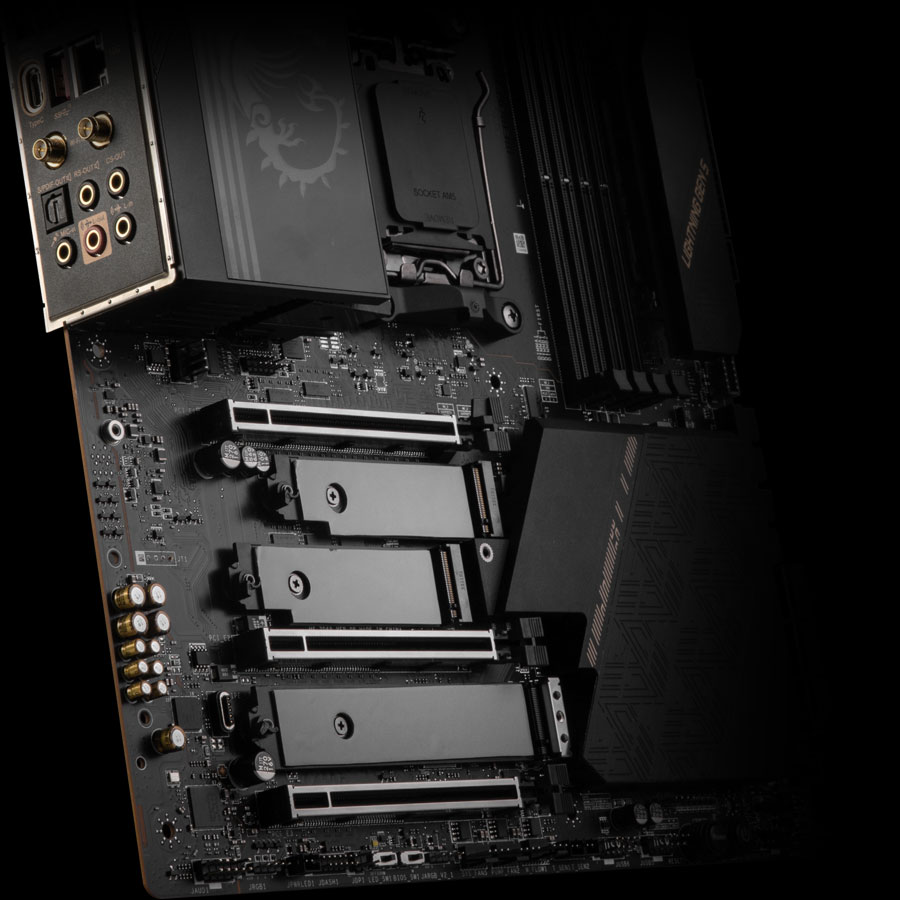

HIGH QUALITY AUDIO CAPACITORS

A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.



Specifications:

Chipset	AMD X670
CPU SUPPORT	Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6666+(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6666+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Onboard Graphics	1x Type-C DisplayPort Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	3x PCI-E x16 slot Supports x16/x0/x4, x8/x8/x4 PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 5.0 supports up to x8 (From CPU) PCI_E3 PCIe 5.0 supports up to x4 (From CPU)
Multi-GPU	Supports AMD MULTI-GPU
Storage	4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 6x SATA 6G port
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices * SATA_A1~A2 do not support RAID function.
USB	4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Front) 8x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 2x USB 3.2 Gen2x2 Type C (Rear) 1x USB 3.2 Gen2x2 Type C (Front)
LAN	Marvell® AQC113-B1-C 10Gbps LAN
WIRELESS / BLUETOOTH	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
Audio	Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Internal I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 4x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C 1x USB 3.2 Gen 2x2 Type-C 1x USB 3.2 Gen 2x2 Type C V-check point
LED FEATURE	1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED
BACK PANEL PORTS	Clear CMOS Button Flash BIOS Button USB 3.2 Gen 2 10Gbps (Type-A) 10G Super LAN Wi-Fi / Bluetooth HD Audio Connectors Smart Button USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-C Display port) USB 3.2 Gen 2x2 20Gbps (Type-C) Optical S/PDIF-Out
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension	E-ATX 277mmx304.8mm
