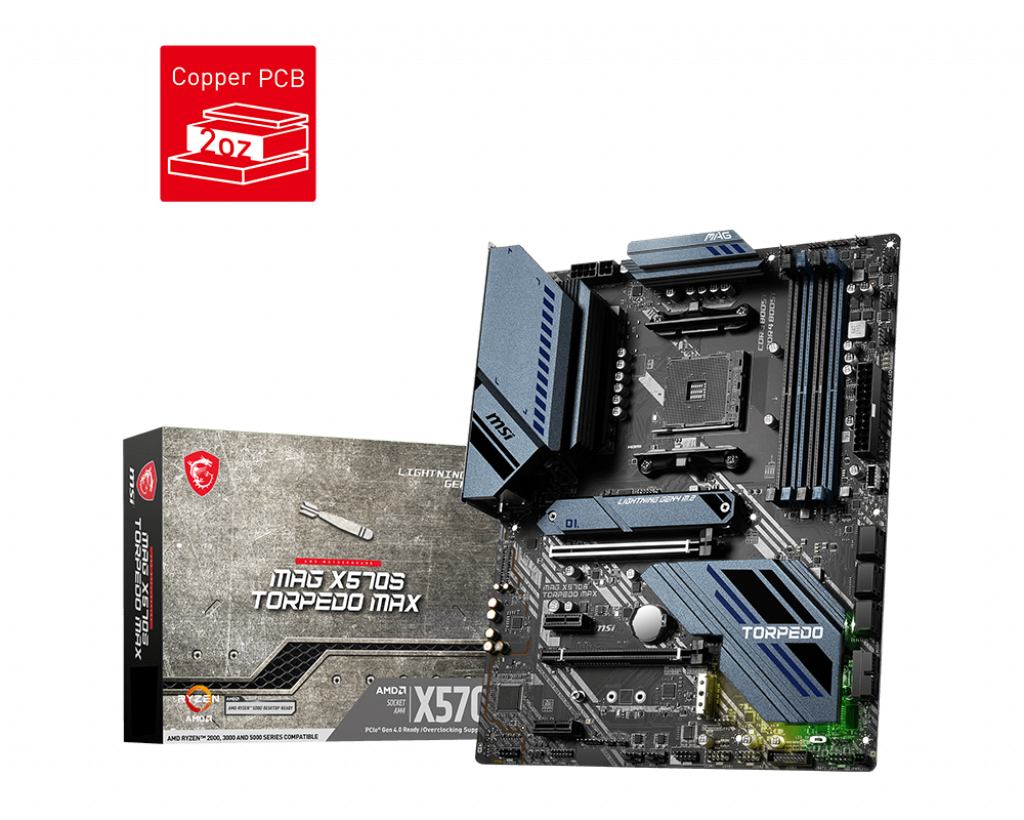

Дънна платка MSI MAG X570S TORPEDO MAX, X570, AM4, DDR4, PCI-E 4.0 (HDMI)(CF), 6x SATA 6Gb/s, 2x M.2, 1x USB 3.2 Gen 2 Type-C, ATX

MAG X570S TORPEDO MAX

• Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
• Supports DDR4 Memory, up to 5100(OC) MHz
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
• Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
• Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
• Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™







Specifications:

PROCESSOR

• Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors¹
• Supports Socket AM4

1. Please go to msi.com to get the newest support status as new processors are released.

See supported processors

CHIPSET

AMD X570 Chipset

MEMORY

• 4x DDR4 memory slots, support up to 128GB
• Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC¹
• Max overclocking frequency by A-XMP OC mode:
  • For Ryzen™ 5000 G-Series & 4000 G-Series processors
    • 1DPC 1R Max speed up to 5100 MHz
    • 1DPC 2R Max speed up to 4000 MHz
    • 2DPC 1R Max speed up to 4266 MHz
    • 2DPC 2R Max speed up to 3600 MHz
  • For Ryzen™ 5000 Series & 3000 Series processors
    • 1DPC 1R Max speed up to 5100 MHz
    • 1DPC 2R Max speed up to 3866 MHz
    • 2DPC 1R Max speed up to 4000 MHz
    • 2DPC 2R Max speed up to 3600 MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory

1. Please refer to www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOT

• Supports PCIe 4.0 / PCIe 3.0 specification
  • PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
• 1x PCIe x16 slot (From processor)
  • PCI_E1 supports PCIe 4.0/ 3.0 x16
• 1x PCIe x16 slot (From X570 chipset)
  • PCI_E3 supports PCIe 4.0/ 3.0 x4
• 2x PCIe 3.0 x1 slots (From X570 chipset)

MULTI-GPU

• Supports AMD CrossFire™ Technology

ONBOARD GRAPHICS

• 1x HDMI 2.1 port, supports a maximum resolution of 4K 60Hz ^1 2

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

STORAGE

• 6x SATA 6Gb/s ports (from AMD X570 Chipset)
• 2x M.2 slots (Key M)
  • Support up to PCIe 4.0 for AMD Ryzen™ 5000 Series and 3000 Series desktop processors
  • Support up to PCIe 3.0 for AMD Ryzen™ 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor
  • Supports up to SATA 6Gb/s
  • M2_1 slot (from Processor)
    • Support 2280/22110 storage devices
  • M2_2 slot (from AMD X570 Chipset)
    • Supports 2242/ 2260/ 2280 storage devices

RAID

• Supports RAID 0, RAID 1 and RAID 10

USB

AMD X570 Chipset

• 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
• 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors
• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD Processor

• 2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A &Type-C)
• 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO

Realtek^® ALC4080 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1x Realtek^® 8125B 2.5Gbps LAN Controller
• 1x Realtek® RTL8111H 1Gbps LAN Controller

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump connector
• 4x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 1x Serial port connector
• 1x Chassis Intrusion connector

LED FEATURE

• 2x 4-pin RGB LED connectors
• 2x 3-pin RAINBOW LED connectors
• 4x EZ Debug LED
• 1X EZ LED Control switch

BACK PANEL PORTS

1. PS/2 Mouse / Keyboard
2. USB 3.2 Gen 1 5Gbps (Type-A)
3. Gigabit LAN Port
4. 2.5G LAN Port
5. HD Audio Connectors
6. USB 2.0 Port
7. Flash BIOS Button
8. HDMI 2.1 Port
9. USB 3.2 Gen 2 10Gbps (Type-C)
10. USB 3.2 Gen 2 10Gbps (Type-A)
11. Optical S/PDIF OUT

DIMENSIONS

• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

OPERATING SYSTEM

Support for Windows^® 10 64-bit
