Дънна платка MSI MAG X570 TOMAHAWK WIFI, X570, AM4, DDR4, PCIe 4.0 (HDMI), (CF), 6x SATA 6Gb/s, 2x M.2, 3x USB 3.2 Gen 2, Wi-Fi, Bluetooth, ATX

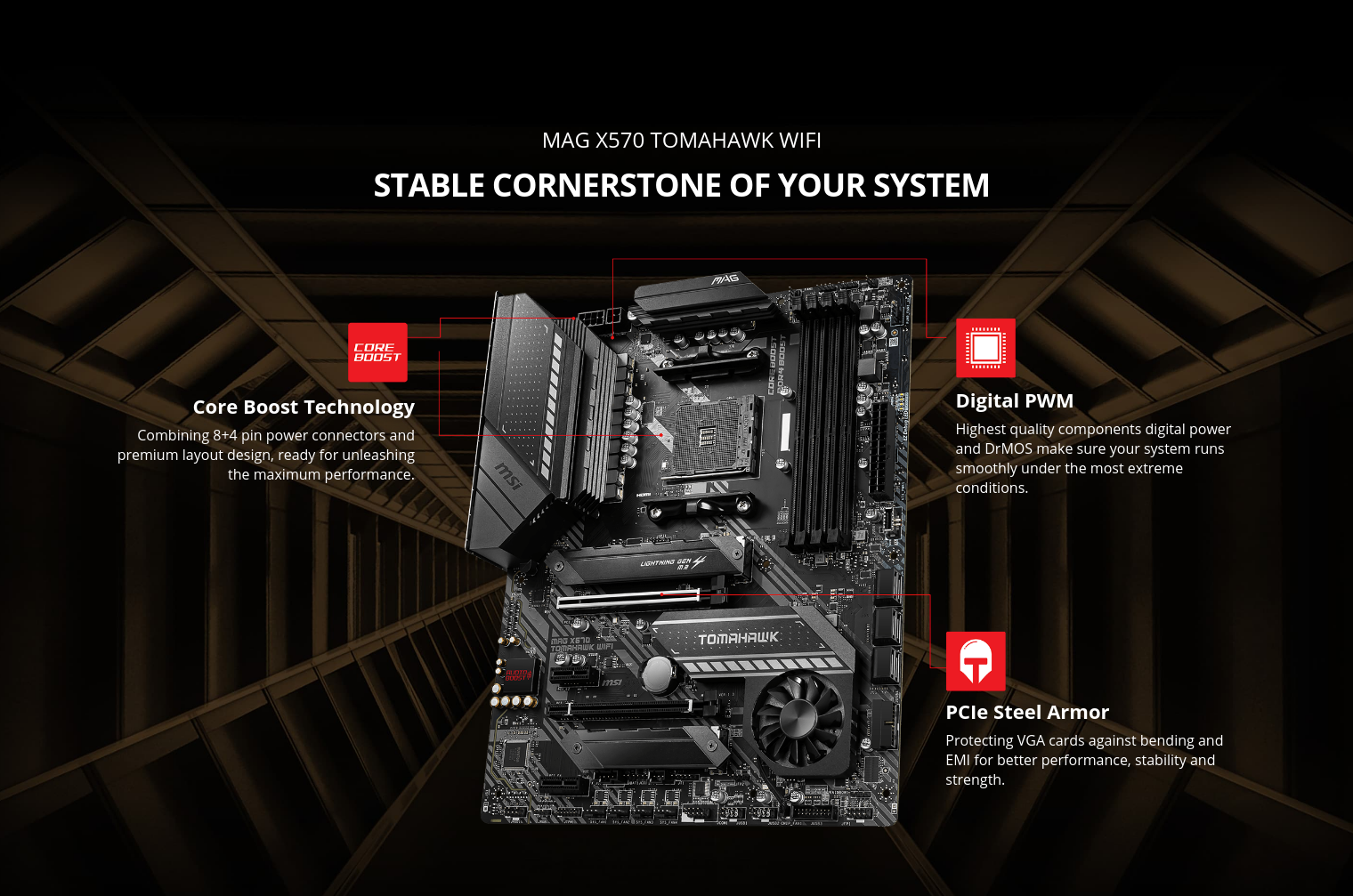

Military style with Pre-installed IO shielding, tuned for better performance by Core Boost, DDR4 Boost, M.2 Shield Frozr, Wi-Fi 6, Frozr Heatsink Design, Lightning Gen4

• Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4

• Supports DDR4 Memory, up to 4600 MHz

• Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 Gen 2

• MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.

• Frozr Heatsink Design:  Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.

• Set Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4 pin CPU power connectors, Game Boost, DDR4 Boost

• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

• Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, LIVE UPDATE, AMBIENT LINK  with user friendly user interface.

Specifications

PROCESSOR
Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4

CHIPSET
AMD® X570 Chipset

MEMORY
4x DDR4 memory slots, support up to 128GB 1
3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600+ Mhz by A-XMP OC MODE
2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466+ Mhz by A-XMP OC MODE
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory

EXPANSION SLOTS
1x PCIe 4.0/3.0 x16 slot (PCI_E1)
3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
2nd Gen AMD Ryzen™ support PCIe 3.0x16 mode
Ryzen™ 4000 G-Series support PCIe 3.0 x16 mode
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
1x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode
2x PCIe 3.0 x1 slots
The speeds may vary for different devices

ONBOARD GRAPHICS
1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz 1 2
Only support when using Ryzen™ 4000 G-Series, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics ProcessorsMaximum shared memory of 2048 MB

MULTI-GPU
Supports 2-Way AMD® CrossFire™ Technology

LAN
1x Realtek® 8125B 2.5Gbps LAN Controller

WIRELESS LAN & BLUETOOTH®
Intel® Wi-Fi 6 AX200
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
Supports Bluetooth® 5.1
The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot

STORAGE
6x SATA 6Gb/s ports (from AMD® X570 Chipset)
2x M.2 slots (Key M) 1
M2_1 slot (from AMD® Processor)
Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ 4000 G-Series, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from AMD® X570 Chipset)
Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ 4000 G-Series, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
The speeds may vary for different devices

RAID
Supports RAID 0, RAID 1 and RAID 10

USB
AMD® X570 Chipset
3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD® Processor
2x USB 3.2 Gen 2 10Gbps (3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series) or USB 3.2 Gen 1 5Gbps (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO
Realtek® ALC1200 Codec
7.1-Channel High Definition Audio
Supports Optical S/PDIF output

INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
1x USB 3.2 Gen 2 10Gbps Type-C Port
1x 4-pin CPU fan connector
1x 4-pin water-pump connector
4x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x TPM module connector
1x Serial port connector
1x Clear CMOS jumper
1x Chassis Intrusion connector
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
4x EZ Debug LEDs

BACK PANEL PORTS
Keyboard / Mouse
Wireless / Bluetooth
USB 3.2 Gen 1 5Gbps Type A
USB 3.2 Gen 2 10Gbps Type A
2.5G LAN port
Audio Connectors
Flash BIOS button
USB 2.0
HDMI port
USB 3.2 Gen 2 10Gbps Type C
USB 3.2 Gen 2 10Gbps Type A
Optical S/PDIF out
MAG X570 TOMAHAWK WIFI

I/O CONTROLLER
NUVOTON NCT6797 Controller Chip
HARDWARE MONITOR
CPU/ System/ Chipset temperature detection
CPU/ System/ Chipset fan speed detection
CPU/ System/ Chipset fan speed control

BIOS FEATURES
1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.1, SM BIOS 2.8
Multi-language

FORM FACTOR
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
