Дънна платка MSI MAG B650M MORTAR WIFI, B650, AM5, DDR5, PCI-E 4.0, (DP&HDMI), 2x M.2, 6x SATA 6Gb/s, 1x USB 3.2 Gen2x2 Type C, Wi-Fi 6E, Bluetooth, mATX

id 265956 Код: MBAMSIMAGB650MMORTARWIFI
  • Модел: MAG B650M MORTAR WIFI
  • Марка: MSI
  • Гаранция: 36 месеца
  • Код на продукта: MAG B650M MORTAR WIFI
  • Процесор сокет: AM5
  • Чипсет: B650
  • Брой слотове за RAM памет: 4
  • Storage интерфейси: SATA 6Gbit/s, M.2
  • Видео изход: DP HDMI
  • Форм фактор: Micro ATX
  • Наличност: Стар продукт
    ОписаниеХарактеристикиРевюта / Въпроси

    MSI MAG B650M MORTAR WIFI

    • Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
    • Supports DDR5 Memory, up to 7600+(OC) MHz

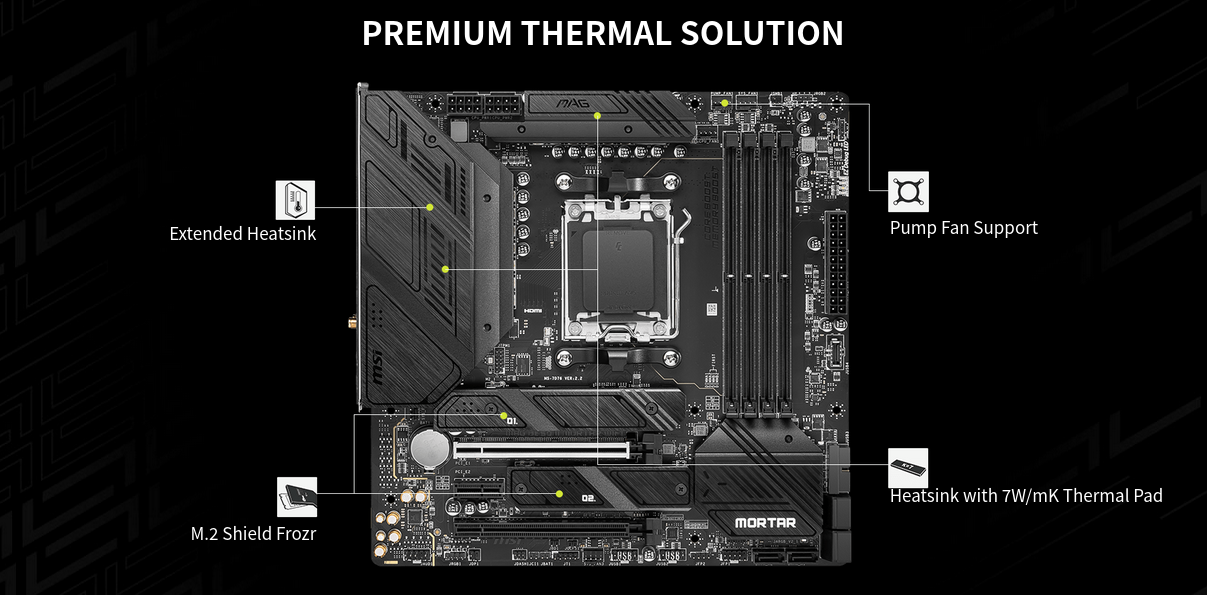

    • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

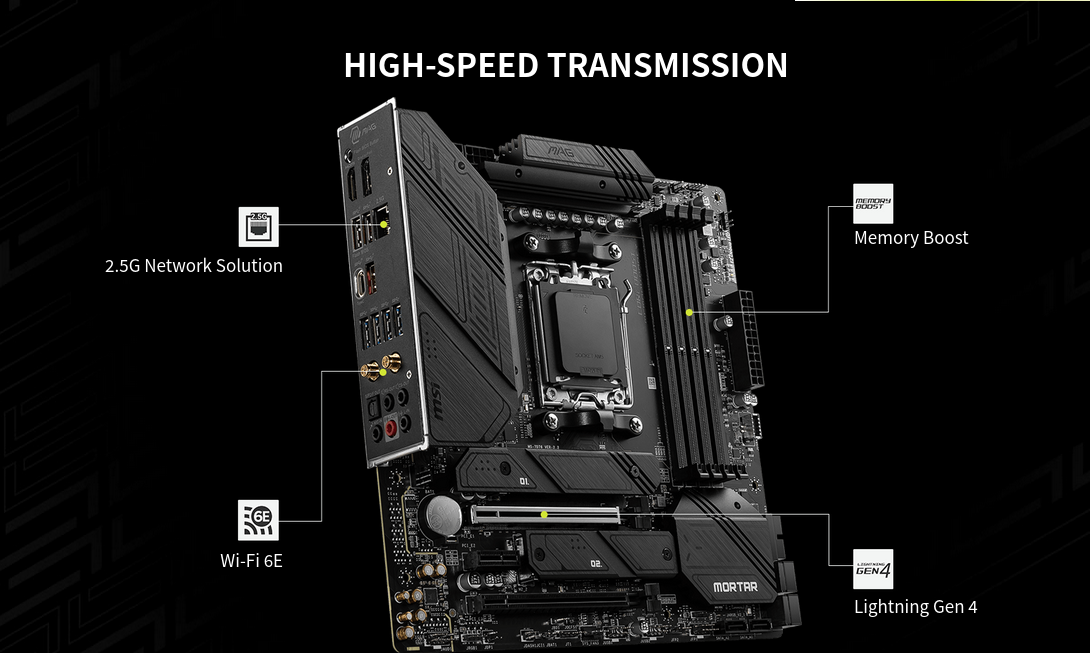

    • 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
    • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
    • Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
    • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience









    Specifications:

    ChipsetAMD B650

    CPUSupports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
    Socket AM5

    Memory4x DDR5, Maximum Memory Capacity 192GB
    Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 7600+ MHz
    • 1DPC 2R Max speed up to 6400+ MHz
    • 2DPC 1R Max speed up to 6400+ MHz
    • 2DPC 2R Max speed up to 5400+ MHz


    Onboard Graphics1x HDMI™
    Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
    1x DisplayPort
    Support DP 1.4, maximum resolution of 8K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

    Slot2x PCI-E x16 slot
    Supports x16/x4
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

    Storage2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    6x SATA 6G

    RAIDSupports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
    Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
    * SATA_A1_A2 do not support RAID function.

    USB4x USB 2.0 (Front)
    4x USB 3.2 Gen1 Type A (Rear)
    2x USB 3.2 Gen1 Type A (Front)
    3x USB 3.2 Gen2 Type A (Rear)
    1x USB 3.2 Gen2 Type C (Front)
    1x USB 3.2 Gen2x2 Type C (Rear)

    LANRealtek® RTL8125B 2.5Gbps LAN

    WIRELESS LAN & BLUETOOTHAMD Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX
    Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth® 5.3**

    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

    AudioRealtek® ALC4080 Codec
    7.1-Channel High Performance Audio
    Supports S/PDIF output
    Supports up to 32-Bit/384 kHz playback on front panel

    Internal IO1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    3x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Tuning Controller connector(JDASH)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    2x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 3.2 Gen1 Type A ports
    1x USB 3.2 Gen2 Type C ports

    LED FEATURE4x EZ Debug LED

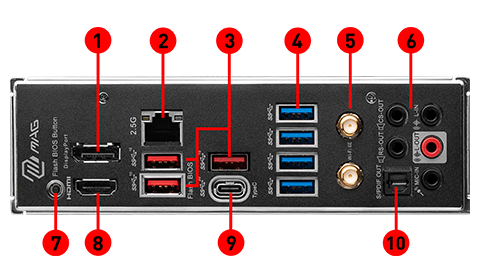

    BACK PANEL PORTS
    1. DisplayPort 1.4
    2. 2.5G LAN Port
    3. USB 3.2 Gen 2 10Gbps Type-A
    4. USB 3.2 Gen 1 5Gbps Type-A
    5. Wi-Fi / Bluetooth Antenna
    6. HD Audio Connectors
    7. Flash BIOS Button
    8. HDMI™ 2.1 Port
    9. USB 3.2 Gen 2x2 20Gbps Type-C
    10. Optical S/PDIF OUT




    OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit

    PCB InfomATX
    243.84mmx243.84mm









    Виж още Дънни платки за AMD процесори MSI
    Виж всички Дънни платки за AMD процесори в категорията
    Технически характеристики
    Процесор сокет:  AM5
    Чипсет:  B650
    Поддържана памет:  DDR5
    Брой слотове за RAM памет:  4
    Storage интерфейси:  SATA 6Gbit/s, M.2
    RAID:  Да
    Безжични мрежи:  802.11ax
    Bluetooth:  Да
    Видео слот:  PCI-E
    Multi-Graphics технология:  SLI
    Видео изход:  DP HDMI
    Форм фактор:  Micro ATX
    Видеокарта:  Вградена
