Дънна платка MSI H510M PRO E, H510, LGA 1200, DDR4, PCI-E 4.0(HDMI&VGA), 4x SATA 6Gb/s, 4x USB 3.2 Gen 1 Type-A, mATX

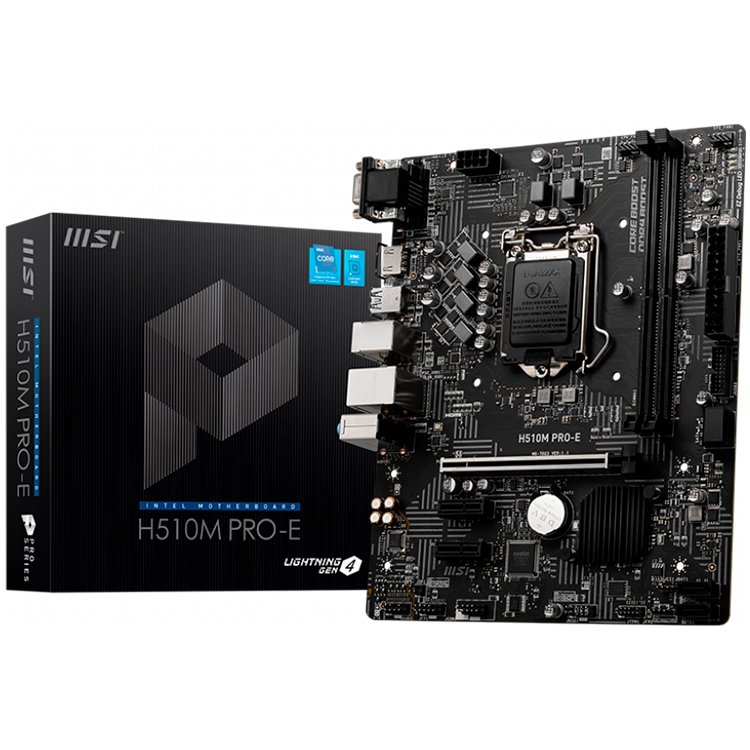

MSI H510M PRO E

PRO series helps users work smarte rby delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

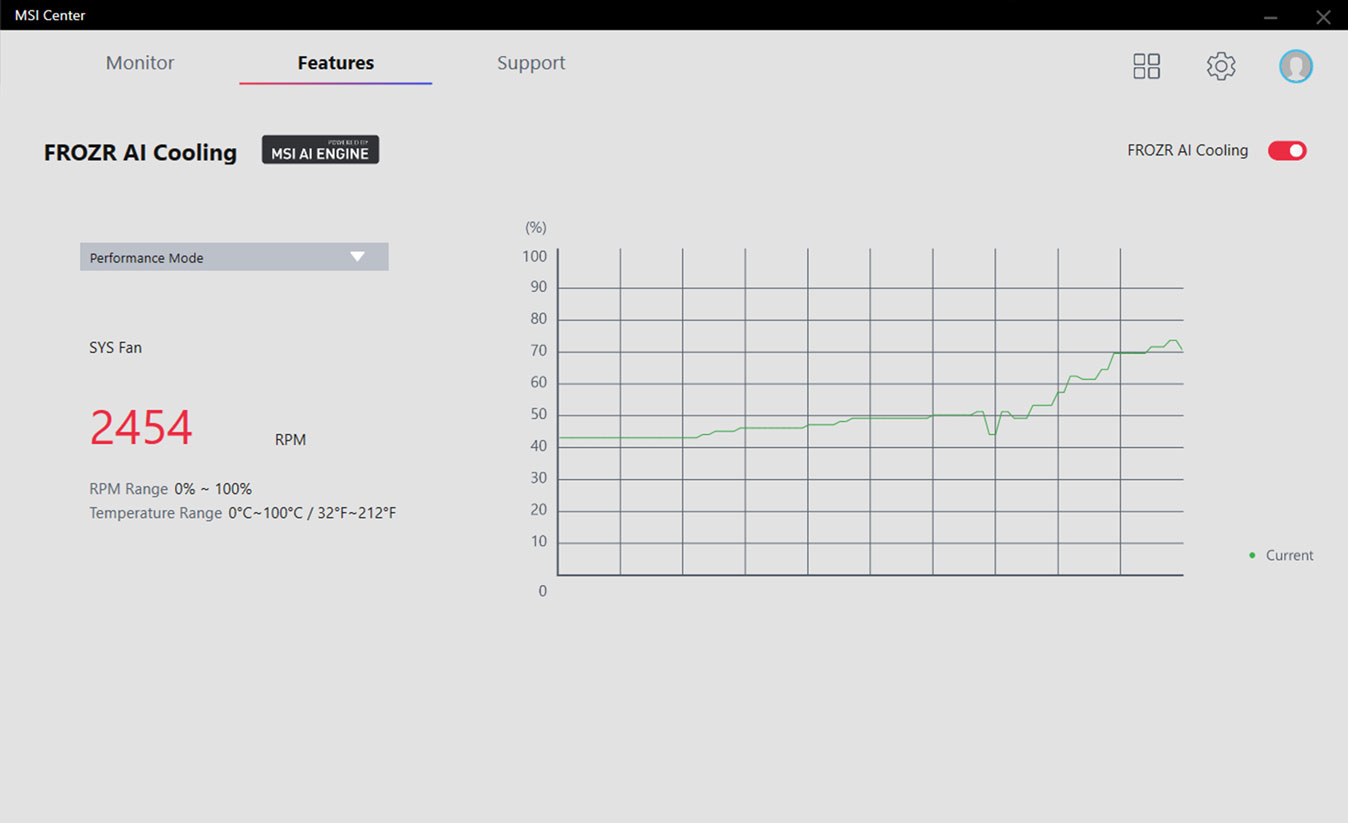

Performance mode

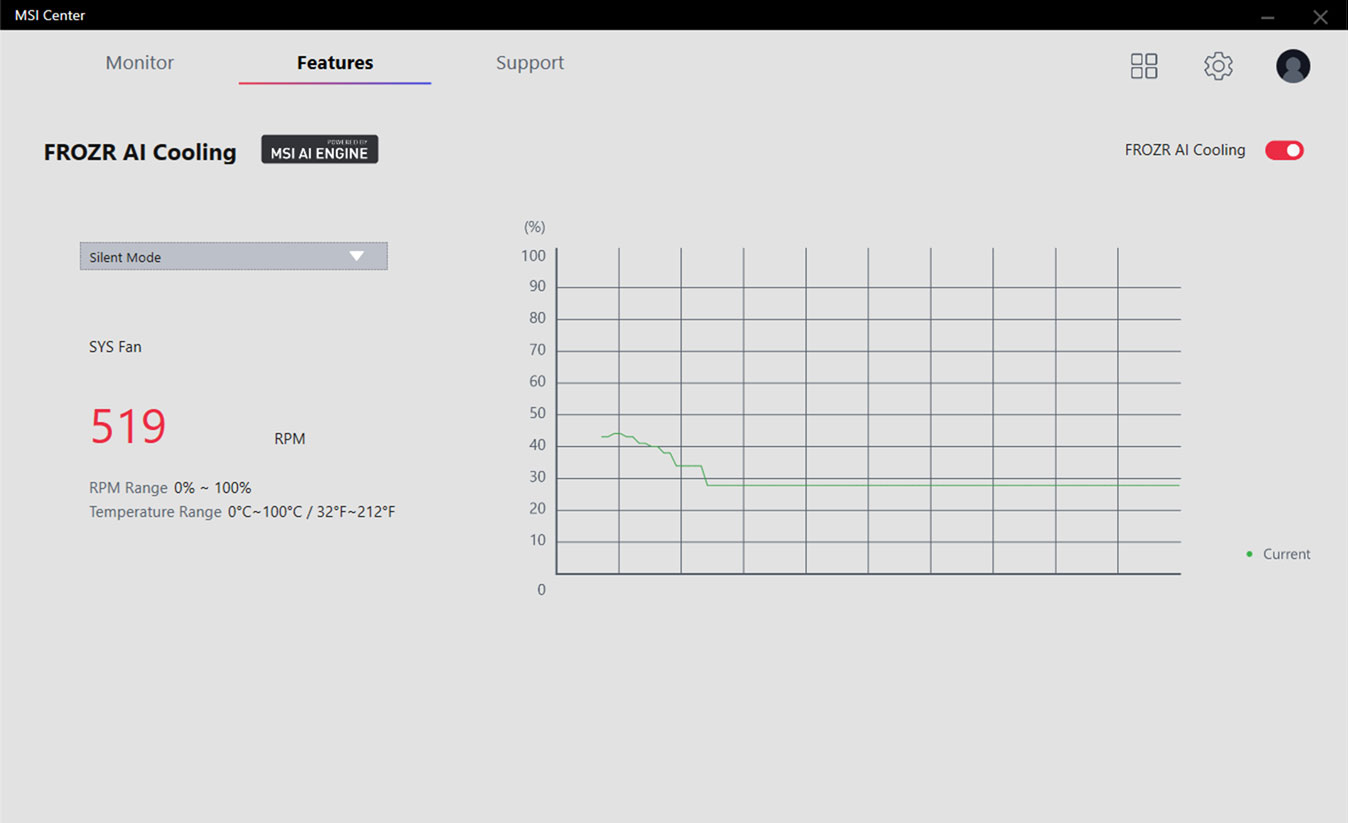

	Silent mode

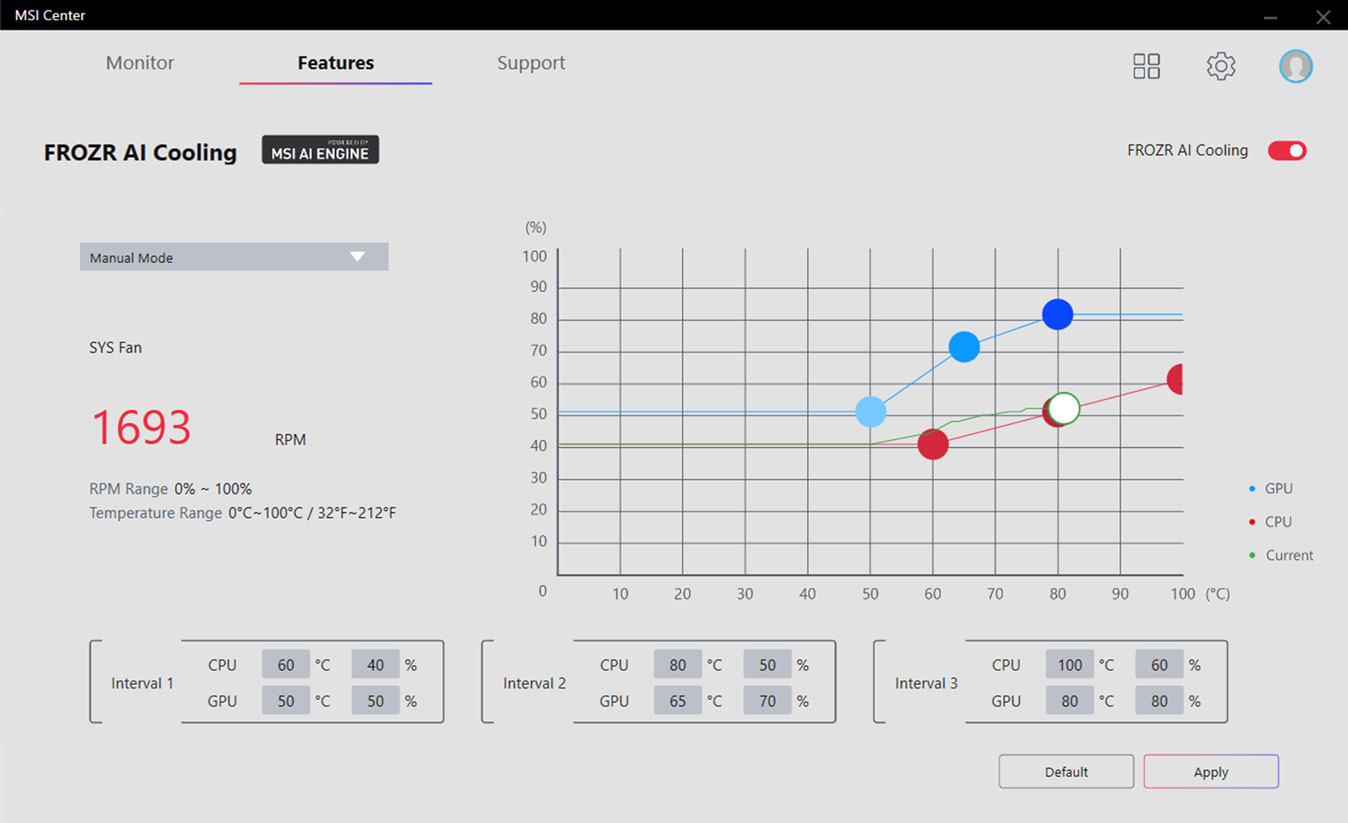

Manuel mode

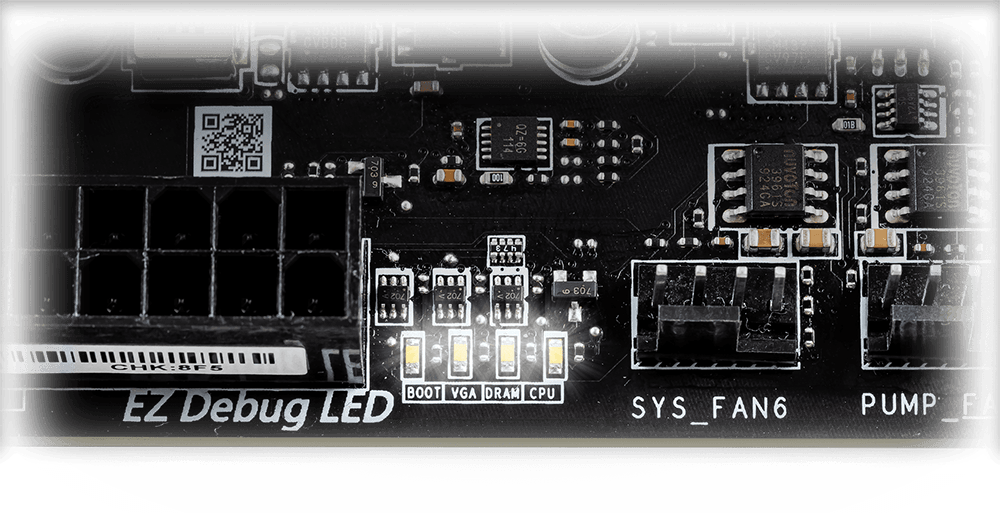

	EZ DEBUG LED Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.

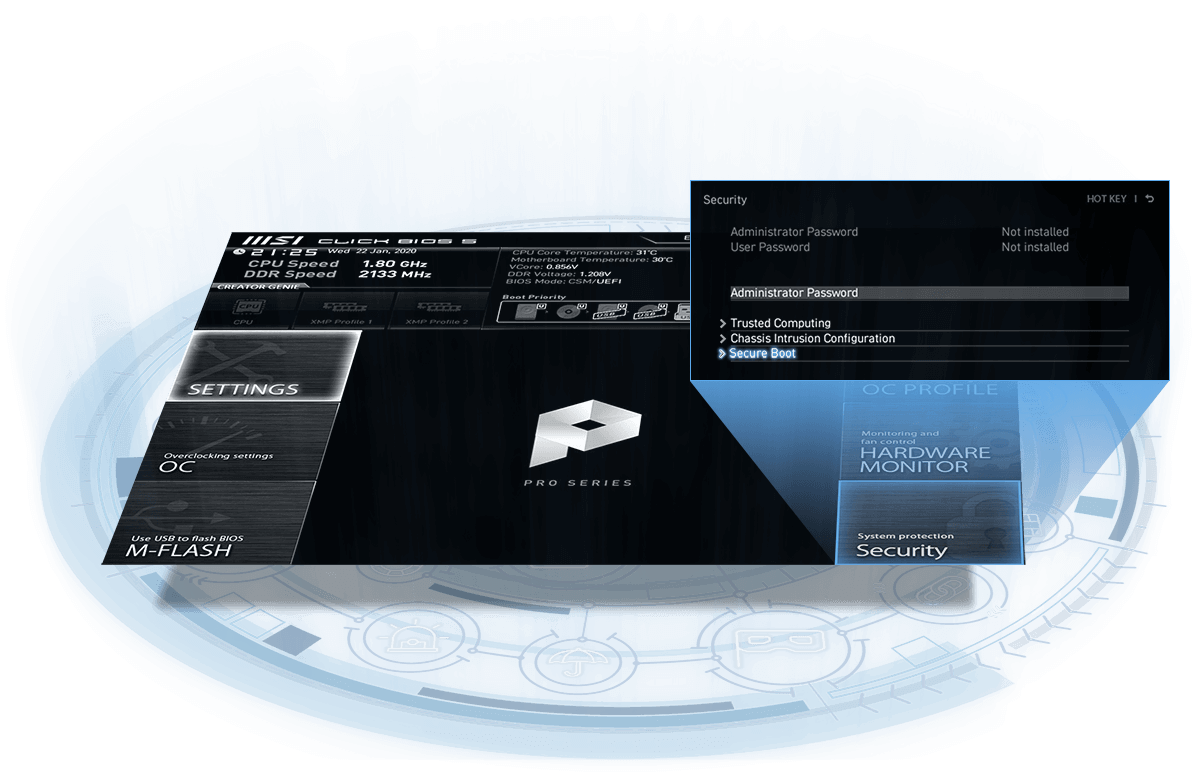

Secure Boot Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.

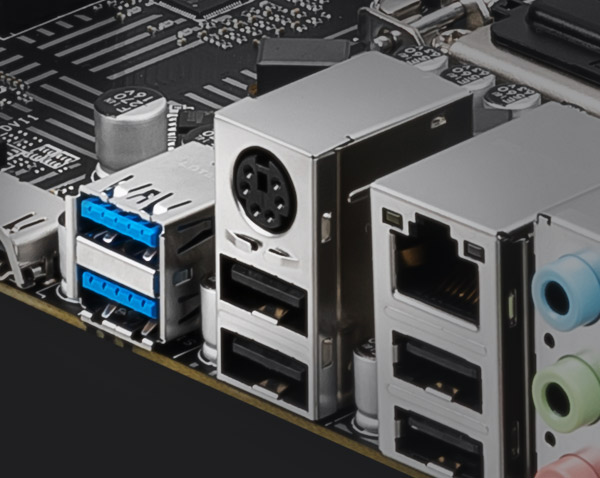

	Transfer lots of data, music and movies over USB easier. USB 3.2 Gen 1 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 Gen 1 devices.

Specification

PROCESSOR
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1

CHIPSET
Intel® H510 Chipset

MEMORY
2x DDR4 memory slots, support up to 64GB1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
 Please refer to www.msi.com for more information on compatible memory.
See supported memory

EXPANSION SLOT
1x PCIe x16 slot (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel® CPU
2x PCIe 3.0 x1 slots (From PCH)
ONBOARD GRAPHICS
1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz
1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz 1 2
 Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
STORAGE
4x SATA 6Gb/s ports (From H510 Chipset)
USB
Intel® H510 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
AUDIO
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
LAN
1x Realtek® RTL8111 Gigabit LAN controller
INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports)
1x USB 2.0 connector (support additional 2 USB ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector

DIMENSIONS
mATX Form Factor
9.3 x 7.5 in. (23.6 cm x 19.0 cm)
MOUNTING
6 mounting holes

OPERATING SYSTEM
Support for Windows® 10 64-bit
