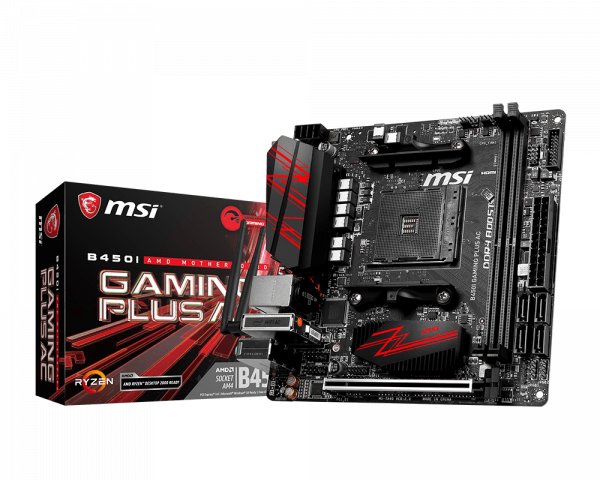

MSI B450I GAMING PLUS AC
- Supports 1st, 2nd and 3rd Gen AMD® Ryzen™/ Ryzen™ with Radeon™ Vega Graphics / 2nd Gen AMD® Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
- Supports DDR4-3466(OC) Memory
- Lightning Fast Game experience: TURBO M.2, StoreMI
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Give your DDR4 memory a performance boost with A-XMP
- Intel® Wireless support: delivers AC speeds up to 433Mbps with lower CPU loading and better long-term usage.
- VR Ready: Automatically optimizes your system for VR usage, pushing for maximum performance.
- In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost
- EZ Debug LED: Easiest way to troubleshoot
- GAMING CERTIFIED: 24-hour on and offline game and motherboard testing by eSports players
SPECIFICATIONS
PROCESSOR
Supports 1st, 2nd and 3rd Gen AMD® Ryzen™/ Ryzen™ with Radeon™ Vega Graphics / 2nd Gen AMD® Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
CHIPSET
AMD® B450 Chipset
MEMORY
2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required.
Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
SLOTS
1 x PCIe 3.0 x16 slot
Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen™ processors
Supports x8 speed with Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with adeon™ Graphics processors
Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors
STORAGE
AMD® CPU
1 x M.2 ports (M2_1, Key M)
Supports PCIe 3.0 x4 and SATA 6Gb/s 2280 storage devices (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
Supports PCIe 3.0 x2 and SATA 6Gb/s 2280 storage devices (AMD® Athlon™ with Radeon™ Vega Graphics)
AMD® B450 Chipset
4 x SATA 6Gb/s ports
RAID
AMD® B450 Chipset
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
ONBOARD GRAPHICS
1 x DisplayPort, support a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz1,2
1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1,2
1Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics processors
2Maximum shared memory of 2048 MB
USB
AMD® B450 Chipset
2 x USB 3.1 Gen1 (SuperSpeed USB 5Gbps) Type-A ports on the back panel
4 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
AMD® CPU
4x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.1 Gen1 connector)
AUDIO
Realtek® ALC887 Codec
7.1-Channel High Definition Audio
LAN
1 x Realtek® 8111H Gigabit LAN controller
WIFI & BLUETOOTH
Intel® Dual Band Wireless-AC 3168 module
The Wireless module is pre-install in the M2_2 (Key E) slot.
Supports Wi-Fi 1x1 802.11ac, dual band (2.4GHz,5GHz) up to 433 Mbps speed.
Supports Bluetooth® 4.2, 4.1, BLE, 4.0, 3.0, 2.1, 2.1+EDR
INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x USB 2.0 connector (support additional 2 USB 2.0 ports)
1 x USB 3.1 Gen1 connectors (support additional 2 USB 3.1 Gen1 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
2 x 5050 RGB LED strip 12V connectors
BACK PANEL PORTS
USB 2.0
DisplayPort
LAN
Wi-Fi / Bluetooth
HD Audio Connectors
PS/2 Combo Port,HDMI
HDMI
USB 3.1 Gen1
USB 3.1 Gen1
DIMENSIONS
6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
Mini-ITX Form Factor
MOUNTING
4 mounting holes
OPERATING SYSTEM
Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
Виж още Дънни платки за AMD процесори MSI
Виж всички Дънни платки за AMD процесори в категорията
| Процесор сокет: | AM4 |
|---|---|
| Чипсет: | B450 |
| Поддържана памет: | DDR4 |
| Брой слотове за RAM памет: | 2 |
| Storage интерфейси: | SATA 6Gbit/s, M.2 |
| RAID: | Да |
| Безжични мрежи: | Wi-Fi 5 (802.11ac) |
| Bluetooth: | Да |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | DP HDMI |
| Форм фактор: | Mini-ITX |
| Видеокарта: | Вградена |
