Thermaltake Core P6 TG Racing Green
Core P6 Tempered Glass Racing Green ATX Mid Tower Chassis |
![]() |

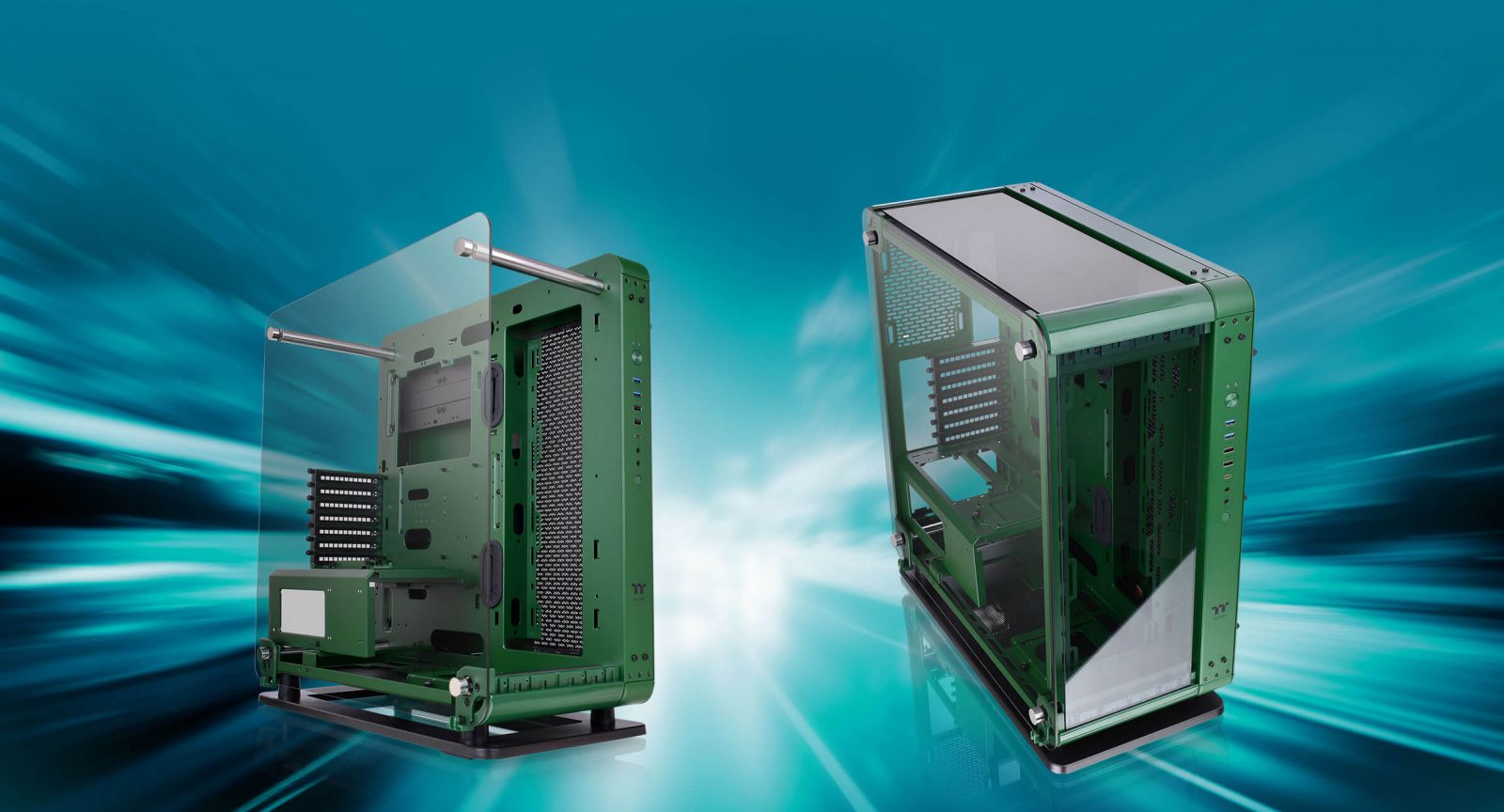

Transformable Chassis
The Core P6 TG Racing Green is a dual-form ATX mid tower case which can be transformed into an open frame case once the front and top tempered glass panels are removed.

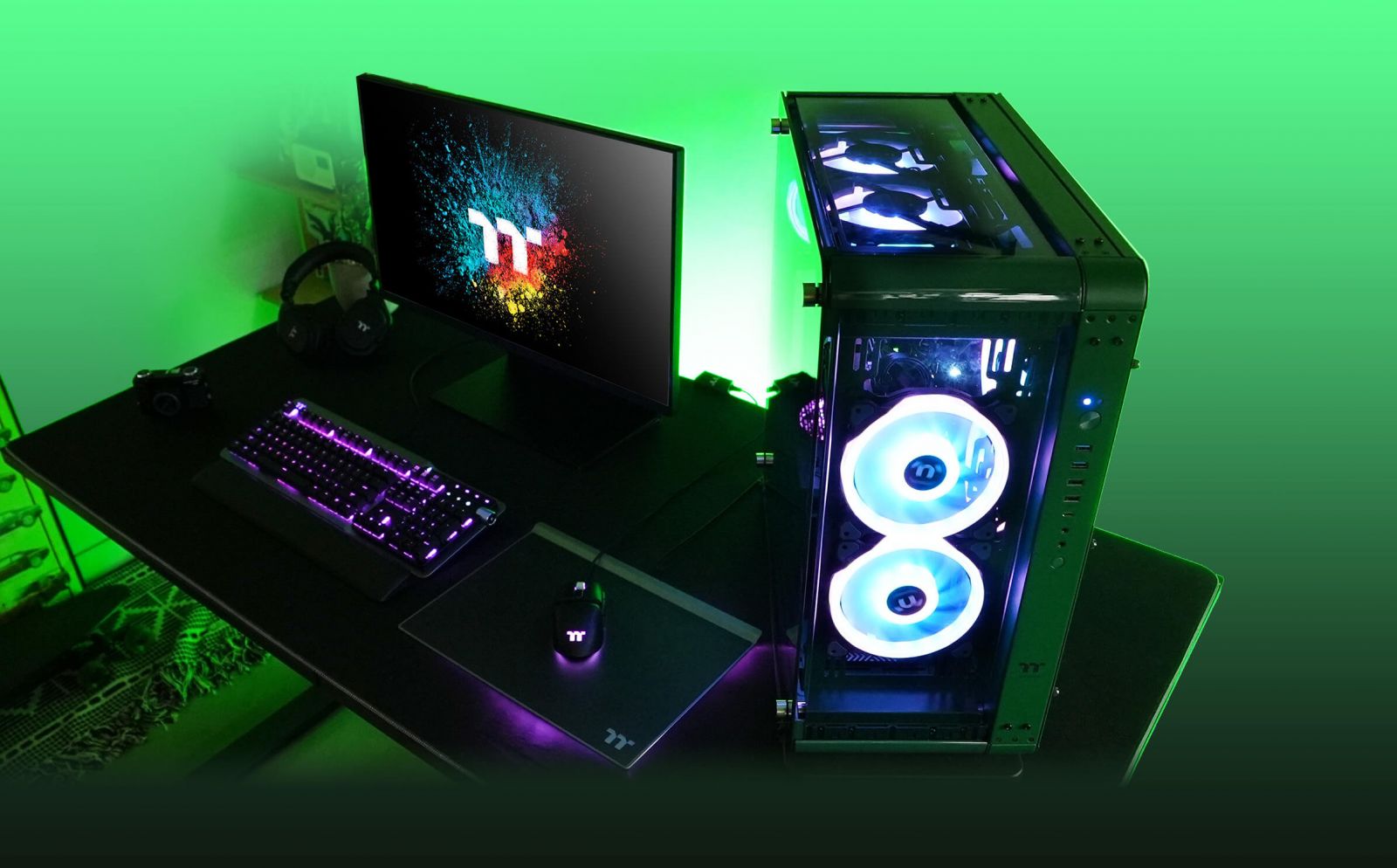

Two-Way Placement Layout

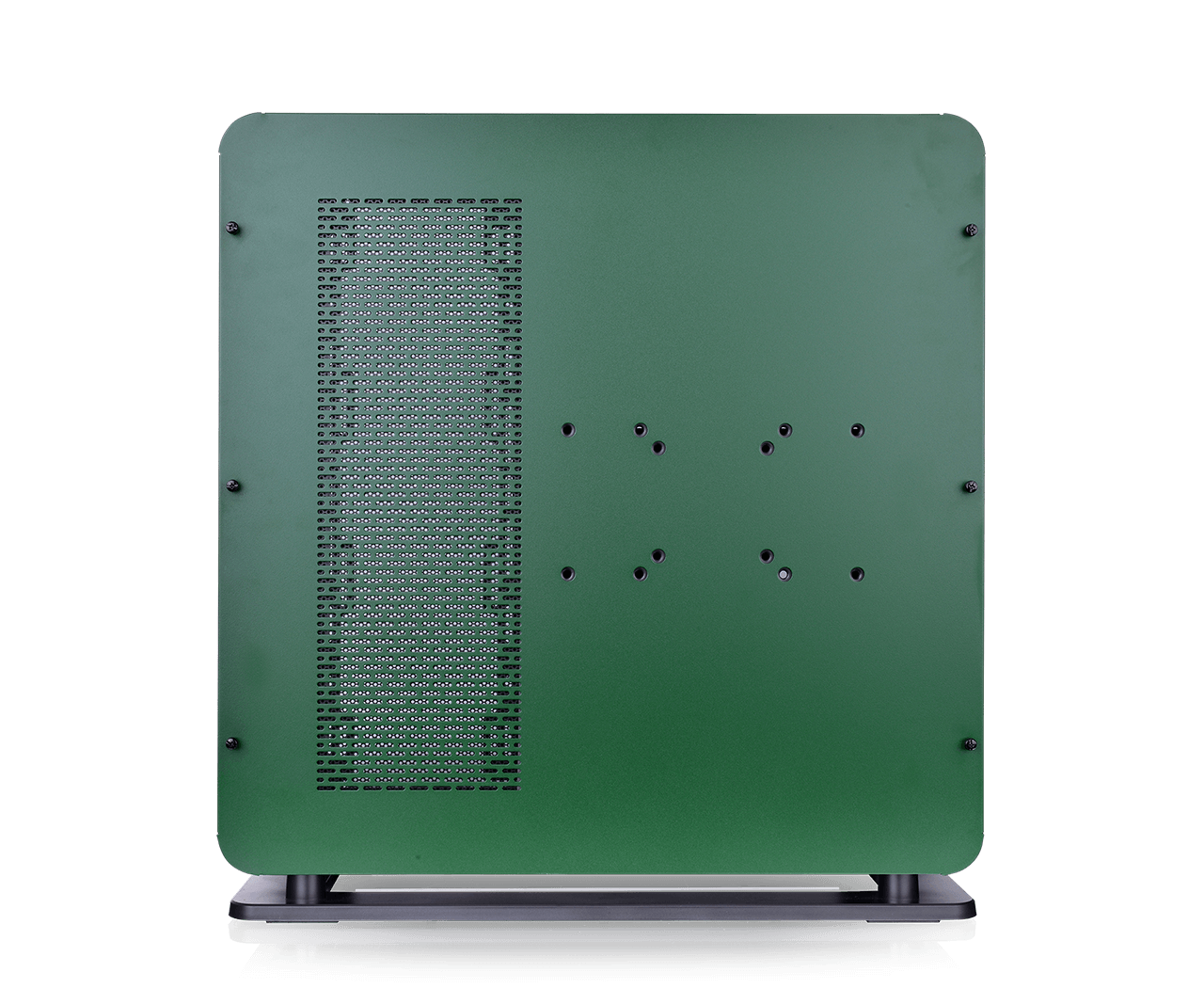

The Core P6 TG Racing Green is designed for use in two different ways: Wall-mounted or vertical placement. Built for customization that reflects the makers’ personality, it allows for easy adjustments to the case for the best viewing presentation while ensuring outstanding cooling performance. Hang it on the wall as a decoration is something that our users love to do with the Core P Series Chassis.

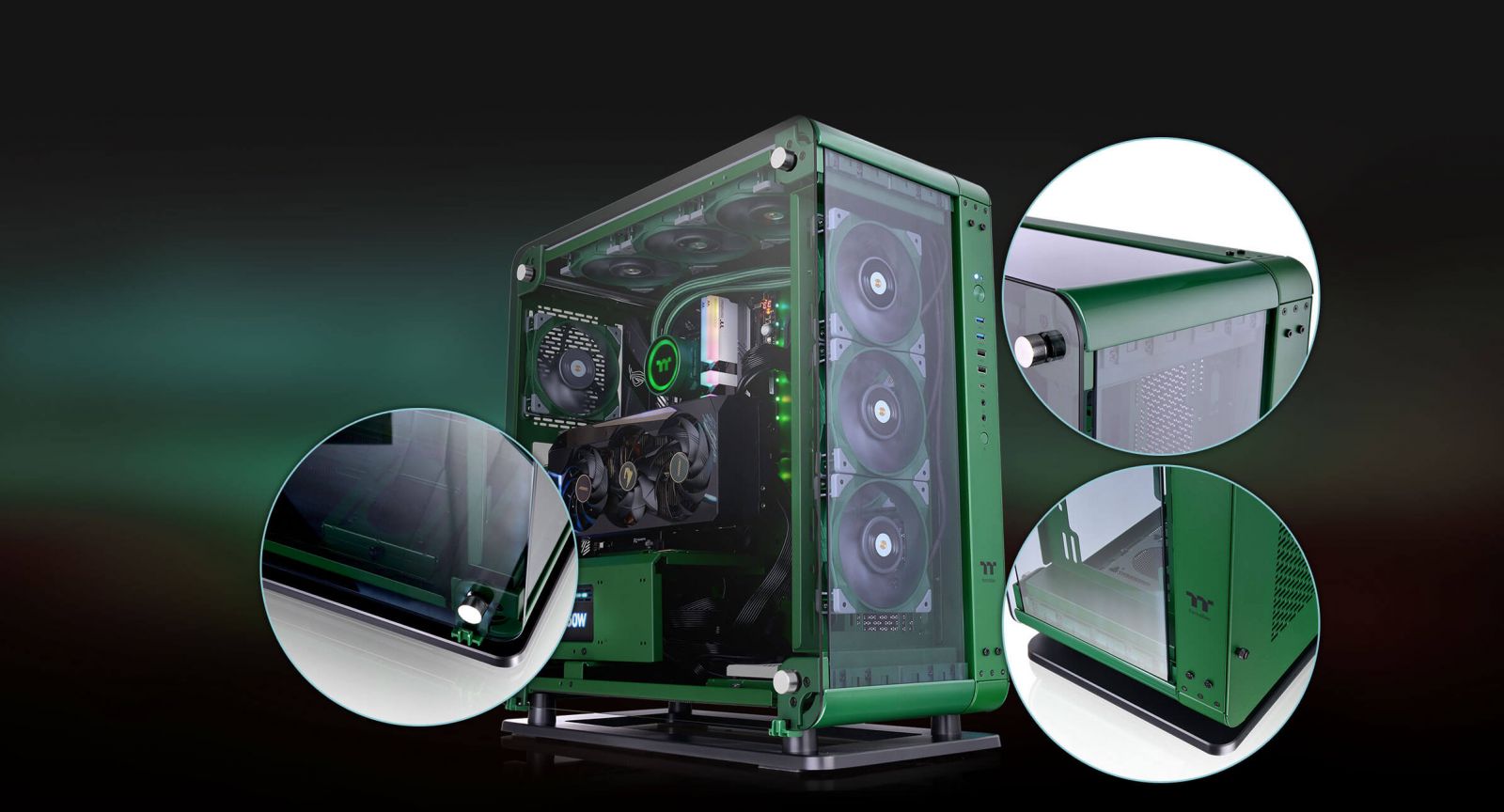

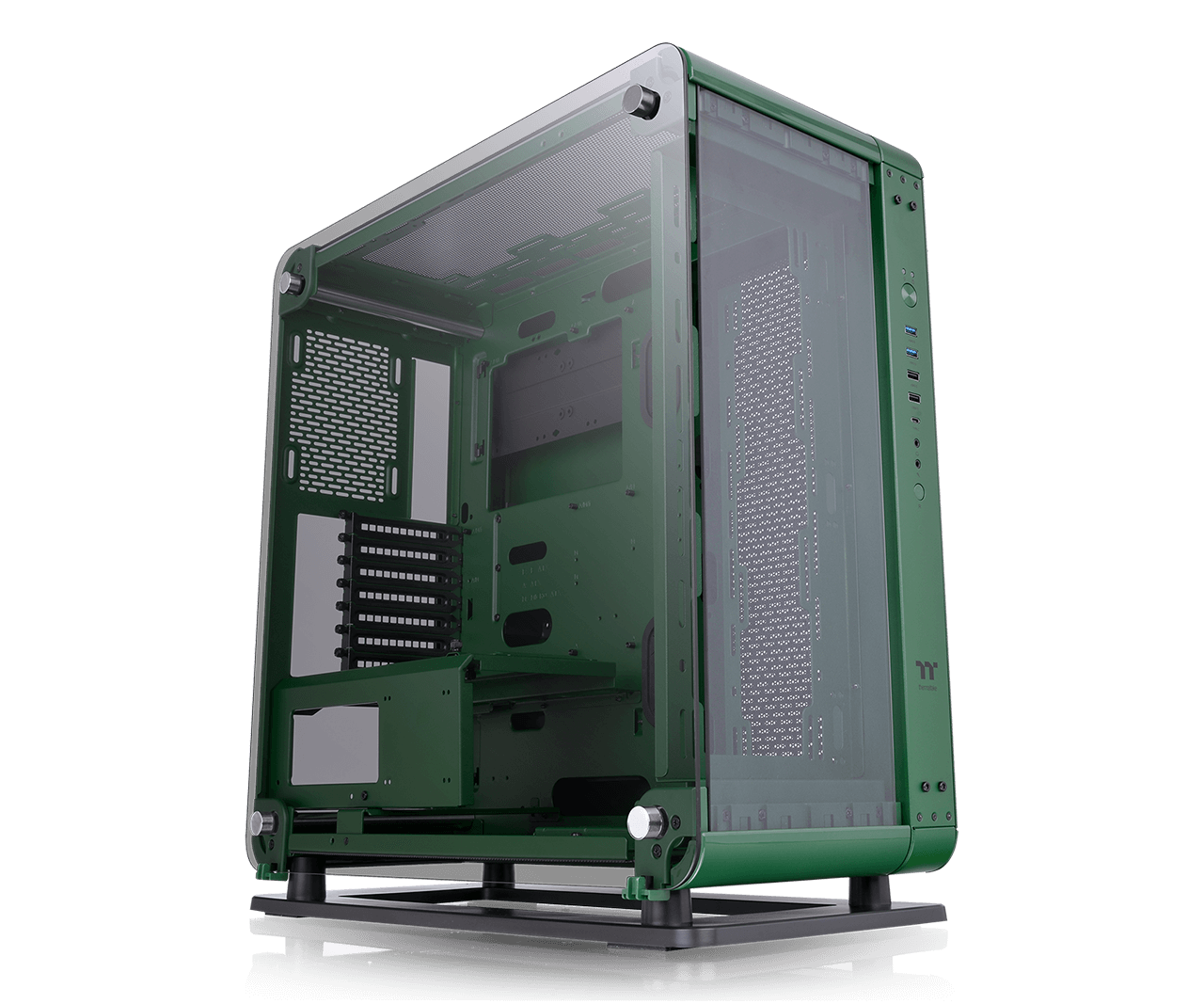

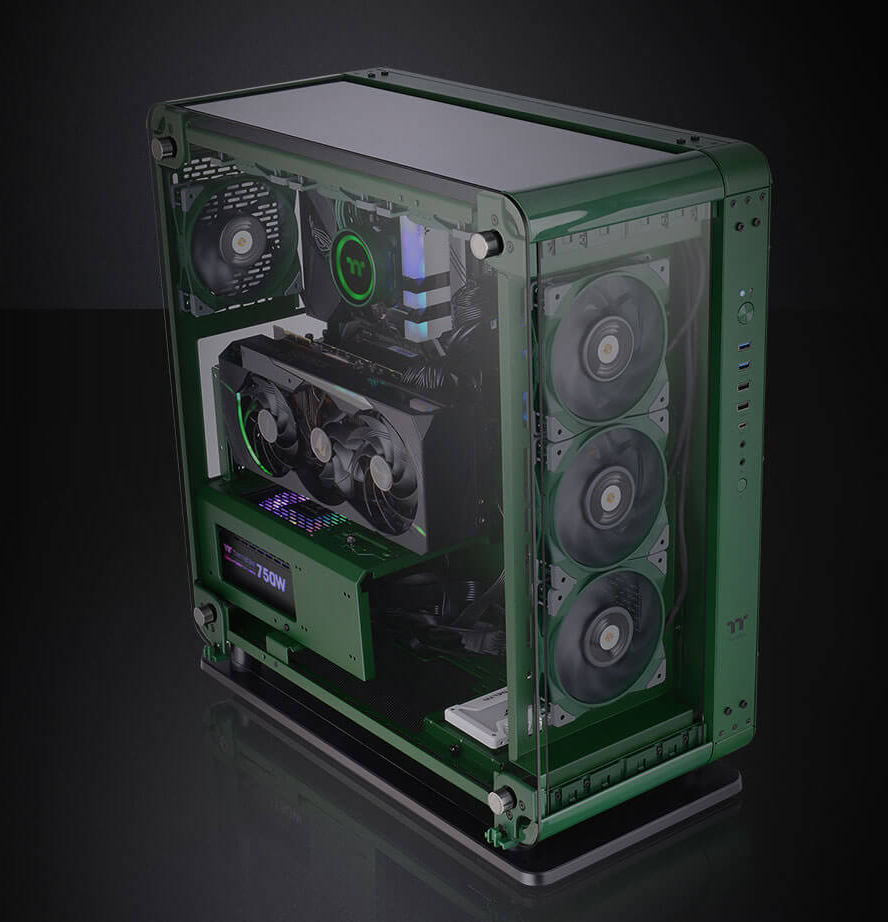

4mm Thick Tempered Glass Window with Stunning Viewing
The Core P6 TG Racing Green features three 4mm thick tempered glass panels which are designed to meet the highest standards in the industry. The enlarged glass windows permit users to fully display their RGB components in the system, and show off their dedication and skill sets.

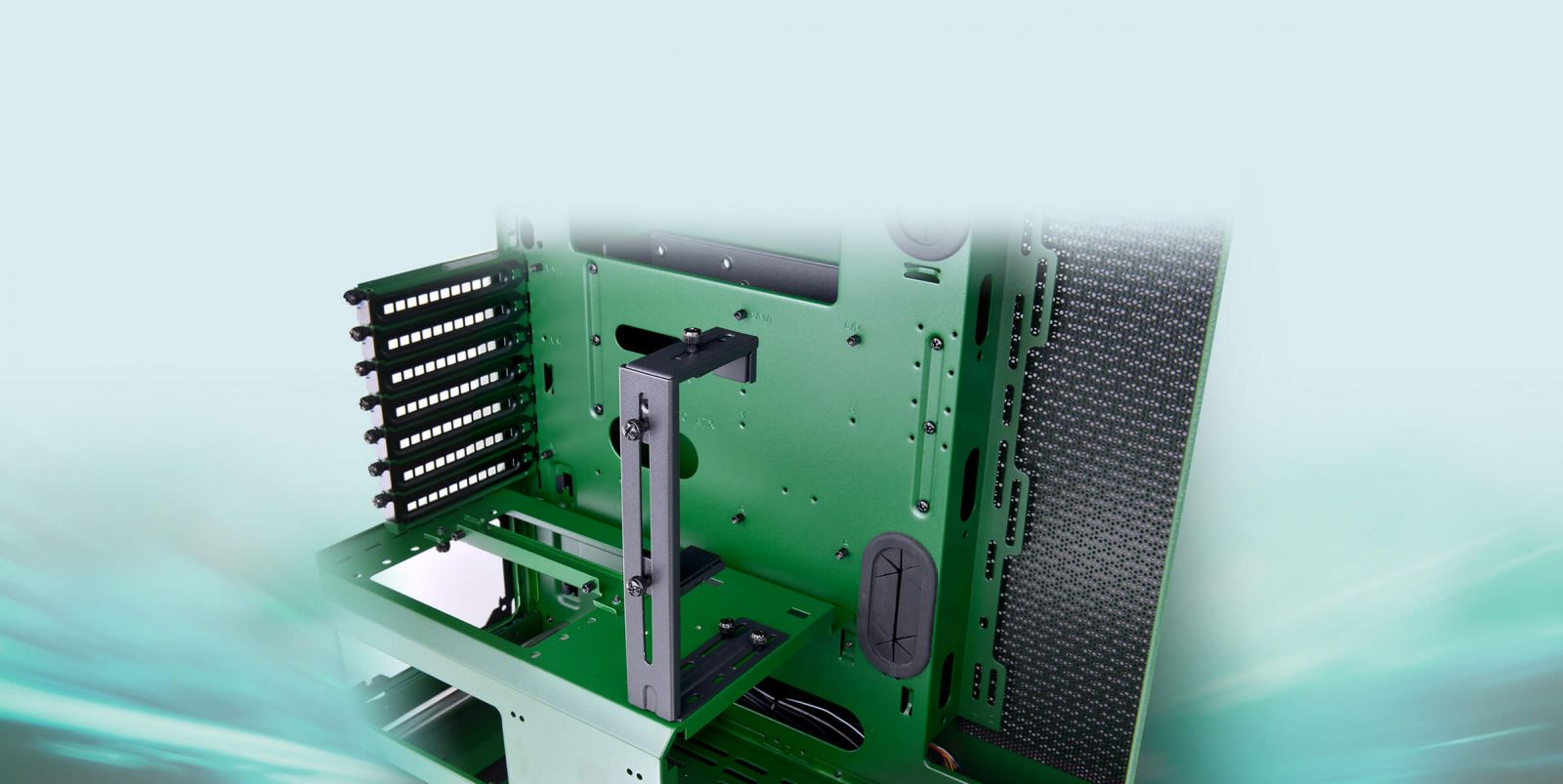

PSU Cover & Riser GPU Support Bracket
The built-in PSU cover is designed to hide unsightly cables with overall good ventilation. The riser cable bracket on top of the PSU cover and an extra L-shape GPU bracket in the accessory box not only enable vertical GPU installation, but help reduce the weight on the PCI-E slots, especially when installing high-end graphics cards like NVIDIA GEFORCE RTX Series and AMD Radeon™ RX Series. Additionally, the extra GPU bracket can be used to hold vertical and horizontal placed GPUs and users can install the bracket in three ways based on their needs.
P/N | CA-1V2-00MCWN-00 |
---|---|
Series | Core |
Model | Core P6 TG Racing Green |
CASE TYPE | Mid Tower |
Dimension (H x W x D) | 565 x 255 x 530mm (22.2 x 10 x 20.9 inch) |
NET WEIGHT | 17.84 kg / 39.33 lbs. |
SIDE PANEL | 4mm Tempered Glass x 3 |
Color | Racing Green |
MATERIAL | SPCC |
COOLING SYSTEM | - |
Drive Bays -Accessible -Hidden |
4 x 3.5” or 8 x 2.5” |
EXPANSION SLOTS | 7 (Rotatable Patented Design) |
MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 10.5”(CEB) |
I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
PSU | Standard PS2 PSU (optional) |
FAN SUPPORT | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Rear: 1 x 120mm Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Bottom: 3 x 120mm, 2 x 120mm or 1 x 120mm 2 x 140mm, 1 x 140mm |
RADIATOR SUPPORT | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm Right (M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Bottom: 1 x 240mm, 1 x 120mm |

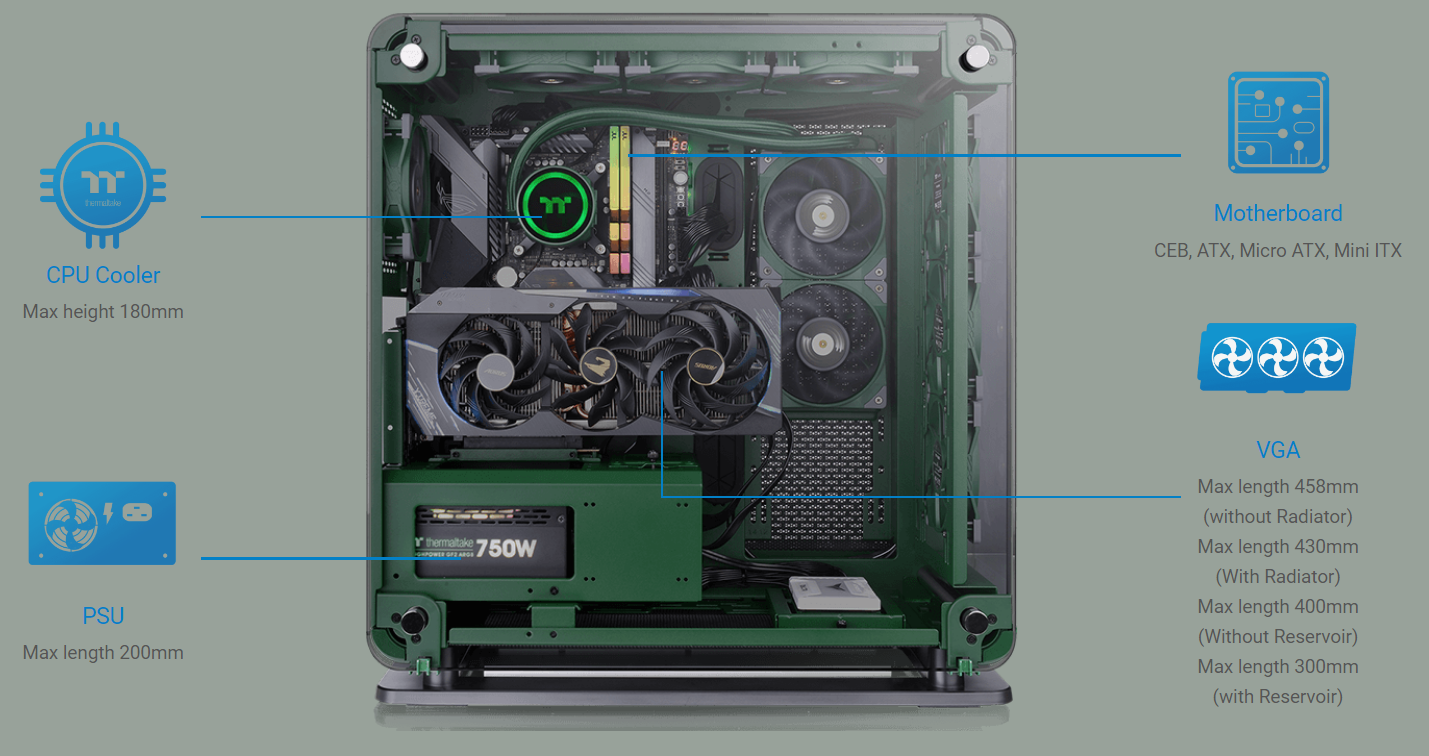

CLEARANCE | CPU cooler height limitation: 180mm VGA length limitation: 300mm (With Reservoir) 400mm (Without Reservoir) 430mm (With Radiator) 458mm (Without Radiator) PSU length limitation: 200mm |
