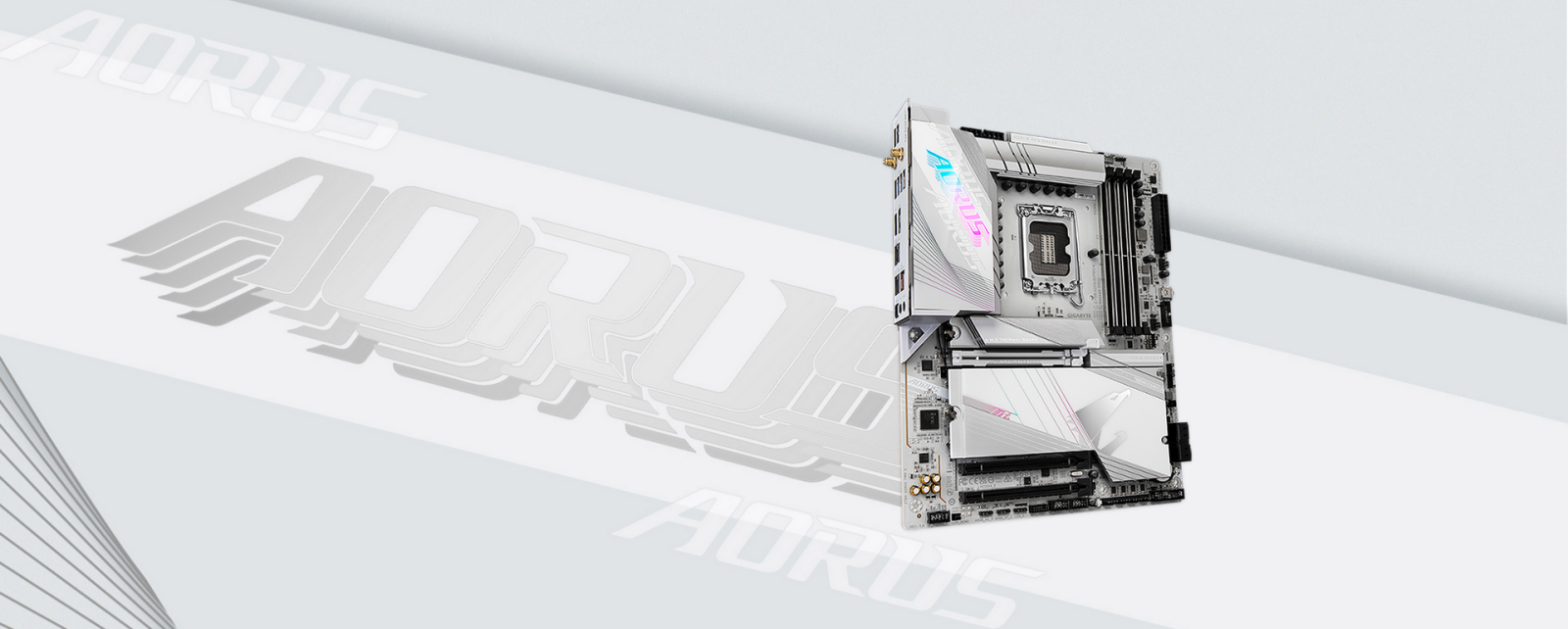

Gigabyte Z790 AORUS PRO X
![](/images/custom/site/Gigabyte%20Z790%20AORUS%20Pro%20X%20mdesc%201.png)
- Supports Intel Core 14th and 13th processors
- Digital twin 18+1+2 phases VRM solution
- Dual Channel DDR5:4*DIMMs with XMP 3.0 memory module support
- PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click:M.2 heatsinks with screwless design
- EZ-Latch Plus:M.2 slots with quick release design
- Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
- UC BIOS:User-Centred intuitive UX with Quick Access function
- Ultra-Fast Storage:5*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Overall Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard XL
- Fast Networking:5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
- Extended Connectivity:HDMI, DP IN, Front & Rear USB-C 20Gb/s
- High-Res Audio:ALC1220 & Audiophile Grade Capacitors
![](/images/custom/site/Gigabyte%20Z790%20AORUS%20Pro%20X%20mdesc%202.png)
X Gen Designed for 14th Gen
X marks the 14th generation! Introducing the AORUS Z790 X Gen Motherboards, the most powerful platforms ever built for the Intel Core 14th Gen processors. With the leading performance in DDR5 memory, the upgraded DIY-friendly innovations, and the all-new BIOS redesigned as user-centered, the AORUS Z790 X Gen Motherboards are built to fully unleash the next-gen power.
![](/images/custom/site/Gigabyte%20Z790%20AORUS%20Pro%20X%20mdesc%203.png)
Xceed in DDR5 performance
GIGABYTE is committed to enabling the unparalleled performance of the Intel Core 14th Gen processors. That is why every Z790 AORUS PRO X motherboard is engineered with industry-leading technologies to achieve the best-in-class DDR5 performance on the market.
Best-in-class Compatibility
Tech specs:
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset
Intel Z790 Express Chipset
Memory
Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
- 1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz
* Support for drawing tablets and 20V@3A of power delivery.
* Support for DisplayPort 1.2 version and HDR.
- 1 x USB Type-C port, supporting USB 2.0 and DisplayPort video outputs and a maximum resolution of 1920x1080@30 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
Audio
Realtek ALC1220-VB CODEC
*The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
MediaTek Wi-Fi 7 MT7927, RZ738 (For PCB rev. 1.0)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot shares bandwidth with the M2C_CPU connectors.
The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage Interface
CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/2580 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:
- 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
- 1 x USB Type-C port onboard, with USB 2.0 support
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB Type-C port (DisplayPort), with USB 2.0 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper
Back Panel Connectors
2 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
4 x USB 3.2 Gen 1 ports
1 x DisplayPort In port
1 x HDMI port
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
1 x USB Type-C port (DisplayPort), with USB 3.2 Gen 2 support
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
I/O Controller
iTE I/O Controller Chip
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System
Support for Windows 11 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Виж още Дънни платки за Intel процесори Gigabyte
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
Процесор сокет: | LGA 1700 |
---|---|
Чипсет: | Z790 |
Поддържана памет: | DDR5 |
Брой слотове за RAM памет: | 4 |
Storage интерфейси: | SATA 6Gbit/s, M.2 |
RAID: | Да |
Безжични мрежи: | 802.11be |
Bluetooth: | Да |
Видео слот: | PCI-E |
Multi-Graphics технология: | Няма |
Видео изход: | HDMI |
Форм фактор: | ATX |
