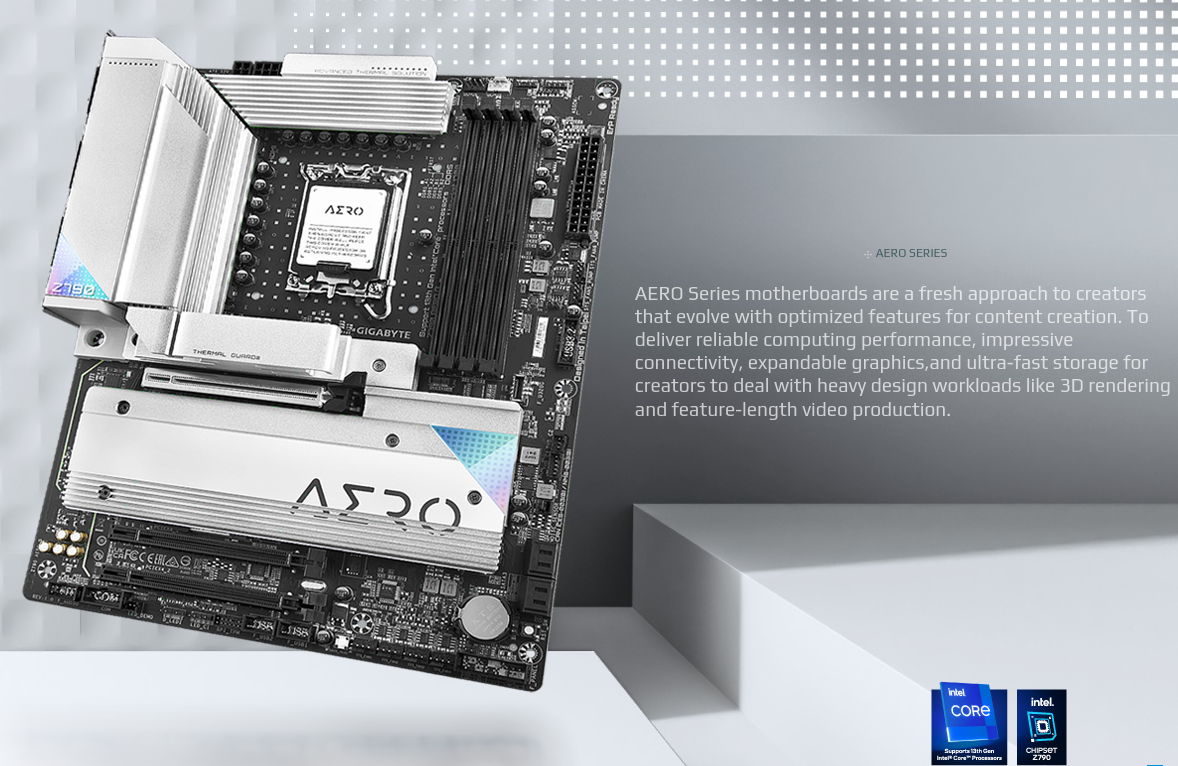

Gigabyte Z790 AERO G LGA1700 DDR5
Икона в кампания
НазадGigabyte Z790 AERO G LGA1700 DDR5Gigabyte Z790 AERO G LGA1700 DDR5Gigabyte Z790 AERO G LGA1700 DDR5Gigabyte Z790 AERO G LGA1700 DDR5Напред

Дънна платка Gigabyte Z790 AERO G, Z790, LGA1700, DDR5, PCI-E 5.0, (DP&HDMI), 4x SATA 6Gb/s, 5x M.2, 2x USB 3.2 Gen 2 Type-A, Wi-Fi 6, Bluetooth v5.3, ATX

id 249803 Код: MBIGIGABYTEZ790AEROG
  • Модел: Z790 AERO G DDR5
  • Марка: Gigabyte
  • Гаранция: 36 месеца
  • Код на продукта: Z790 AERO G
  • Процесор сокет: LGA 1700
  • Чипсет: Z790
  • Брой слотове за RAM памет: 4
  • Storage интерфейси: SATA 6Gbit/s, M.2
  • Видео изход: DP HDMI
  • Форм фактор: ATX
  • Наличност: Стар продукт
    Продукта вече не се предлага Виж подобни предложения Абонирай се за бюлетина

    Печат

    Изпрати на приятел

    ОписаниеХарактеристикиРевюта / ВъпросиДокументация

    Z790 AERO G

    Specification

    • CPU
      1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
      2. L3 cache varies with CPU
      * Please refer to "CPU Support List" for more information.
    • Chipset
      1. Intel® Z790 Express Chipset
    • Memory
      1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
      2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
      3. Dual channel memory architecture
      4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
      5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      6. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Onboard Graphics
      Integrated Graphics Processor-Intel® HD Graphics support:
      1. 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz
        * Support for drawing tablets and 20V@3A of power delivery.
        * Support for DisplayPort 1.4 version and HDR.
      2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
        * Support for HDMI 2.0 version and HDCP 2.3.
      (Graphics specifications may vary depending on CPU or graphics card support.)
    • Audio
      1. Realtek® ALC1220-VB CODEC
        * The back panel line out jack supports DSD audio.
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
      4. Support for S/PDIF Out
    • LAN
      1. Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    • Wireless Communication module
      Intel® Wi-Fi 6E AX211
      1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
      2. BLUETOOTH 5.3
      3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      (Actual data rate may vary depending on environment and equipment.)
    • Expansion Slots
      CPU:
      1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
        * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      Chipset:
      1. 1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
      2. 1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
    • Storage Interface
      CPU:

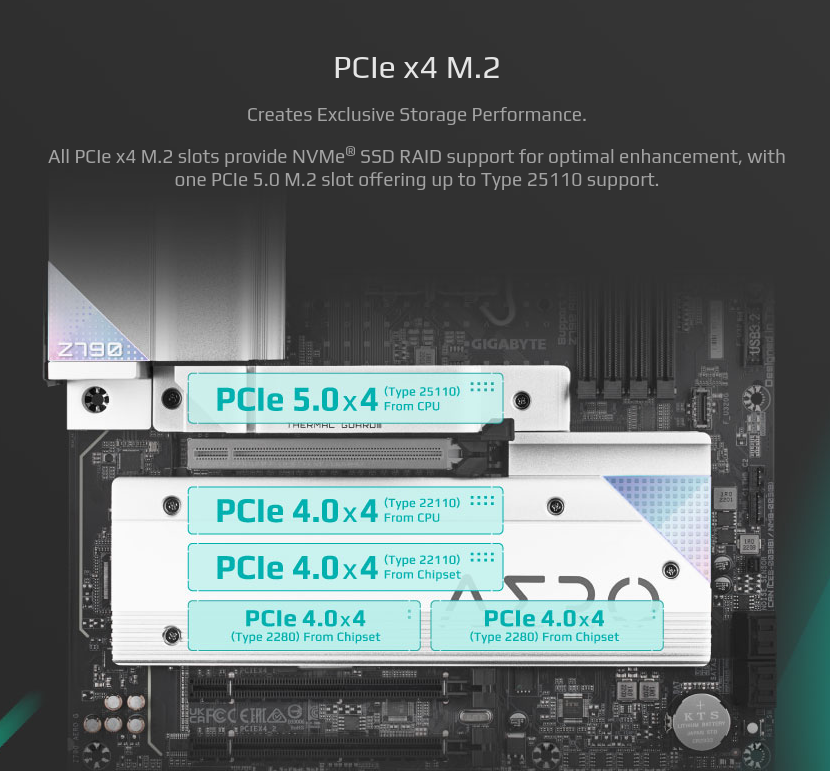

      1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
      2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
      Chipset:
      1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
      2. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
      3. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
      4. 4 x SATA 6Gb/s connectors
      RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
      RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    • USB
      Chipset:
      1. 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
      2. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
      3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
      4. 2 x USB 3.2 Gen 1 ports available through the internal USB header
      5. 2 x USB 2.0/1.1 ports on the back panel
      Chipset+USB 3.2 Gen 1 Hub:
      1. 4 x USB 3.2 Gen 1 ports on the back panel
      Chipset+USB 2.0 Hub:
      1. 4 x USB 2.0/1.1 ports available through the internal USB headers
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x 4-pin ATX 12V power connector
      4. 1 x CPU fan header
      5. 1 x water cooling CPU fan header
      6. 4 x system fan headers
      7. 2 x system fan/water cooling pump headers
      8. 2 x addressable LED strip headers
      9. 2 x RGB LED strip headers

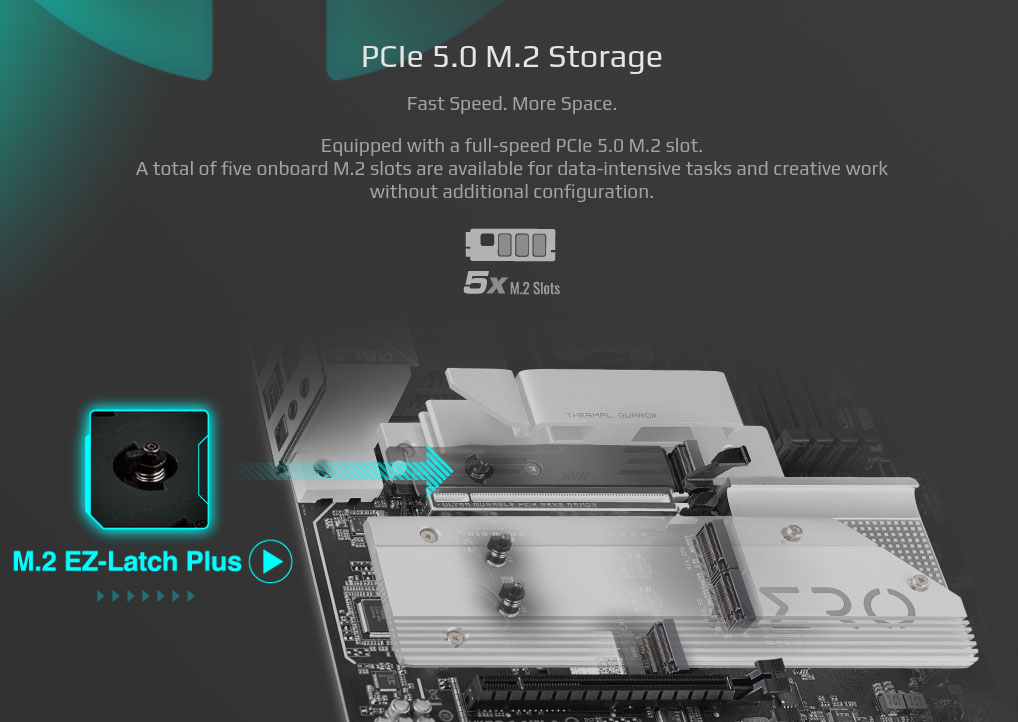

      10. 5 x M.2 Socket 3 connectors
      11. 4 x SATA 6Gb/s connectors
      12. 1 x front panel header
      13. 1 x front panel audio header
      14. 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
      15. 1 x USB 3.2 Gen 1 header
      16. 2 x USB 2.0/1.1 headers
      17. 1 x noise detection header
      18. 2 x Thunderbolt™ add-in card connectors
      19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
      20. 1 x serial port header
      21. 1 x Q-Flash Plus button
      22. 1 x reset button
      23. 1 x reset jumper
      24. 2 x temperature sensor headers
      25. 1 x Clear CMOS jumper
    • Back Panel Connectors
      1. 2 x USB 2.0/1.1 ports
      2. 2 x SMA antenna connectors (2T2R)
      3. 4 x USB 3.2 Gen 1 ports
      4. 1 x DisplayPort In port
      5. 1 x HDMI 2.0 port
      6. 2 x USB 3.2 Gen 2 Type-A ports (red)
      7. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
      8. 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
      9. 1 x RJ-45 port
      10. 1 x optical S/PDIF Out connector
      11. 2 x audio jacks
    • I/O Controller
      1. iTE® I/O Controller Chip
    • H/W Monitoring
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Water cooling flow rate detection
      5. Fan fail warning
      6. Fan speed control
        * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
      7. Noise detection
    • BIOS
      1. 1 x 256 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
      1. Support for GIGABYTE Control Center (GCC)
        * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      2. Support for Q-Flash
      3. Support for Q-Flash Plus
      4. Support for Smart Backup
    • Bundled Software
      1. Norton® Internet Security (OEM version)
      2. LAN bandwidth management software
    • Operating System
      1. Support for Windows 11 64-bit
      2. Support for Windows 10 64-bit
    • Form Factor
      1. ATX Form Factor; 30.5cm x 24.4cm




    Виж още Дънни платки за Intel процесори Gigabyte
    Виж всички Дънни платки за Intel процесори в категорията
    Документация
    Технически характеристики
    Процесор сокет:  LGA 1700
    Чипсет:  Z790
    Поддържана памет:  DDR5
    Брой слотове за RAM памет:  4
    Storage интерфейси:  SATA 6Gbit/s, M.2
    RAID:  Да
    Безжични мрежи:  Wi-Fi 6 (802.11ax)
    Bluetooth:  Да
    Видео слот:  PCI-E
    Multi-Graphics технология:  Няма
    Видео изход:  DP HDMI
    Форм фактор:  ATX
