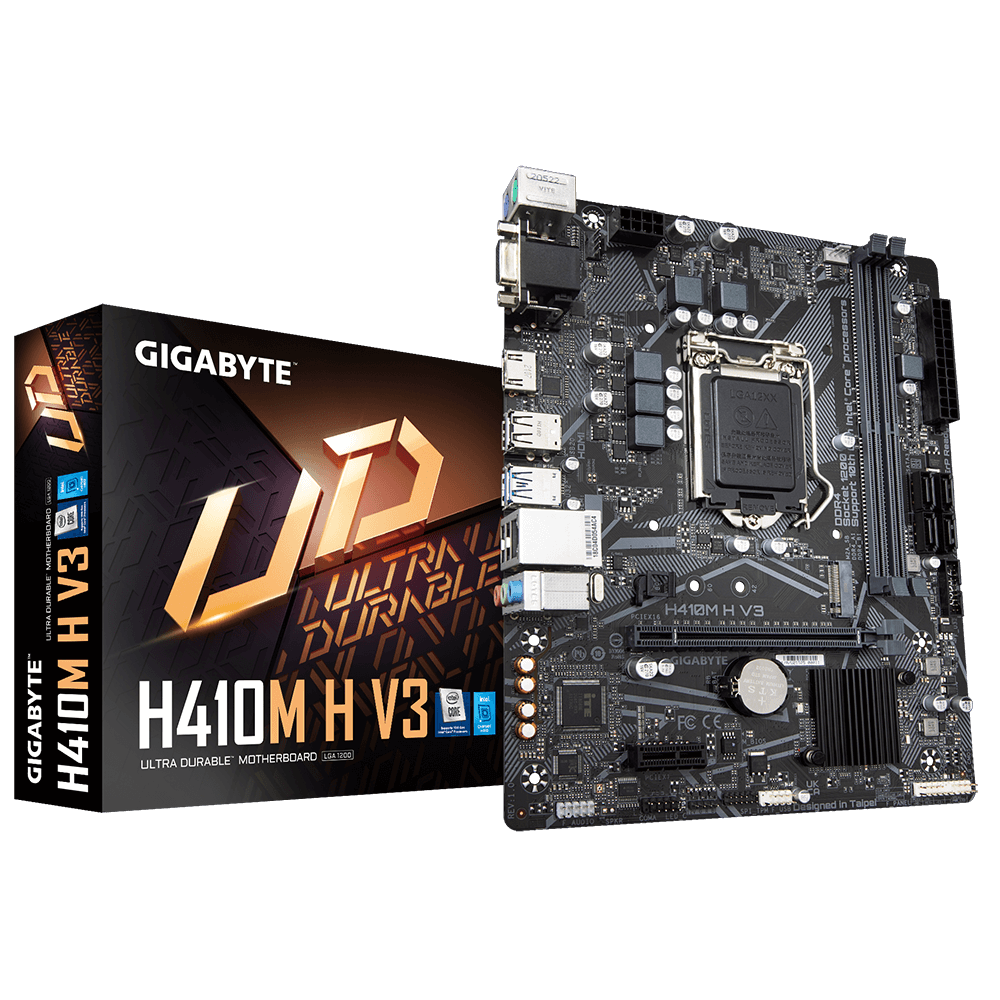

Intel® Ultra Durable Motherboard with GIGABYTE Gaming GbE LAN, Anti-Sulfur Resistor, Smart Fan 5
- Supports 10th Gen Intel®Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 8-Channel HD Audio with High Quality Audio Capacitors
- NVMe PCIe Gen3 x4 2280 M.2 Connector
- GIGABYTE Gaming GbE LAN with Bandwidth Management
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
Specifications:
-
CPU
- Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1200 package
- L3 cache varies with CPU
-
Chipset
- Intel® H510 Express Chipset
-
Memory
- Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules - Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules - 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- Intel® Core™ i9/i7 processors:
-
Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.) -
Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
-
LAN
- Gigabit Ethernet Chip (1 Gbps/100 Mbps)
-
Expansion Slots
- 1 x PCI Express x16 slot, running at x16
- 1 x PCI Express x1 slot
(The PCI Express slots conform to PCI Express 3.0 standard.
-
Storage InterfaceChipset:
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
-
USBChipset:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
-
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 1 x system fan header
- 1 x RGB LED strip header
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x serial port header
- 1 x Clear CMOS jumper
-
Back Panel Connectors
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 2 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
-
I/O Controller
- iTE® I/O Controller Chip
-
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
-
BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
-
Unique Features
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer - Support for Q-Flash
- Support for Xpress Install
- Support for APP Center
-
Bundled Software
- Norton® Internet Security (OEM version)
- Realtek® 8118 Gaming LAN Bandwidth Control Utility
-
Operating System
- Support for Windows 10 64-bit
-
Form Factor
- Micro ATX Form Factor; 22.6cm x 18.5cm
Виж още Дънни платки за Intel процесори Gigabyte
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
Процесор сокет: | LGA 1200 |
---|---|
Чипсет: | H410 |
Поддържана памет: | DDR4 |
Брой слотове за RAM памет: | 2 |
Storage интерфейси: | SATA 6Gbit/s, M.2 |
RAID: | Не |
Безжични мрежи: | Не |
Bluetooth: | Не |
Видео слот: | PCI-E |
Multi-Graphics технология: | Няма |
Видео изход: | HDMI VGA (D-Sub) |
Форм фактор: | Micro ATX |
