Дънна платка Gigabyte Z690 Aorus Pro, Z690, LGA1700, DDR5, PCI-E 5.0 (DP)(CF), 6x SATA 6Gb/s, 3x M.2, 4x USB 3.2 Gen 2, ATX

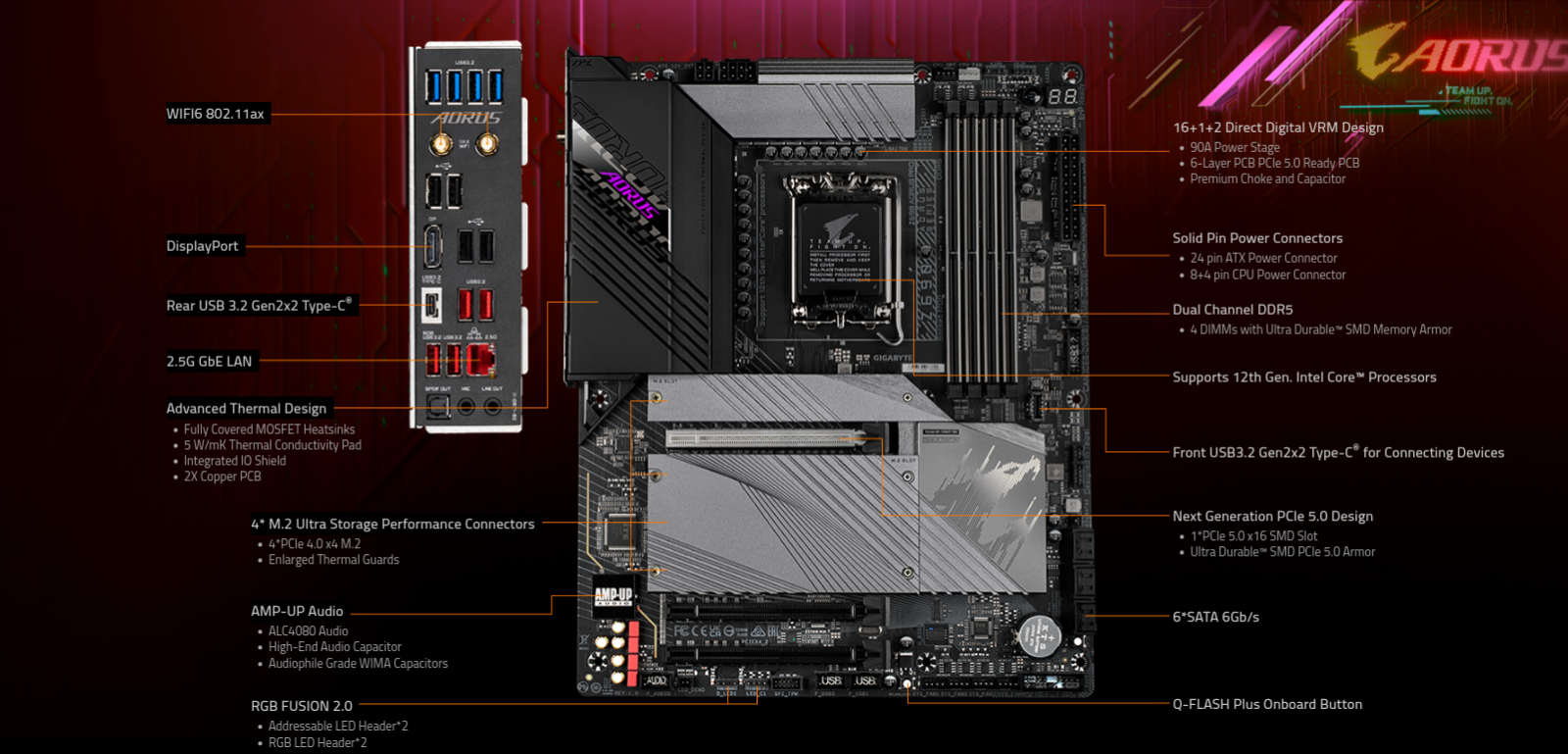

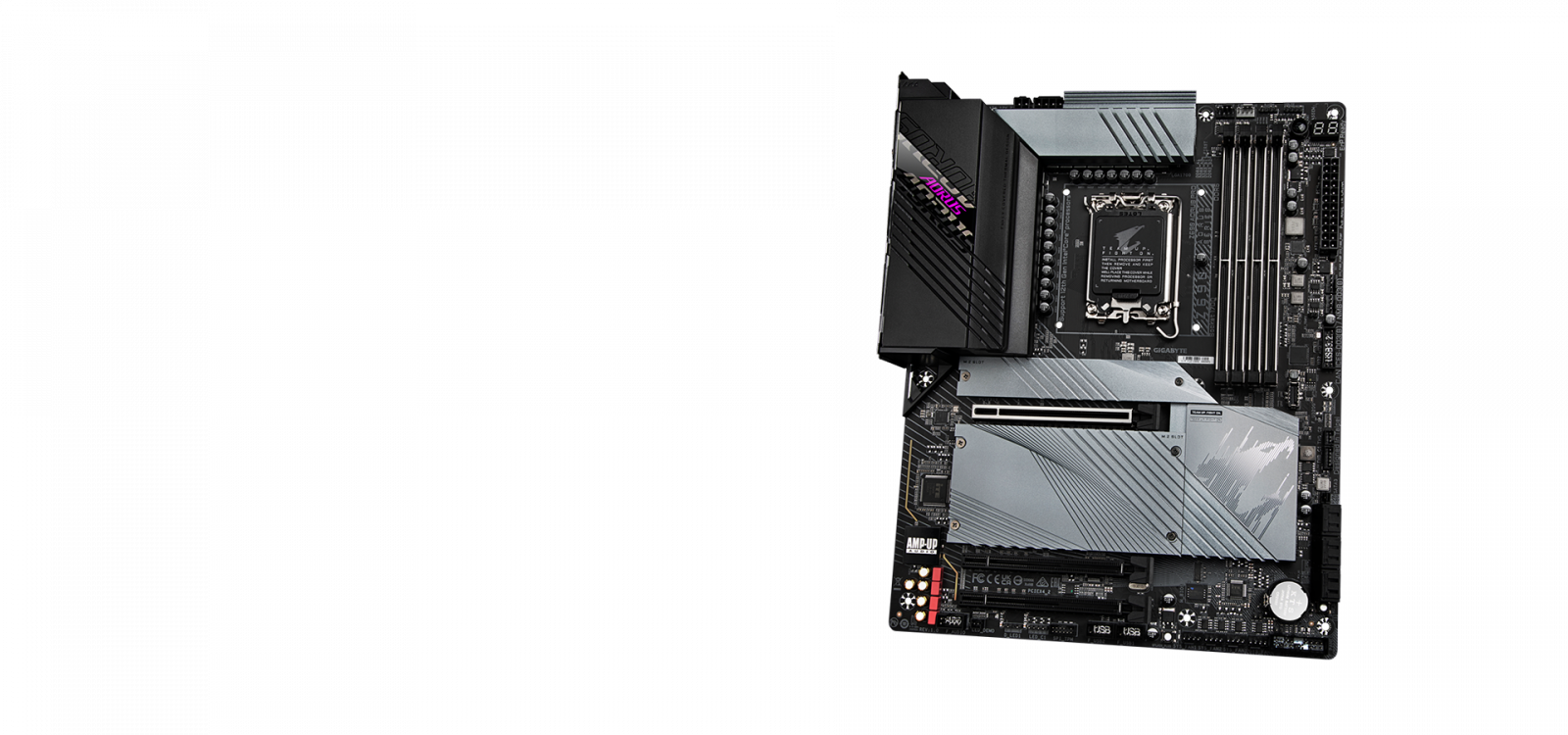

Gigabyte Z690 Aorus Pro

Z690 AORUS PRO
THE NEW KING OF GAMING
Rule supreme with the Z690 AORUS gaming motherboards. The new king of gaming platform continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake’s performance in all its gaming glory.

Unparalleled Performance
With  technology  moving so  fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.​

Specifications:

    CPU
        LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
        L3 cache varies with CPU
    Chipset
        Intel® Z690 Express Chipset
    Memory
        Support for DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
        4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
        Dual channel memory architecture
        Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
        Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
        Support for Extreme Memory Profile (XMP) memory modules
    Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
    (Graphics specifications may vary depending on CPU support.)
    Audio
        Realtek® ALC4080 CODEC
        High Definition Audio
        2-channel analog output
        Support for S/PDIF Out
        7.1-channel digital signals
        * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
    LAN
        Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Wireless Communication module
    Intel® Wi-Fi 6 AX200:
        WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
        BLUETOOTH 5.2
        Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
        * Actual data rate may vary depending on environment and equipment.
    Expansion Slots
        1 x PCI Express x16 slot, running at x16 (PCIEX16)
        (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
        2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
        (The PCIEX4 slots conform to PCI Express 3.0 standard.)
    Multi-Graphics Technology
        Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
    Storage Interface
    CPU:
        1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
        1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB)
        2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB/M2Q_SB)
        6 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10

    Intel® Optane™ Memory Ready
    * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
    USB
    Chipset:
        2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
        4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    Chipset+2 USB 3.2 Gen 1 Hubs:
        6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+2 USB 2.0 Hub:
        8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    Internal I/O Connectors
        1 x 24-pin ATX main power connector
        1 x 8-pin ATX 12V power connector
        1 x 4-pin ATX 12V power connector
        1 x CPU fan header
        1 x water cooling CPU fan header
        4 x system fan headers
        2 x system fan/water cooling pump headers
        2 x addressable LED strip headers
        2 x RGB LED strip headers
        4 x M.2 Socket 3 connectors
        6 x SATA 6Gb/s connectors
        1 x front panel header
        1 x front panel audio header
        1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
        1 x USB 3.2 Gen 1 header
        2 x USB 2.0/1.1 headers
        1 x noise detection header
        2 x Thunderbolt™ add-in card connectors
        1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
        1 x power button
        1 x reset button
        1 x Q-Flash Plus button
        2 x temperature sensor headers
        1 x reset jumper
        1 x Clear CMOS jumper
    ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
    Back Panel Connectors
        1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
        4 x USB 3.2 Gen 2 Type-A ports (red)
        4 x USB 3.2 Gen 1 ports
        4 x USB 2.0/1.1 ports
        2 x SMA antenna connectors (2T2R)
        1 x DisplayPort
        1 x RJ-45 port
        1 x optical S/PDIF Out connector
        2 x audio jacks
    I/O Controller
        iTE® I/O Controller Chip
    H/W Monitoring
        Voltage detection
        Temperature detection
        Fan speed detection
        Water cooling flow rate detection
        Fan fail warning
        Fan speed control
        * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
        Noise detection
    BIOS
        1 x 256 Mbit flash
        Use of licensed AMI UEFI BIOS
        PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Operating System
        Support for Windows 11 64-bit
        Support for Windows 10 64-bit
    Form Factor
        ATX Form Factor; 30.5cm x 24.4cm
