Gigabyte Z690 AERO G

Creativity Starts Here

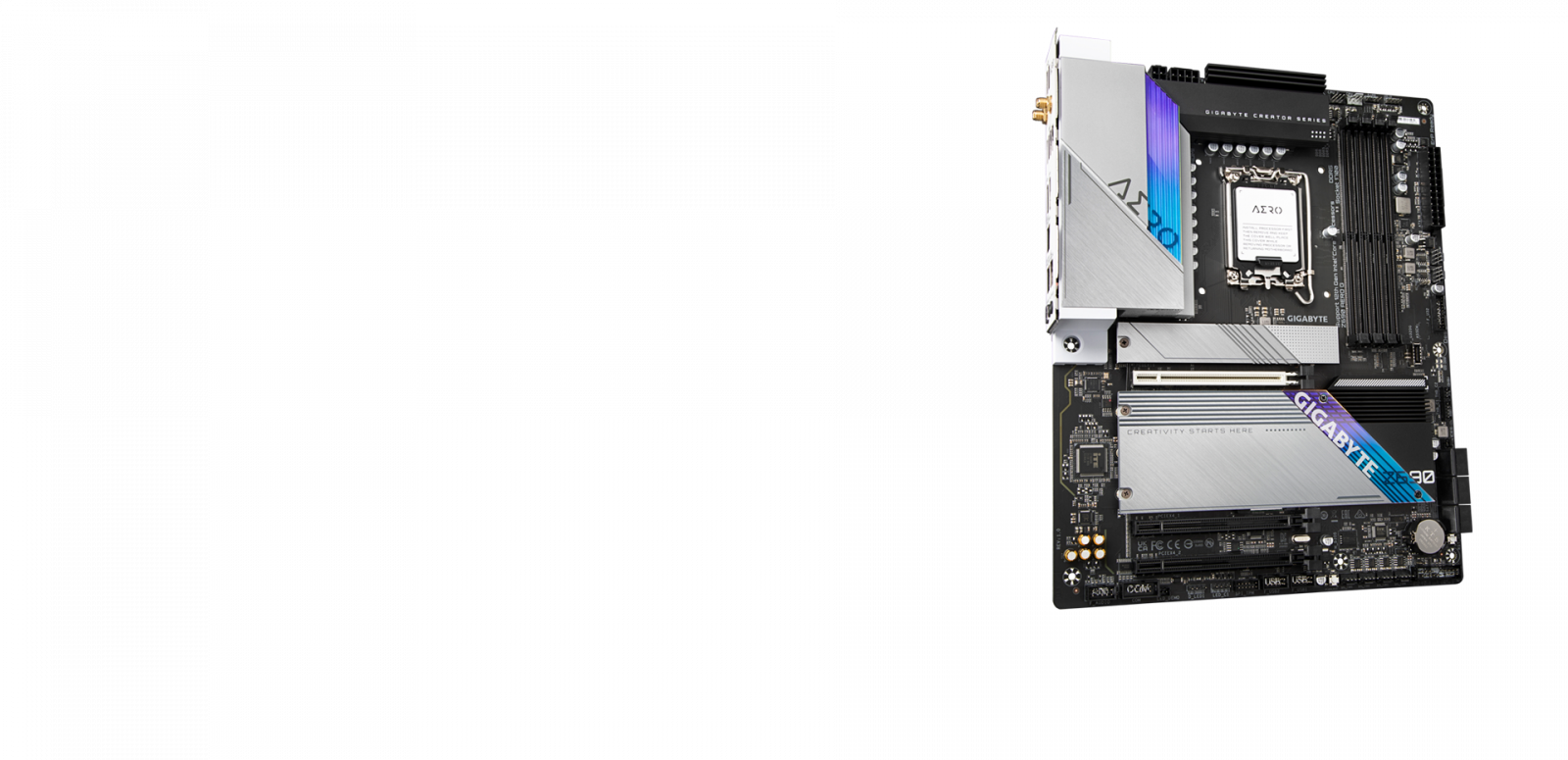

AERO Series motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics, and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production.

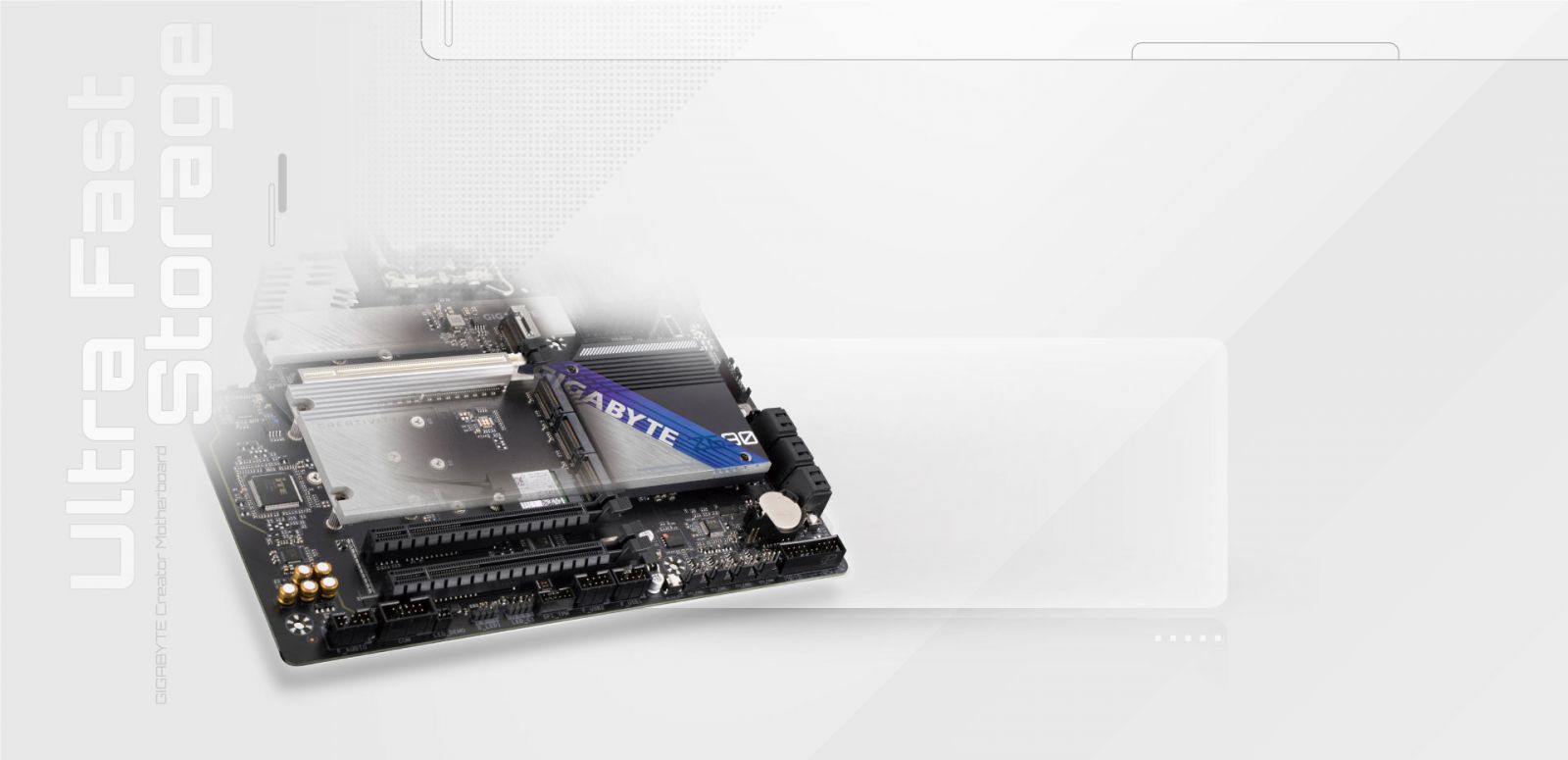

This new model is equipped with four PCIe 4.0 M.2 sockets and it is capable to deliver superior bandwidth. Upgrade your storage configuration now to accelerate your workflow. PCIe 4.0 M.2 SSD gives you 7X faster data transferring speeds compared to 2.5” SATA solid-state drives.

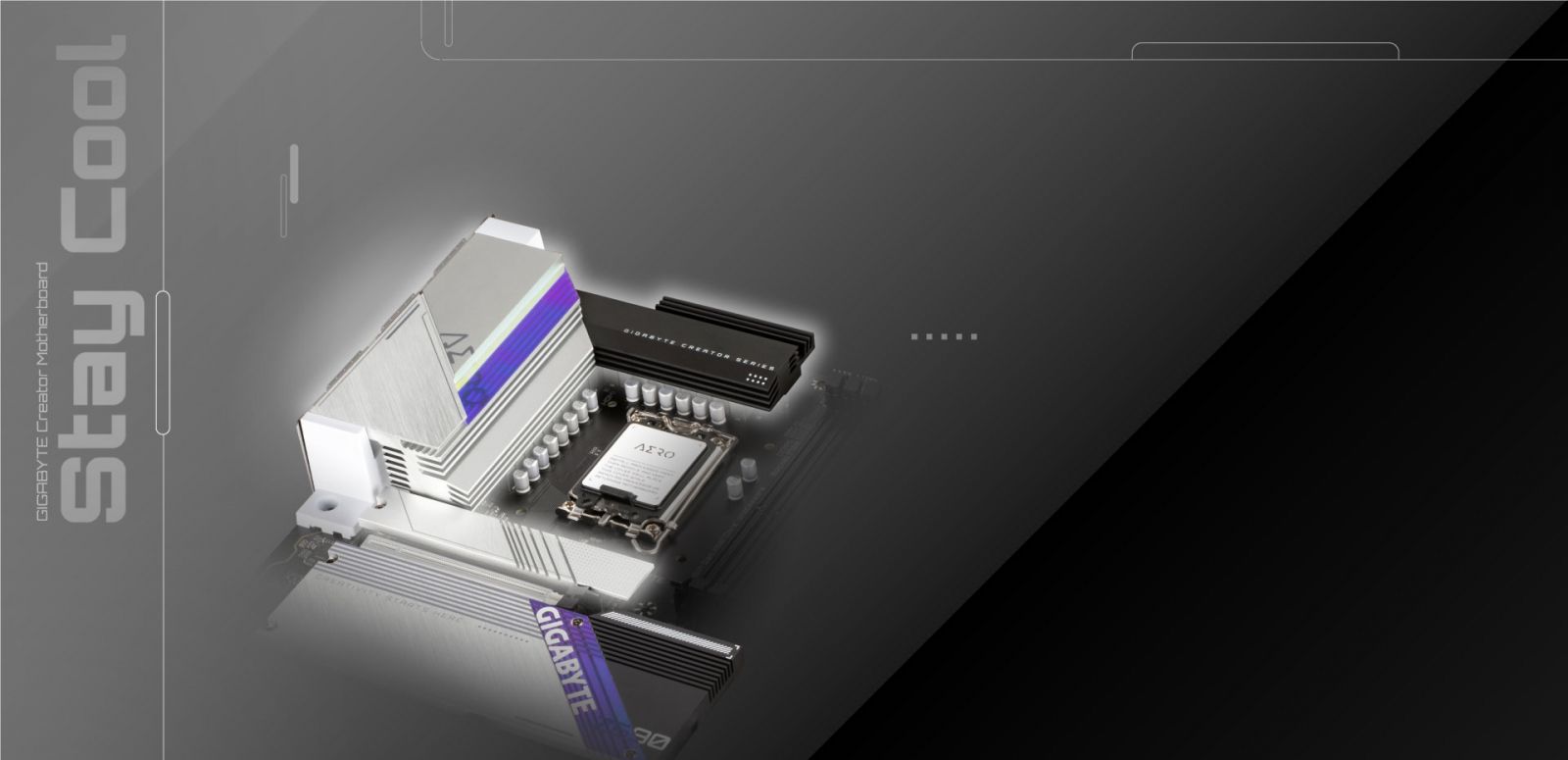

An effective cooling solution can prevent the risk of design work being interrupted by an unexpected system crash. GIGABYTE’s advanced thermal solutions provide a perfect balance of aesthetics and performance. A large heat sink design and Direct-Touch Heatpipe II ensure stability during creative sessions.

Specifications:

    CPU
        LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
        L3 cache varies with CPU
    Chipset
        Intel® Z690 Express Chipset
    Memory
        Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
        4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
        Dual channel memory architecture
        Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
        Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
        Support for Extreme Memory Profile (XMP) memory modules

    Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
        1 x USB Type-C® port, supporting USB Type-C® and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz
        * Support for drawing tablets and 20V@3A of power delivery.
        * Support for DisplayPort 1.2 version and HDCP 2.3
        1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
        * Support for HDMI 1.4 version and HDCP 2.3.
    (Graphics specifications may vary depending on CPU or graphics card support.)
    Audio
        Realtek® ALC4080 CODEC
        High Definition Audio
        2-channel analog output
        Support for S/PDIF Out
        7.1-channel digital signals
        * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
    LAN
        Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Wireless Communication module
    Intel® Wi-Fi 6 AX201
        WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
        BLUETOOTH 5.2
        Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
        * Actual data rate may vary depending on environment and equipment.
    Expansion Slots
        1 x PCI Express x16 slot, running at x16 (PCIEX16)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
        (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
        2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
        (The PCIEX4 slots conform to PCI Express 3.0 standard.)
    Multi-Graphics Technology
        Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
    Storage Interface
    CPU:
        1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
        2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
        1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
        6 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
    Intel® Optane™ Memory Ready
    * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
    USB
    Chipset:
        2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support
        (1 port on the back panel, 1 port available through the internal USB header)
        1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
        2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
        2 x USB 3.2 Gen 1 ports available through the internal USB header
        2 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 3.2 Gen 1 Hub:
        4 x USB 3.2 Gen 1 ports on the back panel
    Chipset+USB 2.0 Hub:
        4 x USB 2.0/1.1 ports available through the internal USB headers
    Internal I/O Connectors
        1 x 24-pin ATX main power connector
        1 x 8-pin ATX 12V power connector
        1 x 4-pin ATX 12V power connector
        1 x CPU fan header
        1 x water cooling CPU fan header
        4 x system fan headers
        2 x system fan/water cooling pump headers
        2 x addressable LED strip headers
        2 x RGB LED strip headers
        4 x M.2 Socket 3 connectors
        6 x SATA 6Gb/s connectors
        1 x front panel header
        1 x front panel audio header
        1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
        1 x USB 3.2 Gen 1 header
        2 x USB 2.0/1.1 headers
        1 x noise detection header
        2 x Thunderbolt™ add-in card connectors
        1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
        1 x serial port header
        1 x Q-Flash Plus button
        1 x reset button
        1 x reset jumper
        2 x temperature sensor headers
        1 x Clear CMOS jumper
    Back Panel Connectors
        2 x USB 2.0/1.1 ports
        2 x SMA antenna connectors (2T2R)
        4 x USB 3.2 Gen 1 ports
        1 x DisplayPort In port
        1 x HDMI port
        2 x USB 3.2 Gen 2 Type-A ports (red)
        1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
        1 x USB Type-C® port, with USB 3.2 Gen 1 support
        1 x RJ-45 port
        1 x optical S/PDIF Out connector
        2 x audio jacks
    I/O Controller
        iTE® I/O Controller Chip
    H/W Monitoring
        Voltage detection
        Temperature detection
        Fan speed detection
        Water cooling flow rate detection
        Fan fail warning
        Fan speed control
        * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
        Noise detection
    BIOS
        1 x 256 Mbit flash
        Use of licensed AMI UEFI BIOS
        PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Operating System
        Support for Windows 11 64-bit
        Support for Windows 10 64-bit
    Form Factor
        ATX Form Factor; 30.5cm x 24.4cm
