Дънна платка Gigabyte Z390 AORUS MASTER G2, Z390, LGA1151, DDR4, PCI-E (HDMI), (SLi&CFX), 6x SATA 6Gb/S, 3x M.2 Socket, Wi-Fi, Bluetooth, USB Type-C, ATX



Outfits designed by G2

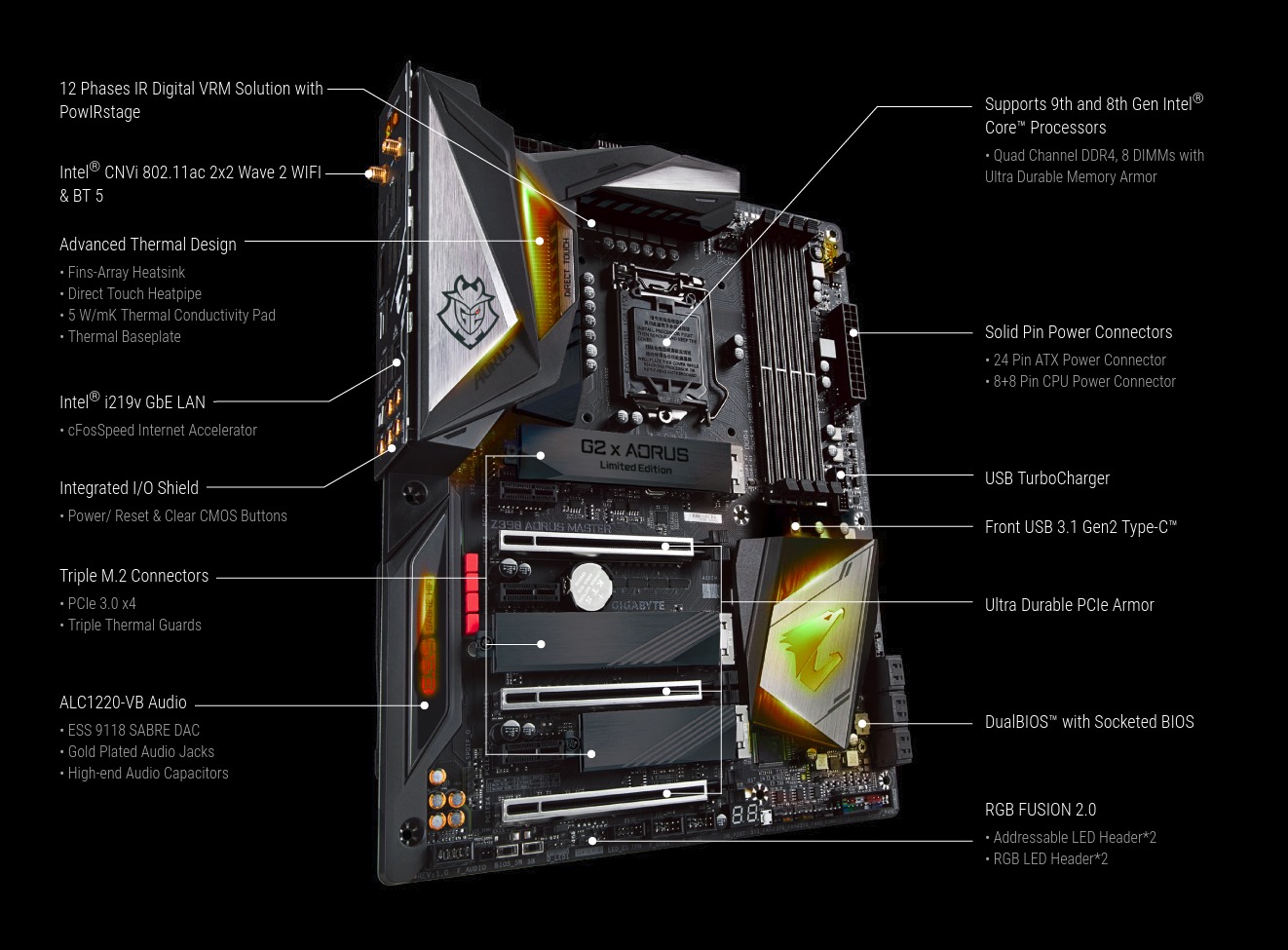

Intel Z390 AORUS Motherboard with 12 Phases IR Digital VRM, Fins-Array Heatsink, RGB Fusion 2.0, 802.11ac Wireless, Triple M.2 with Thermal Guards, ESS SABRE HIFI 9118, Intel® GbE LAN with cFosSpeed, Front & Rear USB 3.1 Gen 2 Type-C



• Supports 9th and 8th Gen Intel® Core™ Processors

• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

• Intel® Optane™ Memory Ready

• 12 Phases IR Digital VRM Solution with PowIRstage

• Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe

• Onboard Intel® CNVi 802.11ac 2x2 Wave 2 Wi-Fi

• 125dB SNR AMP-UP Audio with ALC1220 & High-End ESS SABRE 9118 DAC with WIMA audio capacitors

• USB TurboCharger for Mobile Device Fast Charge Support

• Intel® Gigabit LAN with cFosSpeed

• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips

• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

• Front USB 3.1 Gen 2 Type-C™ Header

• Triple Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Triple Thermal Guard

• USB DAC-UP 2 with Adjustable Voltage

• CEC 2019 Ready, Save Power With a Simple Click

​









CPU
Support for 9th and 8th Generation Intel® Core ™ i9 processors / Intel® Core ™ i7 processors / Intel® Core ™ i5 processors / Intel® Core ™ i3 processors / Intel® Pentium® processors / Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
(Please refer to the "CPU Support List" for more information.)

Chipset
Intel® Z390 Express Chipset

Memory
4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory **
** Please note that total memory size depends on the CPU installed.
Dual channel memory architecture
Support for DDR4 4400 (OC) / 4333 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC) / 3733 (OC) / 3666 (OC) / 3600 ( OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3300 (OC) / 3200 (OC) / 3000 (OC) / 2800 (OC) / 2666/2400/2133 MHz memory modules
ECC Support Un-buffered DIMM 1Rx8 / 2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC DIMMs 1Rx8 / 2Rx8 / 1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer to the "Memory Support List" for more information.)

Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Actual support may vary by CPU

Audio
Realtek® ALC1220-VB codec
* The front panel line out jack supports DSD audio.
ESS SABER 9118 DAC
High Definition Audio
2/4 / 5.1 / 7.1-channel
Support for S / PDIF Out

LAN
Intel® GbE LAN chip (10/100/1000 Mbit)
Wireless Communication module
Intel® CNVi interface 802.11a / b / g / n / ac, supporting 2.4 / 5 GHz Dual-Band

BLUETOOTH 5
Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate
* Actual data rates may vary depending on the environment and equipment.

Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2P connector. The PCIEX4 slot runs at up to x2 mode when a PCIe SSD is installed in the M2P connector.
3 x PCI Express x1 slots
(All of the PCI Express slots conform to the PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for Intel® CNVi wireless module (CNVI)

Multi-Graphics Technology
Support for NVIDIA® Quad-GPU SLI ™ and 2-Way NVIDIA® SLI ™ technologies
Support for AMD Quad-GPU CrossFire ™ and 3-Way / 2-Way AMD CrossFire ™ technologies

Storage Interface Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4 / x2 SSD support) (M2M)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4 / x2 SSD support) (M2A)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4 / x2 SSD support) (M2P)
6 x SATA 6Gb / s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Reference to "1-9 Internal Connectors," for installation notices for PCIEX4, M.2 and SATA connectors.
Intel® Optane ™ Memory Ready

USB Chipset:
1 x USB Type-C ™ port with USB 3.1 Gen 2 support, available through the internal USB header
1 x USB Type-C ™ port on the back panel, with USB 3.1 Gen 2 support
3 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Chipset + USB 2.0 Hub:
8 x USB 2.0 / 1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I / O Connectors
1 x 24-pin ATX main power connector
2 x 8 pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan / water cooling pump headers
2 x Addressable LED strip headers
2 x Addressable LED strip power select jumpers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb / s connectors
1 x front panel header
1 x front panel audio header
1 x S / PDIF Out header
1 x USB Type-C ™ port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 1 header
2 x USB 2.0 / 1.1 headers
1 x Thunderbolt ™ add-in card connector
1 x Trusted Platform Module (TPM) header (2x6 pin, for GC-TPM2.0_S module only)
1 x OC button
1 x reset button
2 x temperature sensor headers
2 x BIOS switches
1 x Clear CMOS jumper
Voltage Measurement Points

Back Panel Connectors
1 x Power / Reset button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
1 x HDMI port
1 x USB Type-C ™ port, with USB 3.1 Gen 2 support
3 x USB 3.1 Gen 2 Type-A ports (red)
2 x USB 3.1 Gen 1 ports
4 x USB 2.0 / 1.1 ports
1 x RJ-45 port
1 x optical S / PDIF Out connector
5 x audio jacks

I / O Controller
iTE® I / O Controller Chip

H / W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS ™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on the motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
Smart Survey
USB Blocker
USB DAC-UP 2
USB TurboCharger
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
cFosSpeed
XSplit Gamecaster + Broadcaster (12 months license)

Operating System
Support for Windows 10 64-bit

Form Factor
ATX Form Factor; 30.5cm x 24.4cm
