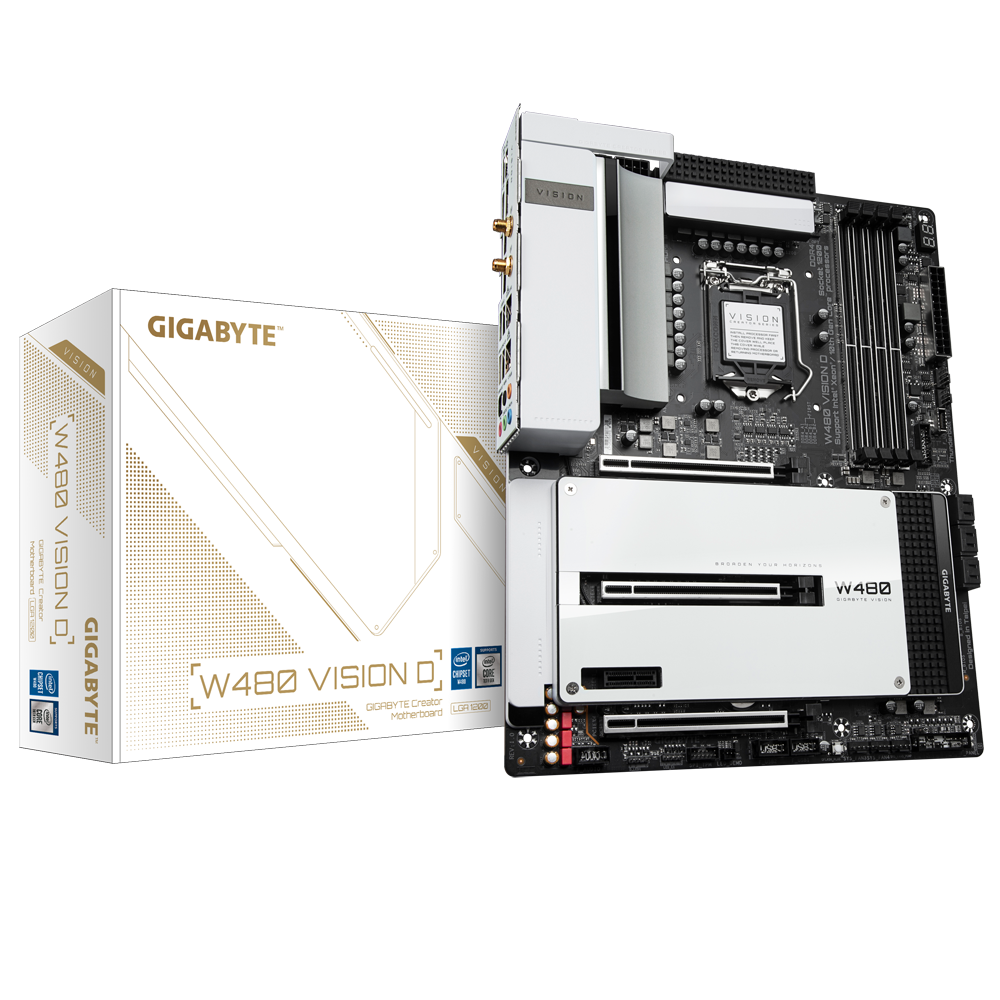

Дънна платка Gigabyte W480 VISION D, W480, LGA1200, DDR4, PCI-E 3.0 (DP/HDMI)(CF), 6x SATA 6Gb/s, 3x M.2, 2x Thunderbolt 3, Wi-Fi, Bluetooth, ATX

Intel® W480 Creators Motherboard with enhanced power design, effective cooling solution, DDR4 ECC & Non-ECC memory, Thunderbolt™ 3, Intel® Wi-Fi 6 802.11ax and dual Intel® LAN with cFosSpeed, 3 PCIe 3.0 x16 slots, Triple NVMe PCIe x4 M.2, Front USB 3.2 Gen 2 Type-C™ Header

• Powerful performance with Intel® Xeon® W processors and supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors*
• Reliability ensuring by DDR4 ECC & Non-ECC memory with 4 physical DIMM slots
• Multi-graphics configurations offer better graphics performance
• NVIDIA® QUADRO® Professional Graphics Supports
• The limitless connectivity by Thunderbolt™3
• High-bandwidth and low-latency network support by Intel® 2.5GbE + GbE Dual LAN with cFosSpeed
• Intel® Wi-Fi 6 802.11ax makes latency a thing of the past
• Effective cooling solution design for the better thermal dissipation
• Smart Fan 5 features hybrid fan headers and numerous temperature sensors for fan mode configuration
• Triple Ultra-Fast M.2 with PCIe Gen3 x4 interface with Thermal Guards
• Comprehensive connectivity with front USB3.2 Gen 2 Type-C™ Header
• Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card

Specifications:

• CPU
  1. LGA1200 package:
     Intel® Xeon® W series processors
     10th Generation Intel® Core™ processors/Intel® Pentium® processors/ Intel® Celeron® processors
  2. L3 cache varies with CPU

  (Please refer "CPU Support List" for more information.)
• Chipset
  1. Intel® W480 Express Chipset
• Memory
  1. Intel® Xeon® W-1290/W-1270 series processors/Intel® Core™ i9/i7 processors:
     Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  2. Intel® Xeon® W-1250 series processors/Intel® Core™ i5/i3/Pentium®/Celeron® processors:
     Support for DDR4 2666/2400/2133 MHz
  3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
     * To support ECC, you must install an Intel® Xeon processor.
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer "Memory Support List" for more information.)
• Onboard Graphics
  Integrated Graphics Processor+Intel® Thunderbolt™ 3 Controller:

  1. 2 x Intel® Thunderbolt™ 3 connectors (USB Type-C™ ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp
     * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)
     * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

  Integrated Graphics Processor-Intel® HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
     * Support for HDMI 1.4 version and HDCP 2.3.

  Maximum shared memory of 512 MB
• Audio
  1. Realtek® ALC1220-VB codec
     * The back panel line out jack supports DSD audio.
  2. Support for DTS:X® Ultra
  3. High Definition Audio
  4. 2/4/5.1/7.1-channel
  5. Support for S/PDIF Out
• LAN
  1. 1 x Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)(LAN2)
  2. 1 x Intel® GbE LAN chip (1 Gbit/100 Mbit) (LAN1)
• Wireless Communication module
  Intel® Wi-Fi 6 AX201

  1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
     * Actual data rate may vary depending on environment and equipment.
• Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
     * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
     * The PCIEX4 slot shares bandwidth with the M2P_SB connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_SB connector.
  4. 1 x PCI Express x1 slot
     (All of the PCI Express slots conform to PCI Express 3.0 standard.)

  Supports up to ASPM L1.2 power management protocols.
• Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
• Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
  2. 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)
  3. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
  4. 6 x SATA 6Gb/s connectors
  5. Support for RAID 0, RAID 1, RAID 5, and RAID 10
     * Refer to "1-8 Internal Connectors," for the installation notices for the PCIEX4, M.2, SATA connectors.
  6. Intel® Optane™ Memory Ready

  M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
• USB
  Chipset+Intel® Thunderbolt™ 3 Controller:

  1. 2 x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 support

  Chipset:

  1. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
  2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  4. 2 x USB 2.0/1.1 ports on the back panel

  Chipset+USB 3.2 Gen 1 Hub:

  1. 4 x USB 3.2 Gen 1 ports on the back panel

  Chipset+USB 2.0 Hub:

  1. 4 x USB 2.0/1.1 ports available through the internal USB headers
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x 4-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 4 x system fan headers
  7. 2 x system fan/water cooling pump headers
  8. 2 x addressable LED strip headers
  9. 2 x RGB LED strip headers
  10. 3 x M.2 Socket 3 connectors
  11. 6 x SATA 6Gb/s connectors
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x USB Type-C™ header, with USB 3.2 Gen 2 support
  15. 1 x USB 3.2 Gen 1 header
  16. 2 x USB 2.0/1.1 headers
  17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  18. 2 x temperature sensor headers
  19. 1 x Clear CMOS jumper
  20. 1 x Q-Flash Plus button
• Back Panel Connectors
  1. 1 x DisplayPort In port
  2. 2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.2 Gen 2 support)
  3. 1 x HDMI port
  4. 2 x SMA antenna connectors (2T2R)
  5. 2 x USB 3.2 Gen 2 Type-A ports (red)
  6. 4 x USB 3.2 Gen 1 ports
  7. 2 x USB 2.0/1.1 ports
  8. 2 x RJ-45 ports
  9. 1 x optical S/PDIF Out connector
  10. 5 x audio jacks
• I/O Controller
  1. iTE® I/O Controller Chip
• H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
     * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     EasyTune
     Fast Boot
     Game Boost
     ON/OFF Charge
     RGB Fusion
     Smart Backup
     System Information Viewer
     USB DAC-UP 2
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
• Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
• Operating System
  1. Support for Windows 10 64-bit
• Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
