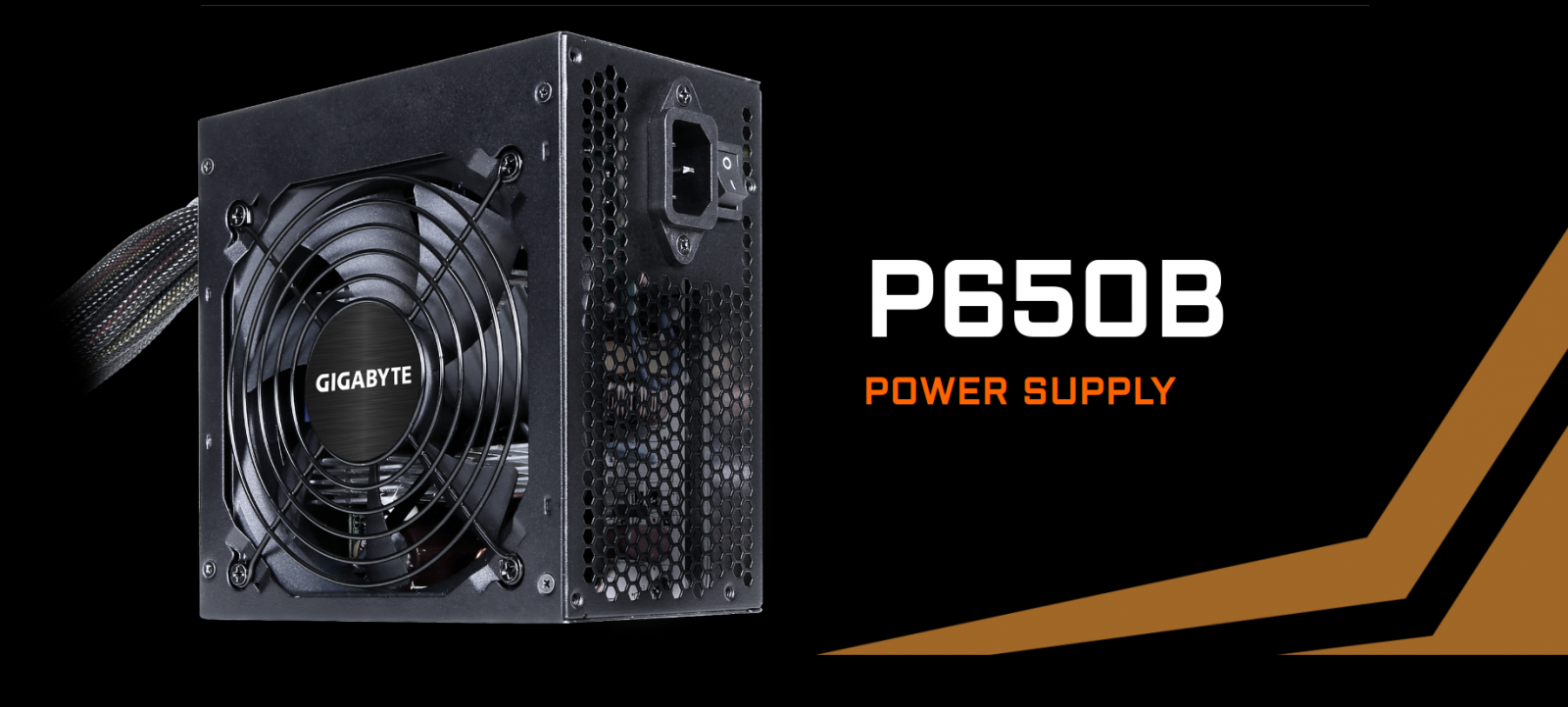

Захранване Gigabyte P650B, 650W, Active PFC, 80 Plus Bronze, 120mm вентилатор

Features

• 80 PLUS bronze certified: up to 89% efficiency

• 100% Japanese Capacitors

• 120mm Hydraulic Bearing (HYB) Fan

• Single +12V rail

• Meet ErP LOT6 2013 (< 0.5W at standby mode)

• OPP/UVP/OVP/SCP/OCP protection

Reliable Mesh Braided Cable

P650B provides the best solution for the system builds. The mesh braided cable reduces the clutter and improves the airflow in the case.

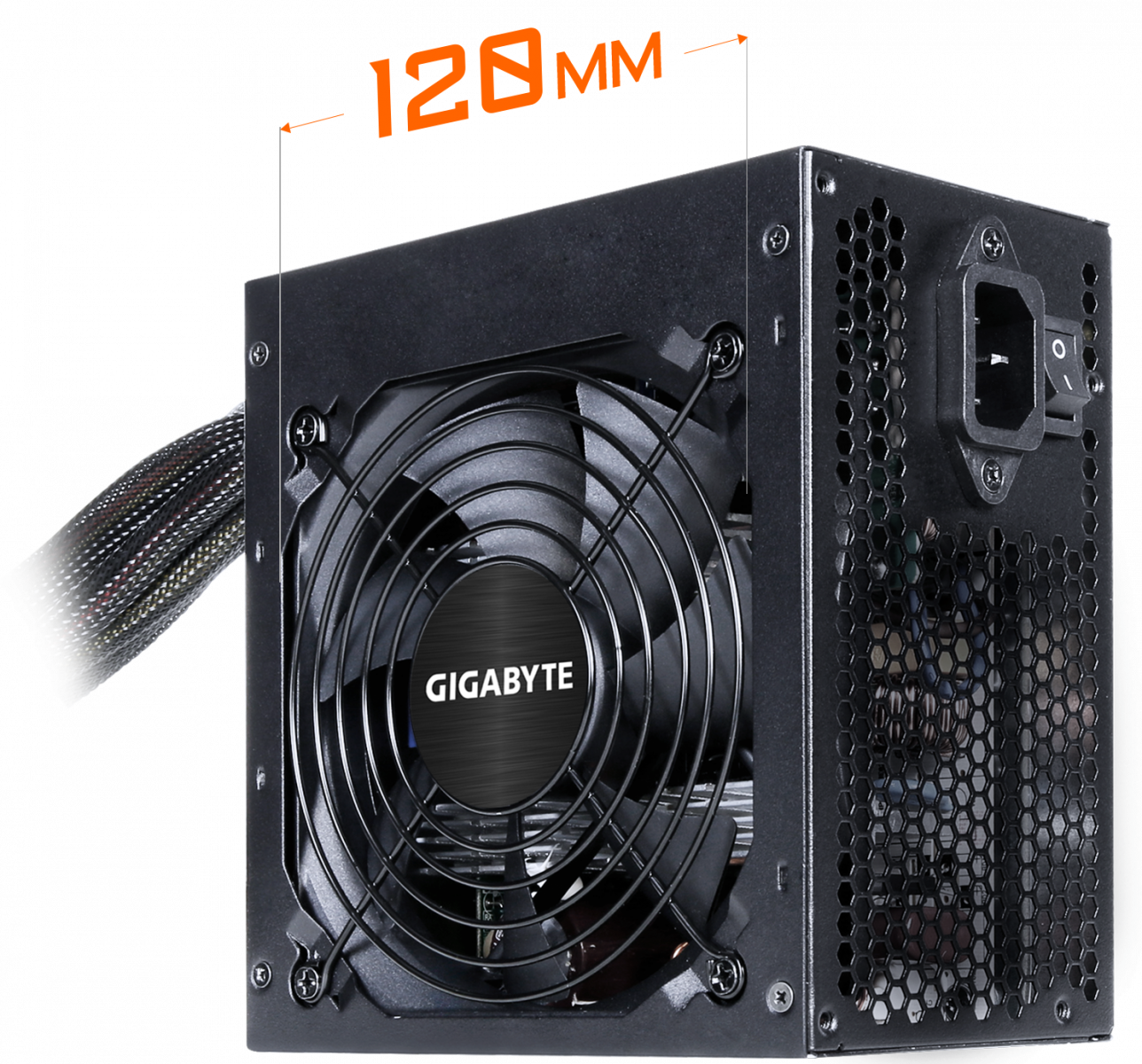

120mm Hydraulic Bearing (HYB) Fan 120mm Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.

Specification

Model:  P650B

Type:  Intel Form Factor ATX 12V v2.31

PFC:  Active PFC (>0.9 typical)

Input Voltage:  100-240 Vac (full range)

Input Current:  9A-4A

Input Frequency:  50-60 Hz

Output Capacity:  650W

Dimension:  D150 x W140 x H86 mm

Fan Type:  120mm Hydraulic Bearing Fan

Efficiency:  Up to 85% at typical load

MTBF:  >100,000 hours

Protection:  OPP/UVP/OVP/SCP/OCP

Regulatory:  CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE

Connectors

ATX/MB 20+4 Pin x 1

CPU/EPS 4+4 Pin x 1

PCI-e 6+2 Pin x 4, SATA x 6

4 Pin Peripheral x 3

4 Pin Floppy x 1
