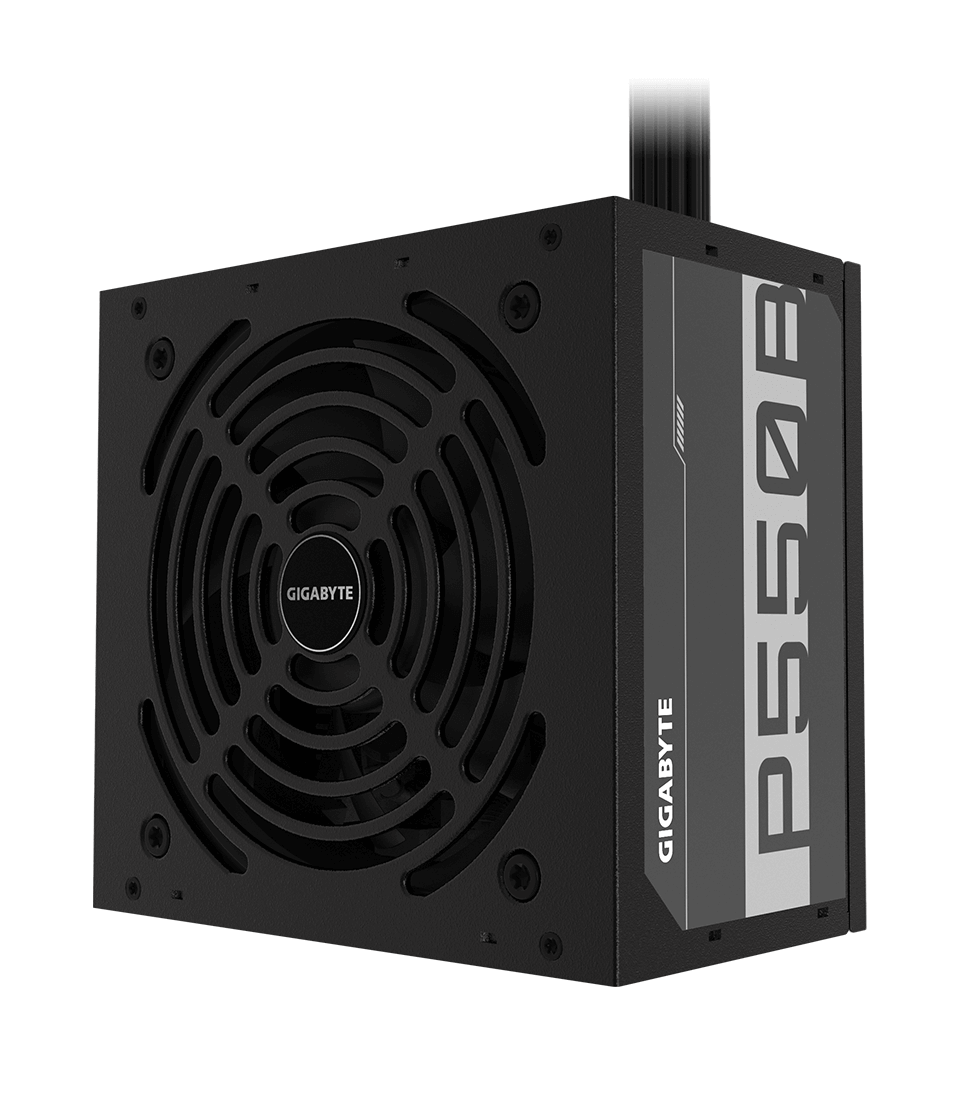

Захранване Gigabyte P550B, 550W, Active PFC, 80+ Bronze, 120mm вентилатор

Features

• 80 PLUS Bronze certified

• 120mm Silent Hydraulic Bearing (HYB) Fan

• Reliable flat cable

• Single +12V rail

• OVP/OPP/SCP/UVP/OCP/OTP protection

​

Specification

Model:  P550B

Type:  Intel Form Factor ATX 12V v2.31

PFC:  Active PFC(>0.9 typical)

Input Voltage:  1‎00-240 Vac(full range)

Input Current:  8‎-4 A

Input Frequency:  6‎0-50 Hz

Output Capacity:  5‎50W

Dimension:  1‎50 x 140 x 86 mm

Fan Type:  1‎20 mm Hydraulic Bearing (HYB) Fan

80 PLUS:  Bronze

Efficiency:  8‎5% at typicalload

MTBF:  >100,000 hours

Protection:  OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal:  1‎00-500ms

Hold Up Time:  >16ms

Cable Type:  Flat, All black

Connectors
ATX/MB 20+4 Pin x 1 : 550mm*1
CPU/EPS 4+4 Pin x 1 : 600mm*1
PCI-e 6+2 Pin x 2 : 550mm+150mm*1
SATA x 6 : 500mm+120mm+120mm*2
4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1
