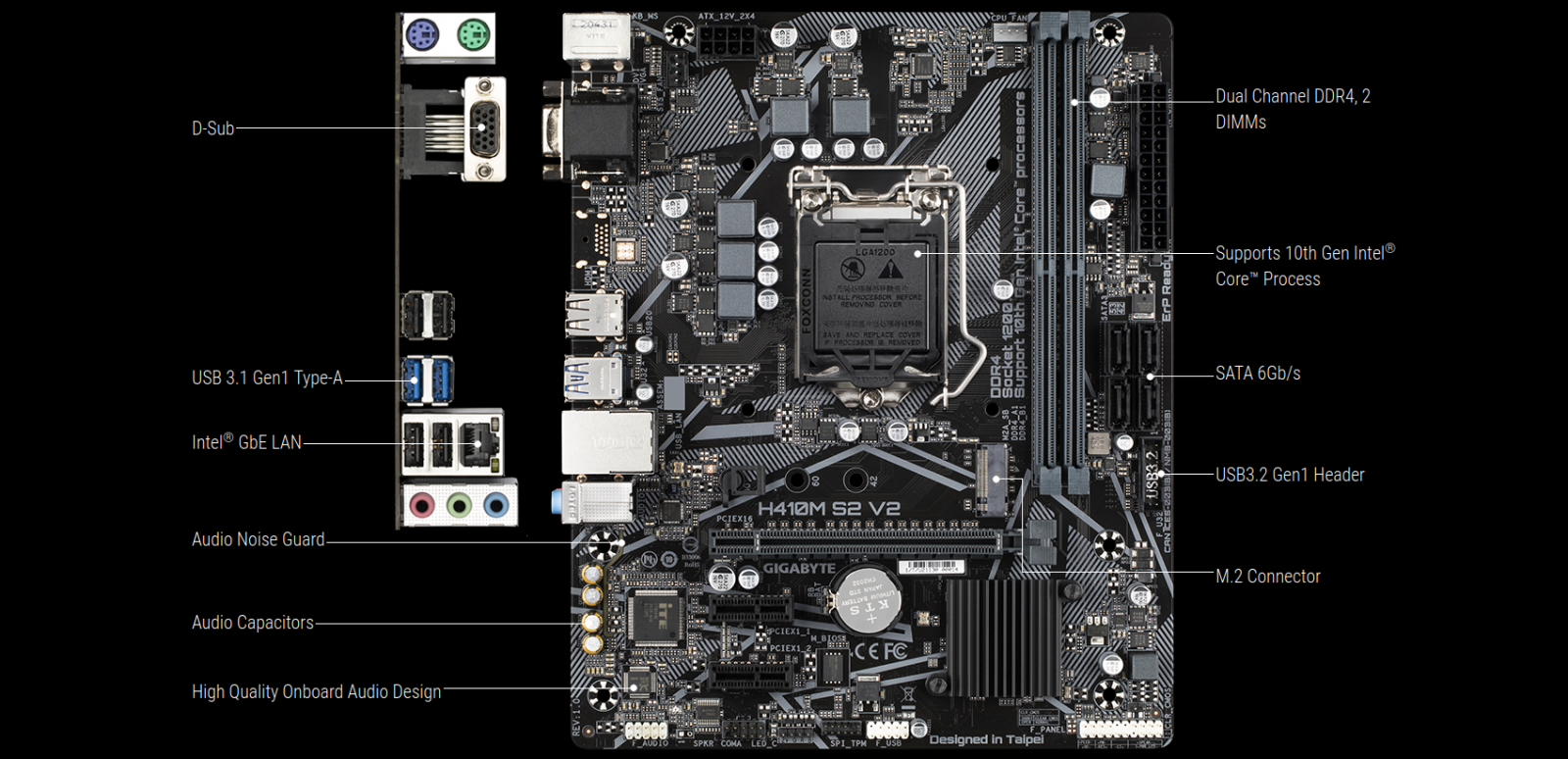

Gigabyte H410M S2 V2
Gigabyte H410M S2 V2Gigabyte H410M S2 V2Gigabyte H410M S2 V2

Дънна платка Gigabyte H410M S2 V2, H410, LGA1200, PCI-E 3.0 (VGA), 4x SATA 6Gb/s, 1x M.2, 4x USB 3.2 Gen 1, Micro ATX

id 207294 Код: MBIGIGABYTEH410MS2V2G10
145.45 лв

Всички цени са с начислен ДДС

Печат

Изпрати на приятел

ОписаниеХарактеристикиРевюта / Въпроси

Gigabyte H410M S2 V2



Intel® Ultra Durable Motherboard with Intel® GbE LAN, Anti-Sulfur Resistor, Smart Fan5

  • Supports 10th Gen Intel® Core™ Processors
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • NVMe PCIe Gen3 x4 2280 M.2 Connector
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • All New GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design

  • CPU
    1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® H470 Express Chipset
  • Memory
    1. Intel® Core™ i9/i7 processors:
      Support for DDR4 2933/2666/2400/2133 MHz memory modules
    2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
      Support for DDR4 2666/2400/2133 MHz memory modules
    3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    Maximum shared memory of 512 MB
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
  • LAN
    1. Intel® GbE LAN chip (1000/100 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
    2. 2 x PCI Express x1 slots
      (The PCI Express slots conform to PCI Express 3.0 standard.)
    Supports up to ASPM L1.2 power management protocols.
  • Storage Interface
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
    2. 4 x SATA 6Gb/s connectors
    3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    4. Intel® Optane™ Memory Ready
    M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
  • USB
    Chipset:
    1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 4 x SATA 6Gb/s connectors
    4. 1 x CPU fan header
    5. 1 x system fan header
    6. 1 x RGB LED strip header
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x USB 3.2 Gen 1 header
    10. 1 x USB 2.0/1.1 header
    11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    12. 1 x serial port header
    13. 1 x Clear CMOS jumper
  • Back Panel Connectors
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x D-Sub port
    4. 2 x USB 3.2 Gen 1 ports
    5. 4 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      Ambient LED
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Form Factor
    1. Micro ATX Form Factor; 22.6cm x 18.5cm




    Виж още Дънни платки за Intel процесори Gigabyte
    Виж всички Дънни платки за Intel процесори в категорията
    Технически характеристики
    Процесор сокет:  LGA 1200
    Чипсет:  H410
    Поддържана памет:  DDR4
    Брой слотове за RAM памет:  2
    Storage интерфейси:  SATA 6Gbit/s, M.2
    RAID:  Да
    Безжични мрежи:  Не
    Bluetooth:  Да
    Видео слот:  PCI-E
    Multi-Graphics технология:  Няма
    Видео изход:  VGA (D-Sub)
    Форм фактор:  Micro ATX
