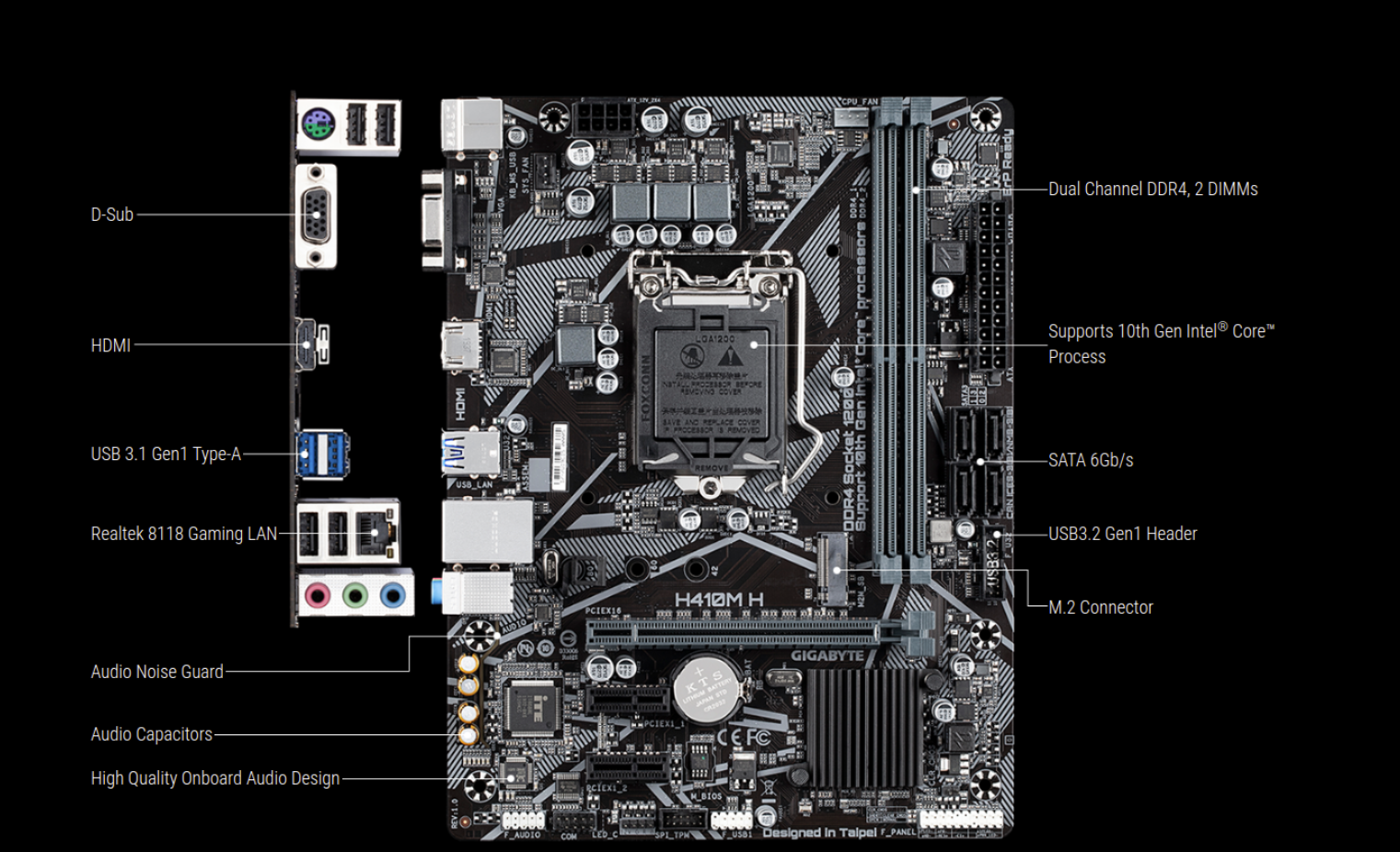

Дънна платка Gigabyte H410M H V3, H410, LGA1200, DDR4, PCI-E 3.0, (D-Sub&HDMI), 4x SATA 6Gb/s, 1x M.2, USB 3.2 Gen 1, Micro ATX

Intel® H410 Ultra Durable Motherboard with GIGABYTE 8118 Gaming LAN, Anti-Sulfur Resistor, Smart Fan 5

• Supports 10th Gen Intel®Core™ Processors

• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

• 8-Channel HD Audio with High Quality Audio Capacitors

• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

• GIGABYTE APP Center, Simple and Easy Use

• Anti-Sulfur Resistors Design

Specification

CPU
Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
L3 cache varies with CPU

Chipset
Intel® H410 Express Chipset

Memory
Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512 MB

Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel

LAN
Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Expansion Slots
1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.

Storage Interface
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
4 x SATA 6Gb/s connectors

USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install

Bundled Software
Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility

Operating System
Support for Windows 10 64-bit

Form Factor
Micro ATX Form Factor; 22.6cm x 17.4cm
