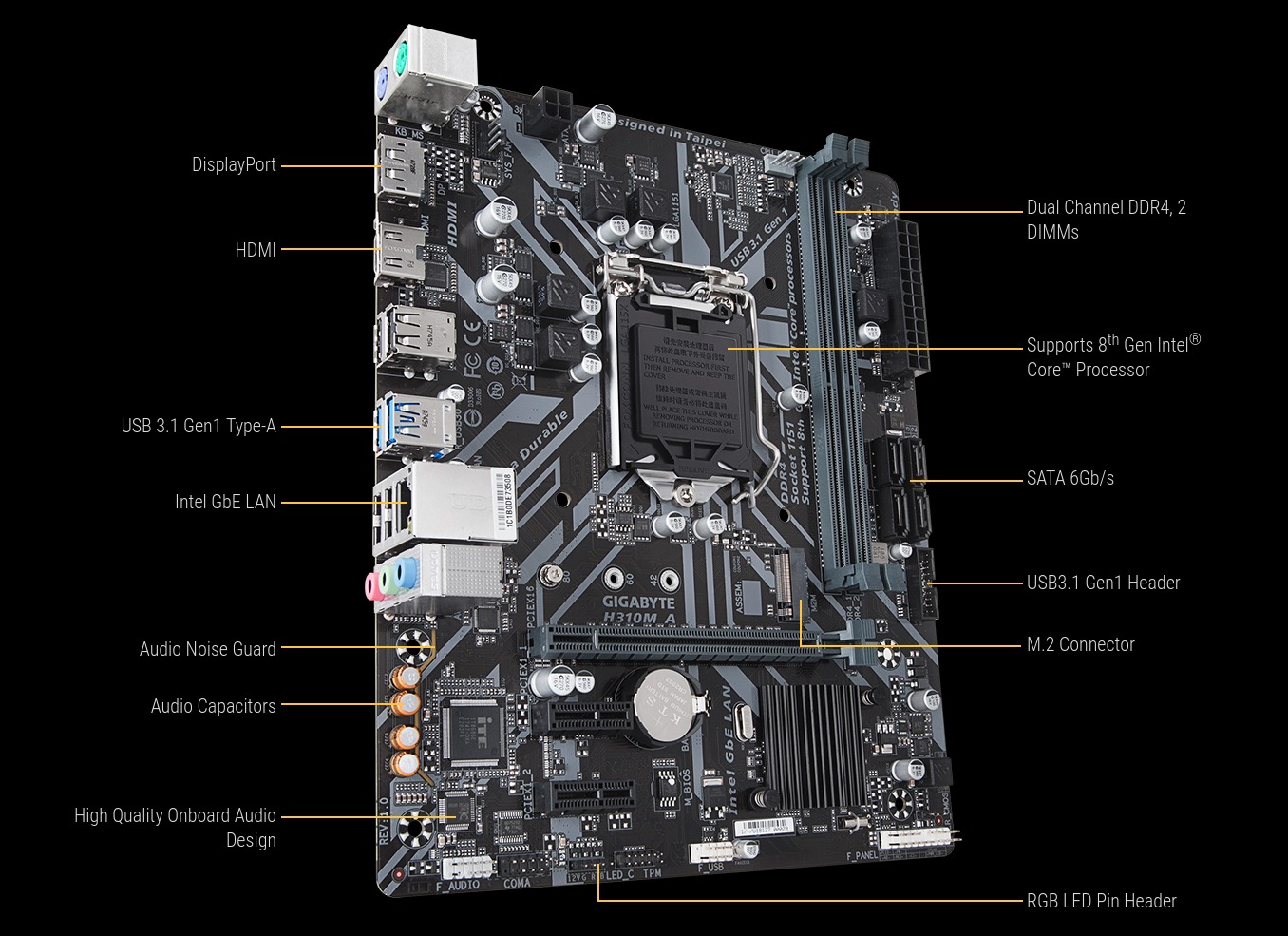

Дънна платка Gigabyte H310M A, H310M, LGA1151, DDR4, PCI-E (HDMI&DP), 4x SATA 6Gb/S, 1x M.2 Socket, 4 x USB 3.1 Gen 1, Micro ATX

Intel H310 Ultra Durable motherboard with Intel GbE LAN with cFosSpeed, PCIe Gen2 x4 M.2, 7 colors RGB LED strips support, Anti-Sulfur Resistor, Smart Fan 5, CEC 2019 ready

• Supports 9th and 8th Gen Intel® Core™ Processors

• Dual Channel Non-ECC Unbuffered DDR4

• 8-Channel HD Audio with High Quality Audio Capacitors

• Ultra-Fast M.2 with PCIe Gen2 X4 & SATA interface

• Supports RGB LED strips in 7 colors

• Intel® GbE LAN with cFosSpeed Internet Accelerator Software

• CEC 2019 Ready, Save Power With a Simple Click

• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

• All new GIGABYTE™ APP Center, simple and easy use

• Anti-Sulfur Resistors Design

​

CPU
Support 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)

Chipset
Intel® H310 Express Chipset

Memory
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
(Please refer "Memory Support List" for more information.)

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB

Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out

LAN
Intel® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
4 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

USB
Chipset:
4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper

Back Panel Connectors
1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x DisplayPort
1 x HDMI port
2 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
cFosSpeed

Operating System
Support for Windows 10 64-bit

Form Factor
Micro ATX Form Factor; 22.6cm x 18.5cm
