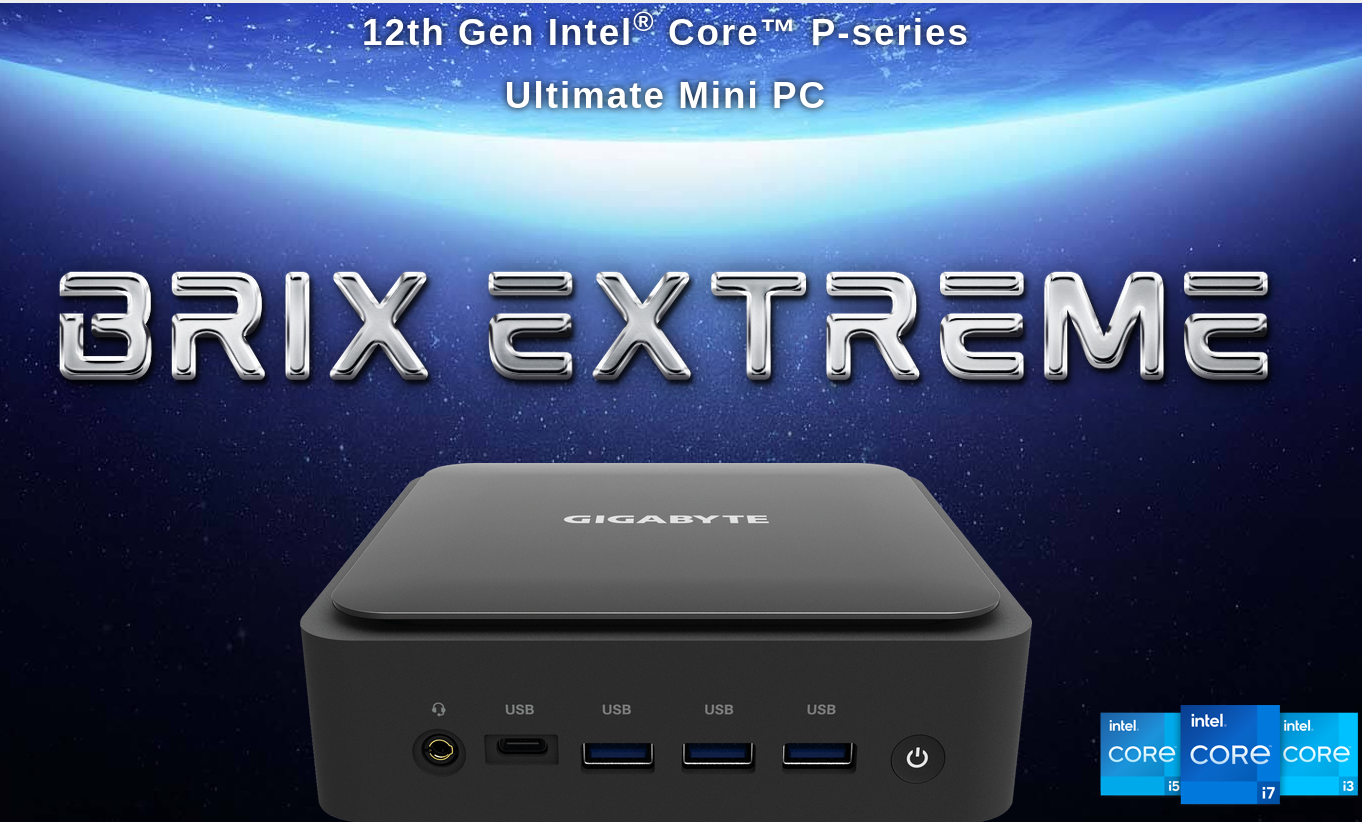

Gigabyte GB-BEi3-1220
%20Key%20Features%20BRIX%20(Mini-PC%20Barebone)%20-%20GIGABYTE%20Global.png)
- All-new chassis design, Slim Version
- 12th Gen Intel® CoreTM i3-1220P processor
- Intel® UHD Graphics for 12th Gen Intel® Processors, 64EU
- Super Fast 2.5G LAN + Wifi 6E module
- 4x4K outputs - 1xHDMI 2.1(8K) /1xHDMI / 1xMini DP / 1xUSB type C DP
- 1xUSB 4.0(Type C, support Intel Thunderbolt 4), 7xUSB 3.2 ports
- 1x2280 M.2 SSD storages
- TPM security chip available*
* Barebone products do not include the operating system.
* Product may vary based on local distribution.
* Wireless module inclusion may vary based on local distribution.
Specification
-
Dimension48.3 mm x 134.2 mm x 139.1 mm (1.9" x 5.3" x 5.4")
-
Motherboard Size125mm x 128.8 mm (4.9'' x 5.1")
-
CPU12th Generation Intel® Core™ i3-1220P Processors, 10 Cores (2P+8E) 12 Threads, 12MB L2 Cache, Frequency 1.5GHz-4.4GHz(P Core), 28W
-
Memory2 x SO-DIMM DDR4 slots, support up to 3200MHz
Max. 64GB -
LAN2.5G LAN (Intel i225V)
-
Wifi CardIntel WIFI6E / BT 5.2 Module
-
AudioRealtek ALC897 HD audio
-
VideoIntel® UHD Graphics for 12th Gen Intel® Processors, 64EU
-
HDMI Resolution (Max.)1x HDMI2.1 with HDCP 2.2
Max Resolution 7680 x 4320@60Hz 1x HDMI2.0a with HDCP 2.2
Max Resolution 3840x2160@60Hz -
Mini DP Resolution (Max.)Mini DP supports : DP1.4a
Max Resolution 3840x2160@60Hz USB 4.0 Type-C DP supports : DP1.4a
Max Resolution 3840x2160@60Hz -
Storage1 x PCI-e Gen4 x 4 /SATA M.2 2280 slot
-
Expansion Slots1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
-
Front I/O1 x Power Button
1 x USB 3.2 type C (Gen2)
3 x USB 3.2 type A (Gen2)
1 x head phone jack with MIC -
Rear I/O1 x HDMI(2.1)
1 x HDMI(2.0b)
1 x mDP
1 x USB 4.0 (Support Intel Thunderbolt 4) w/ DP alt mode
2 x USB 2.0 type A
1 x RJ45
1 x DC-In
1 x Kensington lock slot -
TPMIntegrate TPM module* (in selected regions /countries)
-
Power SupplyInput: AC 100-240V
Output: DC 19.5V / 6.92A, 135W -
VESAMounting Bracket Included
-
Support OSWindows 11 64Bit
Windows 10 64bit -
EnvironmentOperating Temperature 0°C to 35°C Storage Temperature -20°C to +60°C
