ASRock DESKMINI X300 CPU

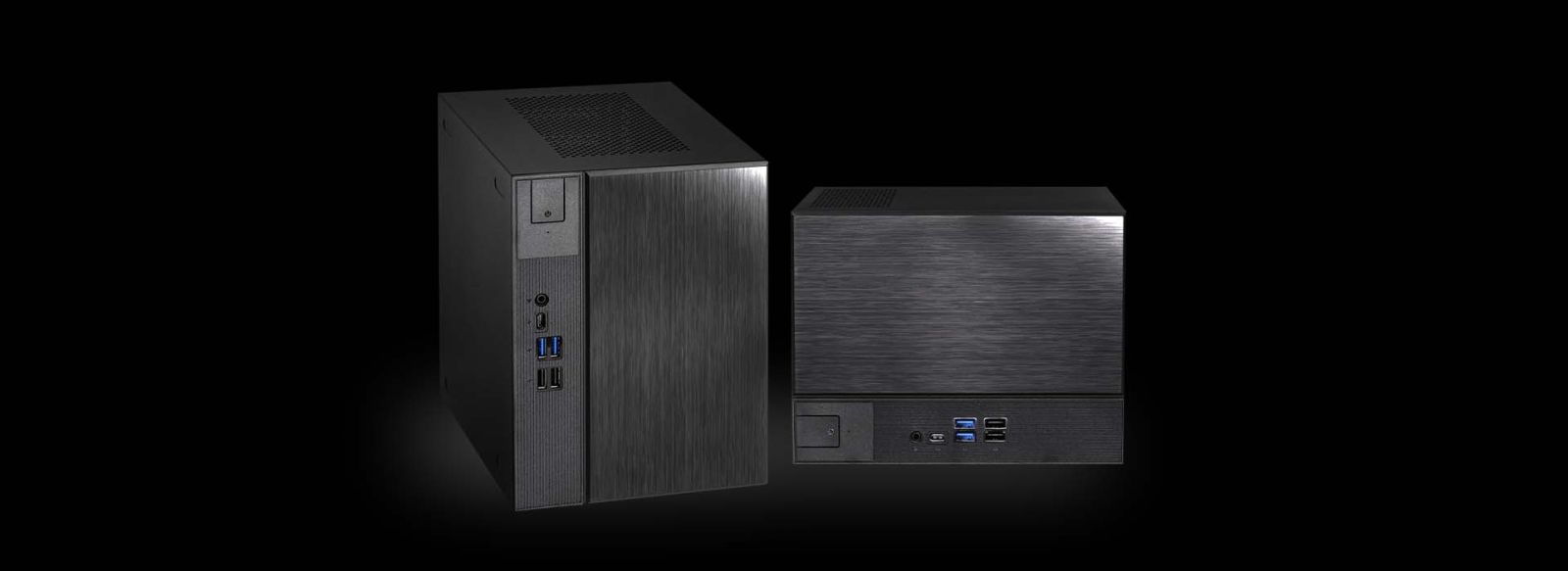

Meet the Versatile PC
With just 8 liters of volume, DeskMeet is a powerful and compact desktop PC designed to deliver the best experience for daily computing, gaming, home entertainment, content creation and business. It supports the desktop processor and the graphics card under 20 cm long. This chassis can stand either vertically or horizontally to fit into any workspace and give users a neat and tidy desk space.

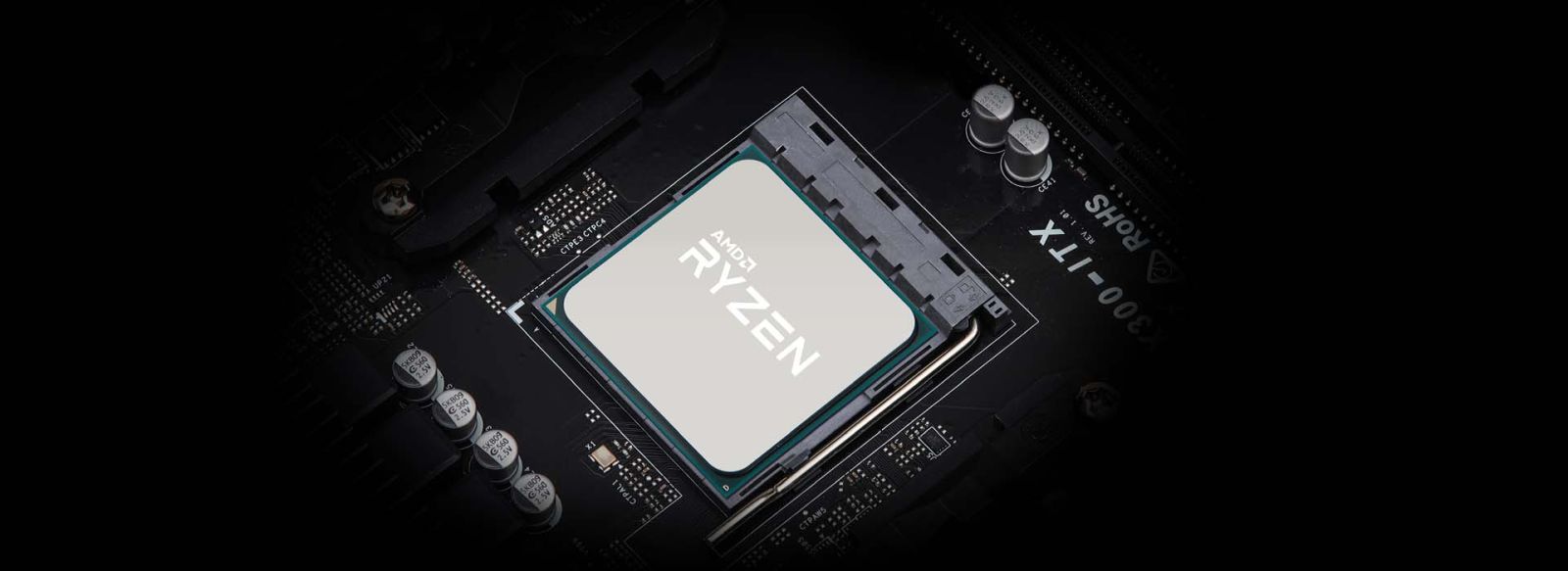

Processing Power
DeskMeet X300 supports the latest AMD Ryzen™ 5000 Series desktop processor (up to 65W) that delivers ultimate performance for efficient work and demanding applications.
*DeskMeet has a CPU cooler height limitation of 54mm (supports AMD Wraith Stealth CPU cooler)

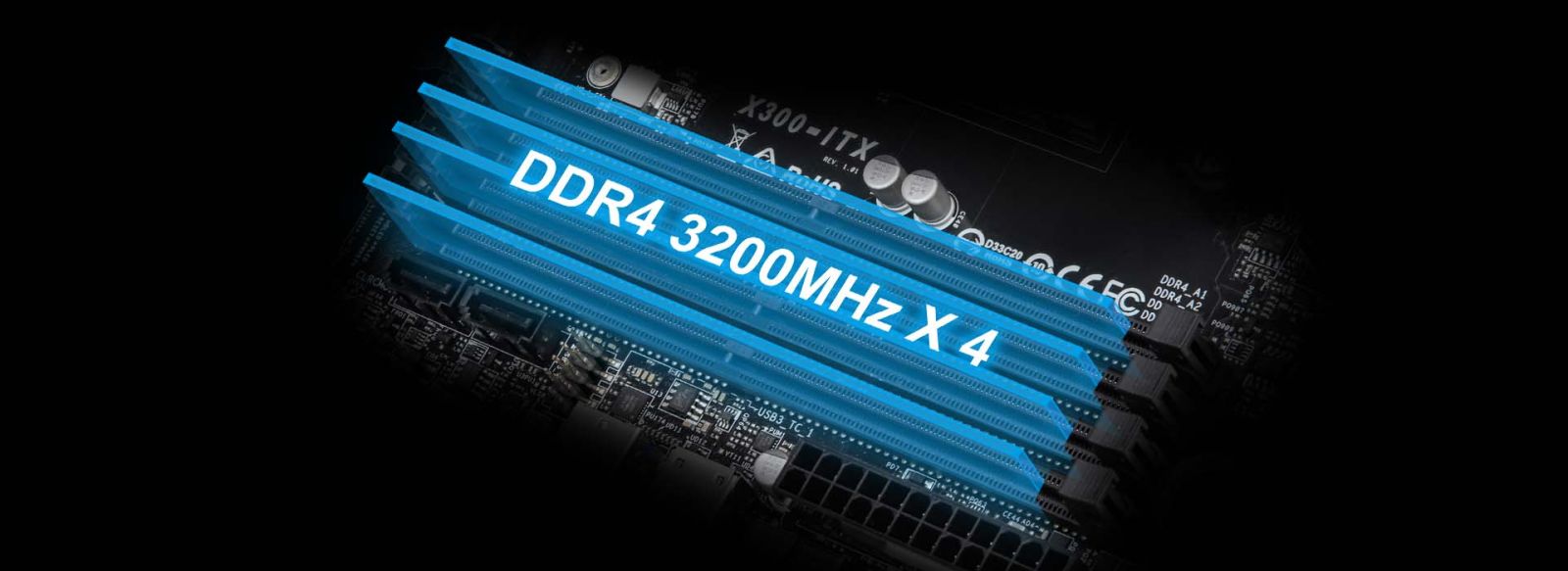

Incredible Memory Performance
Up to 128GB of four DIMM memory clocked at 3200MHz, DeskMeet provides a faster multitasking experience and a responsive system.
Get the server-grade performance and rock-solid durability with support of ECC un-buffered memory modules for high-end computing systems, such as scientific or financial computers.
*ECC support varies by CPU.

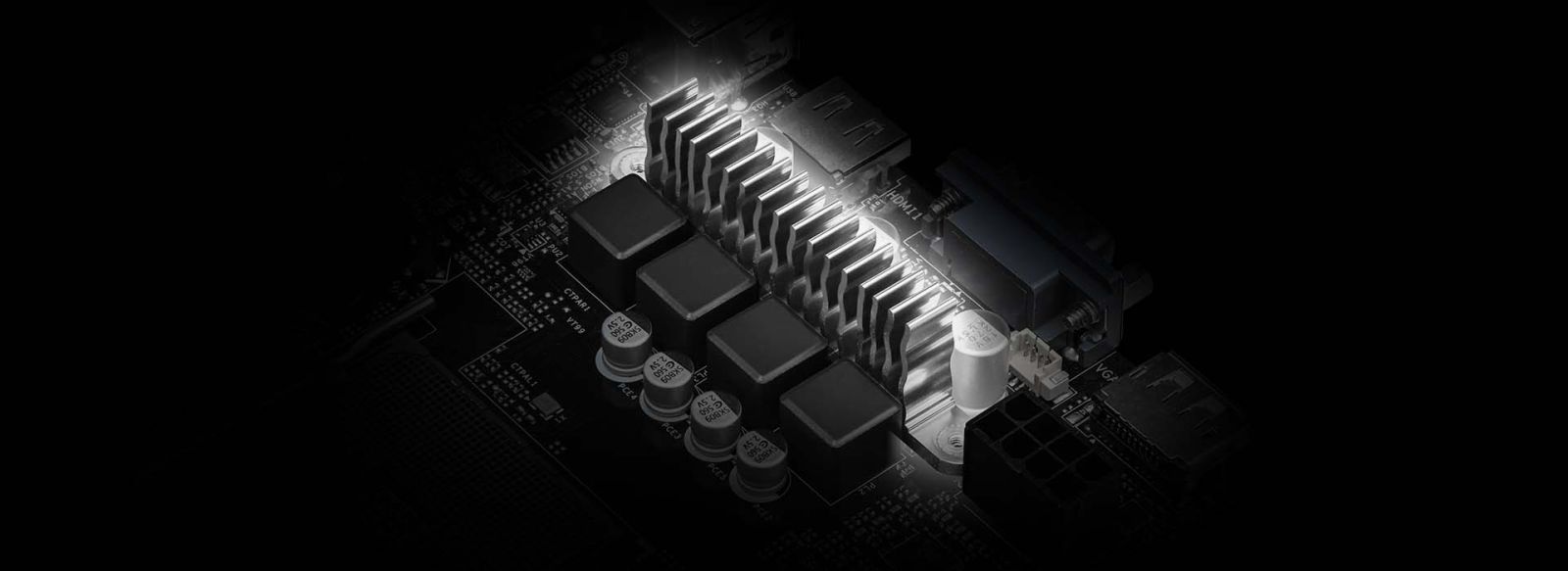

Heatsink
DeskMeet features a dedicated MOSFET heatsink that allows it to dissipate excess heat and operate at the optimum temperature for reliable performance.

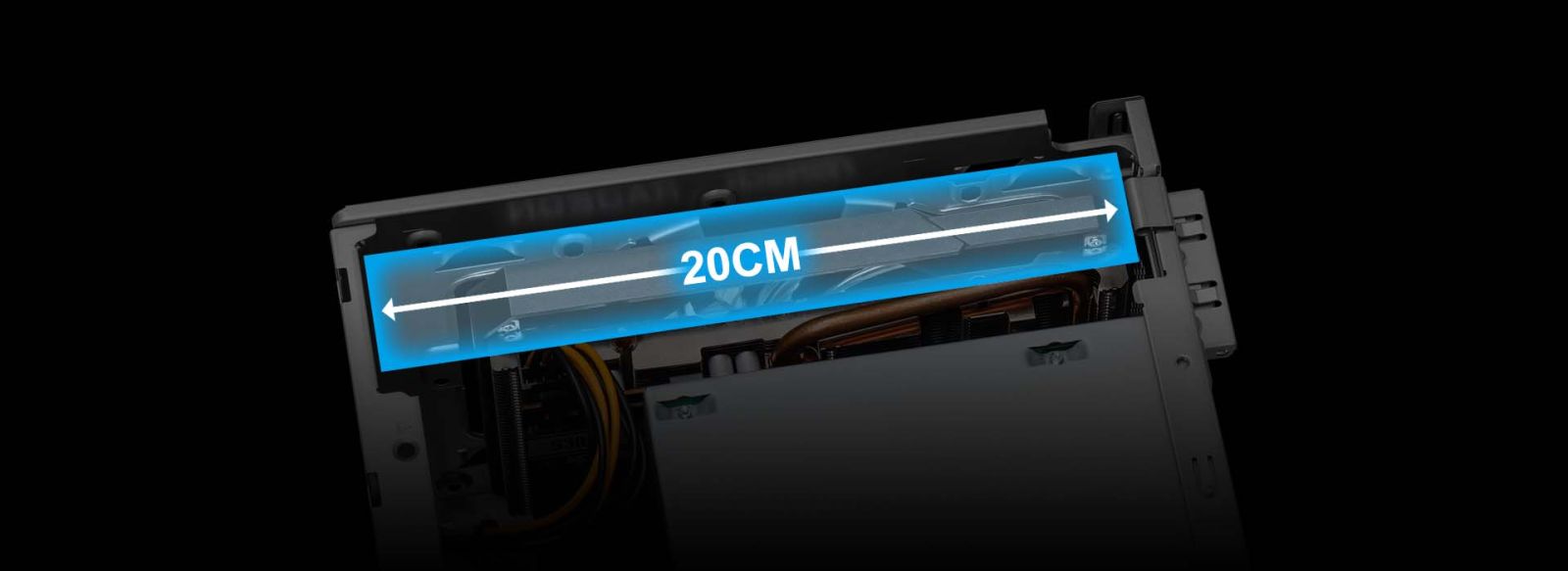

Ready for Dual slot Graphics Card
DeskMeet can fit a dual slot graphics card (up to 20cm or 7.87 inches) which is an option for those requiring advanced graphics performance for heavy visual tasks, such as gaming, 3D rendering and video editing.

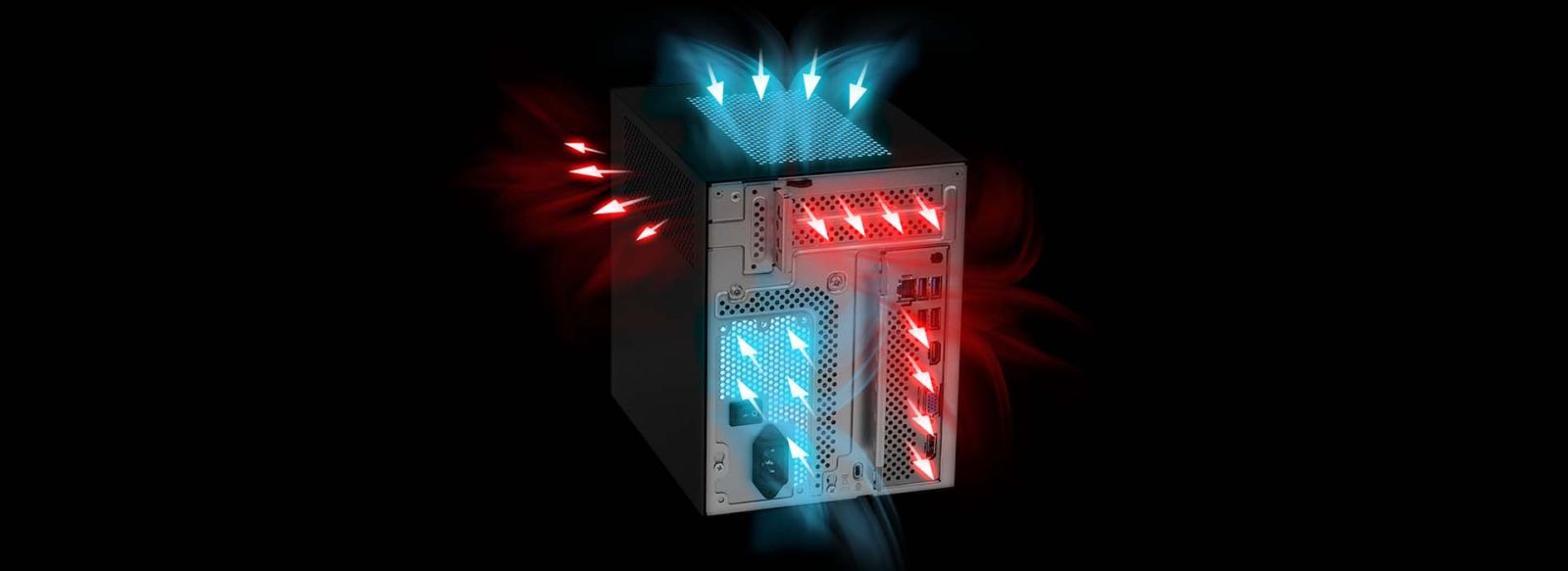

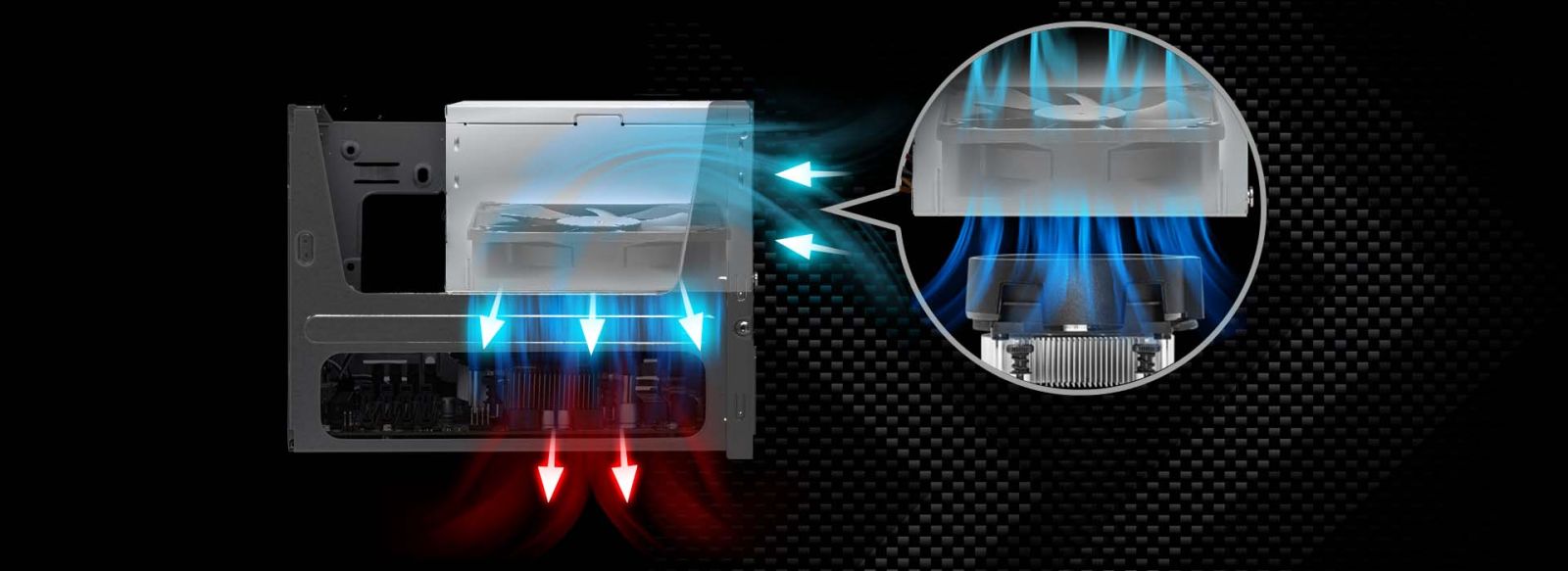

Efficient Airflow Design
DeskMeet features air vents at the top, left side and bottom of the chassis, allowing for maximum heat removal and constant airflow.
In addition, the custom intake fan inside the power supply can pull in cool air to dissipate heat from the CPU and VRM. Such optimized thermal design enables the system to run cool and quiet without compromising performance.
In addition, the custom intake fan inside the power supply can pull in cool air to dissipate heat from the CPU and VRM. Such optimized thermal design enables the system to run cool and quiet without compromising performance.

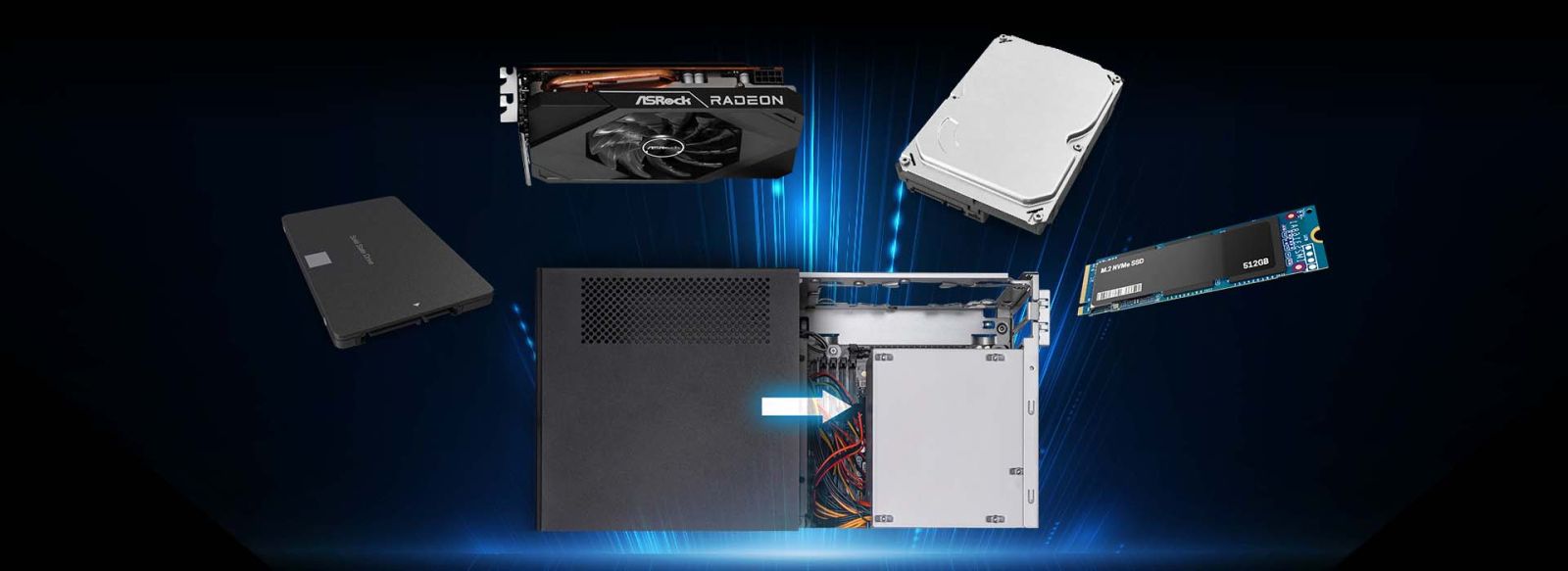

Easy to set up and upgrade
DeskMeet adopts a drawer chassis design so users can pull out the motherboard tray after removing one screw at the bottom. To keep up the system in the latest status, all the components can also be installed or upgraded with ease. DeskMeet provides a simple setup experience to save time and effort.
ATX Power Supply
DeskMeet includes an internal 500W 80 Plus Bronze power supply with custom length cables to save space and make cable management easier. The fan in the power supply will draw in the cool air to CPU cooler which is the best way to increase airflow and ensure DeskMeet operates at its utmost efficiency of heat dissipation.
Multi-Monitor
Up to three displays can be used simultaneously without adding an extra graphics card. With multi-screen, you can have high productivity and immersive gaming experience.

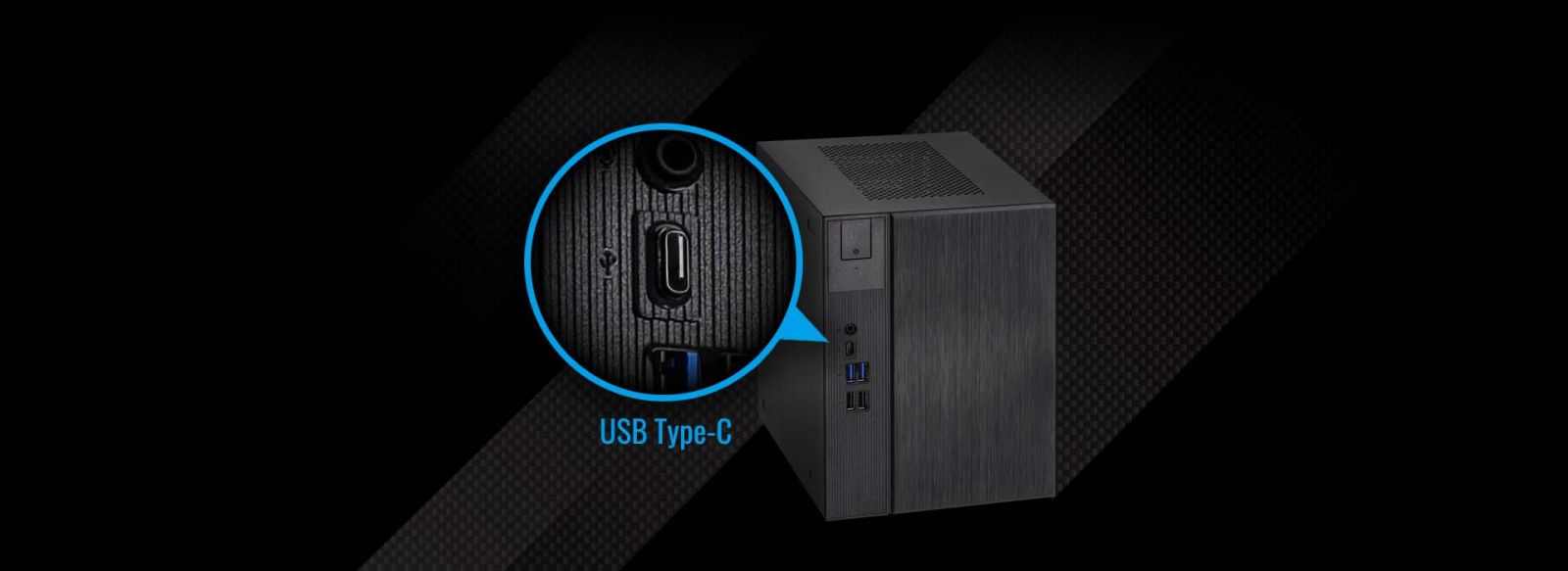

Front USB Type-C
DeskMeet features one reversible USB Type-C port in the front of the case for fast charging and data transfer.

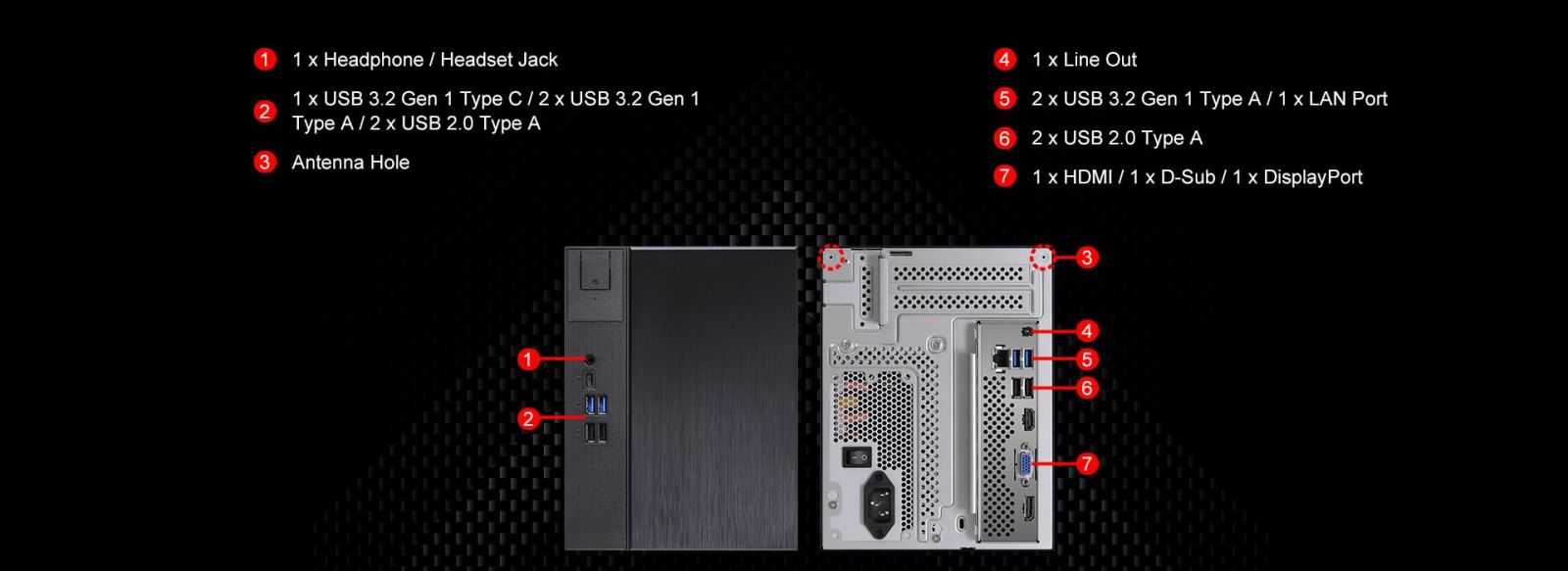

Connectivity
Although DeskMeet’s compact size, it doesn’t compromise on I/O ports. It has eight Type-A USB ports to connect to all of your peripheral devices.
-
CPU- Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors, up to 65W
-
Cooler- Supports AMD AM4 CPU Cooler (Max. Height ≦ 54mm)
-
Memory- Supports Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM slots (Max. 128GB)
- AMD Ryzen 5000/4000 series – 3200MHz
- AMD Ryzen 3000/2000 series – 2933MHz
- Supports ECC & non-ECC, un-buffered memory*
*For Ryzen Series APUs (Cezanne, Renoir and Picasso), ECC is only supported with PRO CPUs. -
Chipset- AMD X300
-
Graphics- Supports a discrete Dual slot Graphics card up to 20CM
-
Audio- Realtek ALC897 Audio Codec
-
Storage- 2 x SATA3 6.0Gb/s ports (RAID 0/1)
- 1 x Ultra M.2 (2280) PCIe Gen3 x4 slot -
LAN- Gigabit LAN (RealtekRTL8111H)
-
Expansion Slots- 1 x PCIe 3.0 x 16
- 1 x M.2 (key E 2230) slot for Wi-Fi + BT Module -
Front I/O- 1 x Headphone/Headset Jack
- 1 x USB 3.2 Gen1 Type-C port
- 2 x USB 3.2 Gen1 Type-A port
- 2 x USB 2.0 Type-A port -
Rear I/O- 1 x DisplayPort
- 1 x HDMI
- 1 x D-Sub
- 2 x USB 2.0
- 2 x USB 3.2 Gen1 Type-A
- 1 x RJ-45 LAN Port
- 1 x Audio Jack (Line out) -
Connectors- 1 x Chassis Intrusion Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis/Water Pump Fan Connectors (4-pin, DC mode only)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Header
- 1 x USB 2.0 Headers (Support 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x COM Port Header (Optional for X300-ITX/COM model) -
Volume (liters)- 8L
-
Power Unit- 500W power supply (80+ Bronze, peak 550W)
-
Accessory- Quick Installation Guide
- 2 x SATA Data Cables
- 1 x Screws Package -
Dimension- 168 (W) x 219.3 (D) x 218.3(H) mm (excl. Protrusions)
- 168 (W) x 236.1 (D) x 221.6(H) mm (incl. Protrusions) -
OS- Microsoft® Windows® 10 64-bit / 11 64-bit
