Gigabyte Brix BER3H-5300
Small Outside, Powerful Inside
Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with pure black stylish chassis design. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience. With a broad choice of processors covering the entire performance spectrum, the BRIX sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit.
Specifications:
-
Dimension52 mm x 134.2 mm x 139.1 mm (2.0" x 5.3" x 5.4")
-
Motherboard Size125 mm x 128.8 mm (4.9'' x 5.1")
-
CPUAMD Ryzen™ 3 5300U, 3.8 / 2.6 GHz, 4C/8T Core, 6MB Cache
Mobile Processor with Radeon™ Graphics , 15W, Zen 2 -
Memory2 x SO-DIMM DDR4 slots, support up to 3200MHz
Max. 64GB -
LAN2.5G LAN (Realtek 8125)
-
Wifi CardAMD RZ608 Wifi 6 /BT 5.2 Module
-
VideoAMD Radeon™ RX Vega 6 Graphics
-
HDMI Resolution (Max.)2x HDMI2.0a with HDCP 2.2
Max Resolution 3840x2160@60Hz -
Mini DP Resolution (Max.)Mini DP /USB Type-C DP supports : DP1.4
Max Resolution 3840x2160@60Hz -
Storage1 x PCI-e Gen3 x 4 /SATA M.2 2280 slot
1 x 2.5" HDD/SSD, 7.0mm thick (1 x 6 Gbps SATA 3) -
Expansion Slots1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
-

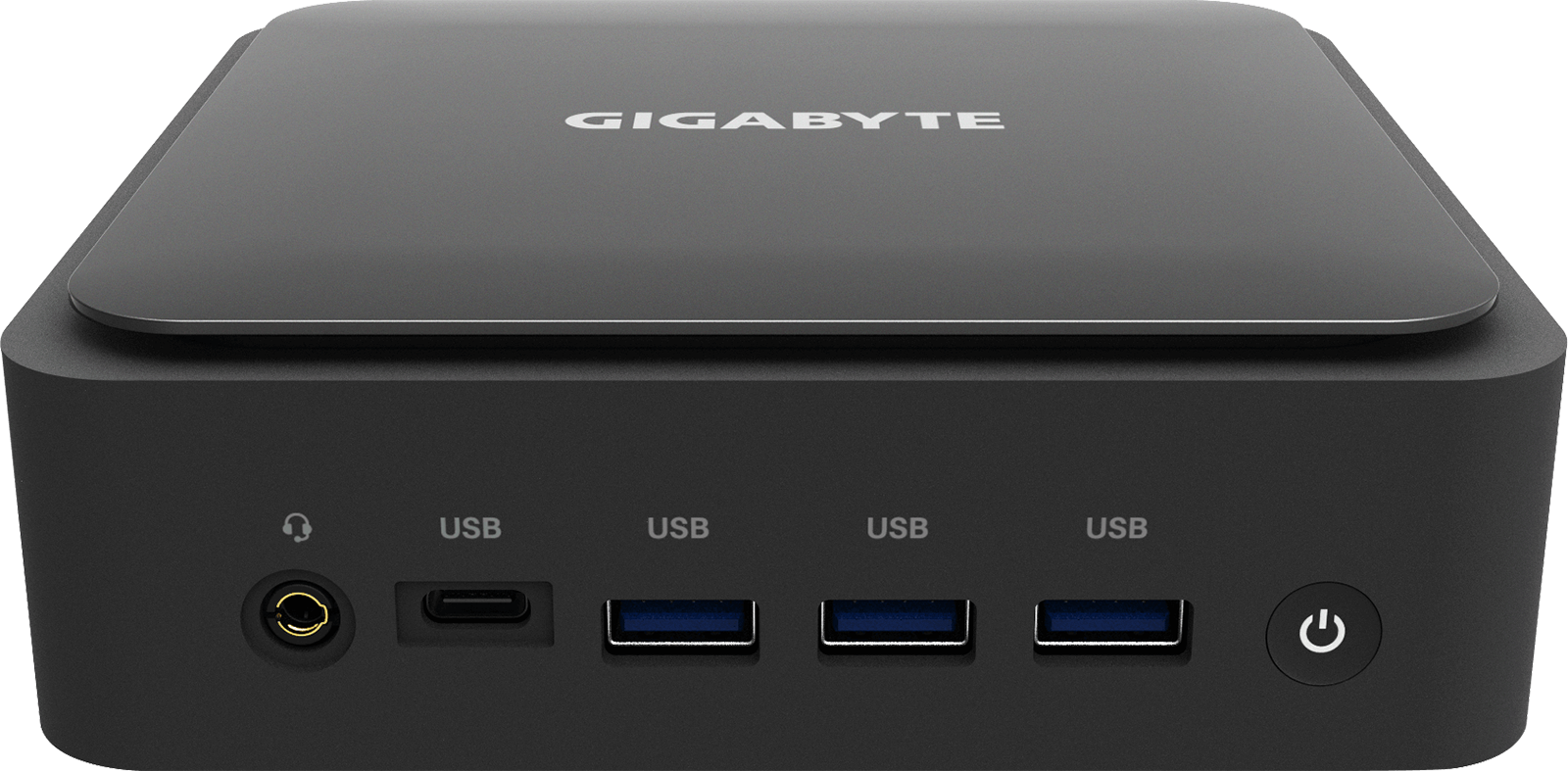

Front I/O1 x Power Button
1 x USB 3.2 type C (Gen2)
3 x USB 3.2 type A (Gen2)
1 x head phone jack with MIC -
Rear I/O2 x HDMI(2.0b)
1 x mDP
1 x USB 3.2 type C (Gen2) w/ DP alt mode
2 x USB 3.2 type A (Gen 1)
1 x RJ45
1 x DC-In
1 x Kensington lock slot -
TPMIntegrate TPM module* (in selected regions /countries)
-
Power SupplyInput: AC 100-240V
Output: DC 19.5V / 6.92A, 135W -
VESAMounting Bracket Included
-
Support OSWindows 11 64Bit
Windows 10 64bit -
EnvironmentOperating Temperature 0°C to 35°C
Storage Temperature -20°C to +60°C
