Дънна платка Gigabyte B760M Aorus Elite X AX, B760, LGA 1700, DDR5, PCI-E 4.0 (DP&HDMI), 2x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen 2, 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3, Micro ATX

Gigabyte B760M Aorus Elite X AX

Key Features

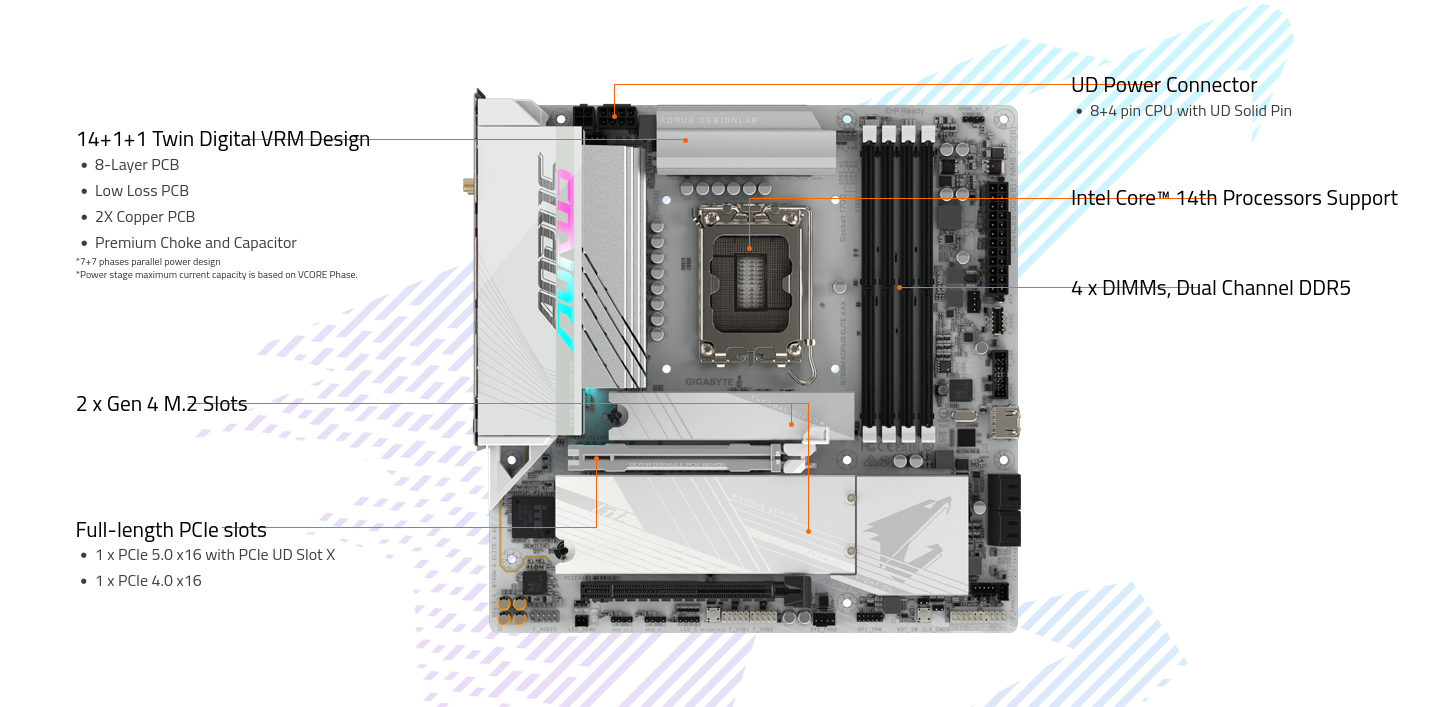

• Supports Intel® Core™ 14th and 13th processors

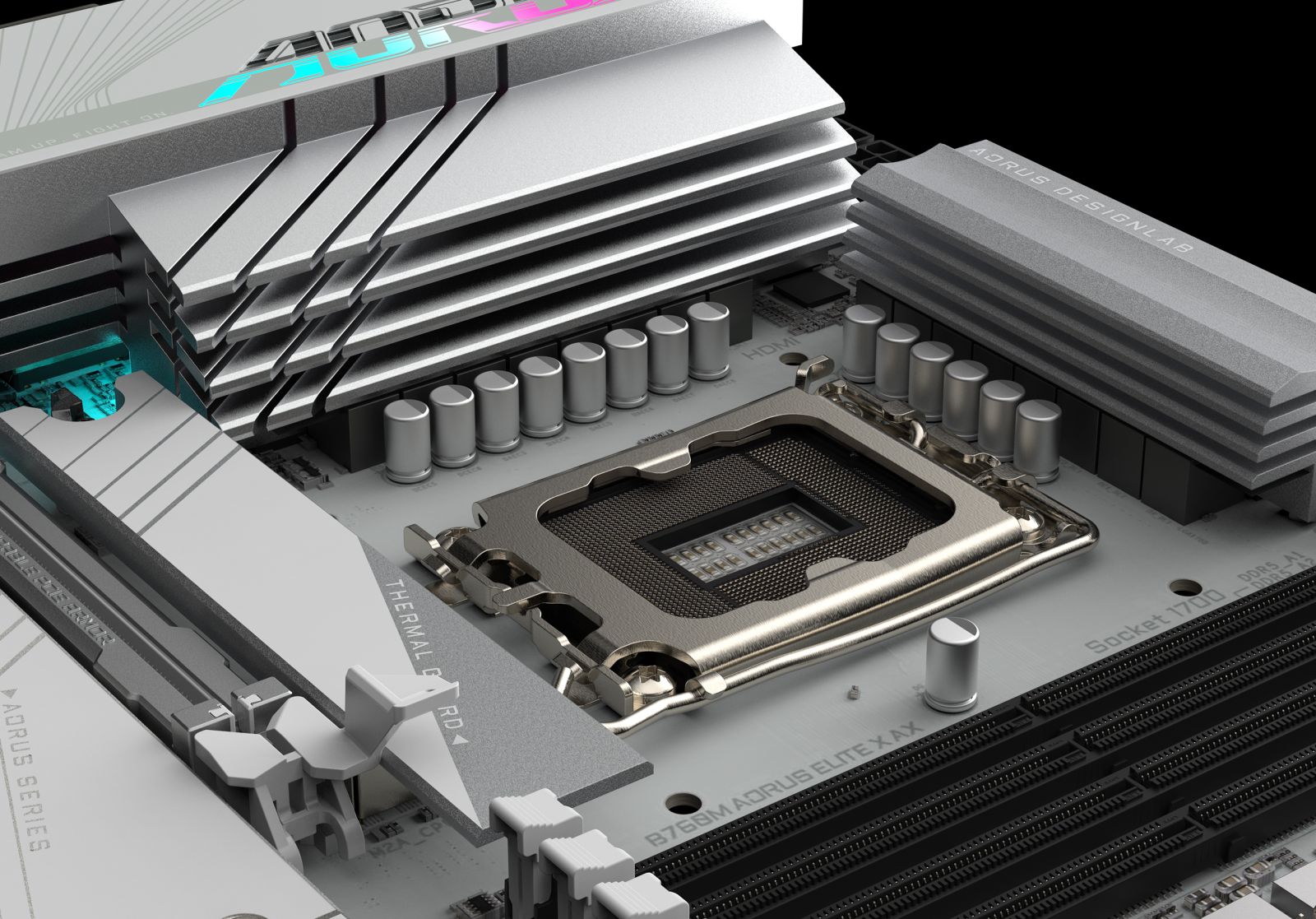

• Digital twin 14+1+1 phases VRM solution
• Dual Channel DDR5：4*DIMMs with XMP 3.0 memory module support
• PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
• EZ-Latch Click：M.2 heatsinks with screwless design
• EZ-Latch Plus：PCIe 5.0 x16 slot & M.2 slots with quick release design
• Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
• UC BIOS：User-Centred intuitive UX with Quick Access function
• Ultra-Fast Storage：2*M.2 PCIe 4.0 x4
• Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking：2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna
• Extended Connectivity：DP,Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
• Reliable Audio：8-Ch HD Audio & Audiophile Grade Capacitors

X Gen Designed for 14th Gen

X marks the 14th generation! Introducing the AORUS B760 X Gen Motherboards, the most powerful platforms ever built for the Intel® Core™ 14th Gen processors. With the leading performance in DDR5 memory, the upgraded DIY-friendly innovations, and the all-new BIOS redesigned as user-centered, the AORUS B760 X Gen Motherboards are built to fully unleash the next-gen power.

Xceed in DDR5 performance

GIGABYTE is committed to enabling the unparalleled performance of the Intel® Core™ 14th Gen processors. That is why every B760M AORUS ELITE X AX motherboard is engineered with industry-leading technologies to achieve the best-in-class DDR5 performance on the market.

Xtraordinary power delivery

The B760M AORUS ELITE X AX motherboard is equipped with the all-digital power design to achieve peak performance of the next-gen processor while providing the best stability under heavy workloads.

Xtra layers for excellent players

As the very foundation of the motherboard, the PCB plays a subtle yet critical role in the capabilities. No gamers should overlook the details lie within the PCB layers.

Specifications:

• CPU

  LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
  L3 cache varies with CPU


• Chipset

  Intel® B760 Express Chipset

• Memory

  Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules

  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in
  non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

• Onboard Graphics

  Integrated Graphics Processor-Intel® HD Graphics support:
  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz


  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support for native HDMI 2.1 TMDS compatible ports.


  - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz


  * Support for HDMI 1.4.


  - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz


  * Support for DisplayPort 1.2 version and HDCP 2.3


  (Graphics specifications may vary depending on CPU support.)

• Audio

  Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel


  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


  Support for S/PDIF Out

• LAN

  Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Wireless Communication module


  - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  - BLUETOOTH 5.3
  - Support for 11ax 160MHz wireless standard
  (Actual data rate may vary depending on environment and equipment.)

• Expansion Slots

  CPU:
  - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)


  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


  Chipset:
  - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

• Storage Interface

  CPU:
  - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  Chipset:
  - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  - 4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

• USB

  Chipset:
  - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
  - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the
  internal USB header
  - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  - 1 x USB 3.2 Gen 1 ports on the back panel
  - 4 x USB 2.0/1.1 ports available through the internal USB headers
  Chipset+USB 3.2 Gen 1 Hub:
  - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  Chipset+USB 2.0 Hub:
  - 4 x USB 2.0/1.1 ports on the back panel

• Internal I/O Connectors

  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x 4-pin ATX 12V power connector
  1 x CPU fan header
  3 x system fan headers
  3 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  2 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C® header, with USB 3.2 Gen 2 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  2 x Thunderbolt™ add-in card connectors
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  1 x HDMI port
  1 x Q-Flash Plus button
  1 x reset button
  1 x reset jumper
  1 x Clear CMOS jumper

• Back Panel Connectors

  2 x SMA antenna connectors (2T2R)
  1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  1 x USB 3.2 Gen 2 Type-A port (red)
  3 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
  1 x HDMI port
  1 x DisplayPort
  1 x RJ-45 port
  1 x optical S/PDIF Out connector
  2 x audio jacks

• I/O Controller

  iTE® I/O Controller Chip

• H/W Monitoring

  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control


  * Whether the fan speed control function is supported will depend on the fan you install.

• BIOS

  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  Support for GIGABYTE Control Center (GCC)


  Support for Q-Flash
  Support for Q-Flash Plus

• Bundled Software

  Norton® Internet Security (OEM version)
  LAN bandwidth management software

• Operating System

  Support for Windows 11 64-bit
  Support for Windows 10 64-bit

• Form Factor

  Micro ATX Form Factor; 24.4cm x 24.4cm
