Дънна платка Gigabyte B560M DS3H V3 (rev. 1.0), B560, LGA1200, DDR4, PCIe 3.0 (DVI-D/HDMI/VGA)(CF), 4x SATA 6Gb/s, 1x M.2, 3x USB 3.2 Gen1 Type-A, Micro ATX

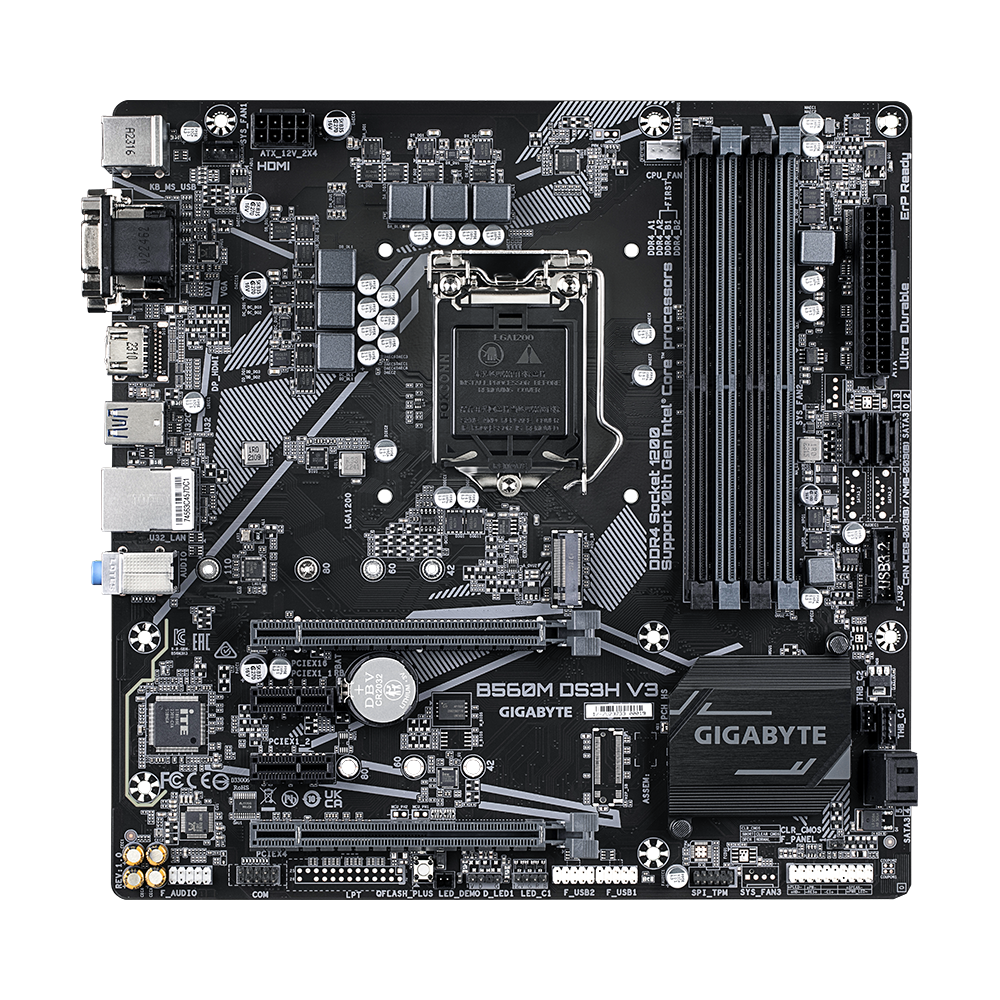

Gigabyte B560M DS3H V3 (rev. 1.0)

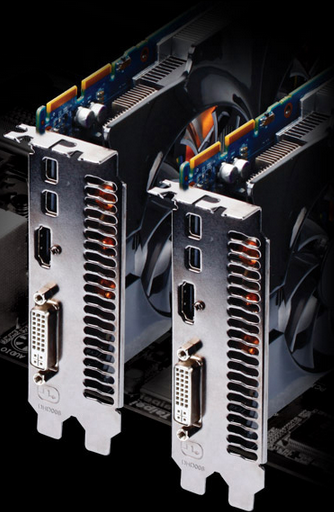

2-Way CrossFire Multi-Graphics Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

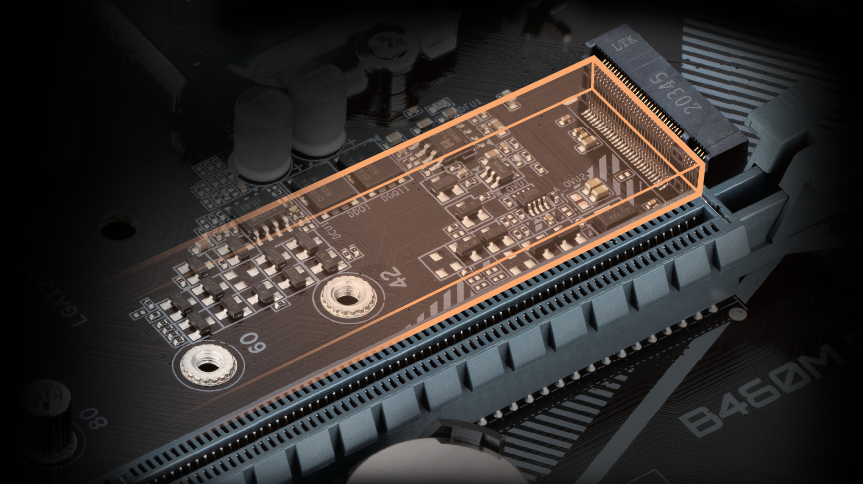

NVMe PCIe Gen3 X4 22110 M.2 Connector GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

Specifications

   CPU
   LGA1200
       11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
       10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
       L3 cache varies with CPU
   (Please refer to "CPU Support List" for more information.)

   Chipset
       Intel® H470 Express Chipset

   Memory
       11th Generation Intel® Core™ i9/i7/i5 processors:
       Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
       10th Generation Intel® Core™ i9/i7 processors:
       Support for DDR4 2933/2666/2400/2133 MT/s memory modules
       10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
       Support for DDR4 2666/2400/2133 MT/s memory modules
       4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
       Dual channel memory architecture
       Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
       Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
       Support for Extreme Memory Profile (XMP) memory modules
   (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

   Onboard Graphics
   Integrated Graphics Processor-Intel® HD Graphics support:
       1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
       * The D-Sub port is only available with the 10th Generation processors.
       1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
       * The DVI-D port does not support D-Sub connection by adapter.
       1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
       * Support for HDMI 1.4 version and HDCP 2.3.
       Support for up to 3 displays at the same time
   Maximum shared memory of 512 MB

   Audio
       Realtek® Audio CODEC
       High Definition Audio
       2/4/5.1/7.1-channel
       * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

   LAN
       Intel® GbE LAN chip (1 Gbps/10 Mbps/100 Mbps)

   Expansion Slots
       1 x PCI Express x16 slot, running at x16 (PCIEX16)
       * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
       1 x PCI Express x16 slot, running at x4 (PCIEX4)
       2 x PCI Express x1 slots
       (All of the PCI Express slots conform to PCI Express 3.0 standard.)

   Storage Interface
       1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242 PCIe x4/x2 SSD support)
       4 x SATA 6Gb/s connectors
       Support for RAID 0, RAID 1, RAID 5, and RAID 10

   USB
   Chipset:
       5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
       6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

   Internal I/O Connectors
       1 x 24-pin ATX main power connector
       1 x 8-pin ATX 12V power connector
       1 x CPU fan header
       1 x system fan header
       1 x addressable LED strip header
       1 x RGB LED strip header
       1 x M.2 Socket 3 connector
       4 x SATA 6Gb/s connectors
       1 x front panel header
       1 x front panel audio header
       1 x USB 3.2 Gen 1 header
       2 x USB 2.0/1.1 headers
       2 x Thunderbolt™ add-in card connectors
       1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
       1 x serial port header
       1 x Clear CMOS jumper
       1 x Q-Flash Plus button

   Back Panel Connectors
       1 x PS/2 keyboard/mouse port
       1 x D-Sub port
       1 x DVI-D port
       1 x HDMI port
       3 x USB 3.2 Gen 1 ports
       2 x USB 2.0/1.1 ports
       1 x RJ-45 port
       3 x audio jacks

   I/O Controller
       iTE® I/O Controller Chip

   H/W Monitoring
       Voltage detection
       Temperature detection
       Fan speed detection
       Overheating warning
       Fan fail warning
       Fan speed control
       * Whether the fan speed control function is supported will depend on the fan you install.

   BIOS
       1 x 256 Mbit flash
       Use of licensed AMI UEFI BIOS
       PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

   Unique Features
       Support for APP Center
       * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
       @BIOS
       EasyTune
       RGB Fusion
       Smart Backup
       System Information Viewer
       Support for Q-Flash Plus
       Support for Q-Flash
       Support for Xpress Install

   Operating System
       Support for Windows 11 64-bit
       Support for Windows 10 64-bit

   Form Factor
       Micro ATX Form Factor; 24.4cm x 24.4cm
