QBX
Size Does Matter
The most advanced compact case of the market is here. COUGAR QBX comes here to conquer the world with three big weapons within its compact body: Its dimensions, its expansion potential and its unrivalled cooling.

Compact

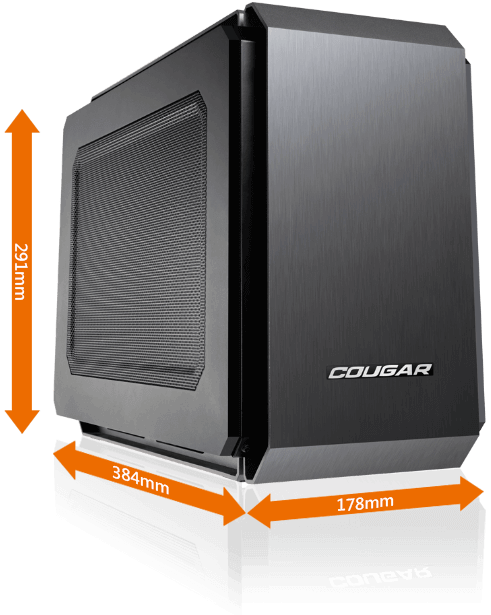

QBX's 178 x 291 x 384 mm/7.01 x 11.46 x 15.12 (in) make it a highly compact case.
Gamers no longer need enormous desks with lots of space to install high-end gaming components
in order to enjoy new generation games.

Expandable: Massive Storage + ODD
Up to 5 Storage Drives (1 x 3.5¨ HDD + 4 x 2.5¨ SSD/HDD) Access to CD, DVD, Blu-ray and other Disk Formats. Nobody likes those situations in which you need to uninstall a game to be able to install another one.
To prevent this, QBX supports enormous amounts of storage so that you can put all your games, music, movies and whatever you want inside it.

The Best Cooling of Its Class

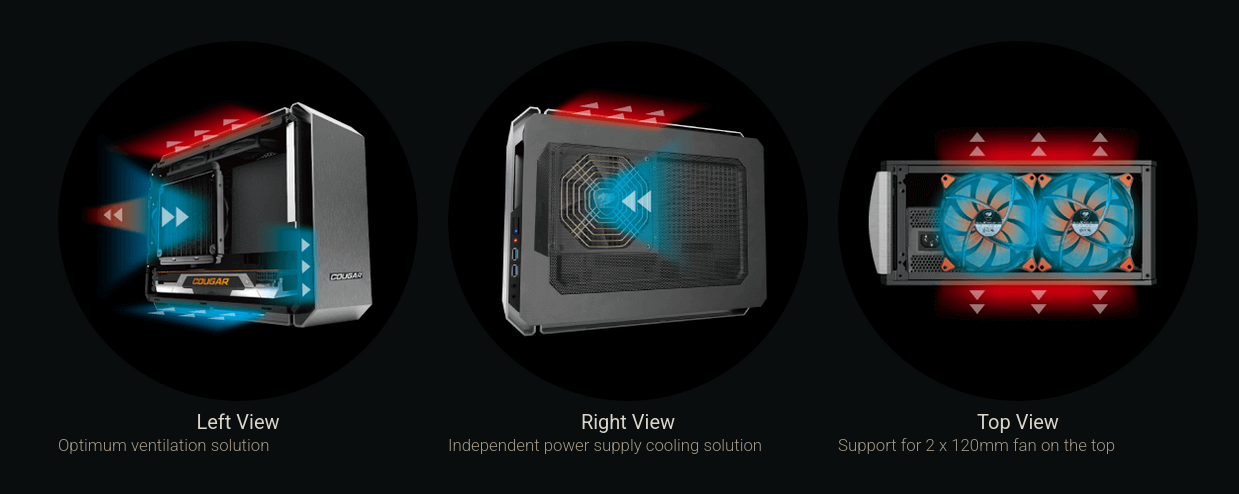

QBX comes with the best cooling of any case of its class. With a maximum of seven fans (from 80mm to 120mm) and compatibility with up to 240mm radiators for water cooling solutions, QBX's Pro-cooling design (including an independent power supply airflow) provides the best defence against overheating.

Specifications
Model Name | QBX | |
---|---|---|
Case Form Factor | Mini-ITX Case | |
Motherboard Type | Mini-ITX | |
Dimension (WxHxD) | 7.01 x 11.46 x 15.12 (in) 178 x 291 x 384 (mm) | |
Optical Disk Drive (ODD) Type | Supports ONLY Slot Loading Slim ODD | |
3.5" Internal Drive Bay (HDD) | 1 | |
2.5" Drive Bay (HDD/SSD) | 4 | |
Expansion Slots (For example for Graphics Cards) | 2 | |
I/O Panel | 2 x USB3.0/HD audio | |
Cooling System Max. Supported Installation: Seven Fans | Front | 80mm fan x 1 (optional) |
Top | 120mm fans x 2 (optional) | |
Rear | 90mm fan x 1 (pre-installed) | |
Bottom | 120mm fans x 2 (optional) | |
Left Side | 120mm fan x 1 or 240mm radiator with a single 120mm fan or 120mm radiator with a 120mm fan | |
Cable Management System | Cable feedthrough on the motherboard tray for easy routing and hiding of cables. | |
Fan Filter (Cleanable) | 1 x Bottom Filter (pre-installed and removable) 1 x Front Filter (included, installed by the user) | |
Water Cooling Support | Left Side:240mm radiator with a single 120mm fan or Left Side:120mm radiator with a 120mm fan | |
Max. Graphics Card Length | 350mm (Support for High-End Graphics Cards) (Horizontal graphics card slots are compatible with RTX 3080/3070.) | |
Max. CPU Cooler Height | 105mm | |
PSU | PS2 ATX Type | |
Max. PSU Length | 140 mm / 5.5 (in) |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Компютърни кутии Cougar Gaming
Виж всички Компютърни кутии в категорията
Захранване: | Не |
---|---|
Прозорец: | Не |
Цвят: | Черен |
