Cougar Gaming MX600 Mini RGB

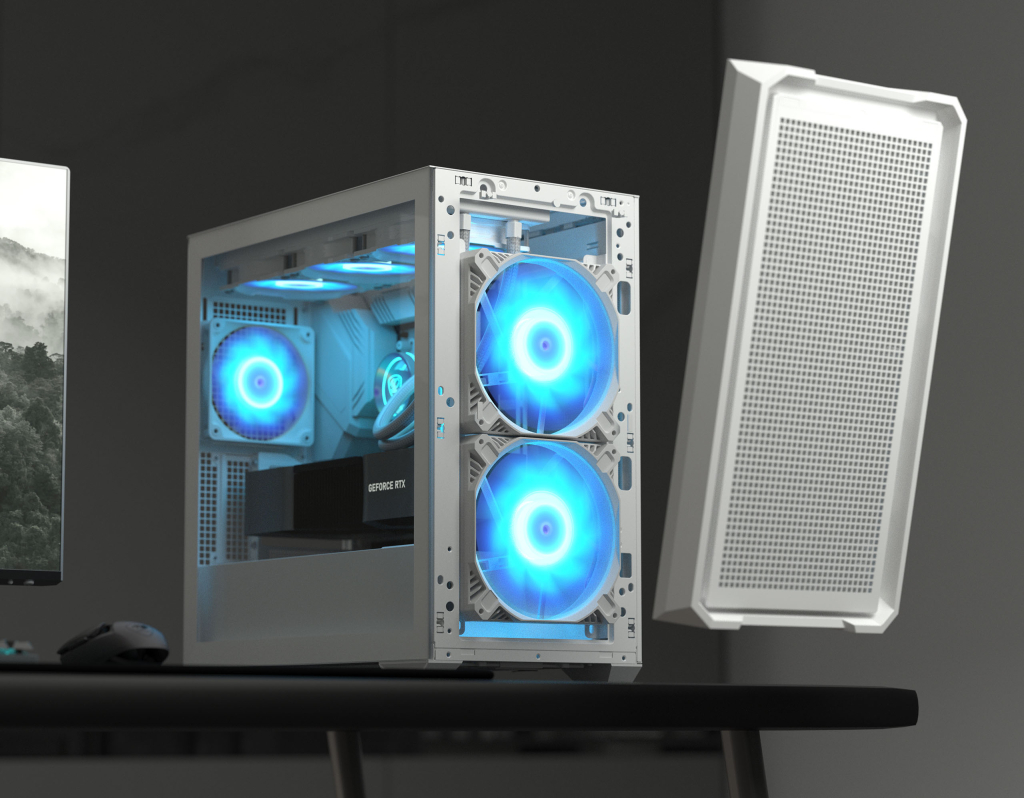

Hardcore Fandom The cooling capability of 2x 160mm front panel fans defies the MX600 Mini RGB’s deceptively diminutive size. With a total capacity of 10 fans, even the most performance-intensive rig stays cool at peak operation. |  |

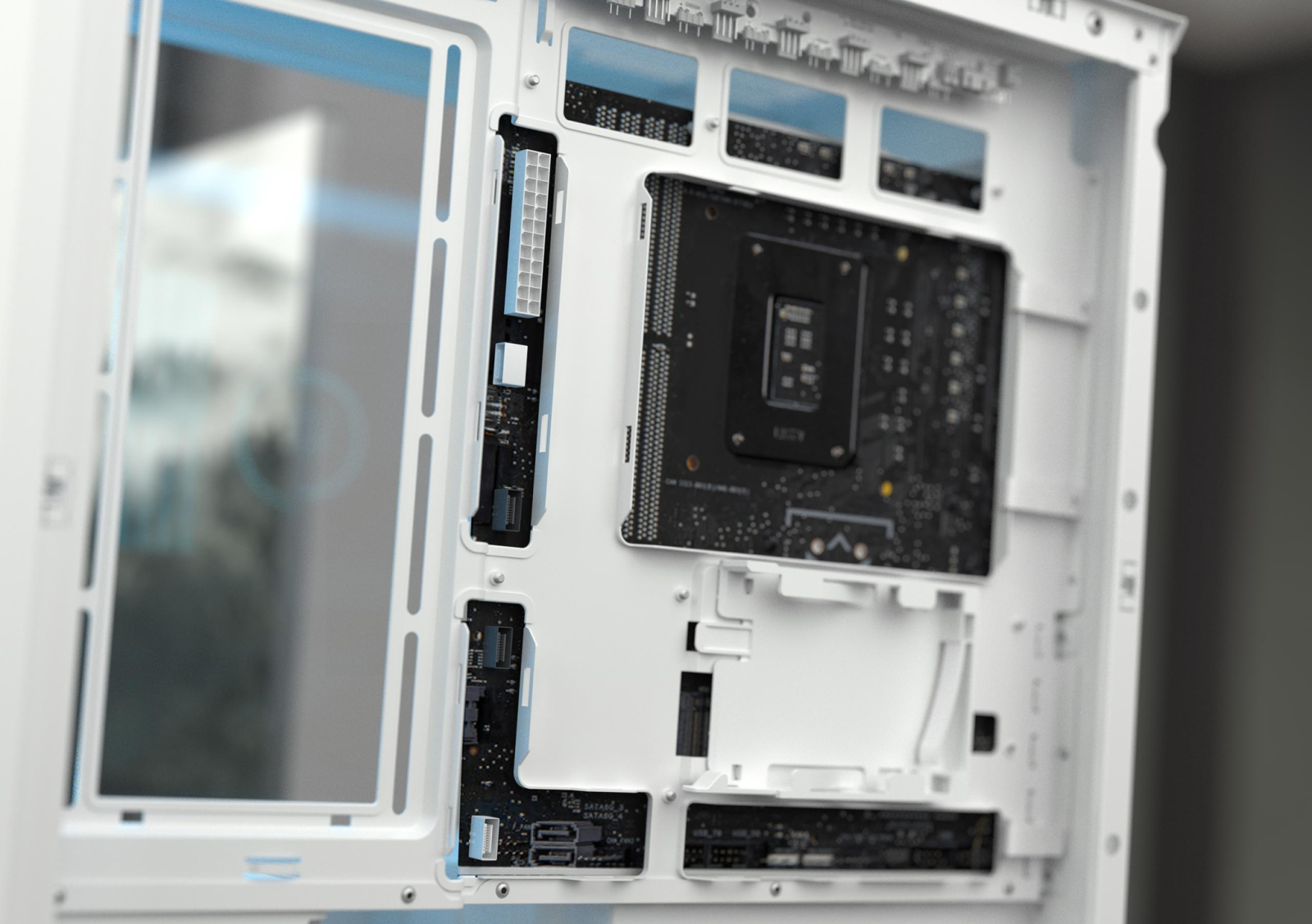

Clear Visual Compatibility with reverse connector motherboards eradicates cable clutter completely. |  |
Cold Case
Future iterations of components are expected to generate exponentially more heat, making cooling a critical feature: focused, directed ventilation inoculates the MX600 Mini RGB against escalating temperatures.
 |  |

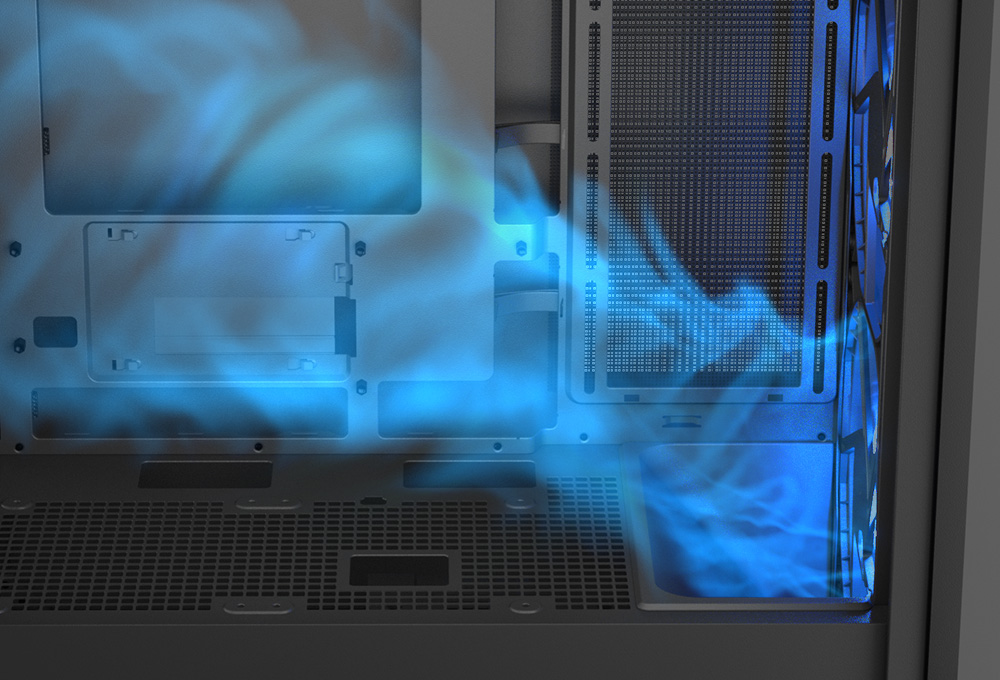

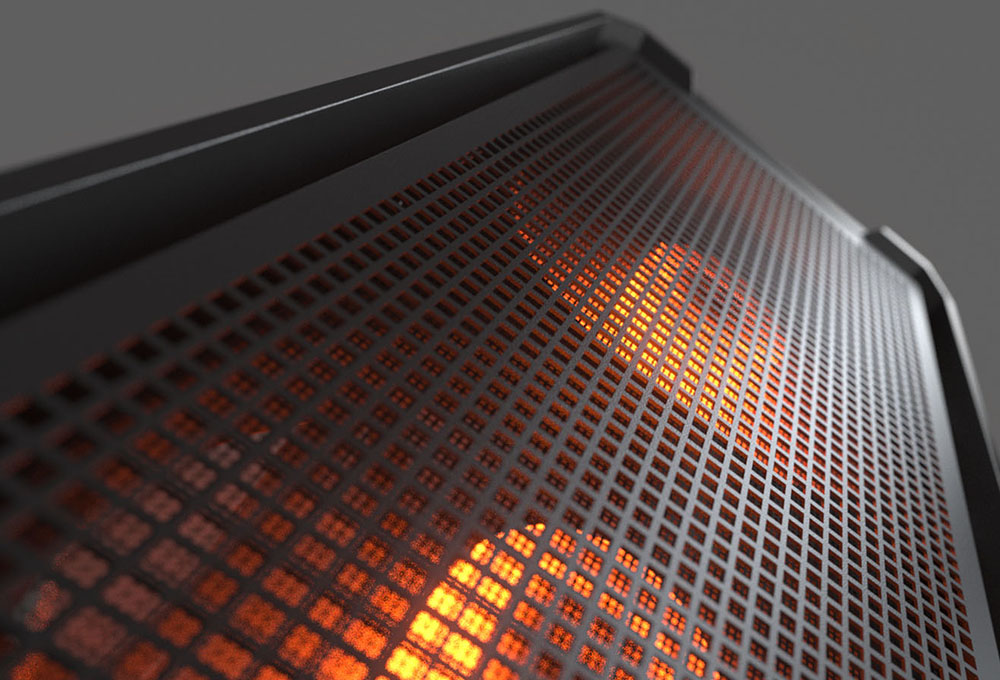

Sloped Airflow Ramp Directs smoother airflow. | 11 % Increase in Airflow Square perforations on the front panel increase airflow by 11% compared to circular designs. |
Specifications
| Case Form Factor | Mini Tower | |
|---|---|---|
| Motherboard Type | Mini ITX / Micro ATX | |
| Dimensions (WxHxD) | 232 x 445 x 456 (mm) 9.1 x 17.5 x 18 (in) | |
| I/O Panel | Type C Gen 2 x 1, USB 3.0 x 2, 4 Pole Headset Audio Jack & RGB Button | |
| 3.5" Drive Bay | 2 | |
| 2.5" Drive Bay | 1+2 (converted from 3.5" drive bays) | |
| Expansion Slots | 5 | |
| Cooling Fan Support | Front | 160mm x 2 |
| Top | 120mm x 3 / 140mm x 2 | |
| M/B Side | 120mm x 2 | |
| PSU Shroud | 120mm x 2 | |
| Rear | 120mm x 1 | |
| Pre-installed Fans | Front | 160mm ARGB PWM fan x 2 |
| Rear | 120mm ARGB PWM fan x 1 | |
| Speed | 160mm ARGB PWM fan: 400-1200 ± 10% RPM 120mm ARGB PWM fan: 500-1400 ± 10% RPM | |
| Connector | 5V 3 Pin (ARGB) 4 Pin PWM (Fan) | |
| Maximun Number of Fans | 10 | |
| Water Cooling Support | Top | *360mm / 280mm / 240mm / 140mm / 120mm |
| M/B Side | *240mm / 120mm *Please choose either top or M/B side to install a radiator. | |
| Rear | 120mm | |
| PWM and RGB hub Sync with M/B | Yes | |
| Max. Graphics Card Length | 380 (mm) / 15 (in) (Only fans at the M/B Side) 255 (mm) / 10 (in) (Radiator with fans at the M/B Side) | |
| Max. CPU Cooler Height | 175 (mm) / 6.9 (in) | |
| Max. PSU Length | 180 (mm) / 7.1 (in) | |
