Мрежови диск (NAS) Asustor AS3204T, четириядрен Intel Celeron J3160 1.6/2.24 GHz, без твърд диск, 2x SATA 6Gb/s, 2GB DDR3L, 1x 10/100/1000Base-T, 3x 3.0 USB

AS3204T

A multimedia entertainment storage solution with a powerful processor

• Equipped with an Intel Celeron quad-core processor (faster graphics processing speed)

• Local HDMI multimedia output (1080P and high-definition multi-channel audio)

• Hand screw design for toolless installation

• Stylish diamond-plate finished cover design

• Equipped with hardware transcoding engine

Equipped with an Intel Celeron quad-core processor

AS3204T is powered by Intel Celeron quad-core processor, equipped with 2GB of dual-channel memory, and feature read speeds of over 112 MB/s and write speeds of over 110 MB/s under RAID 5 configurations.

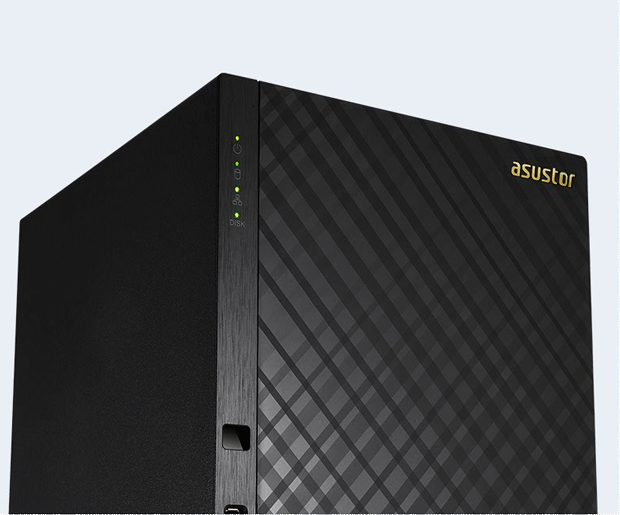

Add modern flair to your favorite space

The AS32 series devices redefine the aesthetics of a NAS. The stylish diamond-plate finished cover makes it an elegant addition to any space, no matter if it is a family room, living room or office.

Dual-channel power

The AS32 models support dual-channel memory, be able to smoothly playback 4K video. Furthermore, AS32 series devices are not only energy efficient, but offer a combination of performance and price that is unmatched in its class. Get ready to enjoy brilliant ultra high-definition 4K video from the comfort of your own home!

Hardware encryption engine

Protecting your data is ASUSTOR’s top priority. The AS32 series devices feature Intel AES-NI encryption engines, allowing data to be completely protected from the moment it is first stored on the NAS. This means that you never have to worry about your confidential data falling into the wrong hands even if your hard disks become lost or stolen. The built-in hardware encryption engine also features read speeds of over 111 MB/s and write speeds of over 79 MB/s for encrypted data providing an optimal combination of file security and system performance.

Спецификации:

CPU: Intel Celeron 1.6GHz Quad Core (burst up to 2.24 GHz) Processor
AES-NI hardware encryption engine integrated
Hardware acceleration engine supported format: H.264 (AVC), H.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1
Memory: 2GB DDR3L
Memory Expandable up to: not expandable
Flash Memory: 512MB DOM
HDD: 4 x SATA3 6Gb/s; 3.5" HDD Compatibility
Maximum Internal Raw Capacity: 64 TB (16 TB HDD X 4, Capacity may vary by RAID types)
Maximum Drive Bays with Expansion Unit: 16
Maximum Raw Capacity with Expansion Units : 256 TB (16 TB HDD X 16,
Expansion: USB 3.0 x 3
Network: Gigabit Ethernet x 1
Output: HDMI 1.4b x 1
System Fan: 120mm x 1
Infrared Receiver
Power Supply Unit / Adapter: 90W x1
Input Power Voltage: 100V to 240V AC
Certification: FCC, CE, VCCI, BSMI, C-TICK

Operation
Power Consumption: 27W (Operation);
11.4W (Disk Hibernation);
0.79W (Sleep Mode) ²
Noise Level: 19.7dB (HDD idle)
Operation Temperature: 0°C~40°C (32°F~104°F)
Humidity: 5% to 95% RH

Software & Features
Operating System
ADM 3.1 Onwards
Supports Online Firmware Updates

Supported OS
Windows XP, Vista, 7, 8, 10, Server 2003, Server 2008, Server 2012
Mac OS X 10.6 Onwards
UNIX, Linux, and BSD

Network Protocols
CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog

File System
Internal Disk: EXT4 ,Btrfs
External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs

File Explorer
Web-based File Management
ISO File Mounting
Share Links
Task Monitor
Browse Files on Local PC
Thumbnail Previews
Data Access via External Optical Drive
Supports video playback

Storage Management
Volume Type: Single disk, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Support for Online RAID Level Migration

iSCSI/IP-SAN
Maximum Targets: 256
Maximum LUNs: 256
Maximum Snapshot Versions of a Single LUN: 256
Target Masking
LUN Mapping
ISO File Mounting
Supports MPIO
Persistent (SCSI-3) Reservations

Customized Sign In Page
2 Different Template Choices
Customizable Title, Imageand Background
Image Import Function

ASUSTOR Hightlight
System Migration
EZ Connect
Dr.ASUSTOR
2-way Backup
Task Monitor

Eco-Friendly Design
System Automatically Enters Sleep Mode (Schedule S3)
Auto-Standby for Both Internal and External Disks
Auto Fan Control
LED Night Mode
Power Schedule: On, Off, Restart, and Sleep.

Backup Solutions
Rsync (Remote Sync) Backup
Cloud Backup
FTP Backup
External Backup
EZ Sync

Snapshots
Btrfs Snapshots
256 snapshots
iSCSI LUNs
Support model: AS31/32/40/50/51/52/53/61/62/63/64/70. Snapshot Center will not display Volume snapshots information in other models.

Security
AES 256-Bit Encryption
Firewall: Prevent Unauthorized Access
Alert Notifications: E-mail, SMS
Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
Built-in Hardware Encryption Engine: AS10/31/32/40/52/53/6/61/62/63/64/70 Series
RAID Scrubbing: detects the integrity and consistency of RAID 5 and RAID 6 drive data.

External Devices Compatibility
Supports USB External Storage Devices
USB Wi-Fi Dongle Support
Bluetooth Dongle/Speaker Support
USB Printer Support
USB DAC/IR Receiver/Keyboard/Mouse Support
CD ROM Drive/DVD ROM Drive/Blu-Ray ROM

VPN Client
Supported VPN Protocols: PPTP, OpenVPN, L2TP/IPsec
Transmission Package Monitor
PPTP Authentication: PAP, CHAP, MS CHAP, MS CHAP2
PPTP Encryption: No MPPE, MPPE (40, 128 bit), Maximum MPPE (128 bit)
OpenVPN Port Control
OpenVPN Link Compression
VPN Server

Supported VPN Protocols: PPTP, OpenVPN, and L2TP/IPsec
View Current Connections & Ability to Disconnect Suspicious Connections
Comprehensive Connection Log
RADIUS Server

Centralized management of wireless network certification
Using WPA-Enterprise or WPA2-Enterprise encryption
Must be combined with a wireless router that supports RADIUS authentication
SNMP Server

Supports SNMP v1, v2c, v3 and trap
ASUSTOR NAS MIB provided
Syslog server

Supports standard syslog protocol
Graphical log monitoring by time and device
Supports TCP and UDP
Auto log archiving
User-defined email notification
