The No-Compromises 2.5GbE NAS
Enthusiast-grade NAS with two, four or six bays
- Quad-Core 10 nm Intel Celeron N5105 CPU brings 31% more performance
- Superfast 2.5-Gigabit Ethernet ports
- Flexible PCIe slot for 10GbE NICs or M.2 SSDs
- Supports PCIe 3.0 SSDs for up to twice the performance of PCIe 2.0.
- Uses DDR4-2933 with 40% more performance
- USB 3.2 Gen2 ports – 10Gbps speed
- Enjoy, download, upload and stream content with 4K transcoding
- Increased ventilation for SSDs
- Supports Wake on LAN and Wake on WAN

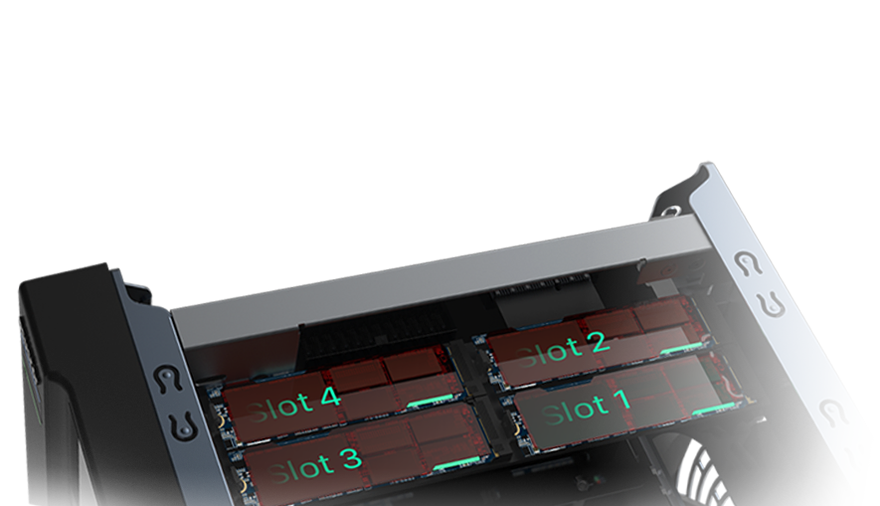

Four M.2 Slots - Have Your Cake and Eat it Too
The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.

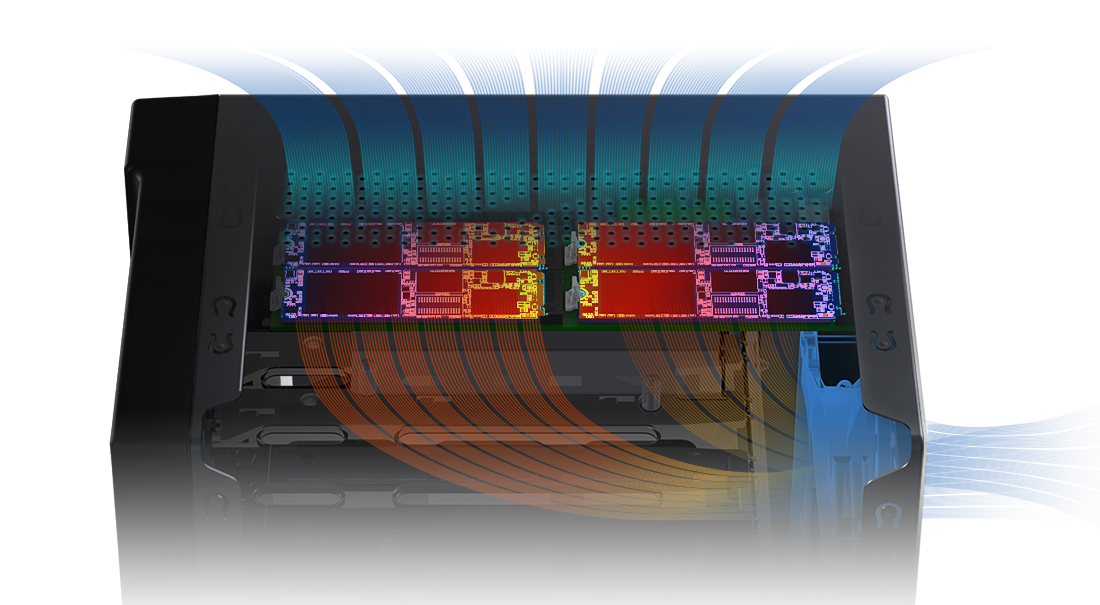

Keeping Cool
With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling..
2.5 + 2.5 = Extreme Speeds
The Lockerstor Gen2 has two 2.5GbE ports which more than doubles the performance of Gigabit Ethernet devices. But that’s not all, with the recent introduction of support for SMB Multichannel, your NAS will be able to combine the speed of multiple Ethernet ports for speeds way beyond 2.5-Gigabit Ethernet.
Specifications
CPU
CPU Model: Intel Celeron N5105
CPU Architecture: x64 64-bit
CPU Frequency: Quad-Core 2.0GHz (burst up 2.90 GHz)
Memory
Memory: 8GB SO-DIMM DDR4
Memory Module Pre-installed: 8GB (1x 8GB)
Total Memory Slots: 2
Memory Expandable up to: 16GB (2x 8GB)
Support mixed capacity
Flash Memory: 8GB eMMC
Storage
Drive Bays: 6
M.2 Drive Slots: 4
Compatible Drive Type
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
M.2 2280 NVMe
Maximum Drive Bays with Expansion Unit: 14
External Ports
Expansion: 2x USB 3.2 Gen 2x1
Network: 2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
PCIe Expansion Slots: 1x for optional expansion 10 GbE card
HDMI Output: 1x HDMI 2.0b
Others
System Fan; 1x 120mm
LCD Panel
Infrared Receiver
Power Supply Unit / Adapter: 250W x1
Input Power Voltage: 100V to 240V AC
Certification FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
Operation
Power Consumption: 48.5 W (Operation);
27.7 W (Disk Hibernation);
0.81 W (Sleep Mode)
Noise Level: 18.1dB (HDD idle)
Operation Temperature 0°C~40°C (32°F~104°F)
Humidity: 5% to 95% RH
Size and Weight
Size: 185.5 (H) x 233 (W) x 230 (D) mm
Weight: 4.4 kg / 9.7 lb
General Specifications
Supported OS
Windows XP, Vista, 7, 8, 10, 11, Server 2003, Server 2008, Server 2012, Server 2016, Server 2019, Server 2022
macOS
UNIX, Linux, and BSD
Supported Languages
Deutsch, English, Français, Italiano, Nederlands, Русский, 日本語, 한글, 简体中文, 繁體中文, Česká, Polski, Svenska, Dansk, Norsk, Suomi, Português, Türkçe, Español, Magyar, ภาษาไทย
Supported Browsers
Firefox
Chrome
Safari
Microsoft Edge
Network
Network Protocols CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Connection and transmission
TCP/IP (IPv4 & IPv6)
Link Aggregation: Supports 802.3ad and Six Other Modes for Load Balancing and/or Network Failover
Jumbo Frame (MTU)
VLAN
EZ Connect
Wireless Network
DDNS and EZ-Router
Supports Wake-on-LAN (WOL)
Supports Wake-on-WAN (WOW)
File Management & Sharing
File System
Internal Disk: EXT4 ,Btrfs
External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs
File Explorer
Web-based File Management
ISO File Mounting
Share Links
Task Monitor
Browse Files on Local PC
Thumbnail Previews
Data Access via External Optical Drive
Supports video playback
Network Recycle Bin
Share folder-based
Maintains original directory structure and file permission
On-click restore
Supports scheduled emptying
Filtering rules
File size
File extension
Deletion Settings
File size
File date
Storage management
RAID
Support Multiple Volumes with Spare Disks
Volume Type: Single, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Support for Online RAID Level Migration
M.2 Volume Type: Single disk, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
MyArchive
Hot swappable design enables easy transfer or exchange of high amounts of data
Works on any empty bay on an ASUSTOR NAS
File system support: EXT4, NTFS, HFS+, Btrfs and exFAT
Supports AES 256-bit encryption on EXT4 and Btrfs
Supports Btrfs snapshots
Supports decryption with a USB key
iSCSI/IP-SAN
Maximum Targets: 256
Maximum LUNs: 256
Maximum Snapshot Versions of a Single LUN: 256
Target Masking
LUN Mapping
ISO File Mounting
Supports MPIO
Persistent (SCSI-3) Reservations
Disk Management
Scheduled Bad Block Scans
Scheduled S.M.A.R.T Scans
Access Control
Maximum Number of Users: 4096
Maximum Number of Groups: 512
Maximum Number of Shared Folders: 512
Maximum Number of Concurrent Connections: 512
Supports Windows Active Directory
Supports Windows Active Directory / LDAP
ACL
Provides both Windows ACL and Linux ACL permission configuration methods
Can enable Windows ACL for specific shared folders
Comprehensive support for Windows’ 13 types of advanced permission settings
Can view Windows ACL permission settings from within ADM
Supports local users and groups
Exclusive permission reset function allows users to quickly restore default permissions
SSD Cache
SSD-like performance with traditional hard drives
Supports read-only access and read-write cache mode
2.5" SSD supported Models: AS31/32/50/51/52/53/61/62/63/64/65/66/67/70/71 series
M.2 SSD supported Models: AS65XXT/66/67/71 series
System Administration
Log Type: System Log, Connection Log, File Access Log
Real-time Online User Monitor
Real-time System Monitor
User Quota
Virtual Drive (ISO Mounting, Maximum 16)
UPS Support
Security
AES 256-Bit Encryption
Firewall: Prevent Unauthorized Access
Alert Notifications: E-mail, SMS
Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
Built-in Hardware Encryption Engine: AS10/11/31/32/33/40/52/53/6/61/62/63/64/65/66/67/70/71 Series
RAID Scrubbing: detects the integrity and consistency of RAID 5 and RAID 6 drive data.
Network Defender
Auto black list
Trusted list
Black/White list
Supports IP/IP range/geolocation
Backup
Backup Solutions
Rsync (Remote Sync) Backup
Cloud Backup
FTP Backup
External Backup
One Touch Backup
EZ Sync
Snapshots
Btrfs Snapshots
256 snapshots
iSCSI LUNs
Support model: AS31/32/40/50/51/52/53/61/62/63/64/65/66/67/70/71. Snapshot Center will not display Volume snapshots information in other models.
