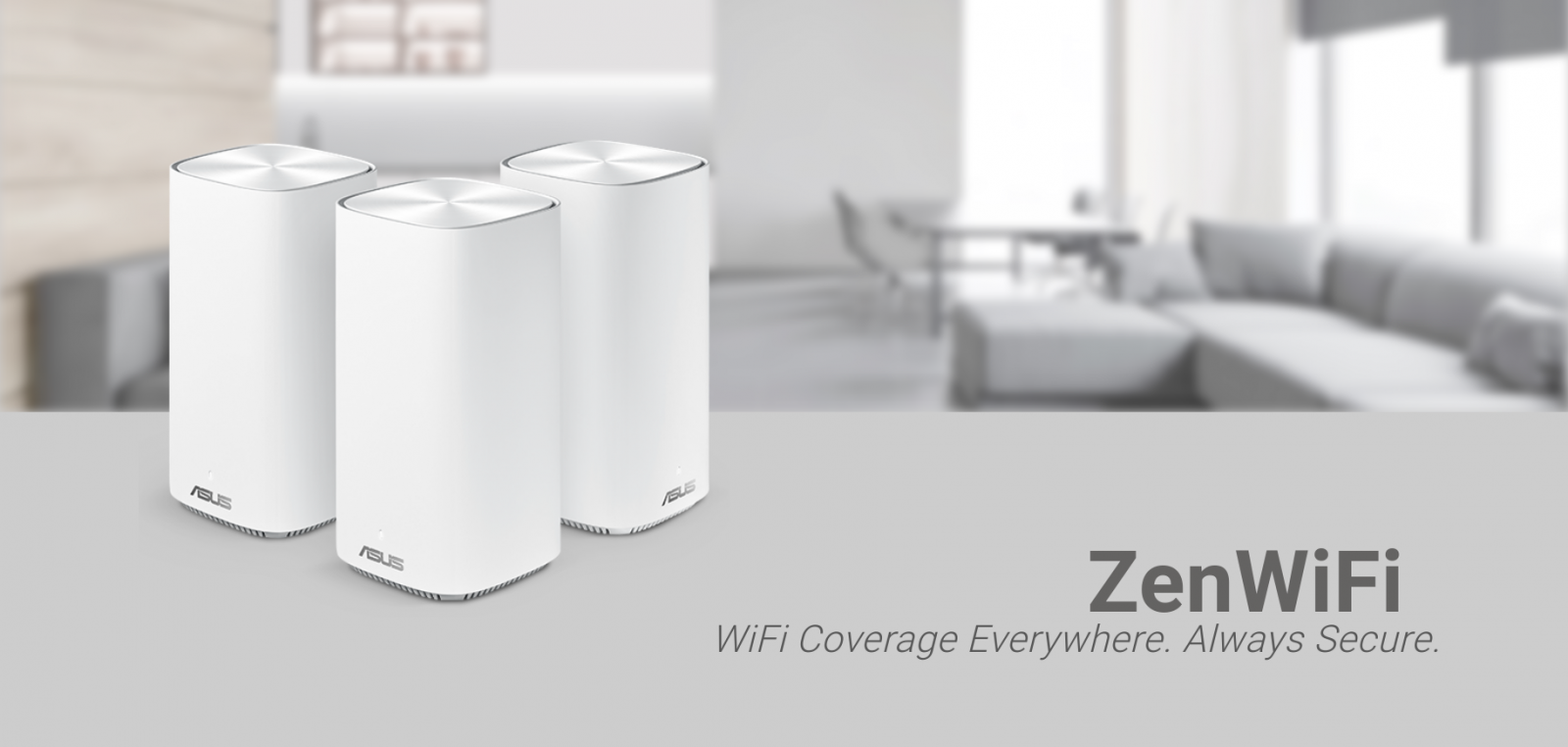

Whole-home Coverage
The ZenWiFi AC Mini system consists of one ASUS AC1500 router and two extending node, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!
Flexible Network Naming
Uniquely, ZenWiFi lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!
Smart Looks for Smart Homes
ZenWiFi AC Mini works perfectly with smart-home services — including Alexa skills.
Tech Specs
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
IPv4
IPv6
Product Segment
AC1500 enhanced AC performance : 600+867 Mbps
AX technology
No
Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
802.11n : up to 600 Mbps
WiFi 5 (802.11ac) : up to 433 Mbps
Antenna
Internal antenna x 4
Transmit/Receive
2.4 GHz 4 x 4
5 GHz 2 x 2
Processor
QCN5502
Memory
32 MB Flash
128 MB RAM
Operating Frequency
2.4GHz, 5 GHz
Ports
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3 (ROUTER)
RJ45 for Gigabits BaseT for LAN x 2 (NODE)
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3 (ROUTER)
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3 (ROUTER)
RJ45 for Gigabits BaseT for LAN x 2 (NODE)
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
Button
WPS Button, Reset Button
LED Indicator
Power x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1 A current
Package content
ZenWiFi AC Mini
RJ45 Ethernet Cable
Power Adapter
Quick Start Guide
Warranty Card
Product Weight (g)
257g(Router)/255g(Node)
Remark
1pk (router)
2pk(Router+Node)
3pk(Router+2Node)
AiMesh
AiMesh : Yes
Primary AiMesh router : Yes
AiMesh node : Yes
Router APP
ASUS Router APP : Yes
Game
Game Boost/acceleration : No
WTFast : No
Alexa
Support Alexa skill : Yes
IFTTT
Support IFTTT : No
AiProtection
AiProtection : AiProtection Classic
Router Security Assessment : Yes
Malicious site blocking : Yes
Two-Way IPS : No
Infected Device Prevention and Blocking : Yes
Parental Control
Parental Control : Yes
Parental Control Customized Internet schedule : Yes
Maximum Parental Control profile : 16
Maximum Parental Control content filter rule : 16
Traffic Control
Adaptive QoS : No
Bandwidth Monitor : Yes
Bandwidth limiter : Yes
Maximum Bandwidth limiter rule : 32
Traditional QoS : Yes
Maximum Traditional QoS rule : 32
Traffic Monitor : Yes
Real-time traffic monitor : Yes
Wired Traffic Monitor : Yes
Wireless Traffic Monitor : Yes
Traffic Analyzer : Yes
Website history : Yes
Wireless
IPv6 : Yes
MU-MIMO : Yes
Wi-Fi Encryption : WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
UTF-8 SSID : Yes
Guest Network : Yes
Maximum Guest Network rule : 6
Guest Network Connection time limit : Yes
Guest Network Encryption : 6
WPS : Yes
Wi-Fi MAC address filter : Yes
Maximum MAC filters : 64
Wireless scheduler : Yes
Airtime fairness : Yes
RADIUS Server : Yes
Universal beamforming : Yes
Explicit beamforming : Yes
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN : No
WAN Aggregation : No
3G/4G LTE dongle : No
Android tethering : Yes
Port forwarding : Yes
Port triggering : Yes
DMZ : Yes
DDNS : Yes
NAT Passthrough : PPTP, L2TP, IPSec
Let's Encrypt : Yes
LAN
DHCP Server : Yes
IGMP snooping : Yes
IPTV : Yes
LAN Link Aggregation : No
LAN Link Aggregation : Yes
Manually assign IP address : Yes
Maximum manually assign IP address rule : 64
VPN
VPN Client L2PT : Yes
VPN Client OVPN : Yes
VPN Client PPTP : Yes
VPN Server IPSec : Yes
VPN Server OVPN : Yes
VPN Server PPTP : Yes
VPN Fusion : Yes
Administration
Operating mode : Wireless router mode
Range extender mode
Access point mode
Operating mode : Wireless router mode
Range extender mode
Access point mode
Media bridge mode
Free OS upgrade : Yes
Firewall : Yes
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL) : Yes
SSH : Yes
Configuration backup and restore : Yes
Diagnosis tools : Yes
Feedback system : Yes
System log : Yes
Виж още Рутери Безжични Asus
Виж всички Рутери Безжични в категорията
Документация
Технически характеристики
Безжична скорост: | 1500 Mbps |
---|---|
Wi-Fi Стандарт: | Wi-Fi 5 (802.11ac) |
Честота: | 2.4 + 5 GHz |
LAN портове: | 3 x 1000 Mbps |
WAN портове: | 1 x 1000 Mbps |
Антени: | 4 Вътрешни |
USB портове: | Няма |
3G/4G: | Не |
Преносим: | Не |
Други: | Няма |
Жична скорост: | 10/100/1000 Mbps |
