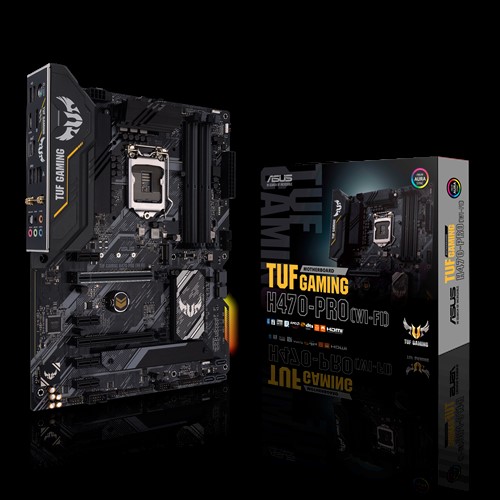

Дънна платка Asus TUF GAMING H470 PRO WI-FI, H470, LGA1200, DDR4, PCI-E 3.0, 5x SATA 6Gb/s, 2x M.2, 1x USB 3.2 Gen2 Type-C, Wi-Fi 6, ATX

Intel® H470 (LGA 1200) ATX gaming motherboard with M.2, 10 teamed power stages, Intel® WiFi 6, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 ports, Thunderbolt™ 3 support, and Aura Sync RGB lighting

• Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
• Enhanced power solution: 10 power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
• Comprehensive cooling: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and FAN Xpert 4 utility
• Next-gen connectivity: Front header for USB 3.2 Gen 2 Type-C and Thunderbolt 3™ support
• Made for online gaming: Intel® WiFi 6, Intel® Ethernet Connection I219-V, TUF LANGuard and TurboLAN technology
• Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
• Aura Sync RGB: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips

SPECIFICATIONS:

• CPU
  Build in Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  * Refer to www.asus.com for CPU support list
  **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  Build in Intel® H470
• Memory
  4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  OptiMem
  * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
  Integrated Graphics Processor
  1 x DisplayPort 1.4 **
  1 x HDMI 1.4b
  *Graphics specifications may vary between CPU types.
  **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
• Multi-GPU Support
  Supports AMD 2-Way CrossFireX Technology
• Expansion Slots
  Intel® 10th Gen Processors
  1 x PCIe 3.0 x16 (x16 mode)
  Intel® H470 Chipset
  1 x PCIe 3.0 x16 (x4 mode)
  4 x PCIe x1
• Storage
  Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
  Intel® H470 Chipset :
  1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
  1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  5 x SATA 6Gb/s port(s)
  Support Raid 0, 1, 5, 10
  Intel® Rapid Storage Technology supports
  Intel® Optane™ Memory Ready
• LAN
  Intel® I219-V 1Gb Ethernet
  TUF LANGuard
• Wireless Data Network
  Intel® Wi-Fi 6 AX201
  2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
  Supports up to 2.4Gbps max data rate
  Supports dual band frequency 2.4/5 GHz
  Supports channel bandwidth: HT20/HT40/HT80/HT160
  Supports CNVI interface
• Audio
  Realtek® ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  Audio Feature :
  - Optical S/PDIF out port(s) at back panel
  - Audio cover
  - Audio Shielding
  - Dedicated audio PCB layers
  - Premium Japanese audio capacitors
  * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
• USB Ports
  Rear USB Port ( Total 6 )
  2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
  2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  2 x USB 2.0 port(s)
  Front USB Port ( Total 6 )
  1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C®)
  1 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  1 x USB 2.0 port(s)(2 x Type-A)
  1 x USB 2.0 port(s)(1 x Type-A)
• Software Features
  ASUS Exclusive Software
  Armoury Crate
  - Aura Sync
  AI Suite 3:
  - Performance And Power Saving Utility
  Turbo V Evo
  EPU
  Digi+ VRM
  Fan Xpert 4
  System information
  - EZ update
  AI Charger
  ASUS Turbo LAN
  DTS Custom for GAMING Headsets
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
• ASUS Special Features
  ASUS TUF PROTECTION
  - ASUS DIGI+ VRM
  - ASUS Enhanced DRAM Overcurrent Protection
  - ASUS ESD Guards
  - TUF LANGuard
  - ASUS Overvoltage Protection
  - ASUS SafeSlot
  ASUS Q-Design
  - ASUS Q-DIMM
  - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  - ASUS Q-Slot
  ASUS Thermal Solution
  - Stylish heatsink
  ASUS EZ DIY
  - Procool
  - Pre-mounted I/O shield
  AURA Sync
  - Standard RGB headers
  - Addressable Gen 2 RGB header
• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
  2 x USB 3.2 Gen 1 (blue) Type-A
  2 x USB 2.0
  1 x Optical S/PDIF out
  5 x Audio jack(s)
• Internal I/O Ports
  1 x CPU Fan connector(s)
  1 x CPU OPT Fan connector(s)
  3 x Chassis Fan connector(s)
  1 x AIO_PUMP connector
  2 x Aura RGB Strip Headers
  1 x Addressable Gen 2 header(s)
  1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
  1 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s)
  2 x M.2 Socket 3
  5 x SATA 6Gb/s connector(s)
  1 x Thunderbolt header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s) (Chassis intrusion header is inbuilt)
  1 x Clear CMOS jumper(s)
  1 x COM port header
  1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• Accessories
  User's manual
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
  1 x TUF GAMING Sticker
  1 x TUF Certification card(s)
  1 x Wi-Fi moving antenna
• BIOS
  192 (128+64) Mb Flash ROM, UEFI AMI BIOS
• Manageability
  WOL by PME, PXE
• Operating System
  Windows® 10 64-bit
• Form Factor
  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
