Захранване Asus ROG Thor Platinum II EVA Edition, 1000W, Active PFC, 80+ Platinum, 135mm вентилатор

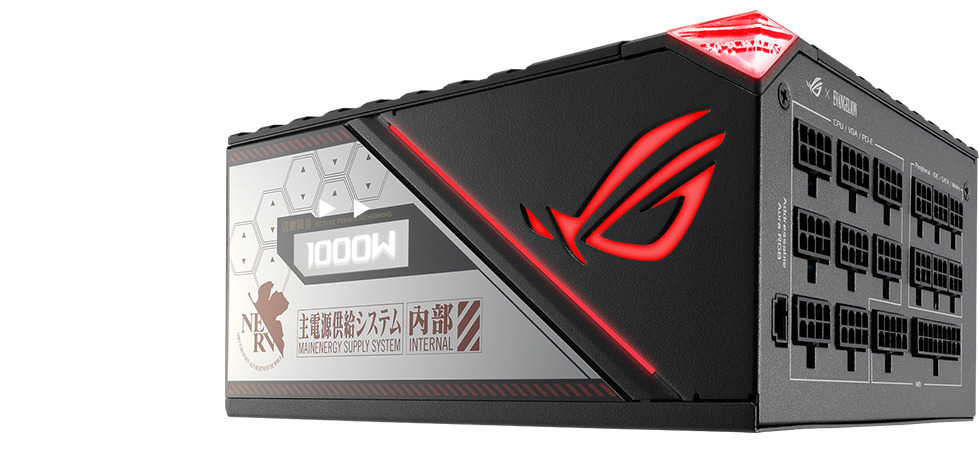

Asus ROG Thor Platinum II EVA Edition

It’s 2022. The Republic of Gamers is launching new equipment for the EVANGELION project. The ROG Thor II platinum EVA edition wears an EVA-inspired skin and wields component and cooling upgrades that enable the lowest noise levels – even during the most demanding skirmishes with the opposition.

The Quietest 1000W Power Supply

ROG THOR 1000W Platinum II EVA EDITION PSU

• Axial-tech Fan Design  · ROG Heatsinks

• Lambda A++ Certification  · 80 PLUS Platinum

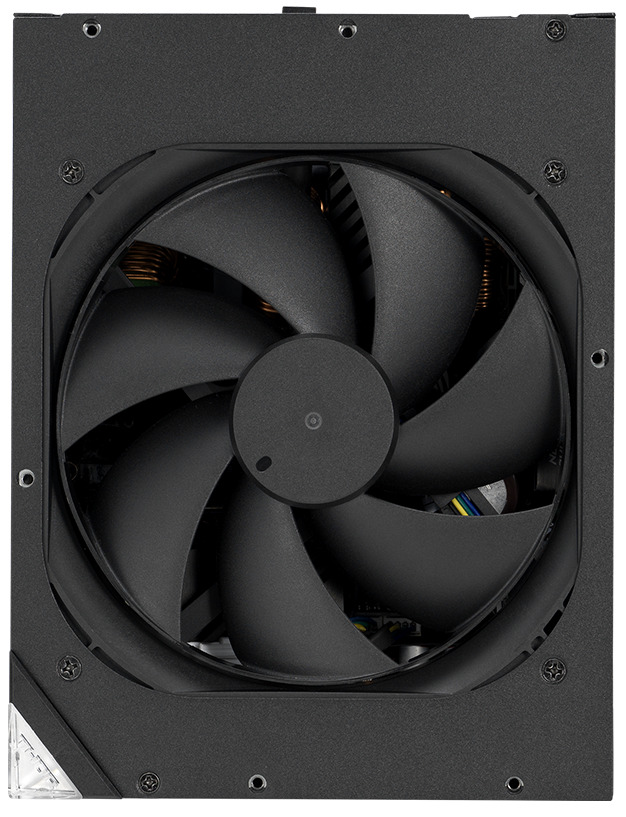

Axial-tech Fan Design

A 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check.

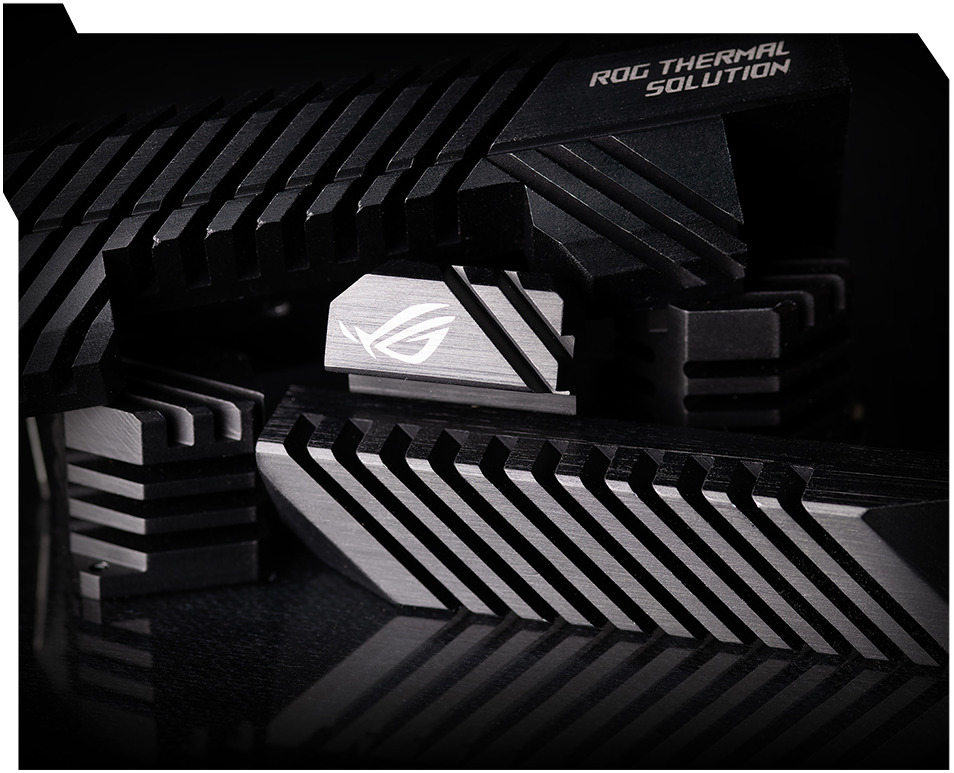

ROG Heatsinks

ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.





ROG Thor 1000W Platinum II EVA Edition



Dimensions

190 x 150 x 86 mm

Efficiency

80Plus Platinum

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

Thermal Features

ROG Thermal Solution

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

25A 25A 83A 0.3A 3A

Combined Load

125W 125W 996W 3.6W 15W

Total Output

1000W

Connectors

MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 6+2-pin x 8 SATA x 12 Peripheral x 6

Package Contents

Power Cord x 1 Motherboard Power Cable x 1 CPU Cable x 2 PCI-E Cable 1-to-1 x 4 PCI-E Cable 1-to-2 x 2 SATA Cable 1-to-4 x 3 Peripheral 1-to-3 x 2 Addressable RGB Cable x 1 ROG x EVA Accessory x 1 ROG x EVA Cable Tie x 3 Cable Combs (6-pin) x 4 Cable Combs (8-pin) x 10 Cable Combs (24-pin) x 2 Chassis Screws Package x 1 User Manual x 1

Weight

2.35 KG

AURA SYNC

ARGB

0dB Fan Button

Yes

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
