Захранване Asus ROG Strix, 1000W, Active PFC, 80 Plus Platinum

Asus ROG Strix 1000W Platinum

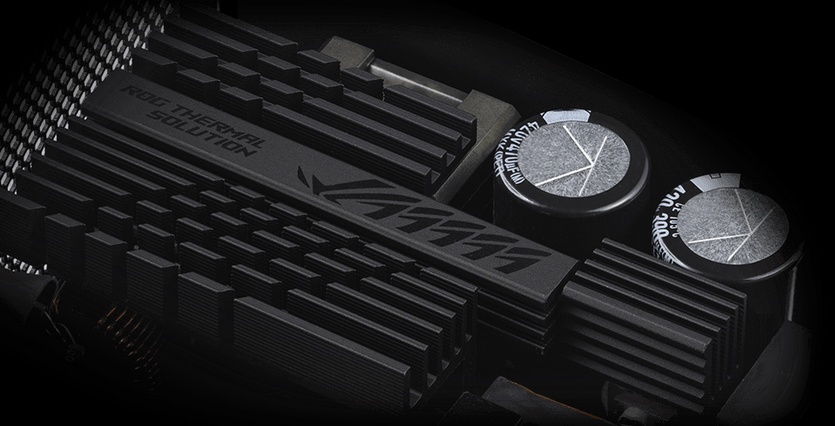

ROG Heatsinks Cool under pressure ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

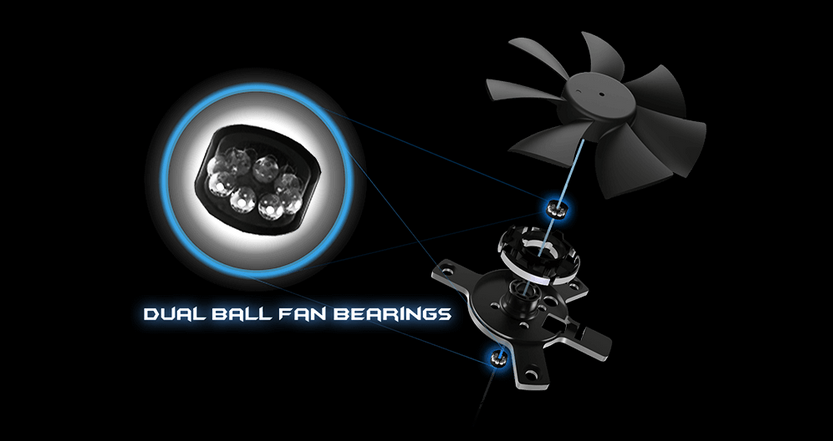

Dual Ball Fan Bearings 2x longer lifespan Dual ball bearings boast a remarkable lifespan of 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings.  Ensuring long-lasting, reliable cooling with minimal noise for ROG STRIX Platinum series.
Etched Cables Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.

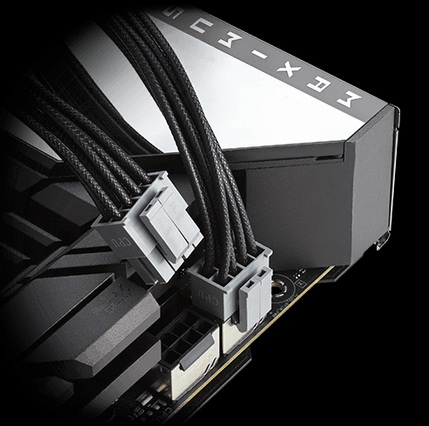

DIY-friendly CPU Power Connector Engineered with a distinct clip between the 4+4 pin connectors and a unique color scheme, this CPU power cable simplifies cable identification during installation. The integrated clip helps to ensure a secure and effortless connection to the motherboard's CPU power connector, streamlining the build process and instilling confidence in your PC setup.

Features

• GaN MOSFET delivers superior power efficiency by up to 30% and a more organized internal layout for cooler operation.
• "GPU-FIRST" voltage sensing with patented-intelligent voltage stabilizer enhances voltage delivery by up to 45% to your graphics card for smoother gameplay and unwavering performance.
• Large ROG heatsinks cover critical components, delivering lower temperatures and noise than reference designs.
• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
• 0dB technology lets you enjoy light gaming in relative silence.
• ATX 3.1 compatible: ROG Strix Platinum is compliant with ATX 3.1 standard, ensuring enhanced voltage and current regulation.
• PCIe 5.0 Ready: ROG Strix Platinum features a native 12V-2x6 connector for next-gen graphics card power.
• Lambda A+ Certification: Certified low noise levels, below 20 dB.
• 80 PLUS platinum certified: ROG Strix Platinum utilizes low-ESR capacitors and premium components for industry-leading power efficiency.

Specifications

Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions

160 x 150 x 86 mm

Efficiency

80 Plus Platinum

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

25A 25A 83.3A 0.3A 3A

Combined Load

130W 130W 1000W 3.6W 15W

Total Output

1000W

Cable Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 6+2-pin x 4
SATA x 6
PERIPHERAL x 3

Weight

2.91 kg (single PSU)

Cybenetics Noise Level Certification

A+

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load

0dB Fan Button

Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
