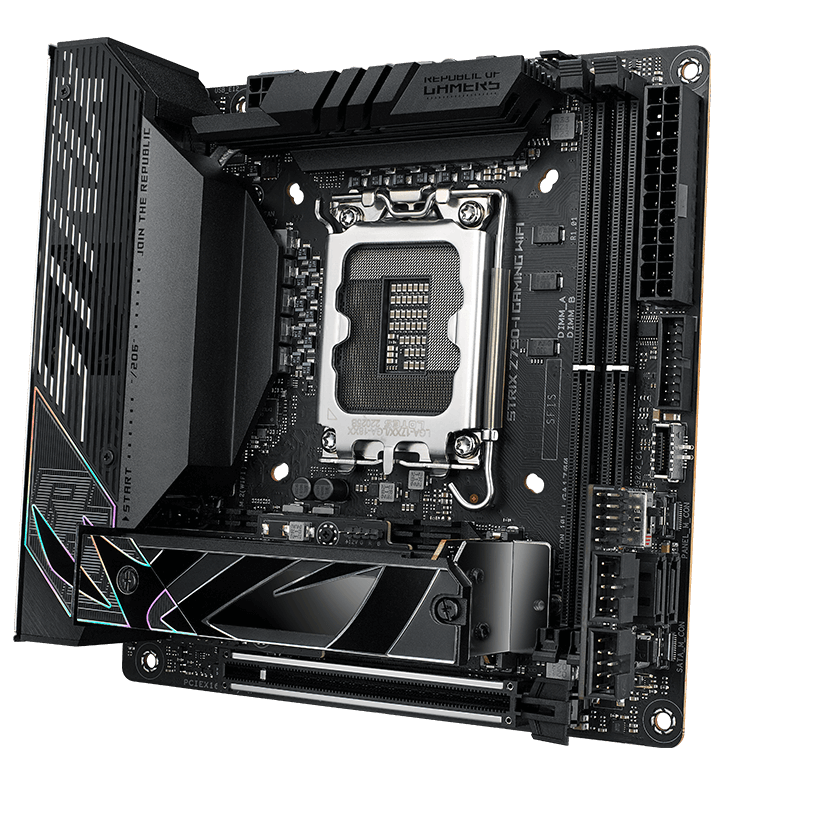

Asus ROG STRIX Z790-I GAMING WIFI
Rules are made to be broken. Smashing the conventions of what a mini-ITX motherboard can do, the ROG Strix Z790-I’s power delivery rivals that of full-scale titans and its stacked thermal array is more than a match for multi-core behemoths. It also expands the boundaries of connectivity, with the innovative ROG Hive, a hybrid audio and USB hub with an added twist - an AI Overclocking button makes tuning so easy, it feels like cheating.

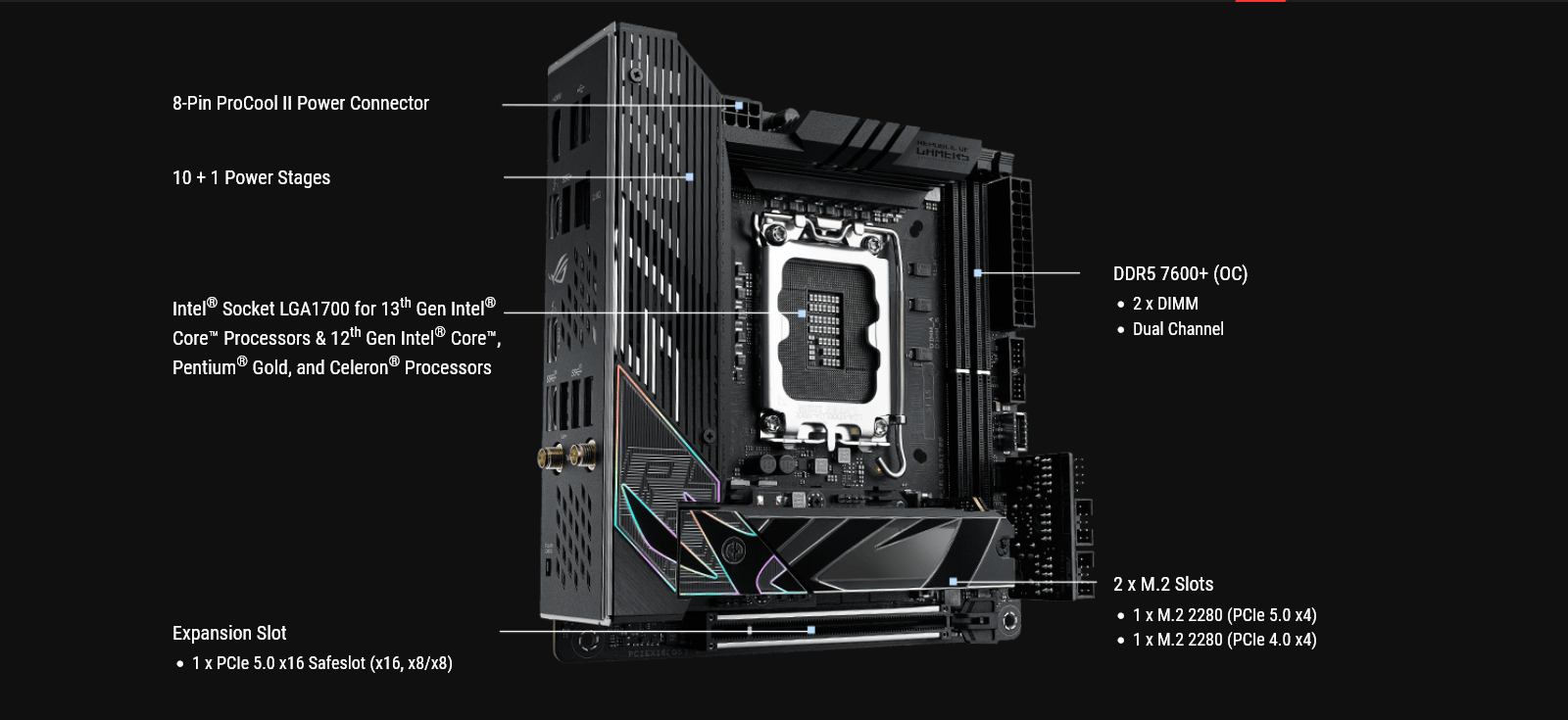

ALL-ROUND PERFORMANCE
Throughout its compact frame, the Strix Z790-I teems with engineering tweaks that boost CPU and memory performance and lay a potent foundation for full-size SSDs and graphics cards.
Specifications:
CPU
Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
Processors
Supports Intel® Turbo Boost Technology 2.0
and Intel® Turbo Boost Max Technology 3.0**
** Intel® Turbo Boost Max Technology 3.0
support depends on the CPU types.
Chipset
Memory
7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/
5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile
(XMP)
OptiMem II
* We recommend active airflow to ensure beter memory performance
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics
2 x Intel® Thunderbolt™ 4 ports (USB
Type-C®) support DisplayPort and Thunderbolt™ video outputs****
*** Supports 4K@60Hz as specified in HDMI
2.1.
**** VGA resolution support depends on
processors' or graphic cards' resolution.
Expansion Slots
1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode)
Storage
6Gb/s ports
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2280 (supports
PCIe 5.0 x4 mode// PCIe 4.0 x4 mode)***
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports****
*** M.2_1 comes from Intel® Z790 Chipset
when switched to PCIe 4.0 x4 mode
**** Install ROG FPS-II Card to support 2 x
SATA 6Gb/s ports.
2 x SATA 6Gb/s ports****
*AMD RAIDXpert2 Technology supports both
NVMe RAID 0/1 and SATA RAID 0/1.
**** Install ROG FPS-II Card to support 2 x
SATA 6Gb/s ports
Ethernet
ASUS LANGuard
Wireless & Bluetooth
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3
* WiFi 6E 6GHz regulatory may vary between
countries, and function will be ready in Windows 11 or later.
USB
2 x Thunderbolt™ 4 port(s) (2 x USB
Type-C®)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB
Type-C®)
3 x USB 3.2 Gen 2 port(s) (3 x Type-A)
1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
Front USB (Total 3 ports)
1 x USB 3.2 Gen 2x2 connector supports 1
USB Type-C®
1 x USB 3.2 Gen 1 header(s) support(s) 2
additional USB 3.2 Gen 1 ports
ROG STRIX HIVE (Total 2 ports)
1 x USB 3.2 Gen 2 port ( 1 x USB Type-C®)
1 x USB 2.0 port(s) (1 x Type-A)
ROG FPS-II Card (Total 3 ports)
2 x USB 2.0 header(s) additional 3 USB 2.0
ports**
Audio
- Supports: Jack-detection
- High quality 118 dB SNR stereo playback output and 94 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- ROG Hyper-Grounding Technology
- ESS® SABRE9260Q DAC
- Silver-plated audio jacks
- Optical S/PDIF out port & USB Type-C® port with indepent power solution
*** All audio functions on ROG STRIX Z790-I GAMING WIFI are supported through the ROG STRIX HIVE.
Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port(s) (1 x USB
Type-C®)
3 x USB 3.2 Gen 2 port(s) (3 x Type-A)
(supports ROG STRIX HIVE)
1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
USB
1 x USB 3.2 Gen 2x2 connector (support(s)
USB Type-C® )
1 x USB 3.2 Gen 1 header(s) support(s) 2
additional USB 3.2 Gen 1 ports
Miscellaneous
1 x Addressable Gen 2 header(s)
1 x Aura RGB header(s)
1 x Thermal Sensor header
2 x USB Type-C® connectors to Install ROG
FPS-II card
ROG FPS-II card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Thermal Sensor header
1 x Front Panel header
1 x Alternative PCIe Mode switch
2 x USB 2.0 header(s) support(s) additional
3 USB 2.0 ports
Виж още Дънни платки за Intel процесори Asus
Виж всички Дънни платки за Intel процесори в категорията
| Процесор сокет: | LGA 1700 |
|---|---|
| Поддържана памет: | DDR5 |
| Брой слотове за RAM памет: | 2 |
| Storage интерфейси: | SATA 6Gbit/s, M.2 |
| RAID: | Да |
| Безжични мрежи: | 802.11ax |
| Bluetooth: | Да |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | HDMI |
| Форм фактор: | Mini-ITX |
