Дънна платка Asus ROG STRIX Z790-E GAMING WIFI, Z790, LGA1700, DDR5, PCI-E 5.0 (DP&HDMI), 4x SATA 6Gb/s, 5x M.2, 2x USB Type-C, ATX

Name: Дънна платка Asus ROG STRIX Z790-E GAMING WIFI, Z790, LGA1700, DDR5, PCI-E 5.0 (DP&HDMI), 4x SATA 6Gb/s, 5x M.2, 2x USB Type-C, ATX
Brand: Asus
SKU: MBIASUS90MB1CL0M0EAY0
Availability: OutOfStock

id 244116 Код: MBIASUS90MB1CL0M0EAY0

0.00 от 0 ревюта

Добави ревю | Задай въпрос

Модел: ROG STRIX Z790-E GAMING WIFI
Марка: Asus
Гаранция: 36 месеца
Код на продукта: 90MB1CL0-M0EAY0
Процесор сокет: LGA 1700
Чипсет: Z790
Брой слотове за RAM памет: 4
Storage интерфейси: SATA 6Gbit/s, M.2
Видео изход: DP HDMI
Форм фактор: ATX
Наличност: Стар продукт

Продукта вече не се предлага Виж подобни предложения Абонирай се за бюлетина

Печат

Открита грешка/Запитване

Изпрати на приятел

Сравни

Описание Характеристики Ревюта / Въпроси

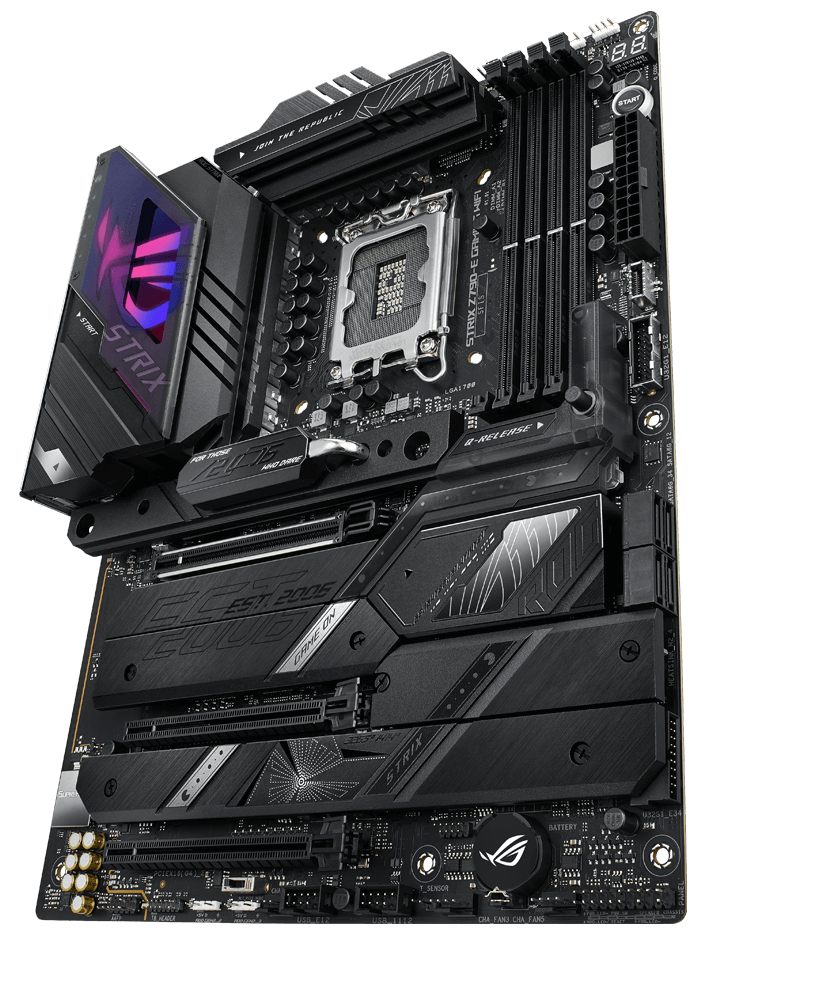

Asus ROG STRIX Z790-E GAMING WIFI

Slash the 6GHz barrier in style with the Strix Z790-E. Translucent shrouds outline its RGB ignition panel, alluding to its ability to jump into lightspeed under the guidance of AI Overclocking and a hyper-reactive VRM. DDR5 enhancements and an assortment of PCIe 5.0 options ramp up velocity even further, and setup is a breeze thanks to its unique Q-Design feature set.

ALL-ROUND PERFORMANCE

Every aspect of the Strix Z790-E is finely tuned so the processor, memory, and connected devices can run in lockstep in order to achieve breakneck speeds.

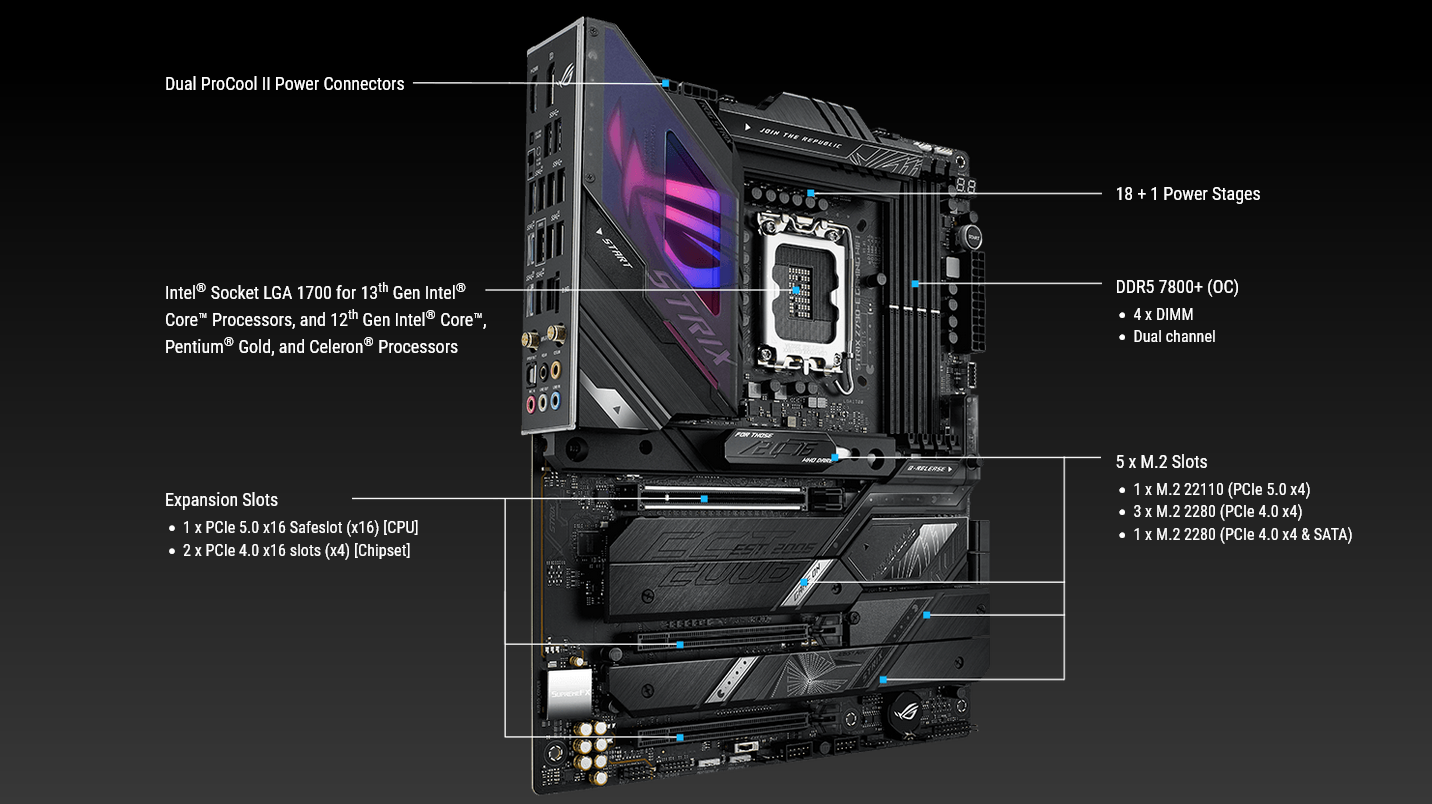

Specifications:

CPU

Intel^{^®} Socket LGA1700 for 13th Gen Intel^{^®} Core™ Processors & 12th Gen Intel^{^®} Core™, Pentium^{^®} Gold and Celeron^{^®} Processors*
Supports Intel^{^®} Turbo Boost Technology 2.0 and Intel^{^®} Turbo Boost Max Technology 3.0**
** Intel^{^®}Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel^{^®} Z790 Chipset

Memory

4 x DIMM, Max. 128GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel^{^®} Extreme Memory Profile (XMP)
OptiMem II
**** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
1 x HDMI^{^®} port***
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

Intel^{^®} 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot

Intel^{^®} Z790 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot

** When M.2_1 is occupied with SSD device, PCIEX16(G5) will run x8 only.

Storage

Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel^{^®} 13th & 12th Gen Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel^{^®}Z790 Chipset**
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes)
4 x SATA 6Gb/s ports
* Intel^{^®} Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Ethernet

1 x Intel^® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth^® v5.3
* WiFi 6E 6GHz regulatory may vary between countries.

USB

Rear USB (Total 12 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^{^®})
7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C^{^®})
4 x USB 3.2 Gen 1 ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^{^®}with up to 30W PD Fast-charge)
2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^{^®})
7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 x USB Type-C^{^®} )
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x HDMI™ port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel^{^®} 2.5Gb Ethernet port
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors

Storage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^{^®}with up to 30W PD Fast-charge)
2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Alternative PCIe Mode Switch
1 x AURA RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Start button
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4^{^®}) header

Виж още Дънни платки за Intel процесори Asus
Виж всички Дънни платки за Intel процесори в категорията

Технически характеристики

Процесор сокет:	LGA 1700
Чипсет:	Z790
Поддържана памет:	DDR5
Брой слотове за RAM памет:	4
Storage интерфейси:	SATA 6Gbit/s, M.2
RAID:	Да
Безжични мрежи:	Wi-Fi 6 (802.11ax)
Bluetooth:	Да
Видео слот:	PCI-E
Multi-Graphics технология:	Няма
Видео изход:	DP HDMI
Форм фактор:	ATX
