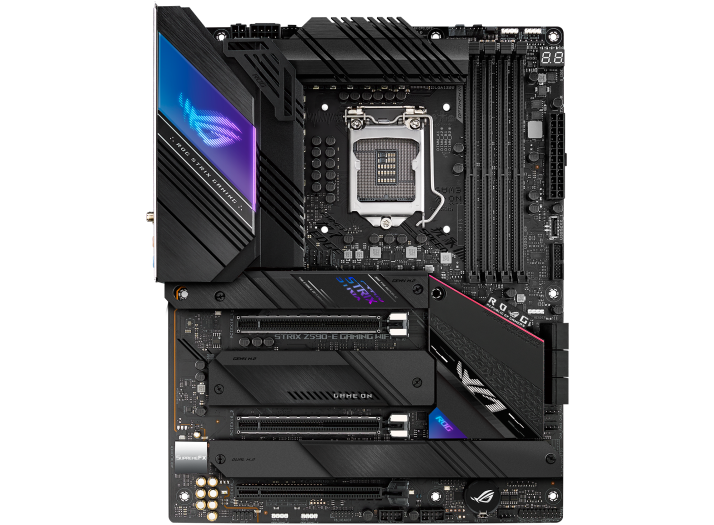

Дънна платка Asus ROG Strix Z590-E GAMING (Wi-Fi), Z590, LGA1200, DDR4, PCI-E 4.0 (DP/HDMI)(SLI), 6x SATA 6Gb/s, 4x M.2, 1x USB 3.2 Gen 2 Type-C, Wi-Fi, ATX

Intel®Z590 LGA 1200 ATX motherboard with PCIe 4.0, 14+2 teamed power stages, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), dual Intel® 2.5 Gb Ethernet, four M.2 slots with heatsinks, USB 3.2 Gen 2x2 USB Type-C® , SATA and Aura Sync RGB lighting

• Ready for 11th Gen Intel^® Core™ processors & 10th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors
• Optimal Power Solution: 14+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimized Thermal Design: VRM and aluminum I/O heatsink, L-shaped heatpipe, four onboard M.2 heatsinks and an M.2 backplate for the PCIe 4.0 M.2 slot
• High-performance Networking: On-board Intel^® WiFi 6E AX210 (802.11ax) and dual Intel^® 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI™ 2.0 and DisplayPort 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2x2 USB Type-C^®
• Intelligent Control: ASUS-exclusive tools AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
• DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™, Clr CMOS button, Q-Code and FlexKey
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB header and Gen 2 addressable headers
• Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS^® Sound Unbound and Sonic Studio III
• Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

Specifications:

CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset
Intel® Z590 Chipset

Memory
Memory Channels:4DDR4 (Dual channel)
Max Memory Size:128GB
DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem III
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively.

Graphics
1 x DisplayPort 1.4**
1 x HDMI 2.0***
* Graphics specifications may vary between CPU types.

Expansion Slots
Intel® 11th &10th Gen Processors
2 x PCIe 4.0/3.0 x16 slot(s)*
- Intel® 11th processors support PCIe 4.0 x16 or x8/x8 or x8/x4 mode(s)
- Intel®10th processors support PCIe 3.0 x16 or x8/x8 or x8/x4 mode(s)
Intel® Z590 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)**
* Support PCIe bandwidth bifurcation for RAID on CPU function.
"**PCIe16_3 shares bandwidth with SATA_56. When PCIe16_ 3 is populated SATA_56 will be disabled. When PCIe16_3 run at default x2 mode, SATA_56 is enabled.

Multi-GPU Support
Supports NVIDIA 2-Way SLI® Technology

Storage
Supports 4 x M.2 slots and 6 x SATA 6Gb/s ports
Intel®11th &10th Gen Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
M.2_2 slot (Key M), type 2242/2260/2280/22110
- Intel® 11th processors support PCIe 4.0 x4 mode
- Intel® 10th processors support PCIe 3.0 x4 mode
Intel® Z590 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*
6 x SATA 6Gb/s ports

Ethernet
2 x Intel® I225-V 2.5Gb Ethernet ASUS LANGuard

USB
Rear USB:Total 10 ports
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
3 x USB 3.2 Gen 2 port (2 x Type-A, 1 x USB Type-C® )
4 x USB 3.2 Gen 1 port (4 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
Front USB:Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 connector(s) (suppport(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Audio
Audio Features
- SupremeFX Shielding Technology
- ALC4080 + Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Audio cover

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x USB Type-C® )
4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI™ port
1 x DisplayPort
1 x Intel® Wi-Fi 6E
2 x Intel® I225-V 2.5Gb Ethernet
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Intrernal I/O Connectors
1 x Thunderbolt 4 (onboard)
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
3 x 4-pin Chassis Fan header(s)
1 x VRM heatsink Fan header
1 x W_PUMP+ header

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector

Storage related
4 x M.2 slots (Key M)
6 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Miscellaneous
3 x AURA Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x Q Code
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header

Software Features
ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Overwolf
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
-AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Two-Way AI Noise Cancelation
AI Suite 3
- 5-Way Optimization with AI Overclocking
TPU
EPU
DIGI+ VRM
Fan Xpert 4
Turbo app
- EZ update
DAEMON Tools
MyAsus
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables
4 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Assistant fan (40mm)
1 x Screw package for cooling kit

Miscellaneous
1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
1 x M.2 Q-Latch package
2 x M.2 Rubber Packages
1 x ROG key chain
1 x cable tie
1 x ROG Graphics card holder
1 x ROG STRIX stickers
1 x ROG STRIX thank you card
Installation Media
1 x Support DVD
Documentation
1 x User manual

Operating System
Windows 10 64bit

Form Factor
ATX
30.5cm x 24.4cm
