Дънна платка Asus ROG STRIX Z490-G GAMING (WI-FI), Z490, LGA1200, DDR4, PCI-E 3.0, (DisplayPort&HDMI),(CFX), 6x SATA 6Gb/s, 2x M.2, 1x USB 3.2 Gen 2 Type-C, Wi-Fi, Bluetooth, Micro ATX

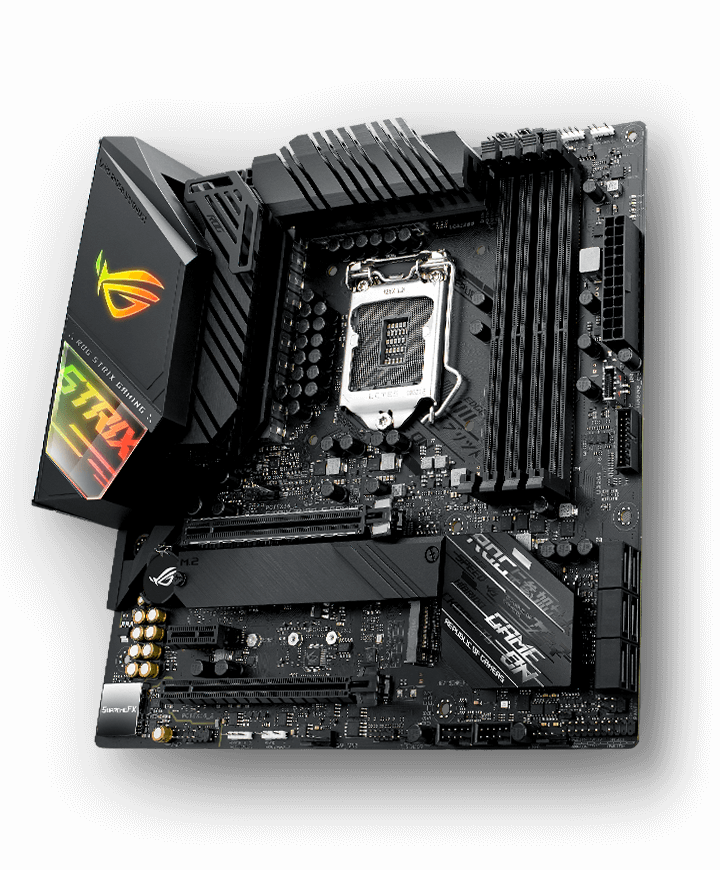

The ROG Strix Z490-G Gaming (Wi-Fi) motherboard boasts boosted power delivery, an optimized cooling design and intuitive ROG software to help you get the most out of the latest 10th Generation Intel® Core™ processors. And it's not just about performance, its cyberpunk-inspired aesthetics and a mirrored stainless steel Strix nameplate give it looks to match.

SPECIFICATIONS

• CPU
  Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  Intel® Z490
• Memory
  4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  OptiMem II
  * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
  Integrated Graphics Processor
  1 x DisplayPort 1.4
  1 x HDMI 1.4b *
  *Graphics specifications may vary between CPU types.
• Multi-GPU Support
  Supports AMD 2-Way CrossFireX Technology
• Expansion Slots
  Intel® 10th Gen Processors
  1 x PCIe 3.0 x16 (x16 mode) *1
  Intel® Z490 Chipset
  1 x PCIe 3.0 x16 (max at x4 mode) *2
  1 x PCIe 3.0 x1
• Storage
  Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
  Intel® Z490 Chipset :
  1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
  6 x SATA 6Gb/s port(s)
  Support Raid 0, 1, 5, 10
  Intel® Optane™ Memory Ready
• LAN
  Intel® I225-V 2.5Gb Ethernet
  ASUS LANGuard
• Wireless Data Network
  Intel® Wi-Fi 6 AX201
  2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
  Supports up to 2.4Gbps max data rate
  Supports dual band frequency 2.4/5 GHz
  Supports channel bandwidth: HT20/HT40/HT80/HT160
  Supports CNVI interface
• Bluetooth
  Bluetooth v5.1*
  *BT 5.1 function will be ready in Windows 10 build 19041 or later.
• Audio
  ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
  - Dual OP Amplifiers
  - Impedance sense for front and rear headphone outputs
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  - Supports up to 32-Bit/192kHz playback *
  Audio Feature :
  - SupremeFX Shielding™ Technology
  - Optical S/PDIF out port(s) at back panel
  - Premium Japanese audio capacitors
  - Audio Cover
  * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
• USB Ports
  Rear USB Port ( Total 8 )
  2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
  4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  2 x USB 2.0 port(s)
  Front USB Port ( Total 7 )
  1 x USB 3.2 Gen 2 port(s)(1 x USB Type-C®)
  2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  4 x USB 2.0 port(s)
• Software Features
  ROG Exclusive Software
  - RAMCache III
  - ROG CPU-Z
  - GameFirst VI
  - Sonic Studio III + Sonic Studio Virtual Mixer
  - Sonic Radar III
  - DTS® Sound Unbound
  - Overwolf
  - Anti-virus software
  ASUS Exclusive Software
  Armoury Crate
  - Aura Creator
  - Aura Sync
  AI Suite 3
  - 5-Way Optimization with AI Overclocking
  TPU
  EPU
  Digi+ VRM
  Xpert 4
  Turbo app
  - EZ update
  AI Charger
  WinRAR
  UEFI BIOS
  AI Overclocking Guide
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  FlexKey
• ASUS Special Features
  Extreme Engine Digi+
  - 5K Black Metallic Capacitors
  - ON-semi NCP302045
  - MicroFine Alloy Choke
  ASUS Q-Design
  - ASUS Q-DIMM
  - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  - ASUS Q-Slot
  ASUS Thermal Solution
  - Aluminum M.2 heatsink
  - Aluminum heatsink design
  ASUS EZ DIY
  - BIOS FlashBack™ button
  - BIOS FlashBack™ LED
  - Procool II
  - Pre-mounted I/O shield
  - SafeSlot
  AURA Sync
  - Standard RGB header(s)
  - Addressable Gen 2 RGB header(s)
• Back I/O Ports
  1 x Intel® I225-V 2.5Gb Ethernet
  1 x DisplayPort
  1 x HDMI
  2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
  4 x USB 3.2 Gen 1 Type-A
  2 x USB 2.0
  1 x Optical S/PDIF out
  1 x USB BIOS FlashBack™ Button(s)
  1 x ASUS Wi-Fi Module
  5 x Gold-plated audio jacks
• Internal I/O Ports
  1 x CPU Fan connector(s)
  1 x CPU OPT Fan connector(s)
  2 x Chassis Fan connector(s)
  1 x W_PUMP+ connector
  2 x Aura RGB Strip Headers
  2 x Addressable Gen 2 header(s)
  1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  1 x M.2 Socket 2 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  6 x SATA 6Gb/s connector(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Thermal sensor connector(s)
  1 x CPU OV
  1 x Clear CMOS jumper(s)
  1 x VRM_HS_FAN Header
• Accessories
  User's manual
  4 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
  1 x ROG Strix stickers
  1 x Cable ties pack(s)
  1 x Extension Cable for RGB strips (80 cm)
  1 x Extension cable for Addressable LED
  1 x ROG Thank you card
  1 x 2-in-1 Rubber pad
  1 x Wi-Fi moving antenna
  1 x M.2 SSD screw package(s)
  1 ROG key chain
• BIOS
  192 (128+64) Mb Flash ROM, UEFI AMI BIOS
• Manageability
  WOL by PME, PXE
• Form Factor
  mATX Form Factor
  9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
• Note
  *1. Support PCIe bifurcation for RAID on CPU function.
  *2. When PCIe 3.0 x16_2 runs at x4 mode, SATA6G_56 will be disabled.
  *3. M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.
