Дънна платка ASUS ROG STRIX B760-A GAMING WIFI D4, B760, LGA1700, DDR4, PCIe 5.0, (DP&HDMI), 4x SATA 6Gb/s, 3x M.2, 1x USB 3.2 Gen 2x2 Type-C, Wi-Fi 6E, Bluetooth v5.3, ATX

id 249293 Код: MBIASUS90MB1DD0M0EAY0
  • Модел: ROG STRIX B760-A GAMING WIFI D4
  • Марка: Asus
  • Гаранция: 36 месеца
  • Код на продукта: 90MB1DD0-M0EAY0
  • Процесор сокет: LGA 1700
  • Чипсет: B760
  • Брой слотове за RAM памет: 4
  • Storage интерфейси: SATA 6Gbit/s, M.2
  • Видео изход: DP HDMI
  • Форм фактор: ATX
  • Наличност: Стар продукт
    ОписаниеХарактеристикиРевюта / Въпроси

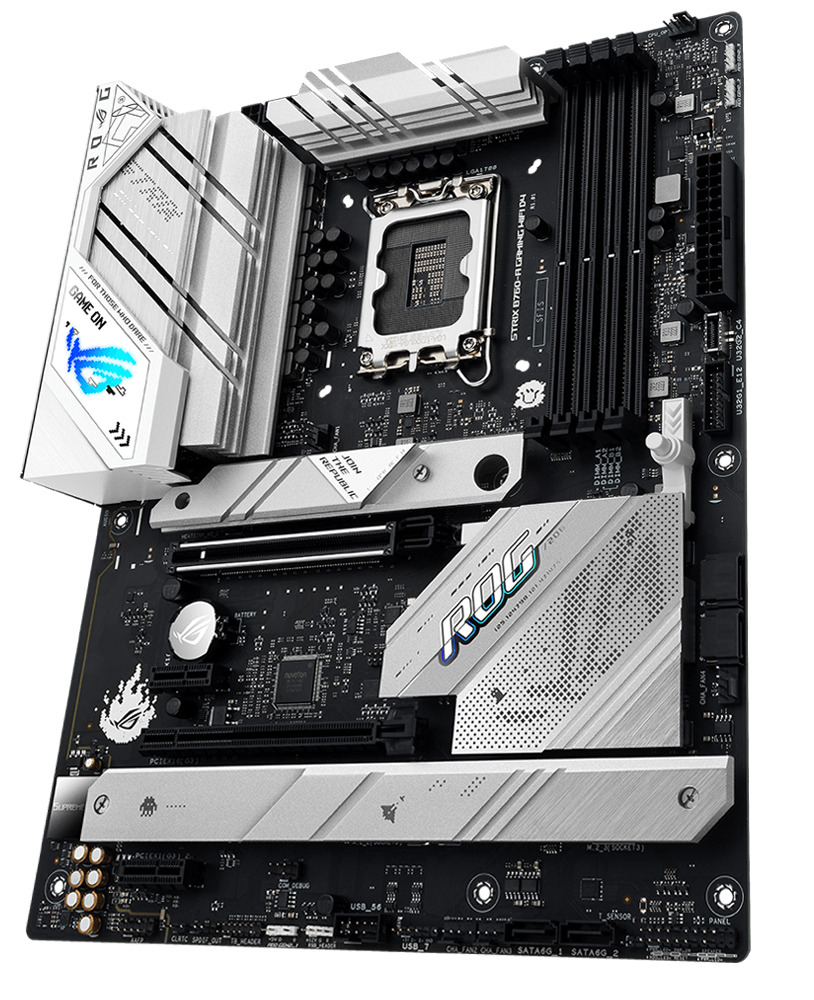

    ROG STRIX B760-A GAMING WIFI D4

    On its face, the Strix B760-A D4 wears a light aesthetic, but beneath its grey aluminum heatsinks lies a dark PCB flush with high-performance hardware. A VRM configuration equipped to handle high-core-count Intel® 13th Gen processors, PCIe 5.0 bandwidth for graphics cards, and next-gen WiFi 6E team up to bring devilishly good gaming to this heavenly board.

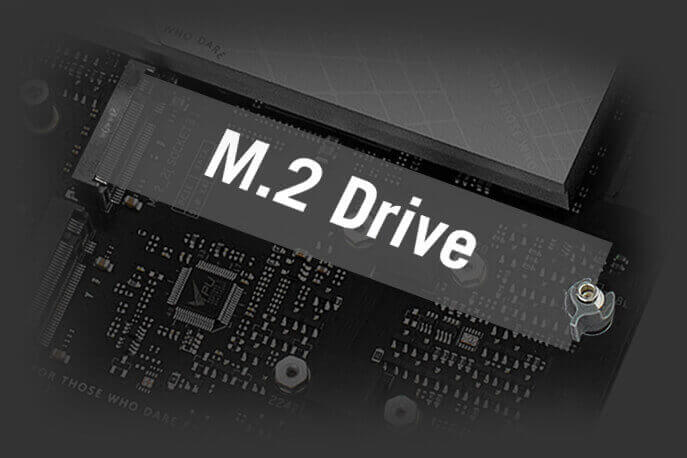

    M.2 Q-LATCH

    The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.

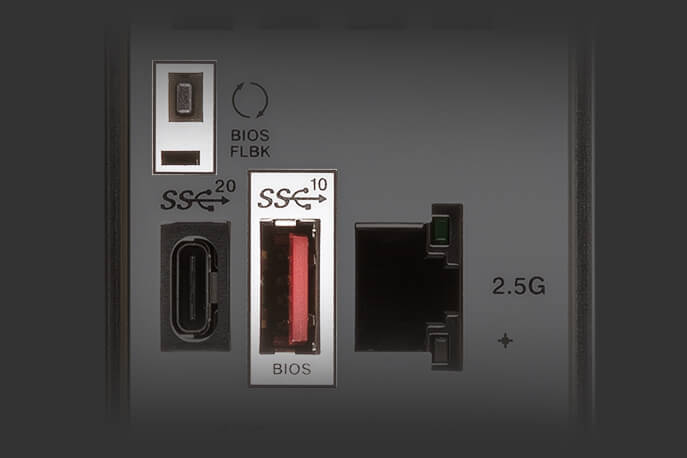

    BIOS FlashBack™

    BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.

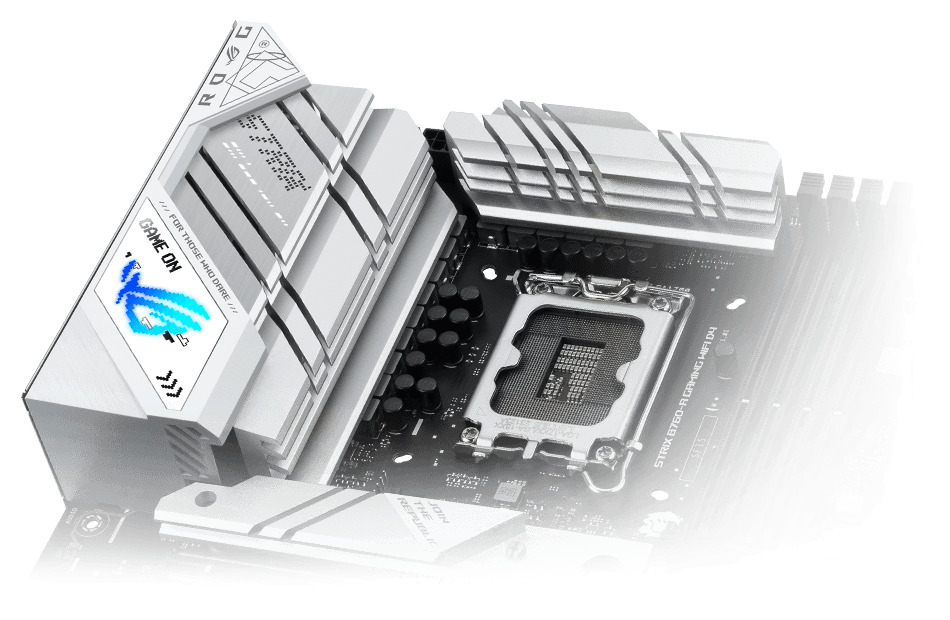

    POWER ARCHITECTURE​

    12 + 1 power stages deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.​

    ALLOY CHOKES AND DURABLE CAPACITORS

    High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

    SIX-LAYER PCB

    A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.​

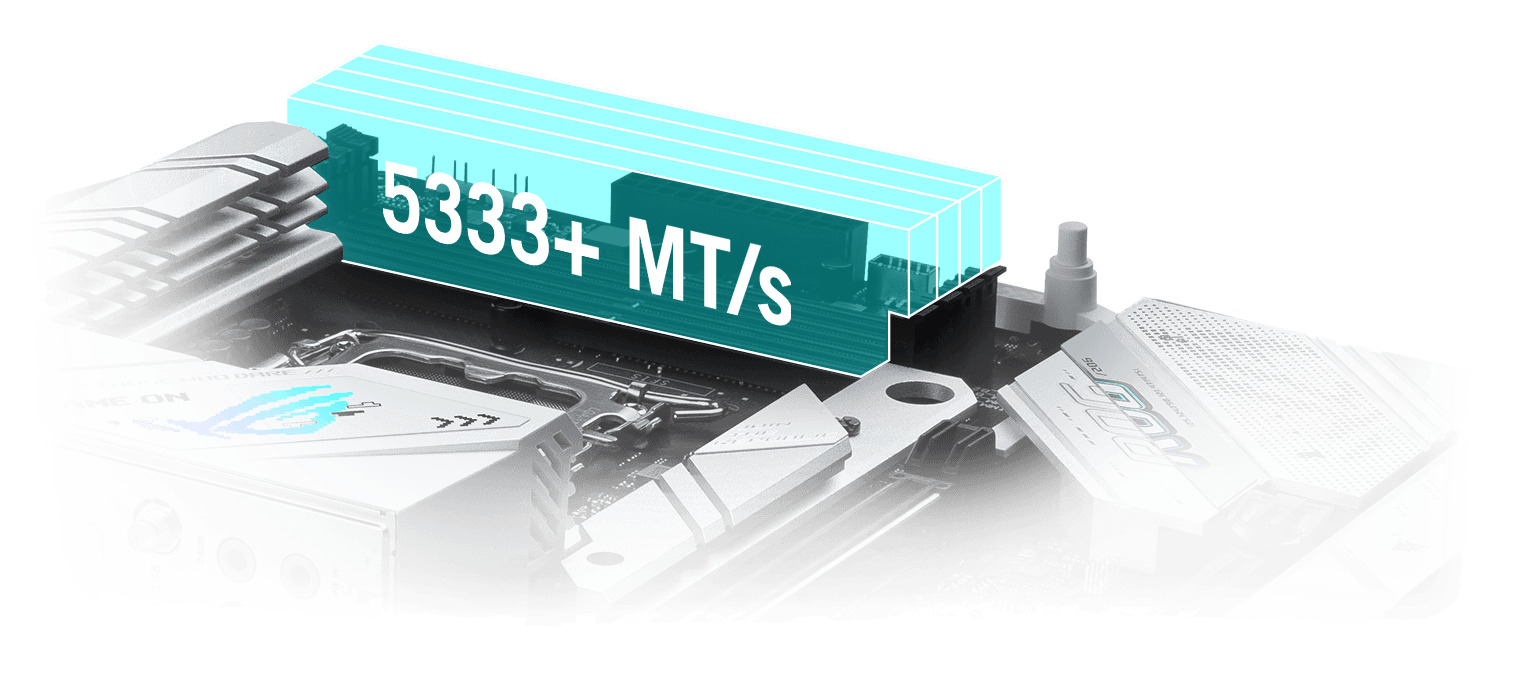

    OptiMem II

    OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.



    LEADING CONNECTIVITY

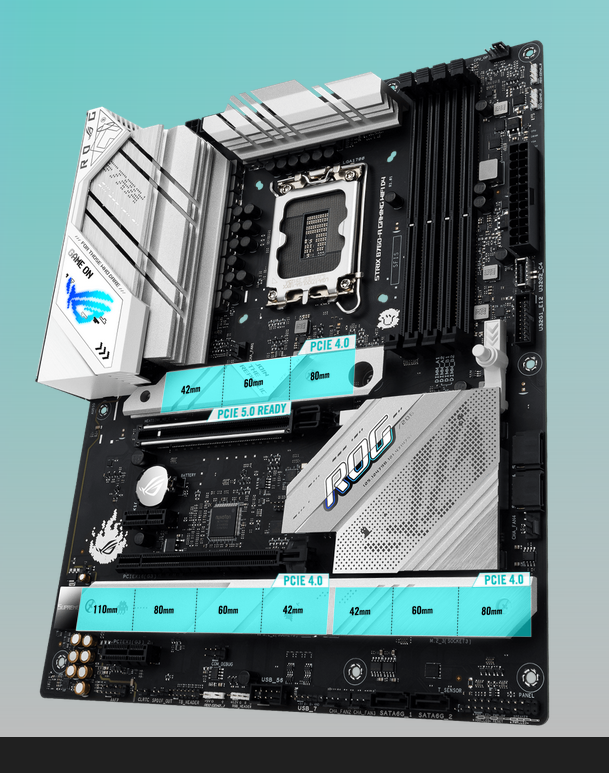

    The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with three PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance.

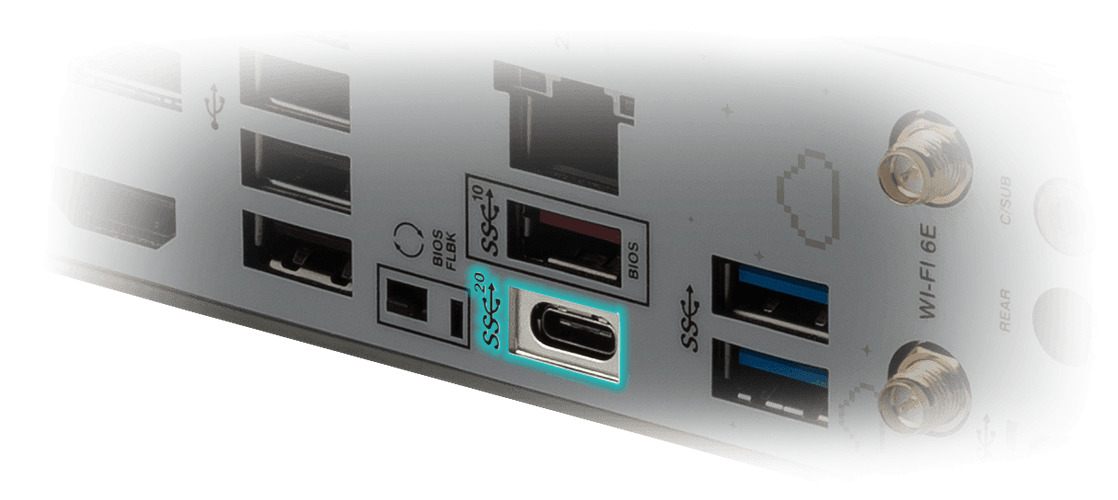

    A USB 3.2 Gen 2x2 Type-C® port offers speedy data transfers up to 20 Gbps.

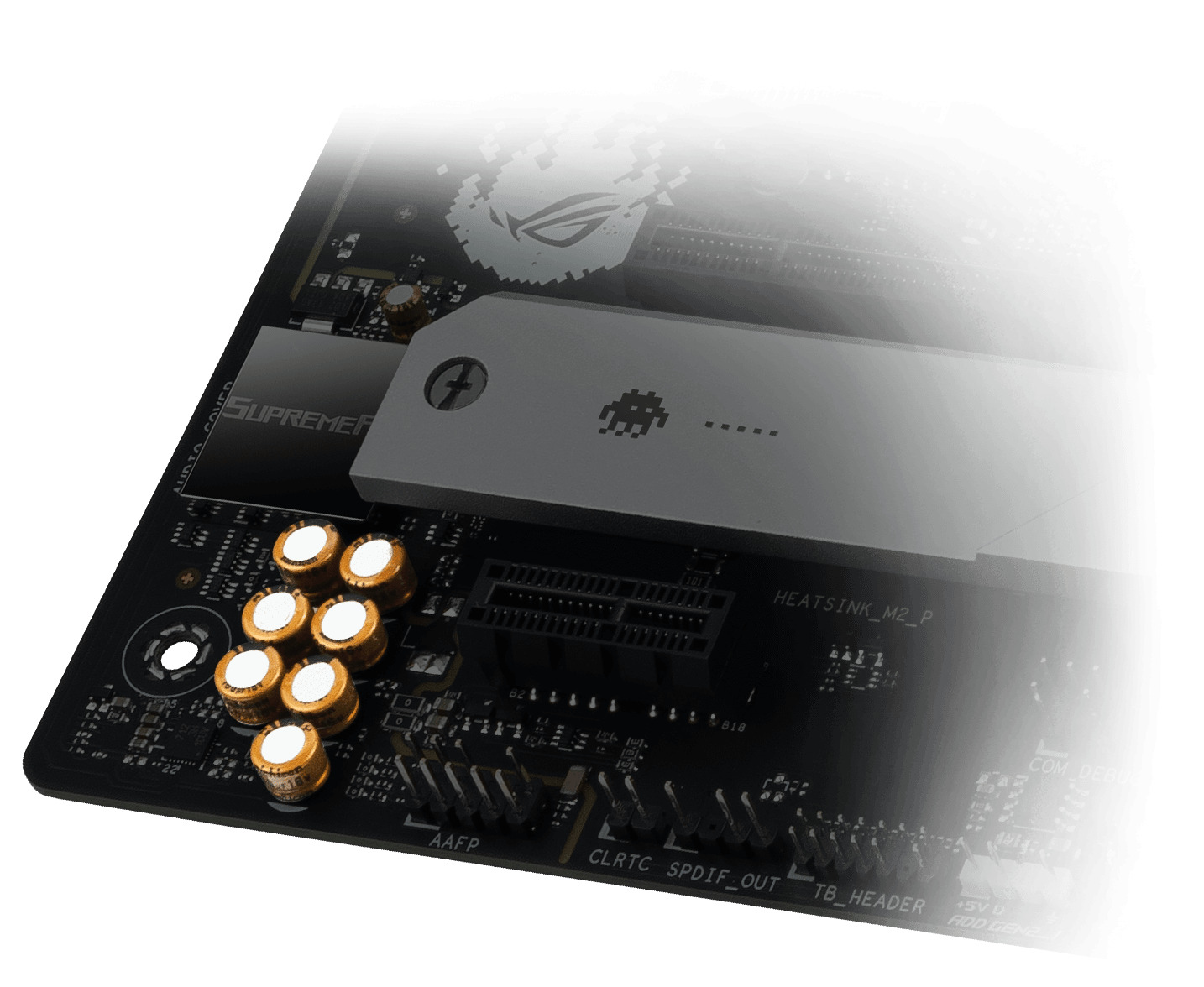

    SupremeFX

    ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B760-A D4 implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.



    Specifications:

    CPU

    Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

    Chipset

    Intel® B760 Chipset

    Memory

    4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

    Graphics

    1 x DisplayPort**
    1 x HDMI® port***
    * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. // Please refer to AMD CPU specifications.
    ** Supports max. 4K@60Hz as specified in DisplayPort 1.4
    *** Supports 4K@60Hz as specified in HDMI 2.1.
    **** VGA resolution support depends on processors' or graphic cards' resolution.

    Expansion Slots

    Intel® 13th & 12th Gen Processors
    1 x PCIe 5.0 x16 slot

    Intel® B760 Chipset
    1 x PCIe 3.0 x16 slot (supports x4 mode)*
    2 x PCIe 3.0 x1 slots*

    * PCIe x1(G3)_1 and PCIe x1(G3)_2 slots share bandwidth with PCIe x16(G3). When PCIe x1(G3)_1 or PCIe x1(G3)_2 slot is operating, PCIe x16(G3) will only supports x2 mode.

    - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

    Storage

    Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

    Intel® 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

    Intel® B760 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

    Ethernet

    1 x Intel® 2.5Gb Ethernet
    ASUS LANGuard // TUF LANGuard

    Wireless & Bluetooth

    Wi-Fi 6E
    2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5/6GHz frequency band*
    Bluetooth® v5.3**
    * WiFi 6E 6GHz regulatory may vary between countries.
    ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

    USB

    Rear USB (Total 9 ports)
    1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
    1 x USB 3.2 Gen 2 port (1 x Type-A)
    3 x USB 3.2 Gen 1 port (2 x Type-A, 1 x USB Type-C®)
    4 x USB 2.0 ports (4 x Type-A)

    Front USB (Total 6 ports)
    1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports

    Audio

    ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
    - Impedance sense for front and rear headphone outputs
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - Supports up to 32-Bit/384 kHz playback
    Audio Features
    - SupremeFX Shielding Technology
    - Savitech SV3H712 AMP
    - Premium audio capacitors
    - Dedicated audio PCB layers
    - Audio cover
    *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

    Back Panel I/O Ports

    1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
    1 x USB 3.2 Gen 2 port (1 x Type-A)
    3 x USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C®)
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort
    1 x HDMI® port
    1 x Wi-Fi Module
    1 x Intel® 2.5Gb Ethernet port
    5 x Audio jacks
    1 x BIOS FlashBack™  button

    Internal I/O Connectors

    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    4 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    Storage related
    3 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x Front Panel Audio header (AAFP)
    1 x S/PDIF Out header
    1 x 20-5 pin System Panel header
    1 x Thunderbolt™ (USB4®) header

    Special Features

    Extreme Engine Digi+
    - 5K Black Metallic Capacitors
    ASUS Q-Design
    - M.2 Q-Latch
    - PCIe Slot Q-Release
    - Q-DIMM
    - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    - Q-Slot
    ASUS Thermal Solution
    - VRM heatsink design
    ASUS EZ DIY
    - BIOS FlashBack™ button
    - BIOS FlashBack™ LED
    - CPU Socket lever protector
    - ProCool
    - Pre-mounted I/O shield
    - SafeSlot
    - SafeDIMM
    Aura Sync
    - Aura RGB header
    - Addressable Gen 2 headers

    Software Features

    ROG Exclusive Software
    - GameFirst VI
    - ROG CPU-Z
    - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
    - Sonic Radar III
    - DTS® Sound Unbound
    ASUS Exclusive Software
    Armoury Crate
    - AIDA64 Extreme (60 days free trial)
    - Aura Creator
    - Aura Sync
    - Fan Xpert 4
    - Power Saving
    - Two-Way AI Noise Cancellation
    AI Suite 3
    - DIGI+ VRM
    - PC Cleaner
    MyAsus
    Norton 360 for Gamers
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    FlexKey
    MemTest86

    BIOS

    256 Mb Flash ROM, UEFI AMI BIOS

    Manageability

    WOL by PME

    Accessories

    Cables
    2 x SATA 6Gb/s cables
    Additional Cooling Kit
    1 x Thermal pad for M.2
    Miscellaneous
    1 x ASUS Wi-Fi moving antennas
    1 x Cable ties package
    1 x M.2 Q-Latch package
    1 x ROG key chain
    1 x ROG Strix stickers
    1 x ROG Strix thank you card
    1 x M.2 Rubber Packages
    Documentation
    1 x User guide

    Operating System

    Windows® 11, Windows® 10 64-bit

    Form Factor

    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )




    Виж още Дънни платки за Intel процесори Asus
    Виж всички Дънни платки за Intel процесори в категорията
    Технически характеристики
    Процесор сокет:  LGA 1700
    Чипсет:  B760
    Поддържана памет:  DDR4
    Брой слотове за RAM памет:  4
    Storage интерфейси:  SATA 6Gbit/s, M.2
    RAID:  Да
    Безжични мрежи:  Wi-Fi 6 (802.11ax)
    Bluetooth:  Да
    Видео слот:  PCI-E
    Multi-Graphics технология:  Няма
    Видео изход:  DP HDMI
    Форм фактор:  ATX
