Дънна платка Asus ROG STRIX B460-G GAMING, B460, LGA1200, DDR4, PCI-E 3.0 (DisplayPort&HDMI),(CFX), 6x SATA 6Gb/s, 2x M.2, 1x USB 3.2 Gen2x2 Type-C, mATX

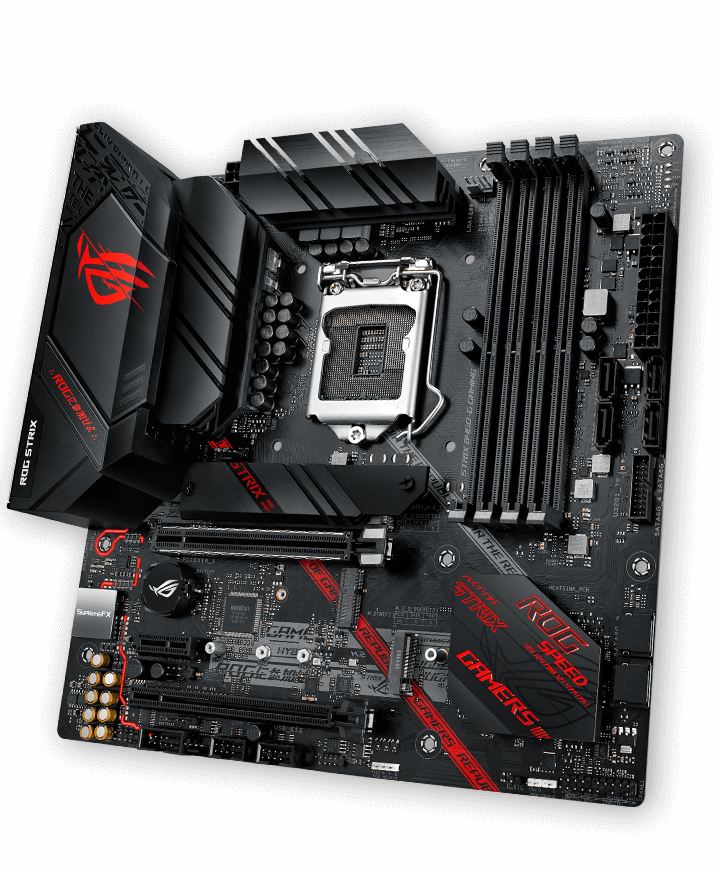

ROG STRIX B460-G GAMING

ROG Strix B460-G Gaming motherboard is instantly recognizable with its classic red-and-black color scheme and futuristic cybertext markings. It's packed with all the essentials, including robust hardware and intuitive ROG software to make it ideal for gamers and builders of all levels.

SPECIFICATIONS

• CPU
  Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  Intel® B460
• Memory
  4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  OptiMem
• Graphic
  Integrated Graphics Processor
  1 x DisplayPort 1.4
  1 x HDMI 1.4b
• Multi-GPU Support
  Supports AMD 2-Way CrossFireX Technology
• Expansion Slots
  Intel® 10th Gen Processors
  1 x PCIe 3.0 x16
  Intel® B460 Chipset
  1 x PCIe 3.0 x16 (x4 mode) *1
  1 x PCIe 3.0 x1
• Storage
  Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
  Intel® B460 Chipset :
  1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*2
  1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
  6 x SATA 6Gb/s port(s)
  Support Raid 0, 1, 5, 10
  Intel® Optane™ Memory Ready
• LAN
  Intel® I219-V 1Gb Ethernet
  ASUS LANGuard
• Wireless Data Network
  M.2 slot only (Key E) (Support PCIe interface)*
  *Wi-Fi module is sold separately.
• Audio
  ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A
  - Dual OP Amplifiers
  - Impedance sense for front and rear headphone outputs
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  - Supports up to 32-Bit/192kHz playback
  Audio Feature :
  - SupremeFX Shielding™ Technology
  - Rear audio USB Type-C® port
  - Premium Japanese audio capacitors
  - Audio Cover
  * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
• USB Ports
  Rear USB Port ( Total 8 )
  1 x USB 3.2 Gen 2x2 port(s)(1 x USB Type-C®)
  6 x USB 3.2 Gen 1 port(s)(6 x Type-A)
  1 x USB 2.0 port(s)(1 x USB Type-C®)
  Front USB Port ( Total 6 )
  2 x USB 3.2 Gen 1 port(s)
  4 x USB 2.0 port(s)
• Software Features
  [ROG Exclusive Software]
  - RAMCache III
  - ROG CPU-Z
  - GameFirst VI
  - Sonic Studio III + Sonic Studio Virtual Mixer
  - Sonic Radar III
  - DTS® Sound Unbound
  - Overwolf
  - Anti-virus software

  [ASUS Exclusive Software]
  Armoury Crate
  - Aura Creator
  - Aura Sync
  AI Suite 3
  - Performance And Power Saving Utility:
  -TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4
  - EZ update
  AI Charger
  WinRAR

  [UEFI BIOS]
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
• ASUS Special Features
  ASUS Q-Design
  - ASUS Q-DIMM
  - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  - ASUS Q-Slot

  ASUS Thermal Solution
  - Aluminum M.2 heatsink

  ASUS EZ DIY
  - BIOS FlashBack™ button
  - BIOS FlashBack™ LED
  - Clear CMOS header
  - Pre-mounted I/O shield
  - SafeSlot

  AURA Sync
  - Standard RGB header(s)
  - Addressable Gen 2 RGB header(s)

  Onboard red LED lighting accent
  Rear audio USB Type-C® connector
• Back I/O Ports
  1 x Intel® I219-V 1Gb Ethernet
  1 x DisplayPort
  1 x HDMI
  1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
  6 x USB 3.2 Gen 1
  1 x USB 2.0 (1 for audio USB Type-C®)
  5 x Audio jack(s)
  1 x USB BIOS FlashBack™ Button(s)
• Internal I/O Ports
  1 x CPU Fan connector(s)
  2 x Chassis Fan connector(s)
  1 x AIO_PUMP connector
  1 x Addressable RGB header
  1 x AAFP connector
  1 x Aura RGB Strip Headers
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  2 x M.2 Socket 3
  1 x M.2 with E key for Wi-Fi module
  1 x COM port(s) connector(s)
  6 x SATA 6Gb/s connector(s)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Clear CMOS jumper(s)
  1 x System panel connector
• Accessories
  User's manual
  2 x SATA 6Gb/s cable(s)
  1 x pack of cable tie
  1 x Supporting DVD
  1 x ROG Strix stickers
  1 x Extension cable for Addressable LED
  1 x ROG Thank you card
  1 x M.2 SSD screw package(s)
  1 xM.2 Key E screw package(s)
  1 x M.2 Rubber Package(s)
  1 x ROG audio USB Type-C® cable
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  WOL by PME, PXE
• Form Factor
  mATX Form Factor
  9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
• Note
  *1 PCIEX16_2 shares bandwidth with PCIEX1. When PCIEX16_2 runs x4 mode, PCIEX1 will be disabled. When PCIEX1 runs x1 mode, PCIEX16_2 runs x2 mode.

  *2 The M.2_1 socket shares bandwidth with SATA6G_1 ports when using M.2 SATA mode device.
