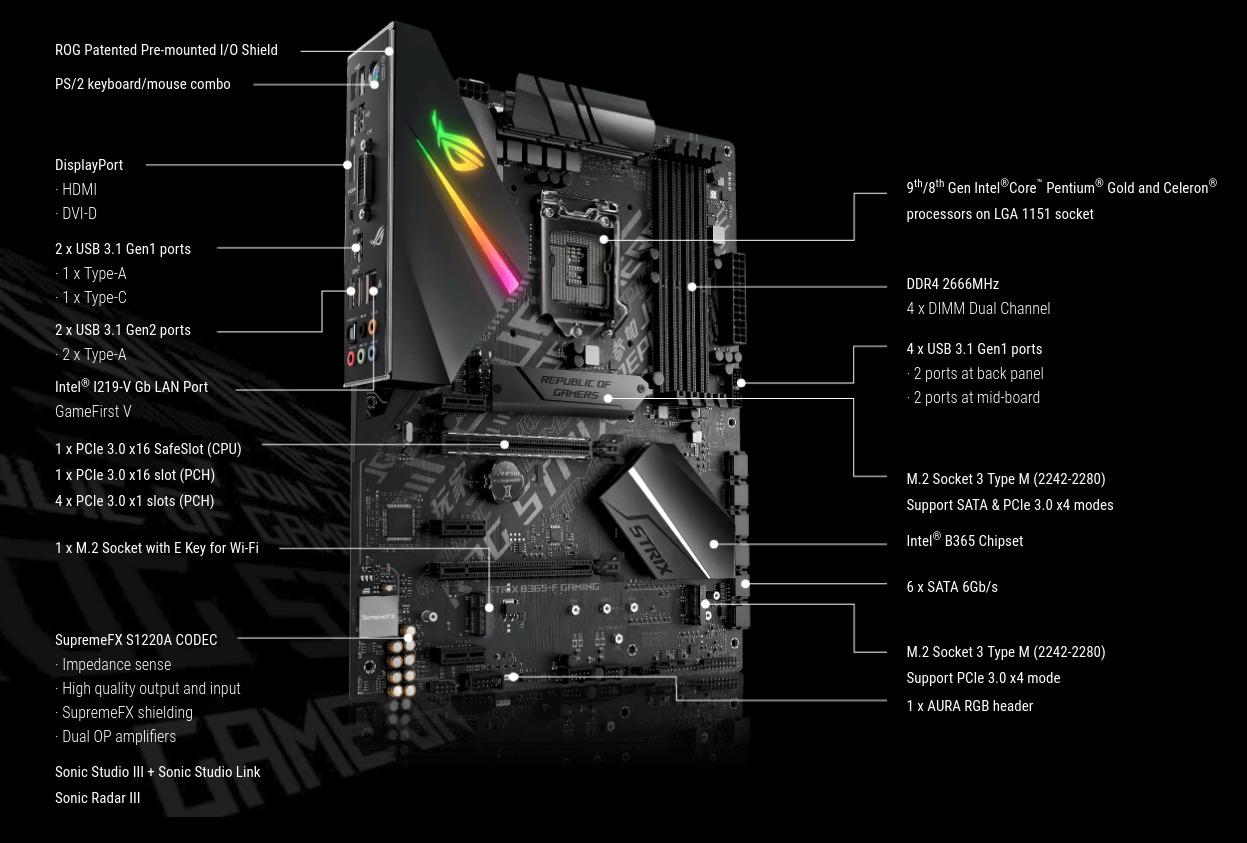

Дънна платка Asus ROG STRIX B365-F GAMING, B365, LGA1151, DDR4, PCI-Е (HDMI&DP&DVI)(CFX), 6x SATA 6Gb/s, 2x M.2, USB 3.1 Gen 2, ATX

Intel LGA-1151 B365 ATX gaming motherboard with Aura Sync RGB, pre-mounted I/O shield, dual M.2, DisplayPort, HDMI, DVI, SATA 6 Gbps and USB 3.1 Gen 2

• LGA1151 socket: Ready for 9th/8th Gen Intel® Core™ desktop processors.

• Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including RGB strips.

• Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance.

• On-board M.2 heatsink: Cools M.2 drive to deliver consistent storage performance and enhanced reliability.

• Advanced cooling: Automated system-wide tuning and cooling profiles that are tailor-made for your rig.

• Gaming audio: SupremeFX S1220A teamed with Sonic Studio III creates immersive aural landscapes.

• Gaming connectivity: Dual M.2, USB 3.1 Gen 2 Type-A connectors, DisplayPort, HDMI and DVI.

• Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst for smoother, safer and lag-free online play.

​

CPU
Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset
Intel® B365

Memory
4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

Graphic
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1

Multi-GPU Support
Supports AMD 2-Way CrossFireX Technology

Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (x4 mode) *2
3 x PCIe 3.0/2.0 x1 *3

Storage
Intel® B365 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*4
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready

LAN
Intel® I219V, 1 x Gigabit LAN Controller(s)
Anti-surge LANGuard
ROG GameFirst Technology

Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *6
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link

USB Ports
Intel® B365 Chipset :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, red)
Intel® B365 Chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 1 x Type-A+1 x Type-C)
Intel® B365 Chipset :
8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)

ROG Exclusive Features
ROG CPU-Z
Pre-mounted I/O Shield
Overwolf
ROG Aura
- Aura Lighting Control
- Aura RGB Strip Headers
ROG Exclusive Software
- RAMCache III
- GameFirst V

Special Features
Fan Xpert4
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- SafeSlot
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Exclusive Features :
- AI Suite 3
- Armoury Crate
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics :
- 3D printing friendly
- AURA-RGB Lighting
Digi+VRM

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (red)Type-A,
2 x USB 3.1 Gen 1 (black) Type-A + USB Type-CTM
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)

Internal I/O Ports
1 x AAFP connector
1 x Aura RGB Strip Header(s)
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
6 x SATA 6Gb/s connector(s)
1 x M.2_FAN connector
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
1 x COM port header

Accessories
User's manual
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x Strix door hanger
1 x CABLE TIE BLACK
1 x ROG Strix stickers
1 x Extension Cable for RGB strips (80 cm)

BIOS
1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1,
ACPI 6.1

Manageability
WOL,PXE

Operating System
Windows® 10 64-bit

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
