Дънна платка Asus Prime Z690-P D4-CSM, Z690, LGA1700, DDR4, PCI-e 5.0 (DP&HDMI), 4x SATA 6Gb/s, 3x M.2, 1x USB 3.2 Gen 2x2, ATX

Name: Дънна платка Asus Prime Z690-P D4-CSM, Z690, LGA1700, DDR4, PCI-e 5.0 (DP&HDMI), 4x SATA 6Gb/s, 3x M.2, 1x USB 3.2 Gen 2x2, ATX
Brand: Asus
SKU: MBIASUS90MB18P0M0EAYC
Availability: OutOfStock

id 234915 Код: MBIASUS90MB18P0M0EAYC

0.00 от 0 ревюта

Добави ревю | Задай въпрос

Модел: Prime Z690-P D4-CSM
Марка: Asus
Гаранция: 36 месеца
Код на продукта: 90MB18P0-M0EAYC
Процесор сокет: LGA 1700
Чипсет: Z690
Брой слотове за RAM памет: 4
Storage интерфейси: SATA 6Gbit/s, M.2
Видео изход: DP HDMI
Форм фактор: ATX
Наличност: Стар продукт

Продукта вече не се предлага Виж подобни предложения Абонирай се за бюлетина

Печат

Открита грешка/Запитване

Изпрати на приятел

Сравни

Описание Характеристики Ревюта / Въпроси

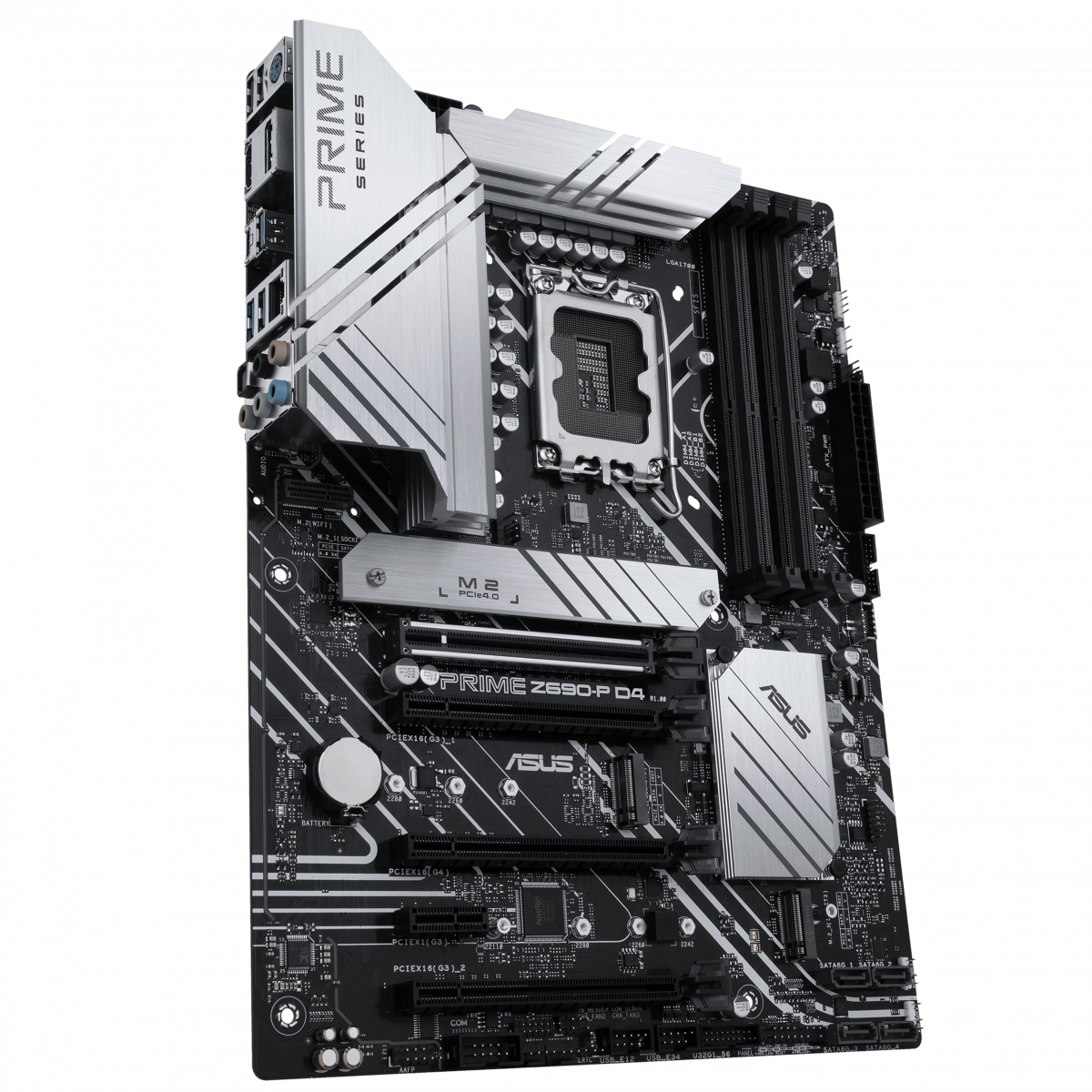

Asus Prime Z690-P D4-CSM

FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Aura Sync

Outshine the Competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

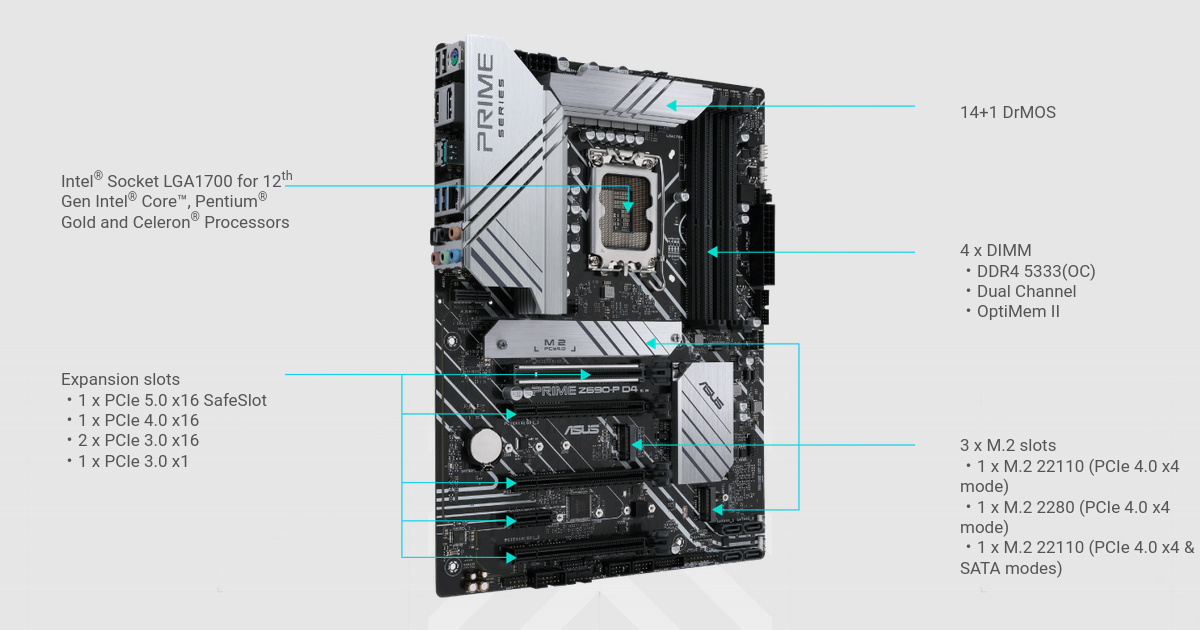

Specifications:

CPU

Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**

Chipset

Z690

Memory

4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel^® Extreme Memory Profile (XMP)
OptiMem II

Graphics

1 x DisplayPort**
1 x HDMI^® Port***

Expansion Slots

Intel^® 12^th Gen Processors
1 x PCIe 5.0/4.0/3.0 x16 slot
Intel^® Z690 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot

Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel^® 12^th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel^®12^th Gen processors support PCIe 4.0 x4 mode.
Intel^® Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel^® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel^® Rapid Storage Technology supports Intel^® Optane Memory H Series on PCH attached M.2 slots

Wireless & Bluetooth

V-M.2 slot only (Key E, CNVi & PCIe)*

* Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.

USB

Rear USB (Total 6 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)

1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 9 ports)

1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports*
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI^® port
1 x V-M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt™ header

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers

BIOS

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Operating System

Windows® 11 64-bit, Windows® 10 64-bit

Виж още Дънни платки за Intel процесори Asus
Виж всички Дънни платки за Intel процесори в категорията

Технически характеристики

Процесор сокет:	LGA 1700
Чипсет:	Z690
Поддържана памет:	DDR4
Брой слотове за RAM памет:	4
Storage интерфейси:	SATA 6Gbit/s, M.2
RAID:	Да
Безжични мрежи:	Не
Bluetooth:	Не
Видео слот:	PCI-E
Multi-Graphics технология:	Няма
Видео изход:	DP HDMI
Форм фактор:	ATX
