- Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
- Comprehensive cooling: PCH heatsink
- Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
- 5X Protection III: Multiple hardware safeguards for all-round protection

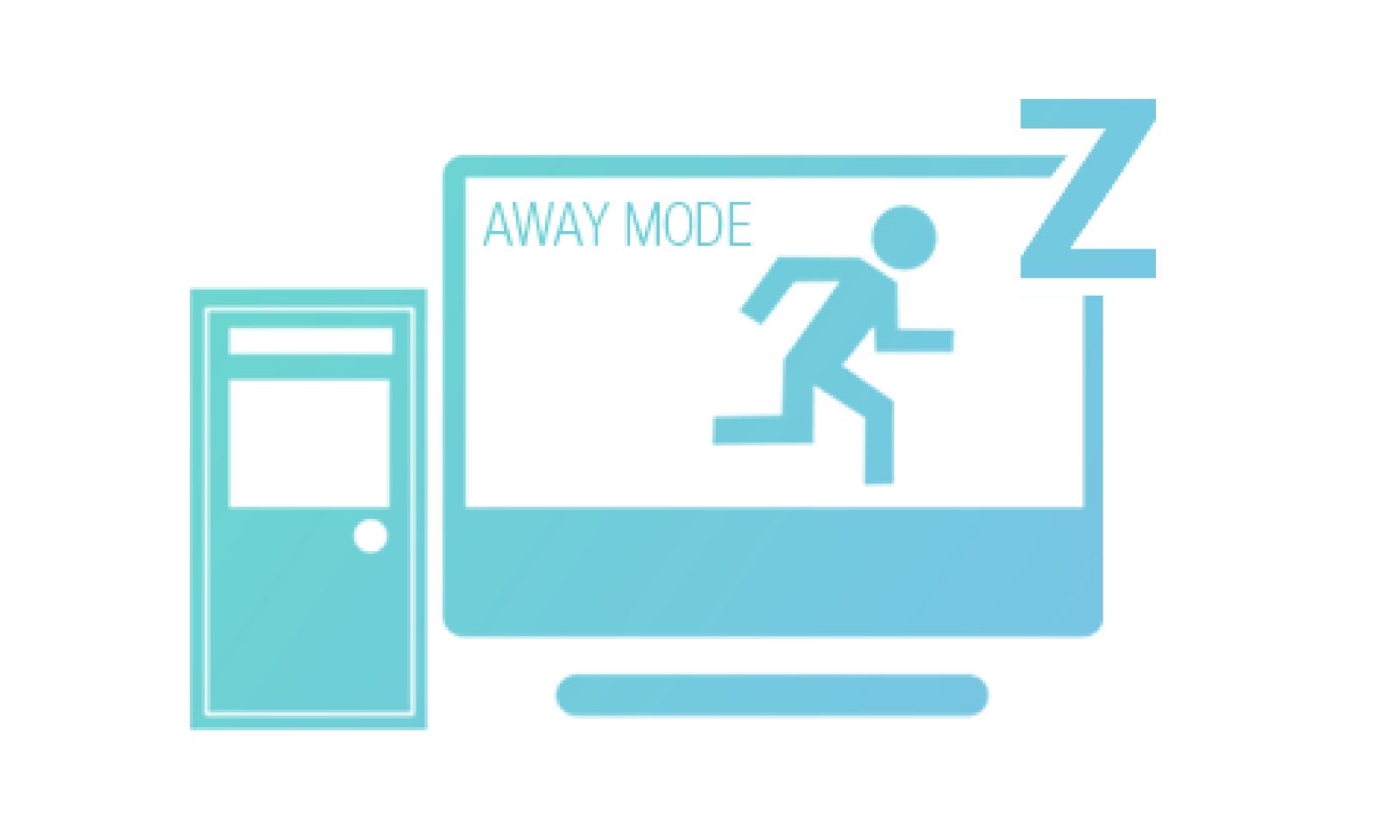

All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers

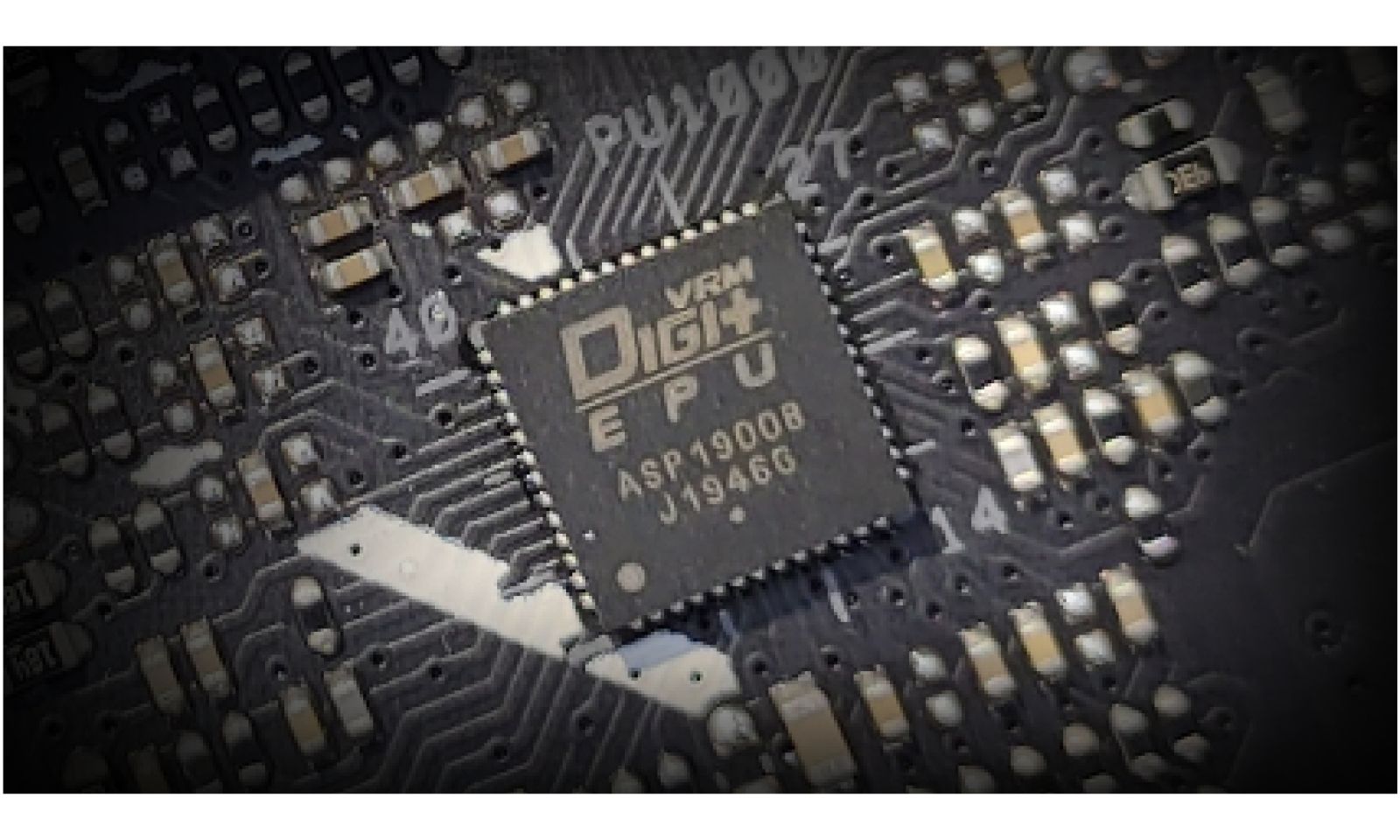

Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
* Specifications vary by models.

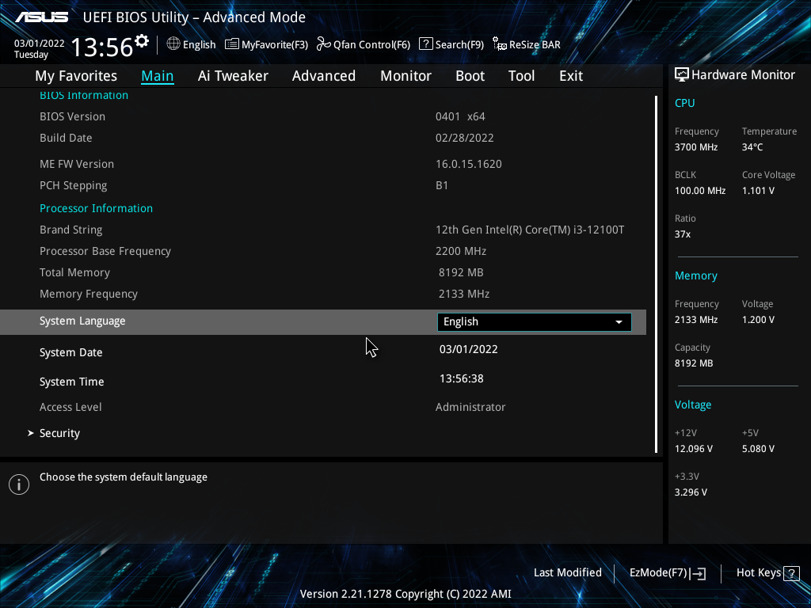

Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Storage

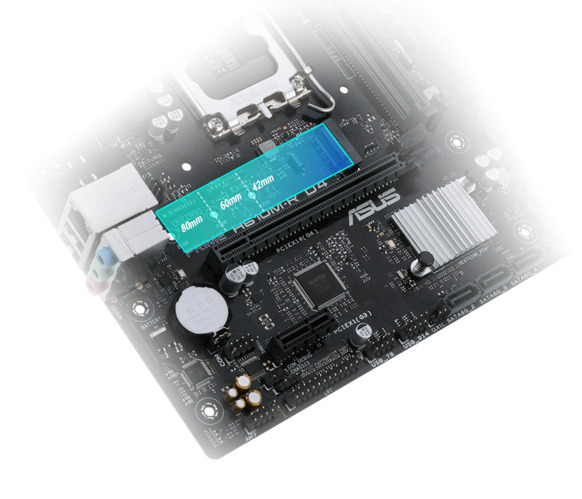

M.2 slot (up to 32 Gbps)
Prime H610M-R D4 offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.

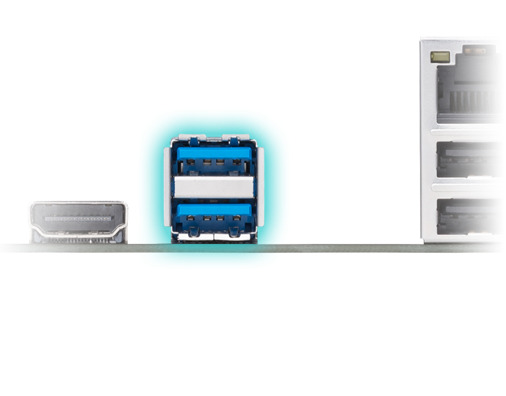

USB 3.2 Gen 1 Type-A
Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.

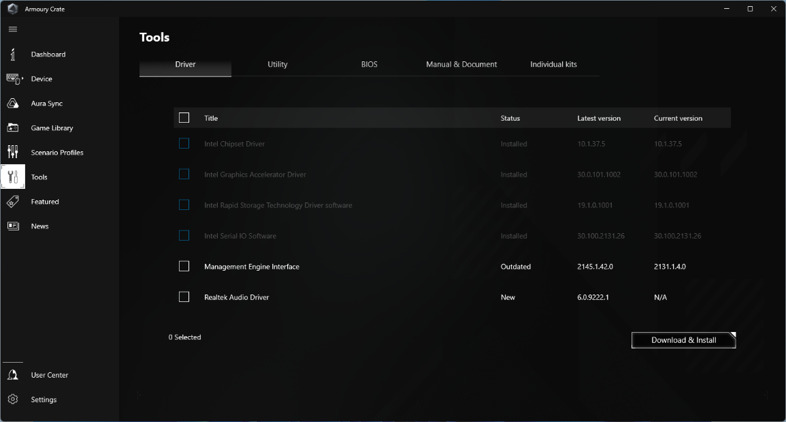

Armoury Crate
Armoury Crate is a new software utility designed to give you centralized control of supported products, from a single intuitive interface. Armoury Crate provides control of settings for ASUS products, including keyboard and mouse preferences. This software even features dedicated product registration and highlight to help you stay in touch with the ASUS community.

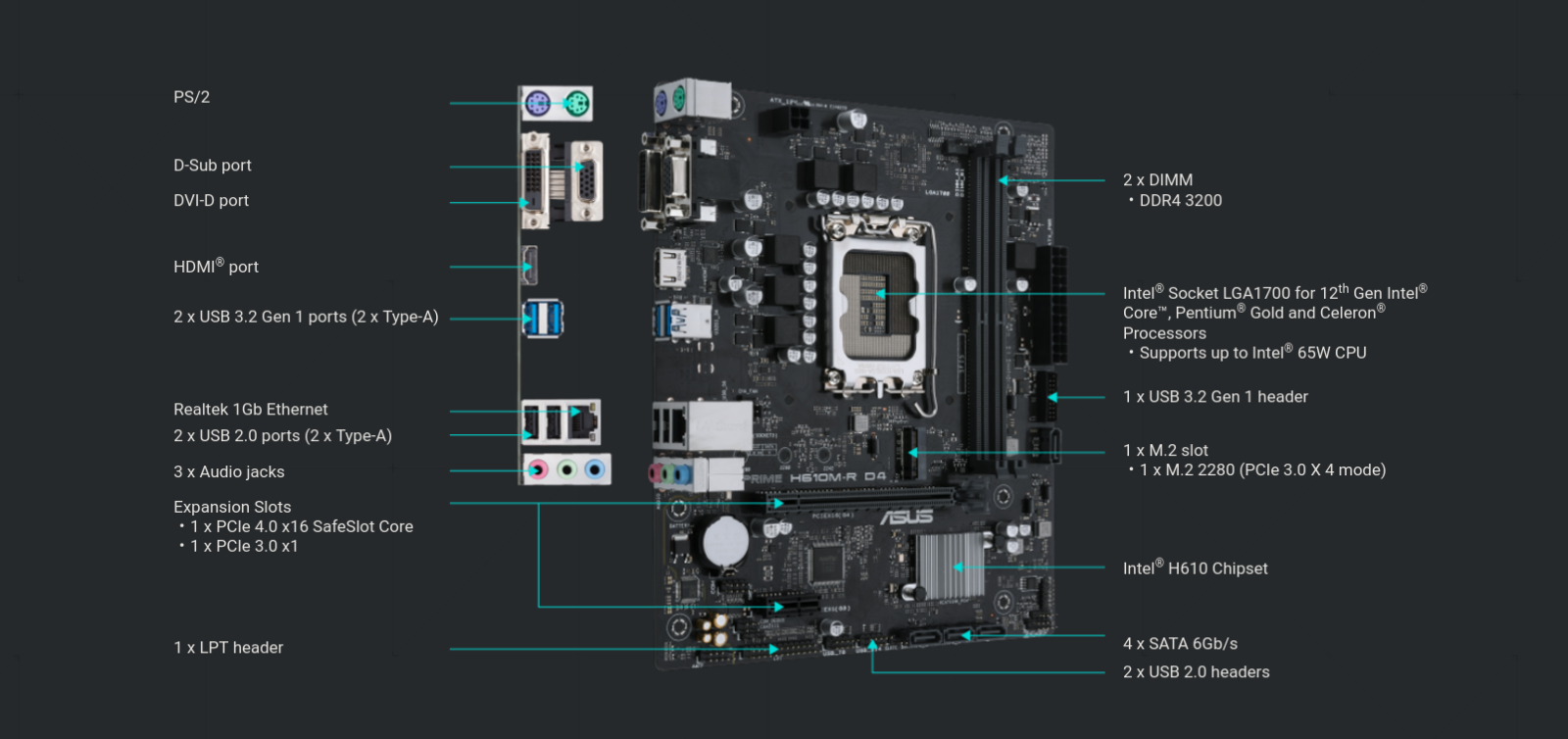

Specifications:
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports up to Intel® 65W CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
*Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
1 x D-Sub
1 x DVI-D
1 x HDMI® port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.
Intel® 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel® H610 Chipset
1 x PCIe 3.0 x1 slotTotal supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports
1 x Realtek 1Gb Ethernet
Rear USB (Total 4 ports)
Front USB (Total 6 ports)
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x D-Sub port
1 x DVI-D port
1 x HDMI® port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
128 Mb Flash ROM, UEFI AMI BIOS
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 ANCHOR
Installation Media
1 x Support DVD
Documentation
1 x User guide
mATX Form Factor
8.9 inch x 7.6 inch (22.6 cm x 19.3 cm )
Виж още Дънни платки за Intel процесори Asus
Виж всички Дънни платки за Intel процесори в категорията
| Процесор сокет: | LGA 1700 |
|---|---|
| Чипсет: | H610 |
| Поддържана памет: | DDR4 |
| Брой слотове за RAM памет: | 2 |
| Storage интерфейси: | SATA 6Gbit/s, M.2 |
| RAID: | Не |
| Безжични мрежи: | Не |
| Bluetooth: | Не |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | HDMI DVI VGA (D-Sub) |
| Форм фактор: | Micro ATX |
