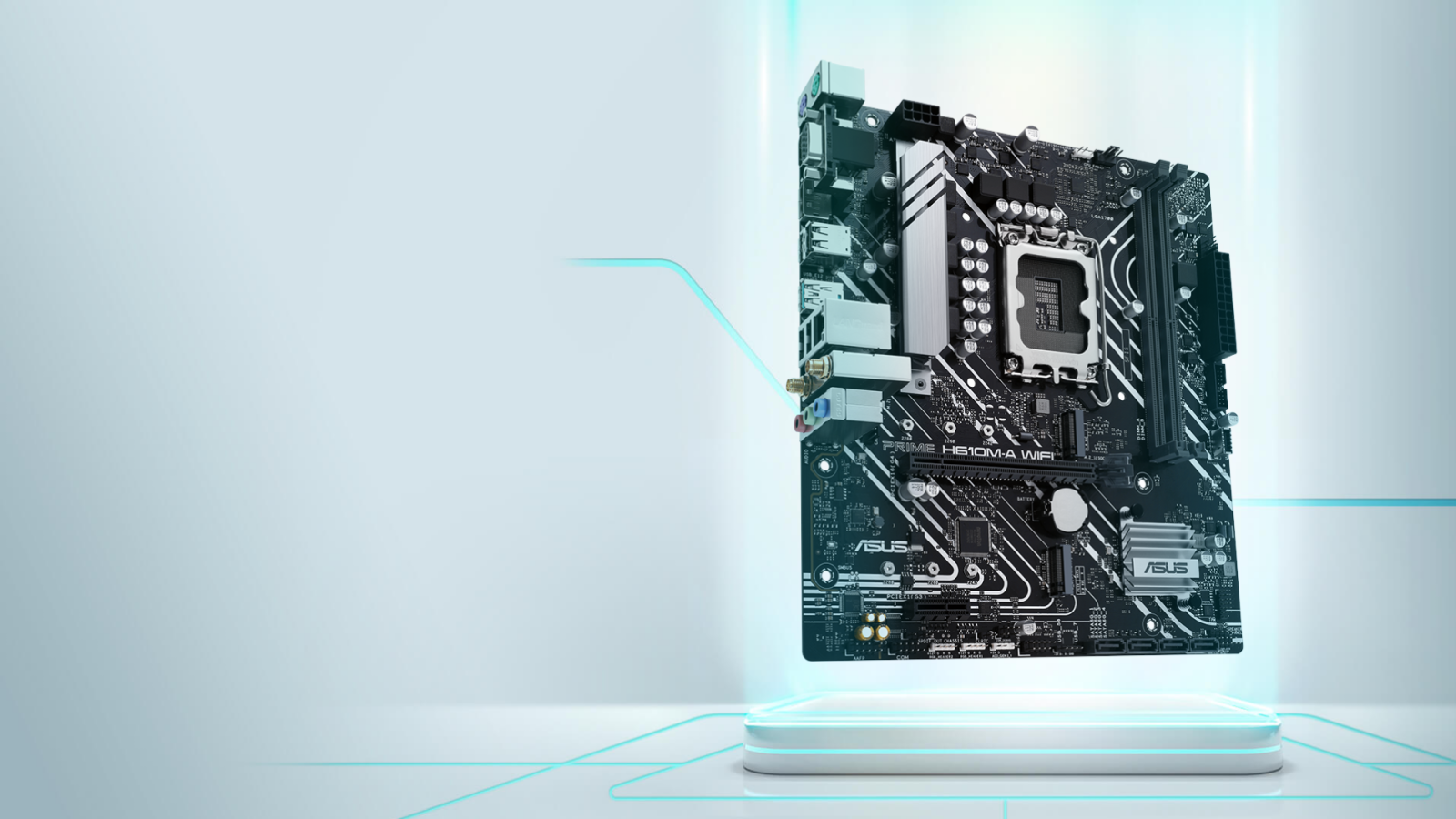

Asus PRIME H610M-A WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

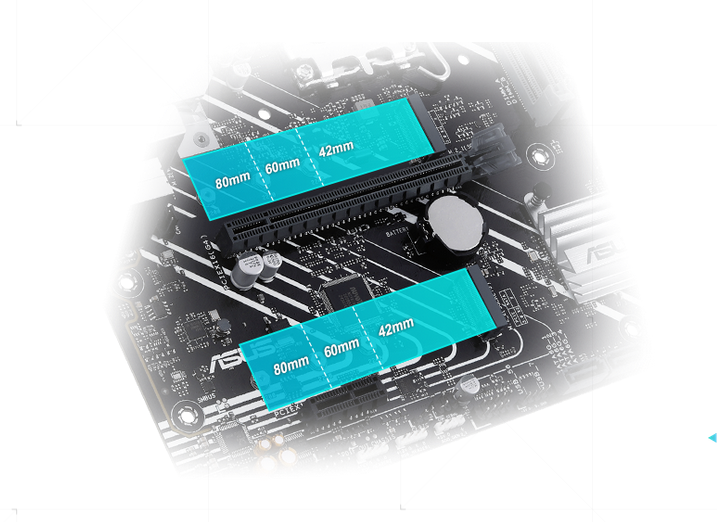

Storage Dual M.2 slots (up to 32 Gbps)
PRIME H610M-A WIFI offers two M.2 slots that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives. | |

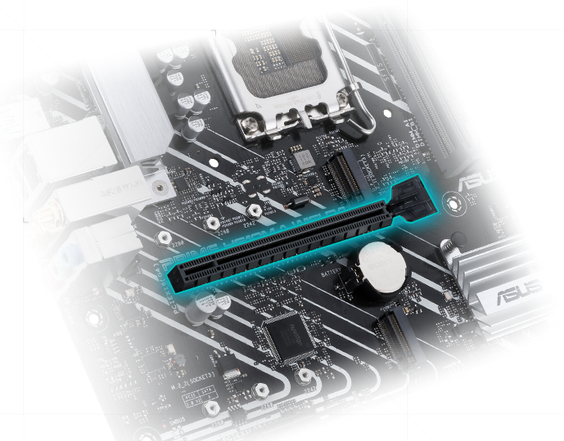

PCIe 4.0
Prime H610 motherboards are designed specifically for 13th & 12th Generation Intel Core CPUs and offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly. | |

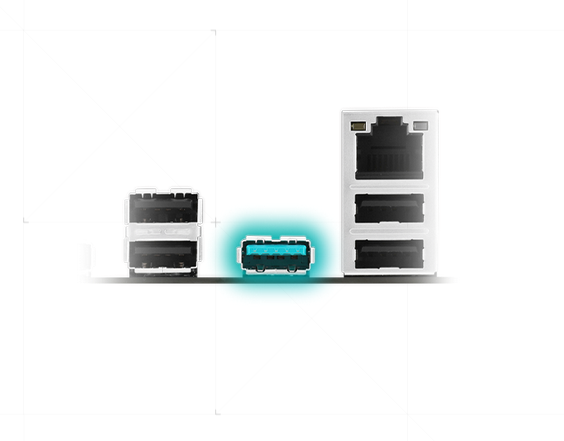

USB 3.2 Gen 2 ports Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A ports with fast USB 3.2 Gen 2 for transmission speeds of up to 10 Gbps. | |

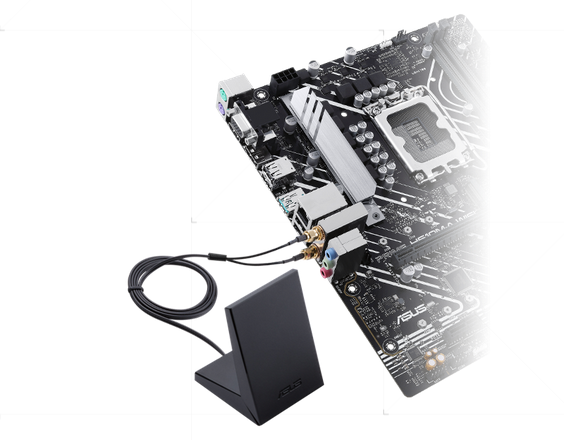

Wi-Fi 5 PRIME H610M-A WIFI has 802.11ac Wi-Fi with 1x1 2.4/5GHz antennas for up to 433.3Mbps transfer speeds to ensure that every connected user experiences the best wireless and online speeds! |
Tech specs:
CPU
Intel Socket LGA1700 for 13th Gen Intel® Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel H610 Chipset
Memory
2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.
*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort**
1 x VGA port
1 x HDMITM port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel H610 Chipset
1 x PCIe 3.0 x1 slot
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Intel 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 5
Wi-Fi 5 (802.11 a/b/g/n/ac)
Supports 2.4/5GHz frequency band
Bluetooth v5.0*
*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 5 ports)
1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C)
1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 1 USB 2.0 port
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

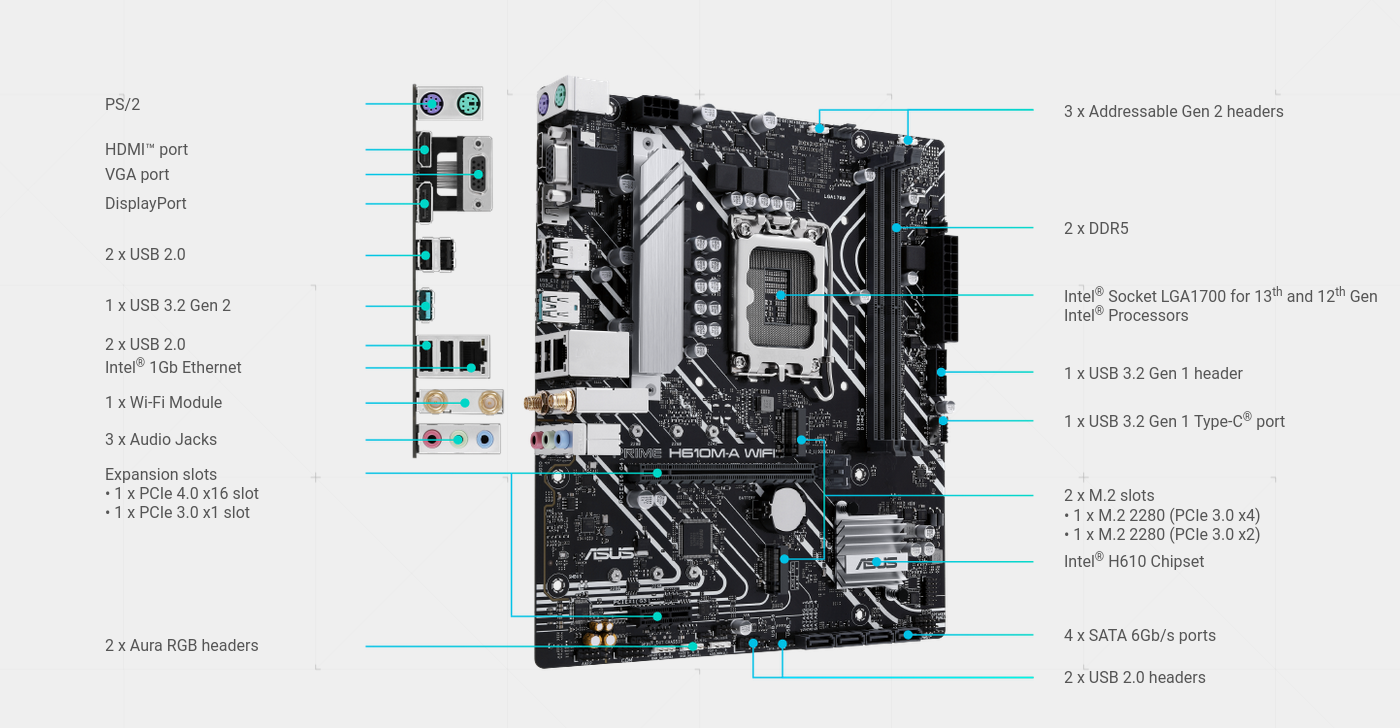

Back Panel I/O Ports
1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMITM port
1 x Wi-Fi Module
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 1 USB 2.0 port
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Operating System
Windows 11 64-bit, Windows® 10 64-bit
Form Factor
mATX Form Factor
24.4 cm x 21.6 cm
