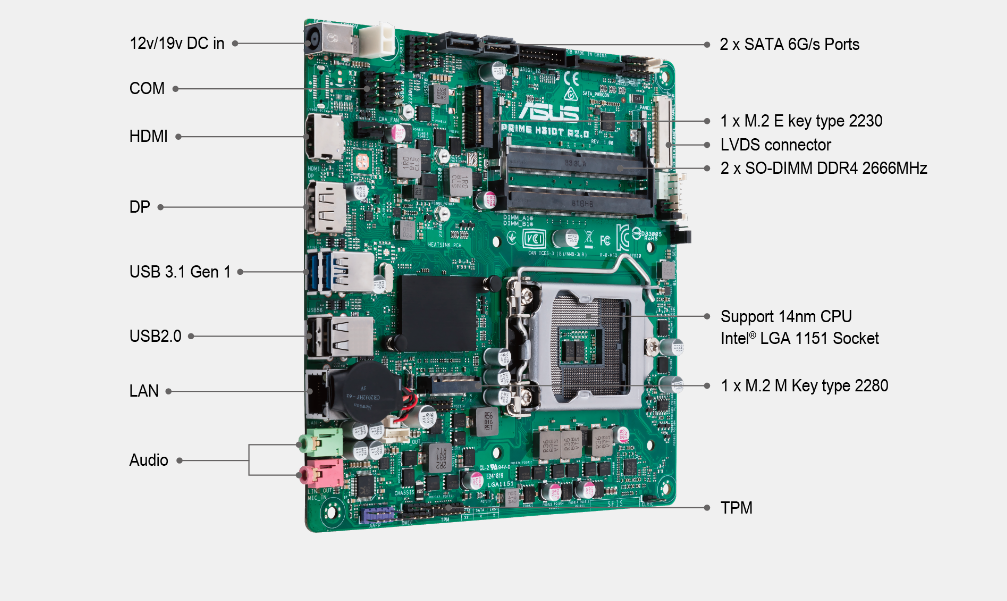

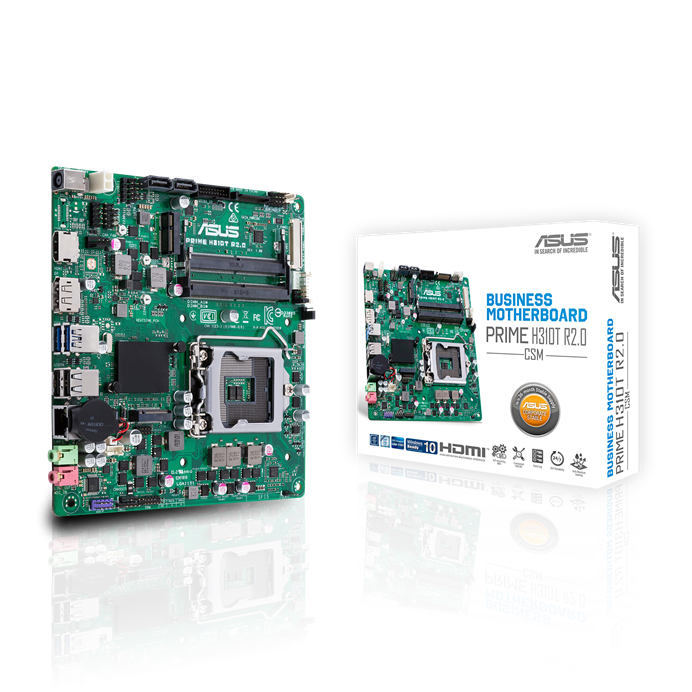

Дънна платка Asus PRIME H310T R2.0/CSM, H310, LGA1151, DDR4 SO-DIMM, DP/HDMI, 2x SATA 6Gb/s, 1x M.2, 2x USB 3.1 Gen 1, Thin Mini-ITX

Intel® for 9th / 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
Supports CPU up to 65 W
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Intel® H310

2 x SO-DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/LVDS/DisplayPort   ports
- Supports HDMI with max. resolution 4096  x 2160  @ 24 Hz / 2560  x 1600  @ 60 Hz
- Supports LVDS with max. resolution 1920  x 1200  @ 60  Hz
- Supports DisplayPort with max. resolution 4096  x 2304  @ 60  Hz
Maximum shared memory of 1024  MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 2  displays simultaneously

1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT devices support PCIE/USB mode

Intel® H310 Chipset :
1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)
2 x SATA 6Gb/s port(s)

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Realtek® ALC887 8-Channel High Definition Audio CODEC *1
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

Intel® H310 Chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® H310 Chipset :
4 x USB 2.0 port(s) (2 at back panel, black, 2 at mid-board)
GL852G USB Hub :
3 x USB 2.0 port(s) (Type-A, 3 at mid-board)

Bespoke Motherboard Design & Business Focused Features :
- Overcurrent Protection: Short circuit prevention, protects your system
- ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen
- ASUS Event Log: Record activities of system and provides information in BIOS
- ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design
- Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard
- 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment
Easy Assembly Design:
- Fixed-position&Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line
- Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage
Digi+VRM

Windows® 10

1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 (blue)
2 x USB 2.0
2 x Audio jack(s)
1 x DC power connector(s)

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT devices support PCIE/USB mode
1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA & PCIE x2 mode)
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
1 x SATA power connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)
1 x 2-pin internal DC power connector
1 x Stereo speaker connector
1 x DMIC header
1 x Backlight inverter voltage selection header
1 x FPD brightness header
1 x Panel voltage selection header
1 x Panel off header
1 x LVDS connector(s)
1 x 14-1 pin TPM connector
1 x System panel connector
1 x Speaker connector

User´s manual
I/O Shield
Thin Mini ITX I/O Shield
1 x SATA power cable
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ErP Ready, ASUS Self- Recovering BIOS, ASUS Event log, ASUS Commercial Kit

WfM 2.0, DMI 2.0, WOL by PME

Drivers
ASUS Utilities
ASUS Watch dog timer
ASUS Commercial BIOS Kits
Anti-virus software (OEM version)

Thin Mini ITX Form Factor
6.7  inch x 6.7  inch ( 17  cm x 17  cm )

*1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
*2: Use with amplified speaker is suggested.
