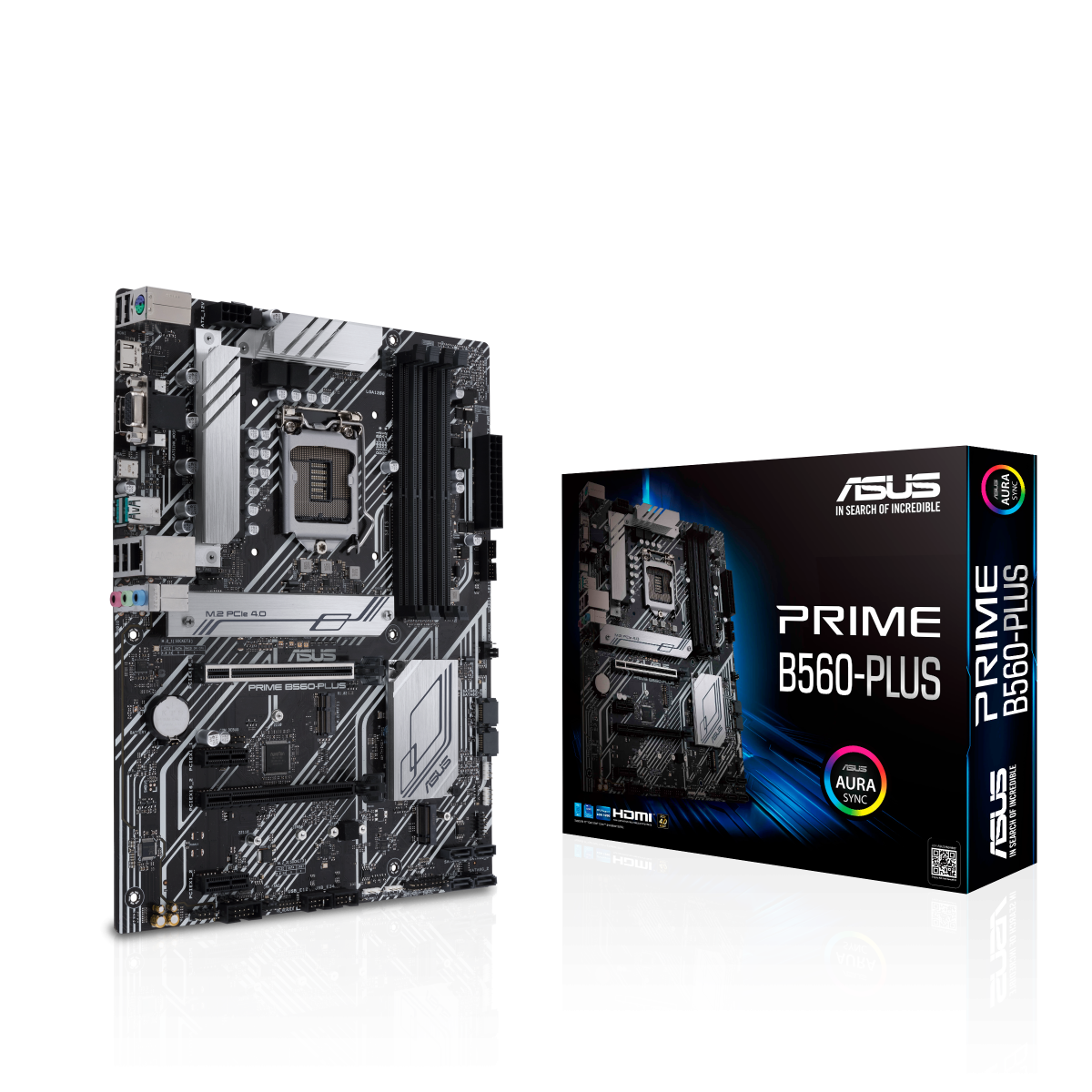

Дънна платка Asus PRIME B560-PLUS, B560, LGA1200, DDR4, PCI-E 4.0 (DP/HDMI/VGA), 6x SATA 6Gb/s, 2x M.2, 2x USB 3.2 Gen 2, ATX

Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel® B560 Chipset

4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory*

Dual channel memory architecture

Supports Intel® Extreme Memory Profile (XMP)

ASUS OptiMem

* 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.

* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz.

Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

1 x DisplayPort 1.4
1 x D-Sub
1 x HDMI 1.4/2.0***

*Graphics specifications may vary between CPU types.

** For Intel® 11th & 10th processors, support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

***Only Intel® 11th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

Intel® 11th &10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot*

- Intel® 11th processors support PCIe 4.0 x16

- Intel®10th processors support PCIe 3.0 x16

Intel® B560 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)*

2 x PCIe 3.0 x1 slots

*Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.

Intel® 11th Gen Processors

- M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x 4 )

- Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel® B560 Chipset

- M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes)

- 6 x SATA 6Gb/s ports

When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.

1 x Intel® I219-V 1Gb Ethernet

ASUS LANGuard

M.2 slot only (Key E, CNVi & PCIe)

Rear USB:Total 7 ports

2 x USB 3.2 Gen 2 ports (2 x Type-A)

1 x USB 3.2 Gen 1 port (1 x USB Type-C®)

4 x USB 2.0 ports

Front USB:Total 6 ports

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports



- Supports up to 24-Bit/192kHz playback

Audio Features

- Audio Shielding

- Premium Japanese audio capacitors

- Dedicated audio PCB layers

*A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.

1 x DP port

1 x HDMI port

1 x D-Sub port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

1 x Intel® I219-V 1Gb Ethernet port

4 x USB 2.0 ports (4 x Type-A)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

1x USB 3.2 Gen 1 port (1 x USB Type-C®)

Fan and cooling-related

1 x 4-pin CPU Fan header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS jumper

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF out header

1 x 20-3pin System Panel header with Chassis intrude function

1 x SPI TPM header (14-1 pin)

1 x Thunderbolt 4 header

ASUS 5X PROTECTION III

- ASUS DIGI+VRM

- ASUS LANGuard

- ASUS Overvoltage Protection

- ASUS SafeSlot Core+

- ASUS Stainless-Steel Back I/O

ASUS Q-Design:

- ASUS Q-DIMM

- ASUS Q-Slot

ASUS Thermal Solution

- Flexible M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- Box Headers

AURA SYNC

- AURA RGB headers

- Addressable Gen 2 RGB headers

ASUS Exclusive Software:

Armoury Crate

- AURA Creator

-AURA Sync

AI Suite 3

-Performance And Power Saving Utility

Turbo EVO

Digi+ VRM

EPU

Fan Xpert 2+

- EZ update

ASUS CPU-Z

DAEMON Tools

Norton Anti-virus software(Free Trial for 60 days)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

128 Mb Flash ROM, UEFI AMI BIOS

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x M.2 Rubber Package

1 x IO Shield

1 x M.2 SSD screw package

1 x M.2 Key E screw package

Installation Media

1 x Supporting DVD

Documentation

1 x User's manual

Windows® 10 64-bit

ATX
30.5cm x 23.4cm
