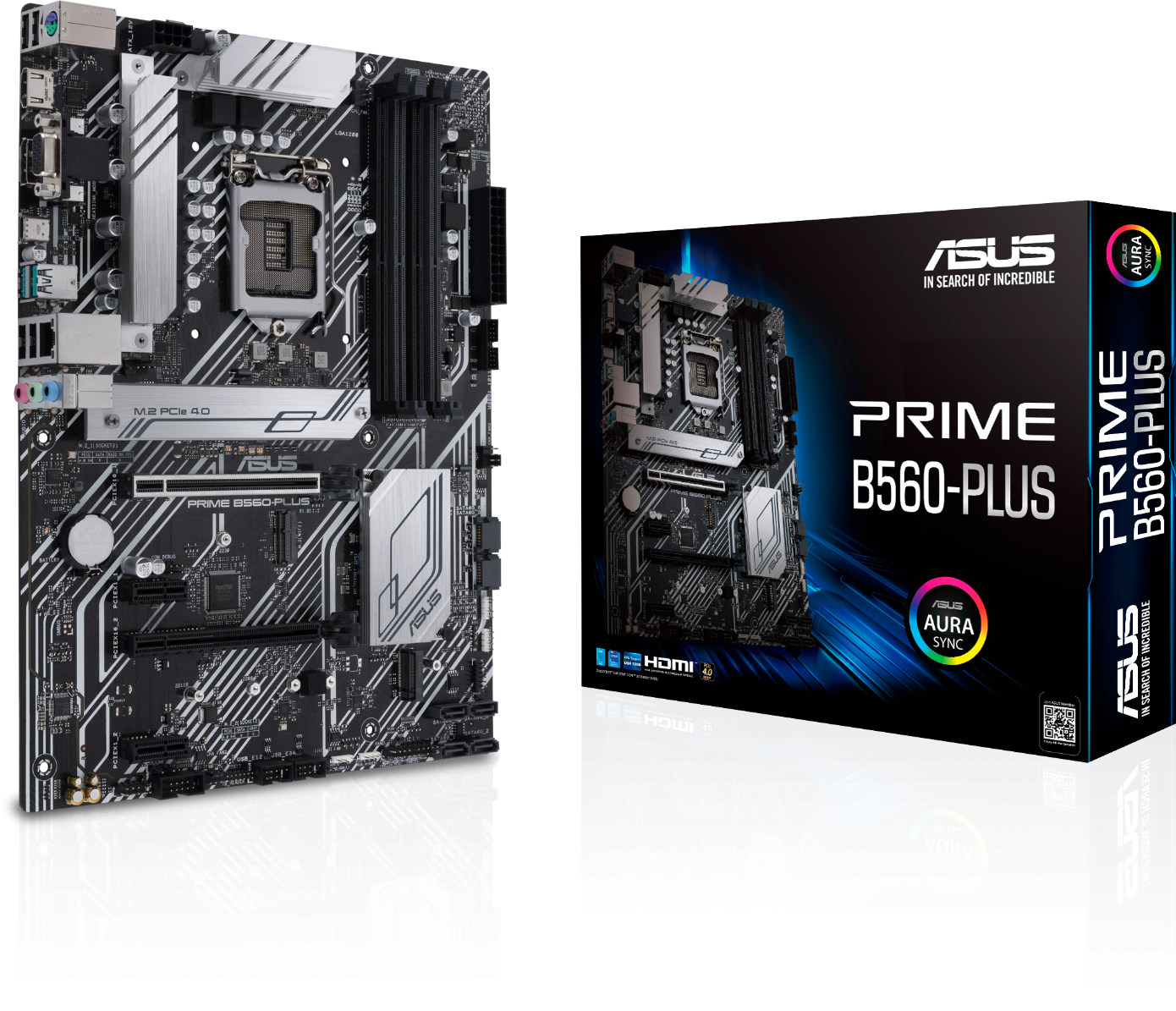

Дъна платка ASUS PRIME B560-PLUS, B560, LGA1200, DDDR4, PCIe 4.0, (DP&HDMI&VGI), 6x SATA 6Gb/s, 2x M.2, 2x USB 3.2 Gen Type-A, ATX

Дънна платка ASUS PRIME B560-PLUS, LGA 1200, ATX, Aura Sync RGB

Intel® B560 (LGA 1200) ATX motherboard with PCIe® 4.0, two M.2 slots, 8 power stages, Intel® 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type-C®, rear USB 3.2 Gen 2, Thunderbolt™ 4 header support, Aura Sync, and Aura Sync RGB lighting

    Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™ processors
    Comprehensive cooling: VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
    ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
    Ultrafast connectivity: PCIe 4.0, Intel® 1 Gb Ethernet, rear USB 3.2 Gen 1 Type-C® and Thunderbolt™ 4 header support
    5X Protection III: Multiple hardware safeguards for all-round protection.

Технически харектеристики

 CPU

Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*

Chipset:   B560

Memory:

4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory*

Dual channel memory architecture

Supports Intel® Extreme Memory Profile (XMP)

ASUS OptiMem

11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.

 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz.

Graphics:

 Graphics specifications may vary between CPU types.

 For Intel® 11th & 10th processors, support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

Expansion Slots:

1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)

Intel® 11th &10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot*

- Intel® 11th processors support PCIe 4.0 x16

- Intel®10th processors support PCIe 3.0 x16

1 x PCIe 3.0 x16 slot (supports x4 mode)*

2 x PCIe 3.0 x1 slots

Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.

Storage:

Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel® 11th Gen Processors

M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x 4 )

Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes)

6 x SATA 6Gb/s ports

When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.

Ethernet:

1 x Intel® 1Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth:

M.2 slot only (Key E, CNVi & PCIe)

USB:

Rear USB:Total 7 ports

2 x USB 3.2 Gen 2 ports (2 x Type-A)

1 x USB 3.2 Gen 1 port (1 x USB Type-C®)

4 x USB 2.0 ports

Front USB:Total 6 ports

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio:

Realtek ALC897 7.1-Channel High Definition Audio CODEC*

Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192kHz playback

Audio Features

- Audio Shielding

- Premium Japanese audio capacitors

- Dedicated audio PCB layers

*A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.

Back Panel I/O Ports:

1 x DP port

1 x HDMI port

1 x D-Sub port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

1 x Intel® I219-V 1Gb Ethernet port

4 x USB 2.0 ports (4 x Type-A)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

1x USB 3.2 Gen 1 port (1 x USB Type-C®)

Internal I/O Connectors:

Fan and cooling-related

1 x 4-pin CPU Fan header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS jumper

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF out header

1 x 20-3pin System Panel header with Chassis intrude function

1 x SPI TPM header (14-1 pin)
1 x M.2 slot (key E)
1 x Thunderbolt 4 header

Special Features:

ASUS 5X PROTECTION III

- ASUS DIGI+VRM

- ASUS LANGuard

- ASUS Overvoltage Protection

- ASUS SafeSlot Core+

- ASUS Stainless-Steel Back I/O

ASUS Q-Design:

- ASUS Q-DIMM

- ASUS Q-Slot

ASUS Thermal Solution

- Flexible M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- Box Headers

AURA SYNC

- AURA RGB headers

- Addressable Gen 2 RGB headers

BIOS:

128 Mb Flash ROM, UEFI AMI BIOS

Manageability:

WOL by PME, PXE

Operating System

Windows 10 64bit

Form Factor

ATX
30.5cm x 23.4cm
