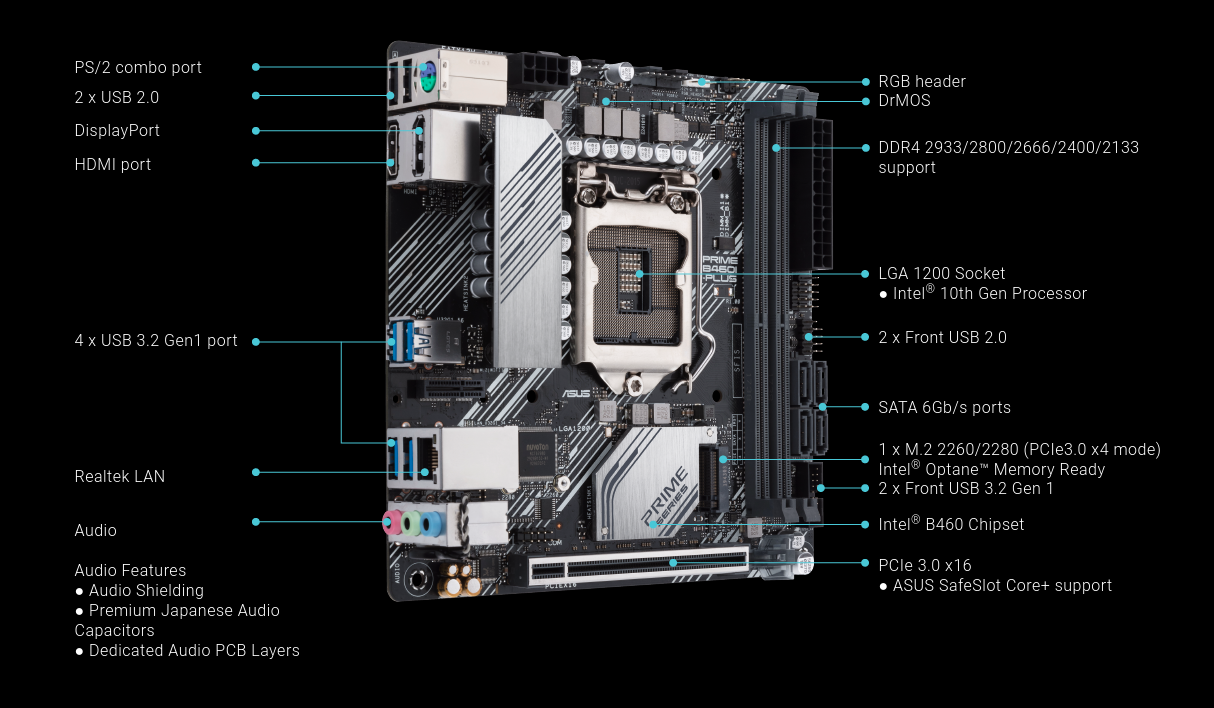

Intel® B460 (LGA 1200) Mini-ITX motherboard with Aura Sync RGB header, M.2, DDR4 2933MHz, HDMI, DisplayPort, USB 3.2 Gen 1 ports, Intel® Optane memory ready, SATA 6 Gbps
- Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
- Enhanced power solution: 6+1+1 DrMOS power stages, 8-layer PCB, for stable power delivery
- ASUS OptiMem II: Careful routing of traces and vias to preserve signal integrity for improved memory stability.
- Fan Xpert 4: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.
- 5X Protection III: Multiple hardware safeguards for all-round protection.
- Ready for Ultrafast Connectivity: Vertical M.2 Key E slot with ASUS exclusive Wi-Fi card holder ready for Wi-Fi module.
- Aura Sync RGB: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips
Specifications:
CPU
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B460
Memory
Intel® B460 Chipset
2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated Graphics Processor- Intel® UHD Graphics support
1 x DisplayPort 1.4
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
1 x DisplayPort 1.4
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Expansion Slots
16-Lane CPU-
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (x16 mode)
Storage
Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® B460 Chipset :
1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode)
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready
Intel® B460 Chipset :
1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode)
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready
LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard
Wireless Data Network
M.2 slot only (Key E) (Support PCIe interface)*
*Wi-Fi module is sold separately.
*Wi-Fi module is sold separately.
Audio
Realtek® ALC887 7.1-Channel High Definition Audio CODEC *
- Supports : Jack-detection, up to 24-Bit/192kHz playback
Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
- Supports : Jack-detection, up to 24-Bit/192kHz playback
Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports
Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 4 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
2 x USB 2.0 port(s)
4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 4 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
2 x USB 2.0 port(s)
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 4
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Armoury Crate
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 4
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-Connector
- ASUS Q-DIMM
- ASUS Q-Slot
AURA Sync
- Aura RGB header(s)
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-Connector
- ASUS Q-DIMM
- ASUS Q-Slot
AURA Sync
- Aura RGB header(s)
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
1 x Aura RGB Strip Header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3
1 x M.2 with E key for Wi-Fi module
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Speaker connector
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
1 x Aura RGB Strip Header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3
1 x M.2 with E key for Wi-Fi module
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Speaker connector
Accessories
User´s manual
1 x Vertical M.2 bracket set
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x Vertical M.2 bracket set
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Operating System
Windows® 10 64-bit
Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
Note
*NVME RAID is supported with M.2 and PCIe X16.PCIe x16´s device needs to use Intel brand.
Виж още Дънни платки за Intel процесори Asus
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
| Процесор сокет: | LGA 1200 |
|---|---|
| Чипсет: | B460 |
| Поддържана памет: | DDR4 |
| Брой слотове за RAM памет: | 2 |
| Storage интерфейси: | SATA 6Gbit/s, M.2 |
| RAID: | Не |
| Безжични мрежи: | Не |
| Bluetooth: | Не |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | DP HDMI |
| Форм фактор: | Mini ATX |
